Plan 51231MM

Craftsman Ranch with Vaulted Master, Split Bedrooms and 2 Porches

Heated S.F.
1,751
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 51231MM

Main Level
Main Level

Plan 51231MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

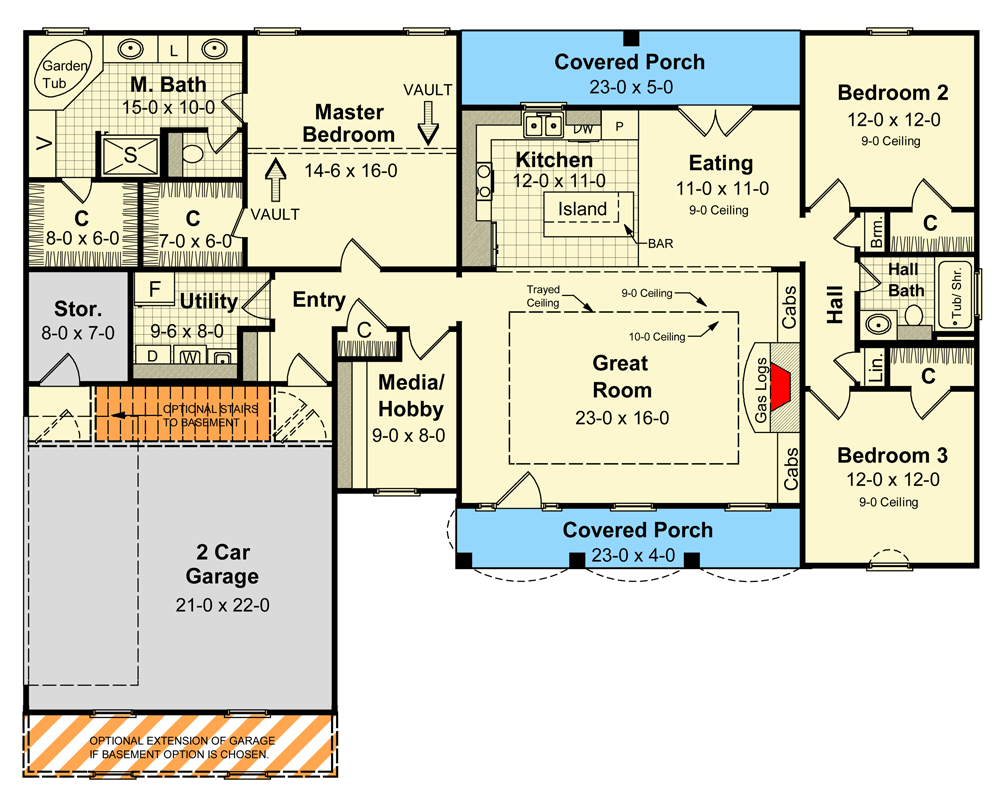

Plan 51231MM: Craftsman Ranch with Vaulted Master, Split Bedrooms and 2 Porches - Floor Plan - Main Level - Country, Ranch

Plan Details

  • This is a 3-bedroom, 2-bath country ranch house plan with a functional layout. The open-concept great room features a 10-foot ceiling, gas fireplace, and connects to the kitchen and dining area.
  • A media/hobby room near the entry adds flexibility. The vaulted master suite includes dual walk-in closets, a soaking tub, and separate shower.
  • Two additional bedrooms share a hall bath. Outdoor spaces include a wide front porch and a rear covered porch.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,751 sq. ft.

1st Floor

1,751 sq. ft.

Basement Unfinished

1,888 sq. ft.

Porch, Front

92 sq. ft.

Porch, Rear

113 sq. ft.

Storage

54 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

64' 0"

Depth

45' 10"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

460 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,751 sq. ft.

1st Floor

1,751 sq. ft.

Basement Unfinished

1,888 sq. ft.

Porch, Front

92 sq. ft.

Porch, Rear

113 sq. ft.

Storage

54 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

64' 0"

Depth

45' 10"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

460 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor
