Plan 83647CRW
EXCLUSIVE
Craftsman Ranch with Wraparound Porch and Detached Garage
Heated S.F.
1,482
Beds
3
Baths
2
Stories
1
Cars
2
What's Included
Plan Details
  • This Craftsman Ranch home plan prioritizes outdoor living with its extensive outdoor porch wrapping around 3 sides of the exterior.
  • Step inside and enjoy clear views all the way to the back of the home, with a central kitchen framed by a dining area and vaulted family room.
  • An island in the kitchen creates an easy flow for meal prep and a nearby exterior door leads to the side grilling porch.
  • Three bedrooms line the left side of the home, including the main bedroom tucked towards the rear. Glass sliders provide access to the back porch from the main bedroom and laundry is located next door.
  • A detached double garage (21'4" by 19'4") completes the design.
What's Included
  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)

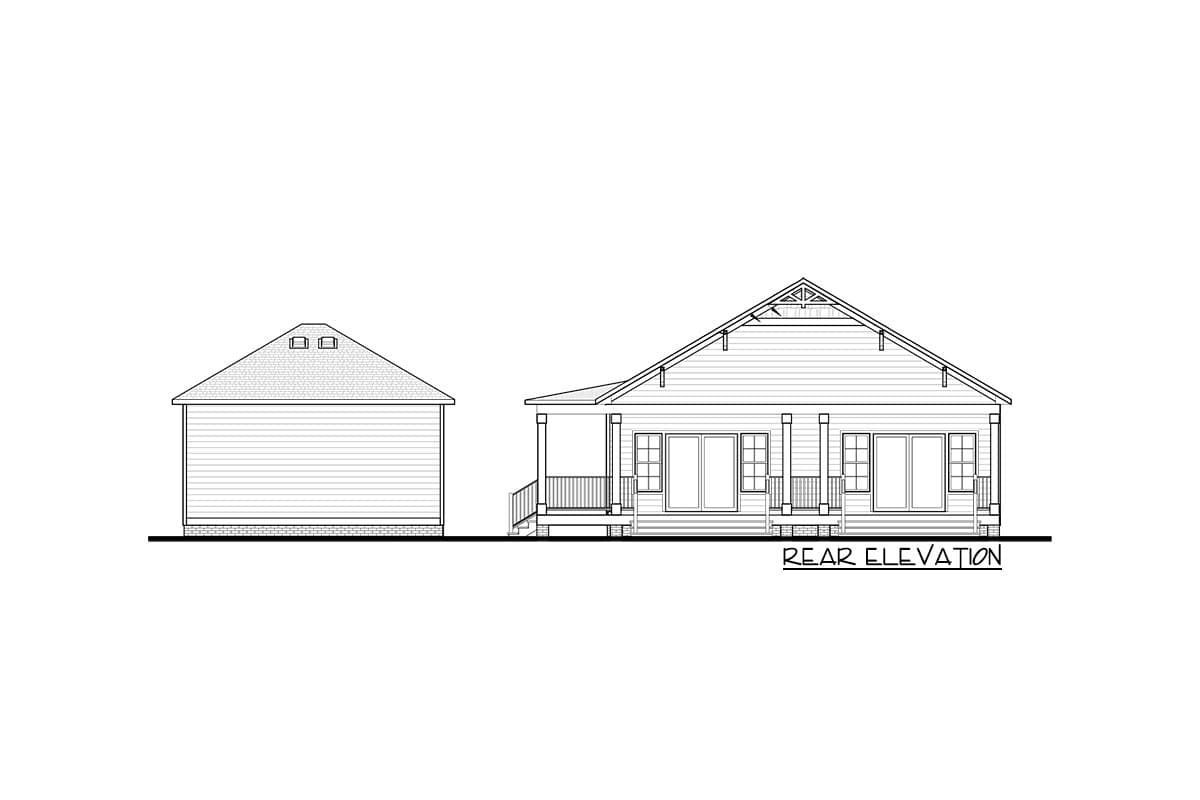

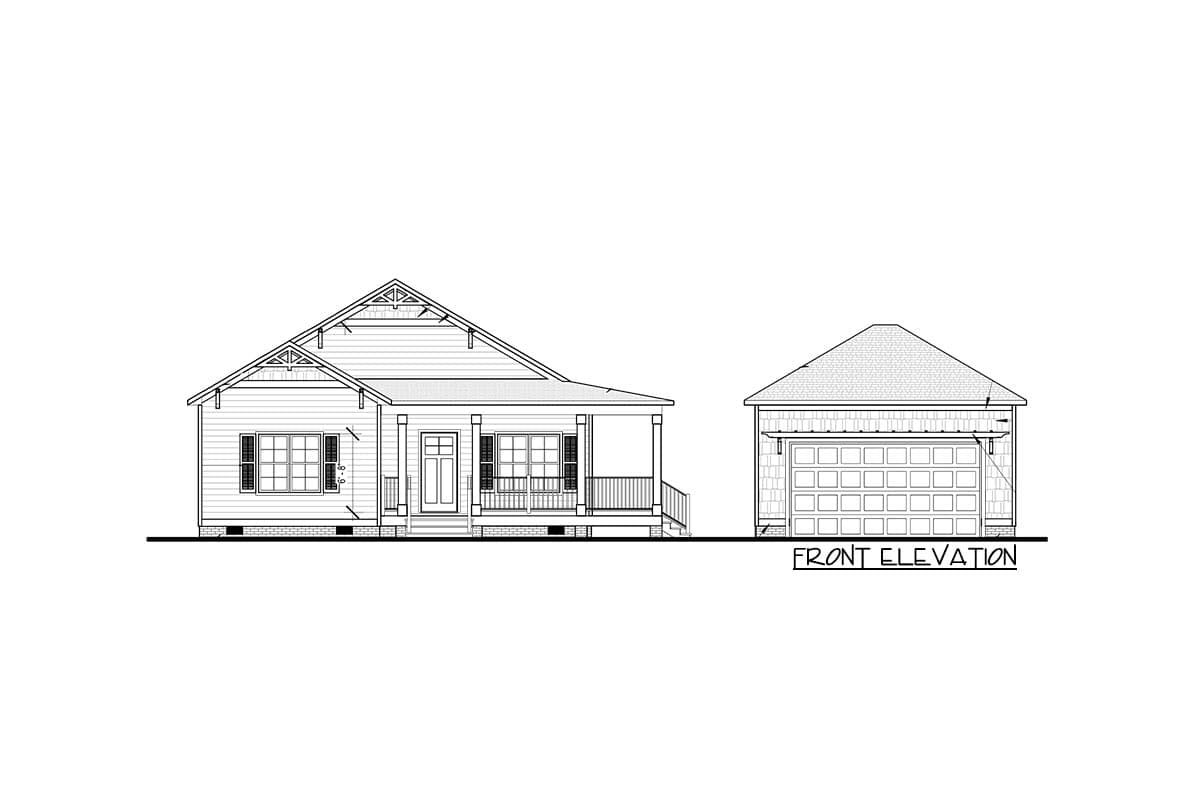

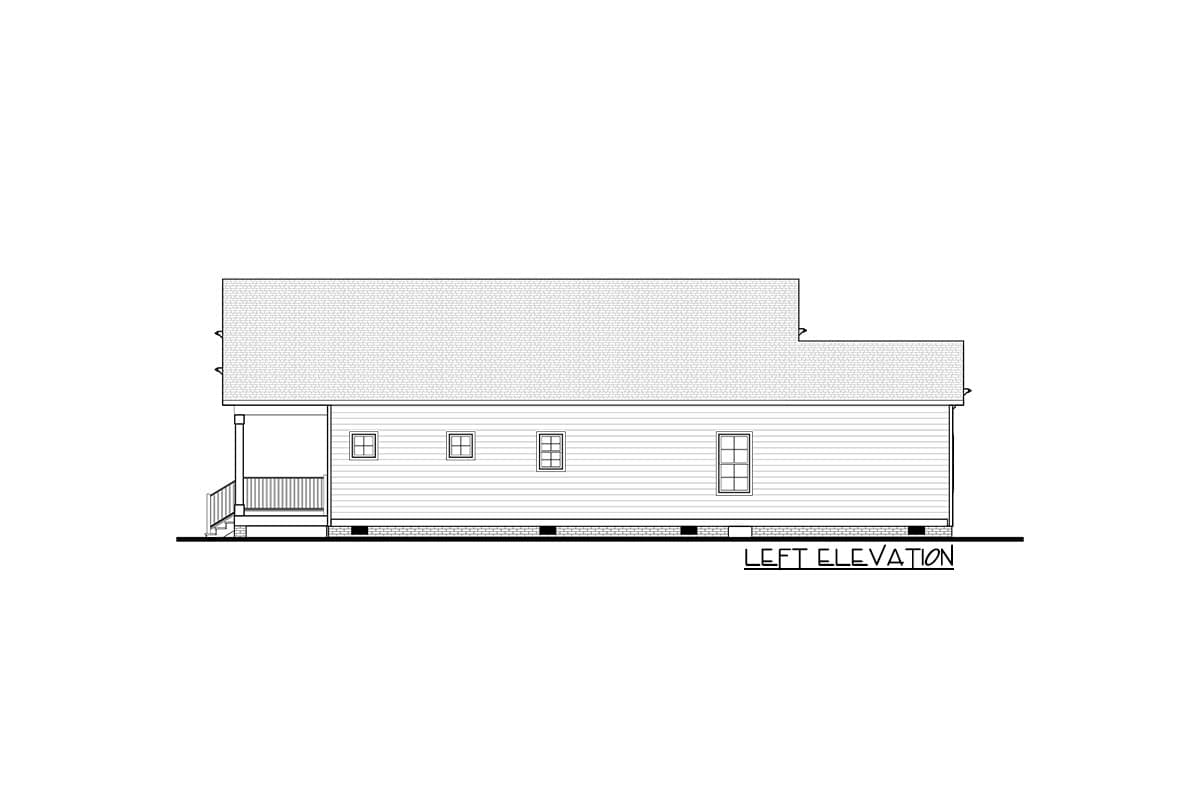

  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Ranch with Wraparound Porch and Detached Garage

  • 1,482

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

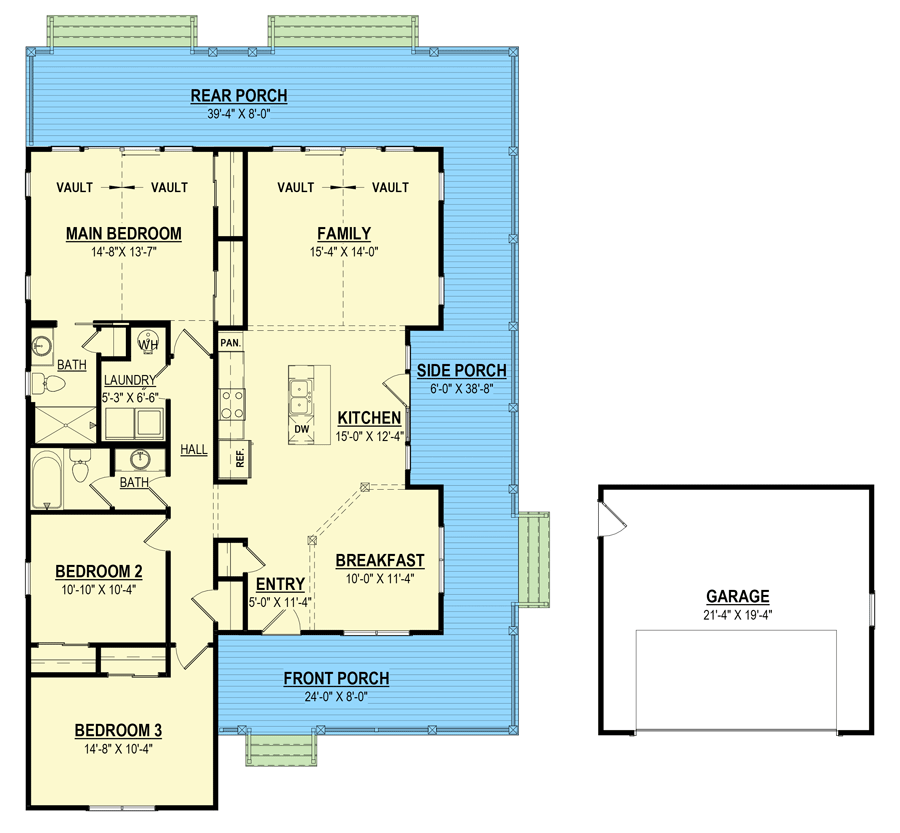

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,482 sq. ft.
  • 1st Floor: 1,482 sq. ft.
  • side/rear porch: 582 sq. ft.

Dimensions

  • Width: 69' 4"
  • Depth: 53' 0"
  • Max ridge height: 20' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Detached
  • Area: 440 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 2.5 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Craftsman Ranch with Wraparound Porch and Detached Garage

  • 1,482

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Craftsman Ranch with Wraparound Porch and Detached Garage

  • 1,482

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,482 sq. ft.
  • 1st Floor: 1,482 sq. ft.
  • side/rear porch: 582 sq. ft.

Dimensions

  • Width: 69' 4"
  • Depth: 53' 0"
  • Max ridge height: 20' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Detached
  • Area: 440 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 2.5 on 12
  • Framing Type: Truss

    Main Level
