Plan 59741ND

Craftsman Style Duplex House Plan with Asymmetrical Units

Heated S.F.
2,578
Units
2
Width
Depth

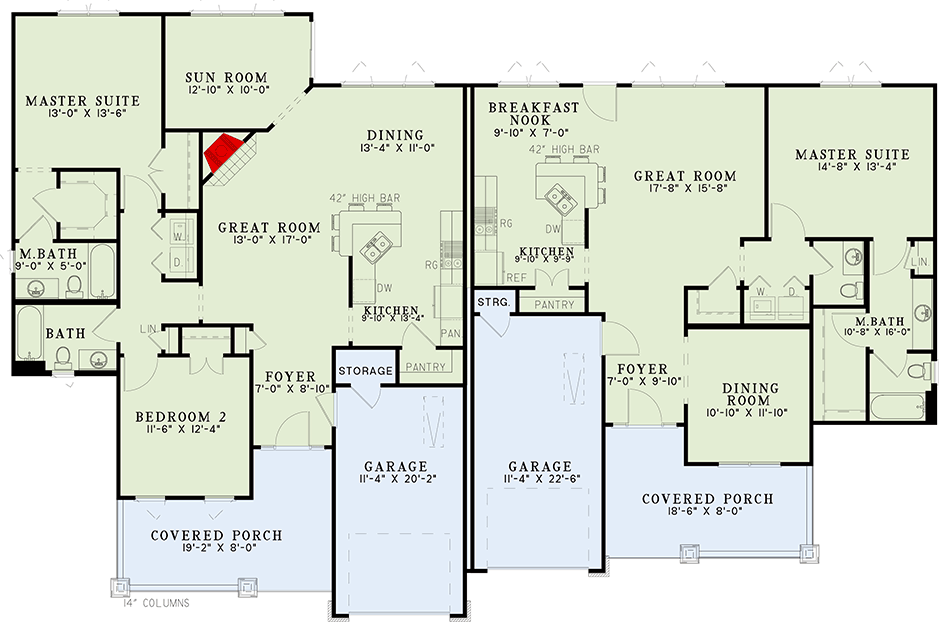

Floor Plan

Plan 59741ND

Main Level
Main Level

Plan 59741ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59741ND: Craftsman Style Duplex House Plan with Asymmetrical Units - Floor Plan - Main Level - Craftsman, Rustic

Plan Details

  • This Craftsman-style duplex house plan has a cozy front porch and offers numerous options-perfect for a vacation retreat. One of the living quarters has a master suite, a second bedroom and sun room while the other home has a large great room and formal dining room in place of the second bedroom.
  • The larger unit on the left delivers 1,398 square feet of heated living, a 262 square foot garage and a 206 square foot front porch.
  • The unit on the right gives you 1,180 square feet of heated living, a 280 square foot garage and 191 square feet of porch space.
  • These open floor plans have blended kitchen and breakfast areas with handy breakfast bars and plenty of kitchen storage.
  • The laundry area is conveniently located in the hall and near an additional bathroom.
  • Both master suites are privately placed at the rear of the home and have large walk-in closets and private bathrooms.
  • Individual unit specs:
  • Related Plan: Get an alternate exterior with house plan 59617ND.
Unit A
Heated Area
1,398Sq. Ft.
1398 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
262 Sq. Ft.
Dimensions
41' 4"width
53' 10"depth
27'height
Unfinished Areas
262 Sq. Ft. Garage
185 Sq. Ft. Porch, Combined
Unit B
Heated Area
1,180Sq. Ft.
1180 Sq. Ft. 1st
Beds
1Beds
Baths
1Full Bath
1Half Bath
Cars
Attached
262 Sq. Ft.
Dimensions
41' 4"width
53' 10"depth
27'height
Unfinished Areas
262 Sq. Ft. Garage

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,578 sq. ft.

1st Floor

2,578 sq. ft.

Porch, Combined

370 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 4"

Depth

53' 10"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

524 sq. ft.

Count

1 or 2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Rustic

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Sunroom

Square Footage Breakdown

Total Heated Area

2,578 sq. ft.

1st Floor

2,578 sq. ft.

Porch, Combined

370 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

82' 4"

Depth

53' 10"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

524 sq. ft.

Count

1 or 2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Rustic

Special Features

Bedrooms - Clustered

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Sunroom
