Plan 333018JHB
Craftsman-style Duplex Perfect For Your Infill Lot
Heated S.F.
4,081
Units
2
Width
46' 8"
Depth
96'
What's Included
Plan Details
  • This Craftsman-style duplex plan with wide roof overhangs fits on a 60' urban lot and is perfect for downsizing empty-nesters who want to live in half while the other half pays their mortgage. Using tankless water heaters and a compact footprint, it gets good marks for green building and energy efficiency.
  • Its attractive styling  fits in most existing neighborhoods without violating McMansion sensibilities all while looking and feeling like single family home with its widely separated entrance paths.
  • Unit A gives you 2,041 square feet (1,453 sq. ft. on the main floor and 588 sq. ft. on the upper floor) of living and Unit B gives you 2,040 square feet (1381 sq. ft. on the first floor and 659 sq. ft. on the upper floor).
  • Both units gives you a main floor master suite and large eat-in kitchens and open floor plans.
  • Unit A has an enclosed garage while Unit B has a carport that can easily be enclosed. Both have private courtyard areas in addition to rear yard.  Details such as exposed beams, built-in desks, niches and walk-in pantries and closets complete the picture
What's Included

  • Cover page with legends & notes
  • Foundation details
  • Floor plan(s) [depending on whether it’s 1 or 2 stories]
  • Dimension plan(s)
  • Front view
  • Right view
  • Left view

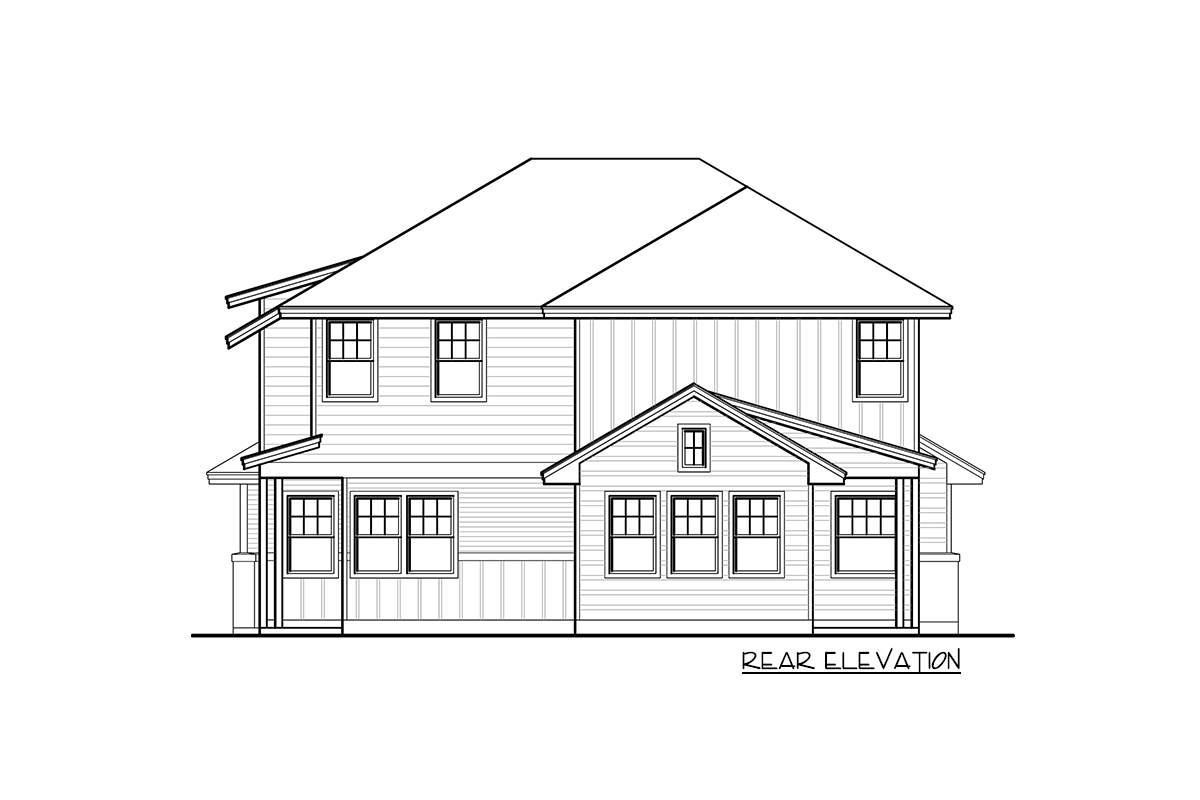

  • Rear view
  • Building section(s)
  • Wall section
  • Interior views
  • Electrical plan(s)
  • Roof layout plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman-style Duplex Perfect For Your Infill Lot

  • 4,081

    Heated s.f.

  • 2

    Units

  • 46' 8"

    Width

  • 96'

    Depth

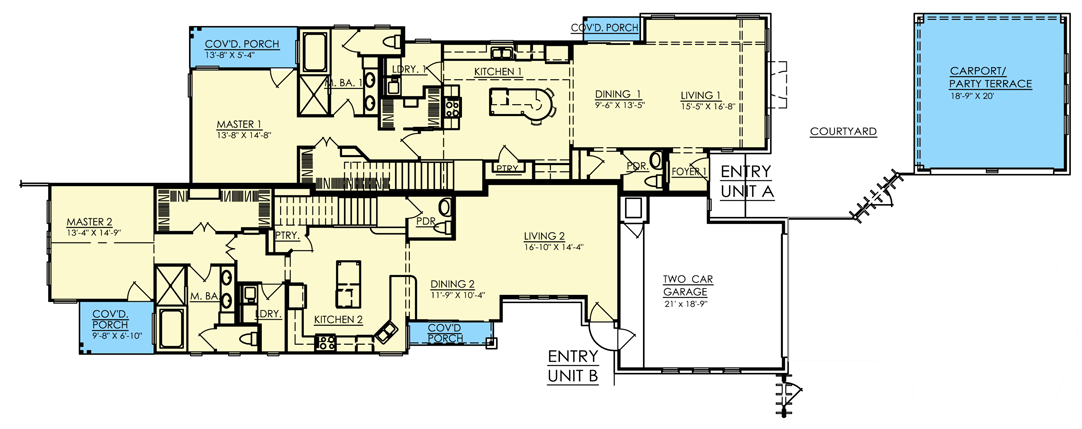

Floor Plan

  • Main Level

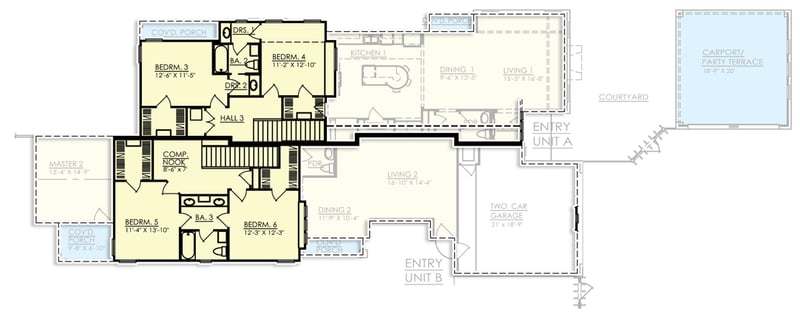

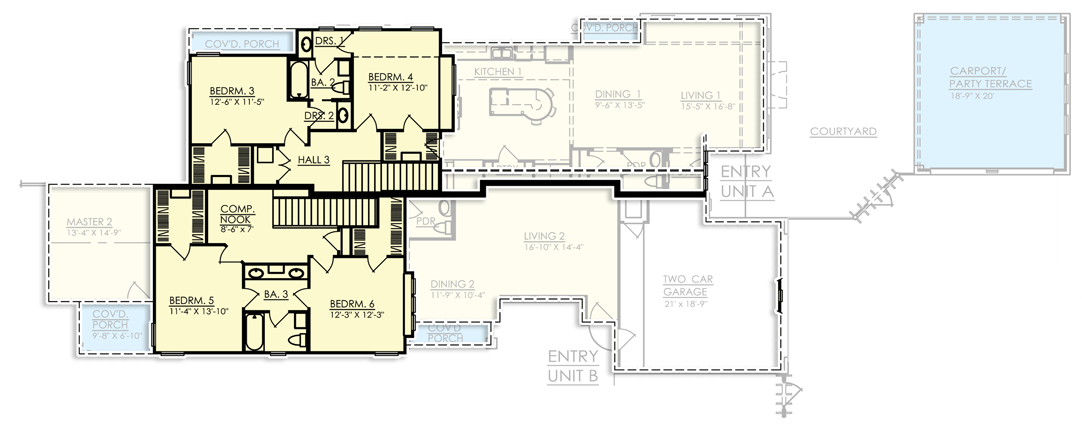

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,081 sq. ft.
  • 1st Floor: 2,834 sq. ft.
  • 2nd Floor: 1,247 sq. ft.

Dimensions

  • Width: 46' 8"
  • Depth: 96' 0"
  • Max ridge height: 29' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Carport

Foundation Type

    • Standard Foundations: Monolithic Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 3 1/2 on 12
  • Framing Type: Stick
