Plan 59768ND

Craftsman Style Home Plan Under 2300 Square Feet

Heated S.F.

2,266

Beds

3 - 4

Baths

2

Stories

1

Cars

2

Floor Plan

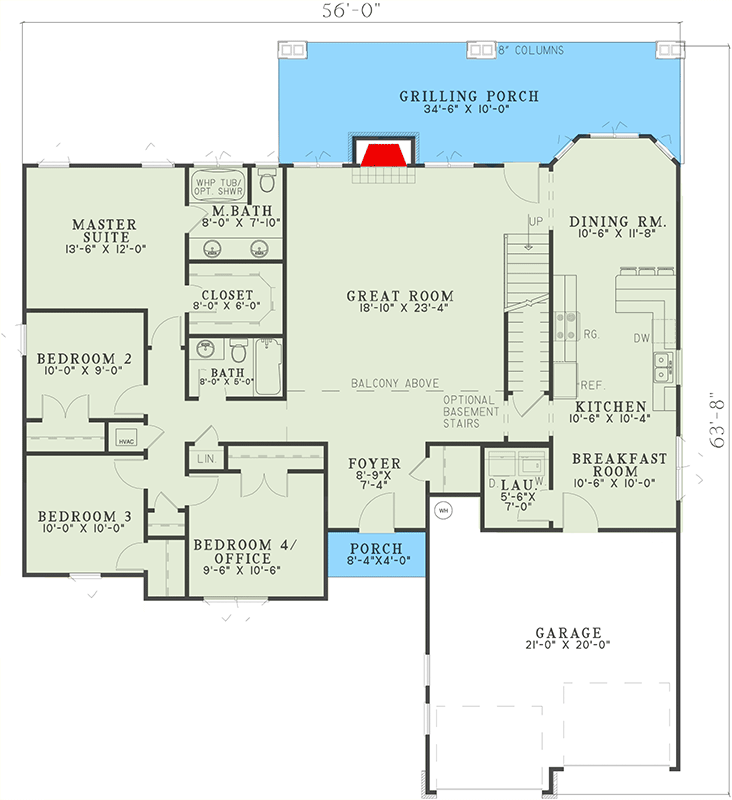

Main Level

floor plan image Main Level

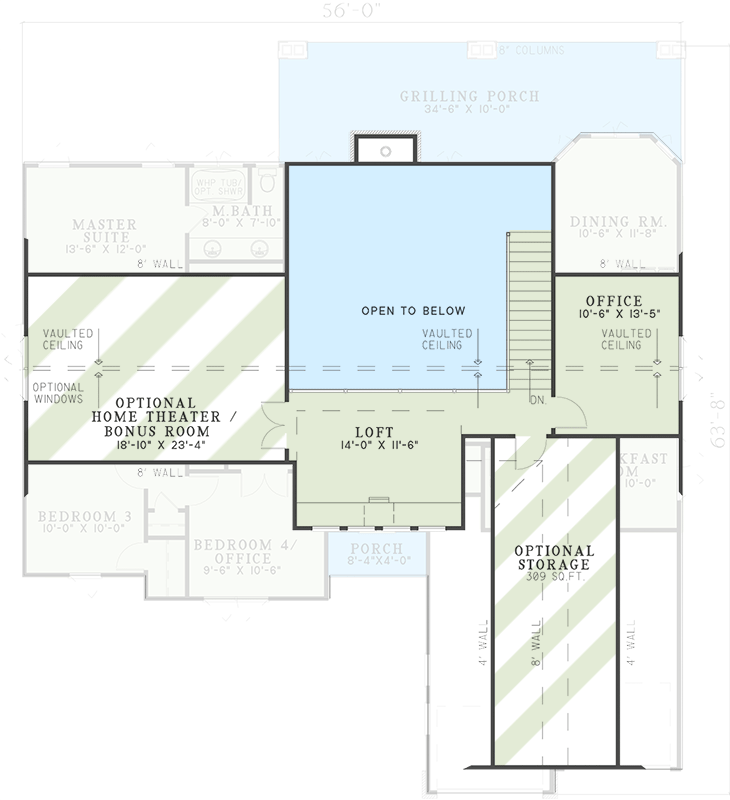

2nd Floor

floor plan image 2nd Floor

Plan Details

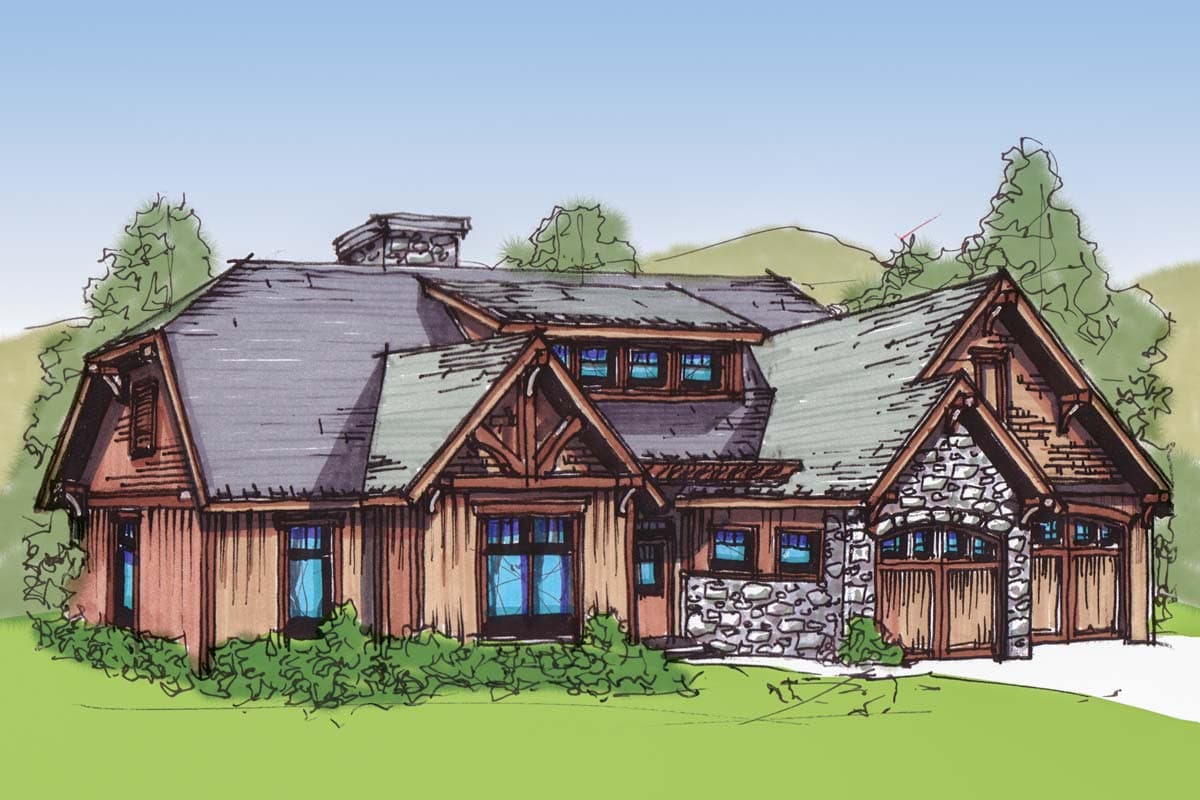

You don't have to live in the mountains to enjoy this Craftsman style home plan. The architectural features can be as rustic or polished as you desire.
Four bedrooms are placed together on the main level quietly suited for the family area located on the opposite side.

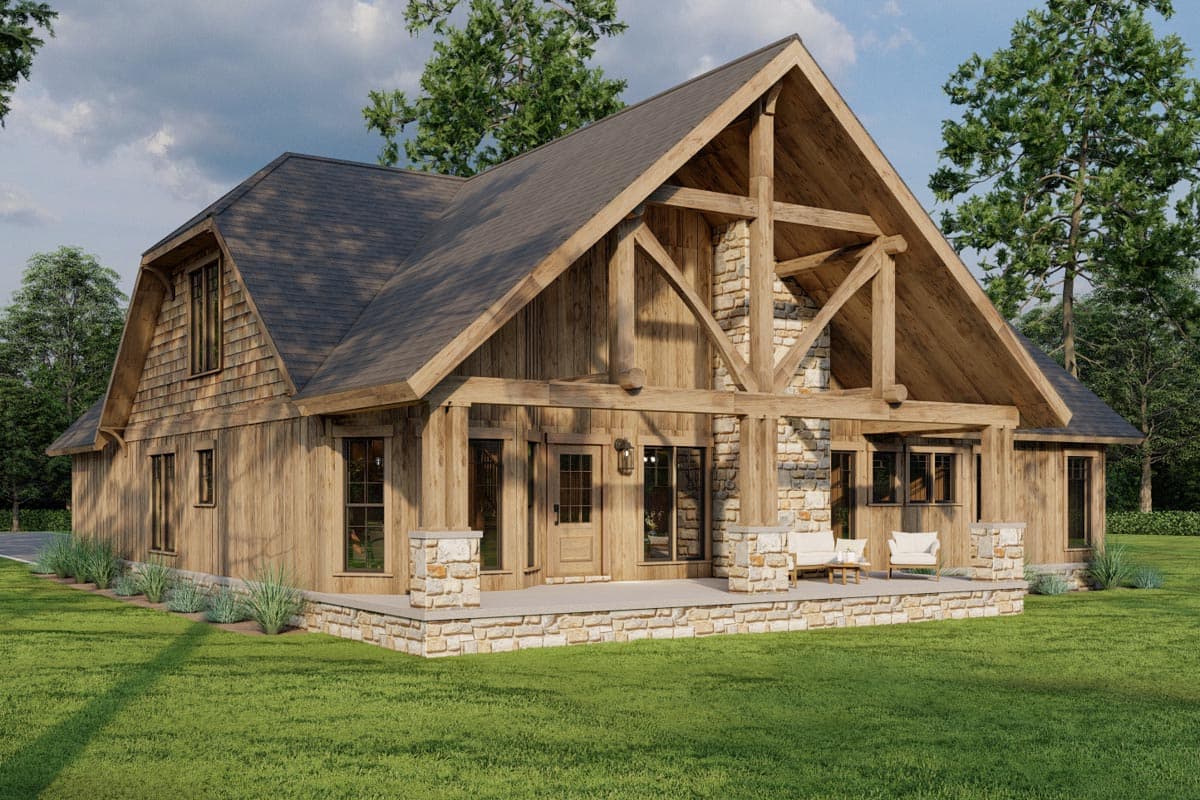

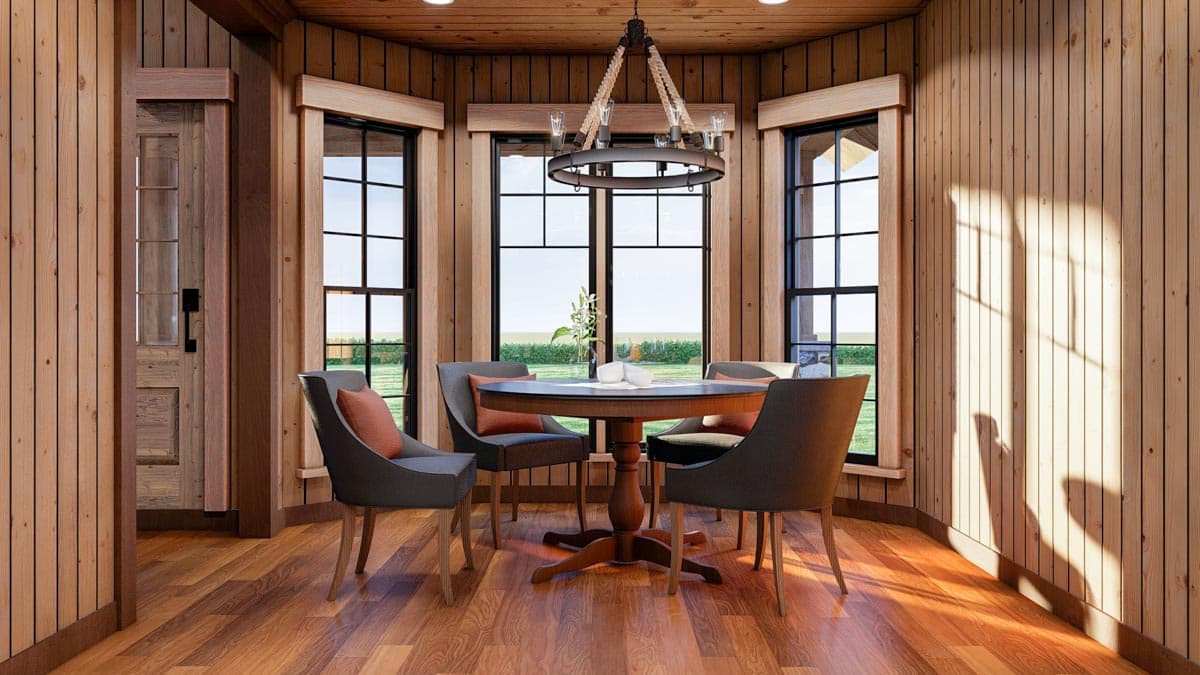

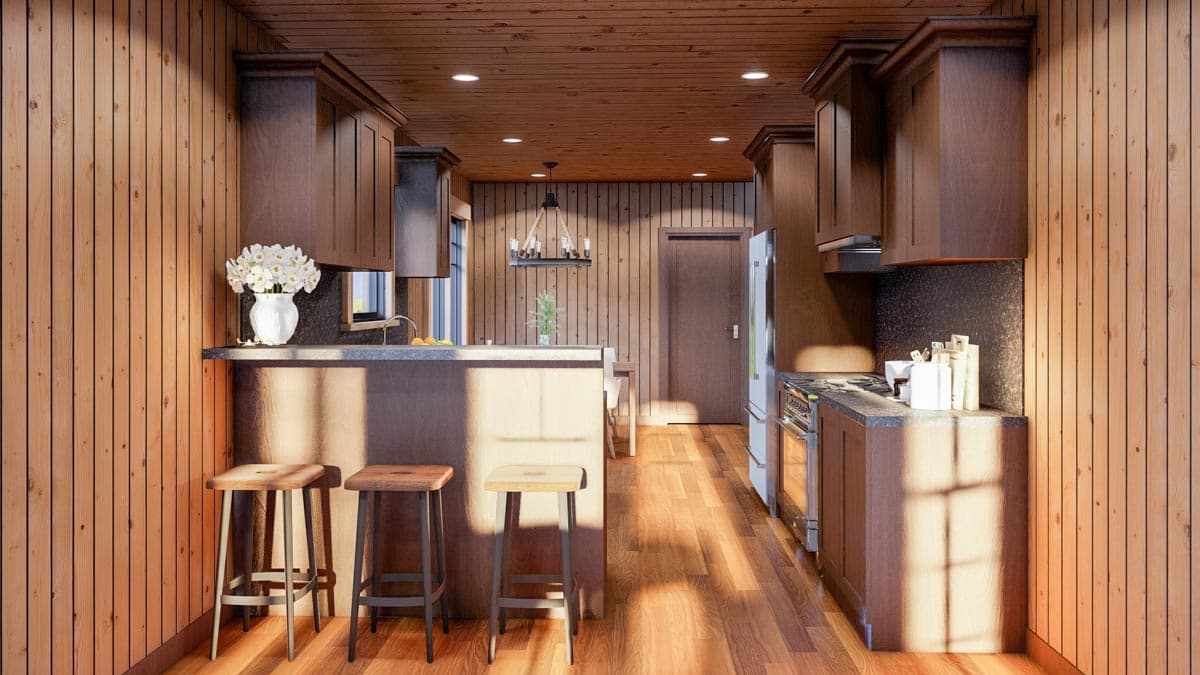

An oversized grilling porch flanked with columns is just off the dining room bay with easy access to the kitchen.
Travel upstairs and you'll find a large built-in computer center centrally located between a private office and optional bonus room or better yet, home theater.
For an alternate exterior, see house plan 59574ND.

What's Included

Foundation Plan (1/4″ or 1/2″ = 1′)
Floor Plans (1/4″= 1′)

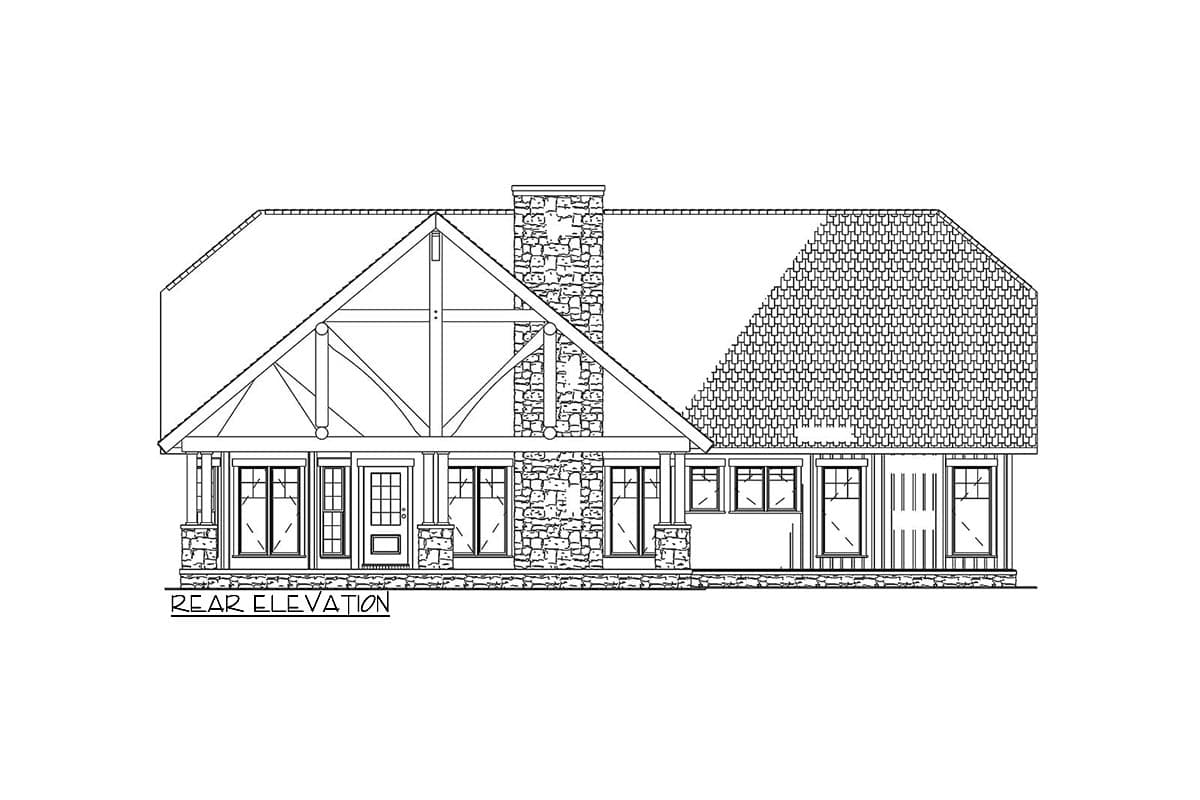

Set of Elevations (1/4″= 1′)
Miscellaneous Details (3/4″ = 1′)
An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,266 sq. ft.

1st Floor

1,895 sq. ft.

2nd Floor

371 sq. ft.

Bonus

362 sq. ft.

Porch, Combined

348 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

56' 0"

Depth

63' 8"

Max Ridge Height

27' 8"

Garage

Type

Attached

Area

475 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
