Plan 33259ZR
Craftsman-Style House Plan with 3 Bedrooms and Angled Garage - 2534 Sq Ft
Heated S.F.
2,534
Beds
3
Baths
2
Stories
1
Cars
3
Plan Details

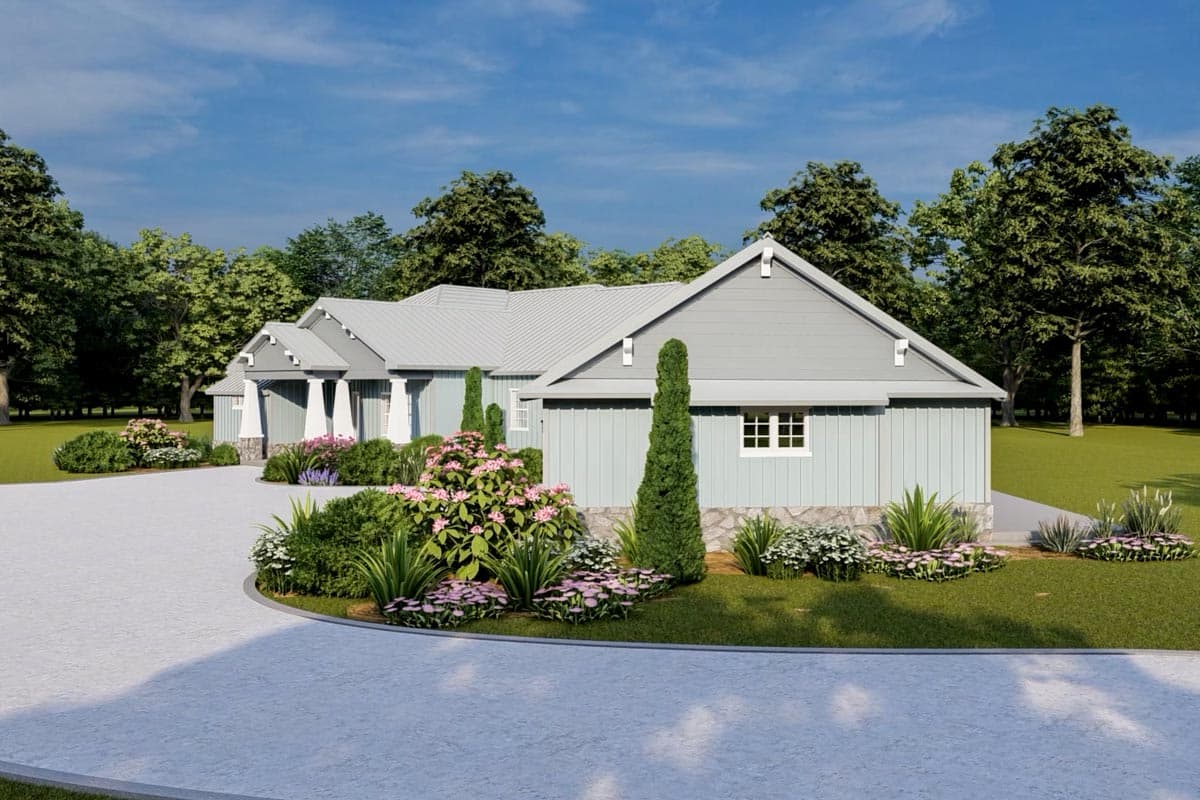

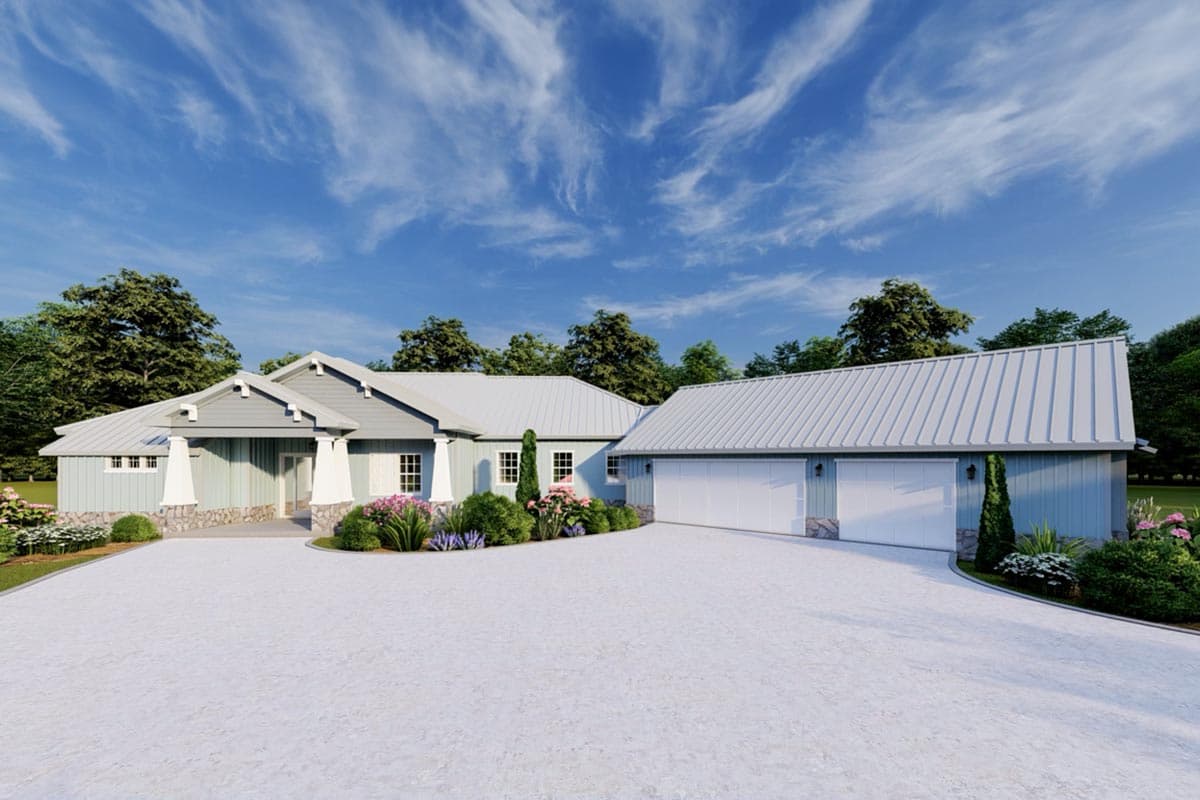

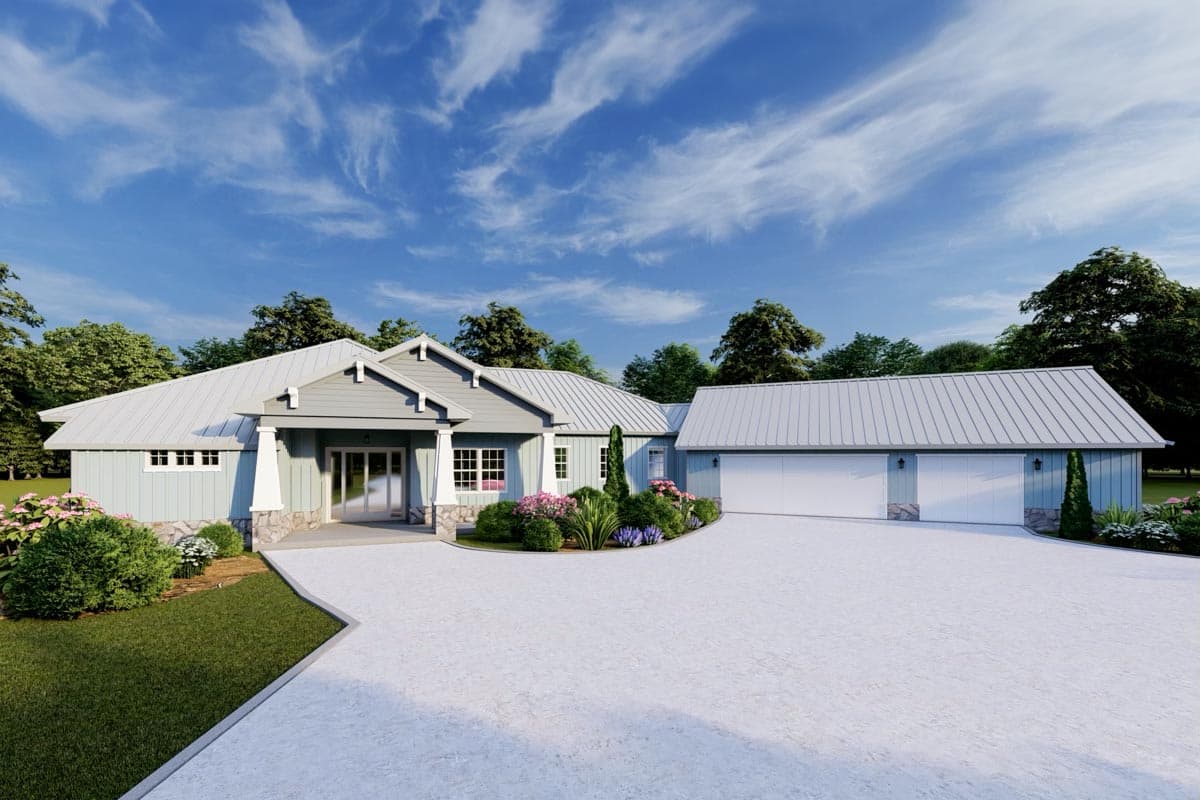

  • This 3 bed, 2 bath 2,534 square foot house plan has a Craftsman-style elevation that greets you with overlapping gables, that stretch the full distance of the front porch. The main entry is supported by craftsman style columns resting on a stone water table. The relaxed and warm feeling continues with mixed siding and standing seam metal roof.

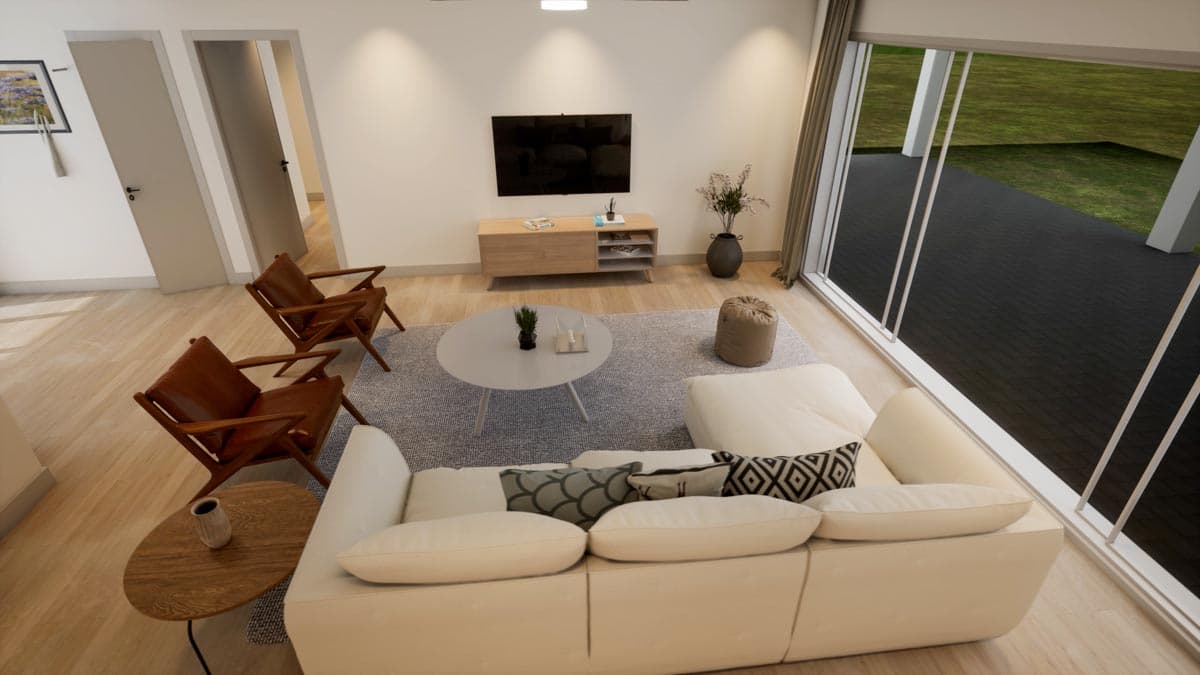

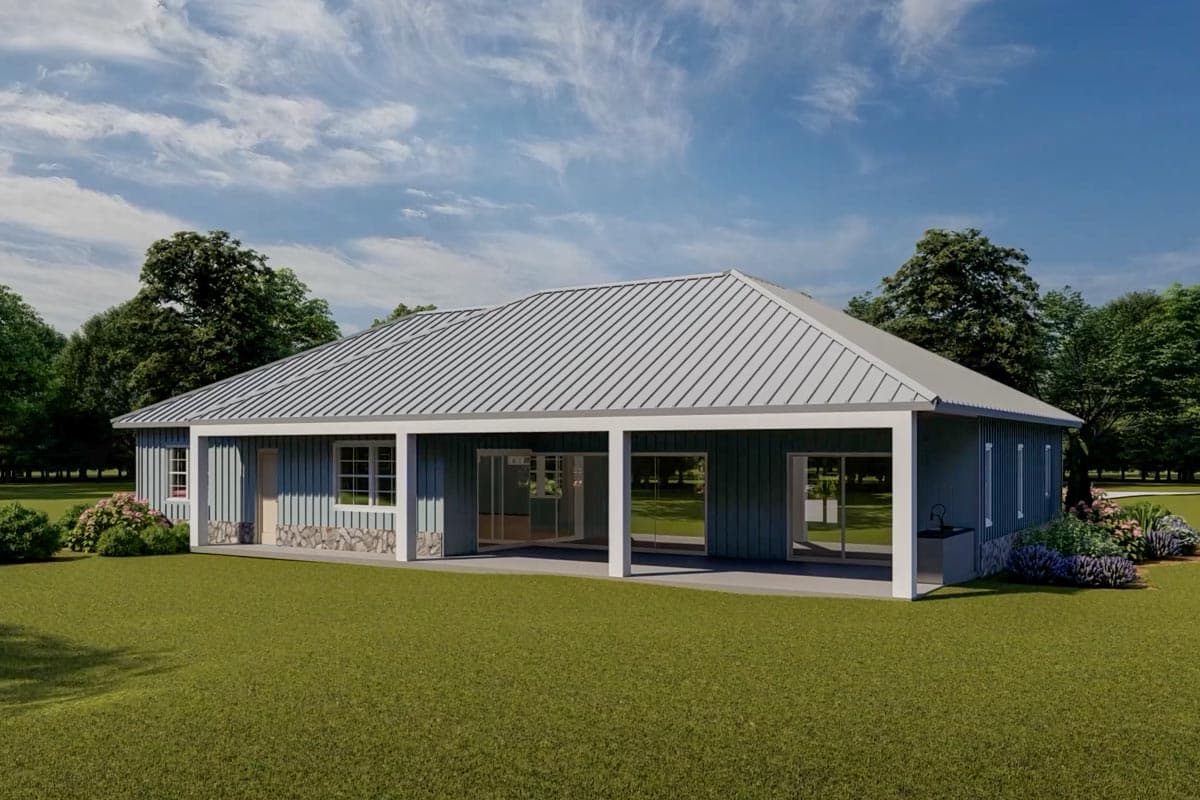

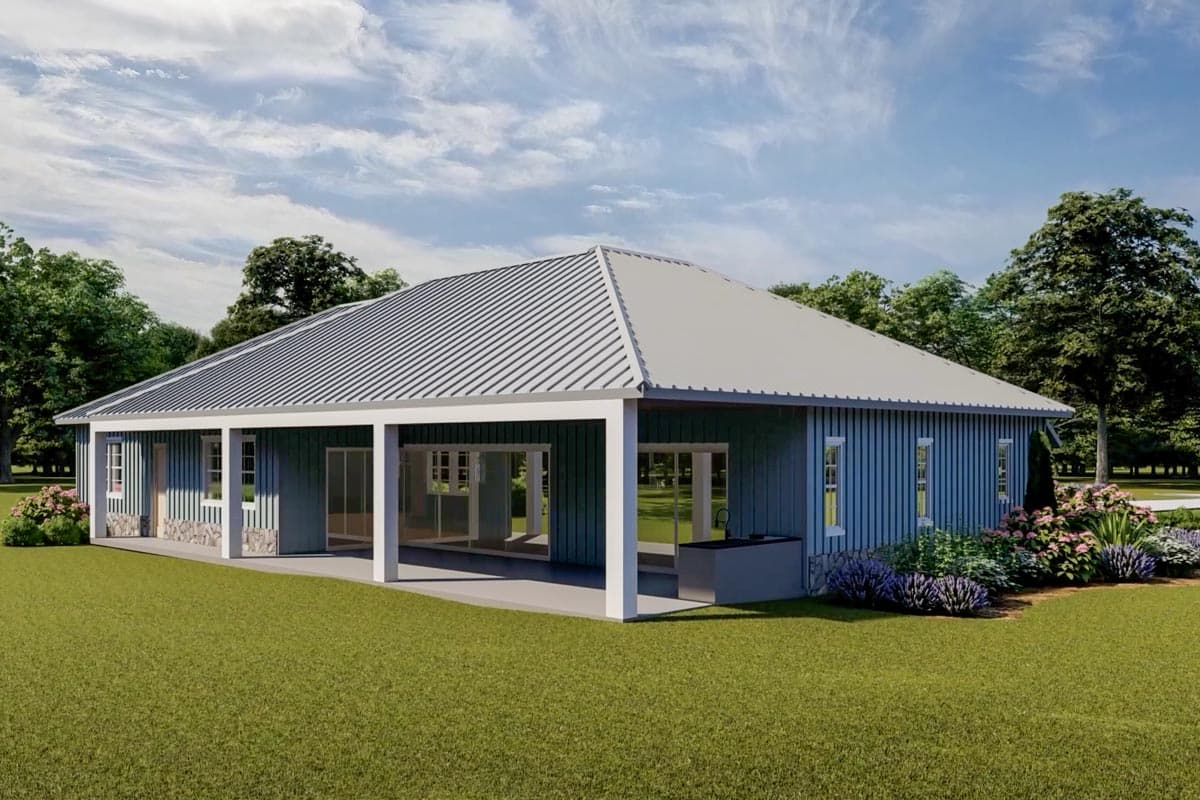

  • This open concept plan is quickly revealed upon walking through the front foyer. Barn doors open to the study, just beyond is the great room, kitchen and dining areas that are wide open — providing easy living and dining access. The rear glass sliding doors open to a generous covered lanai, with an outdoor kitchen.

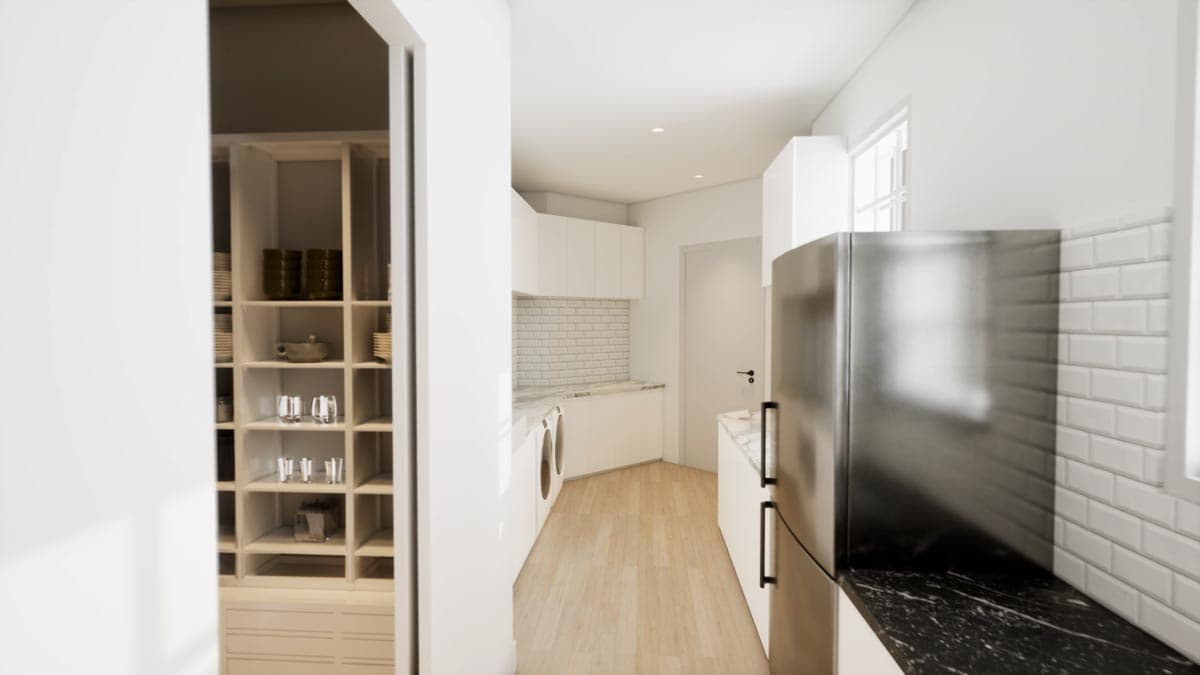

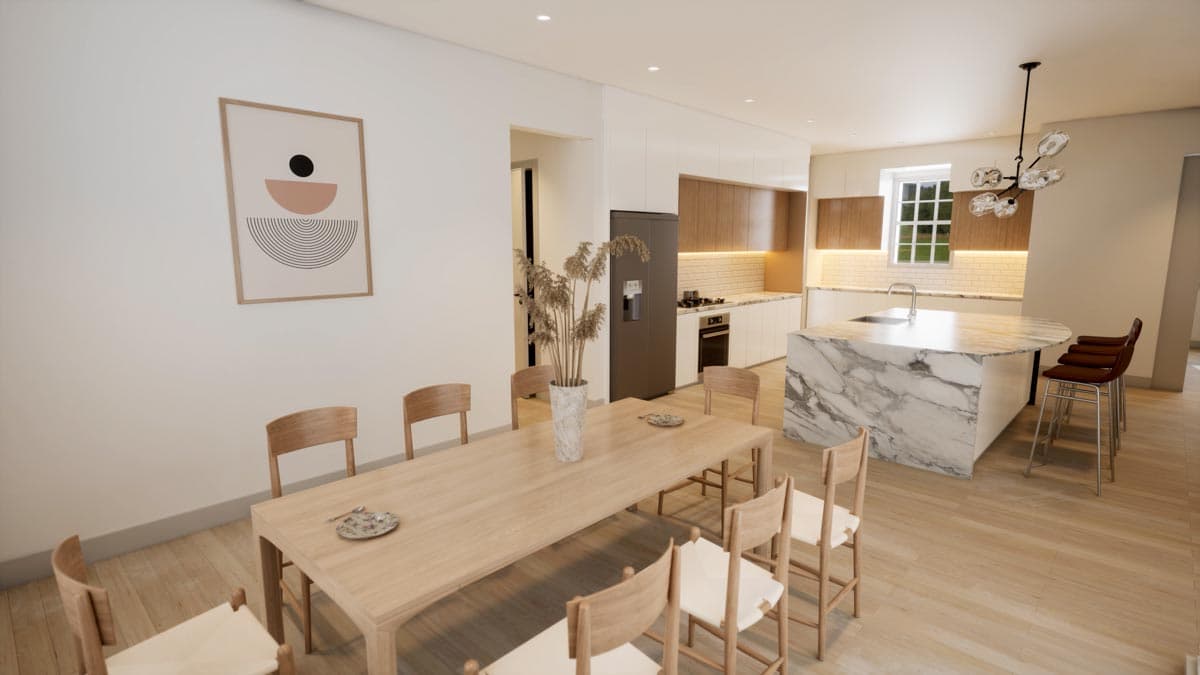

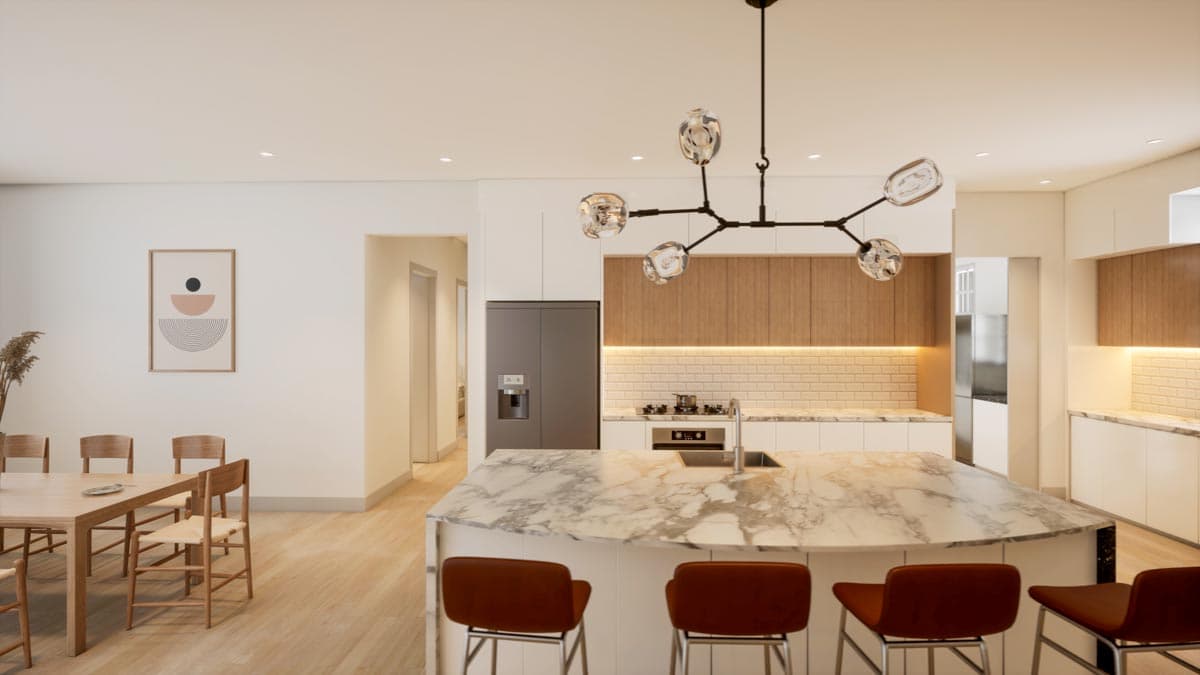

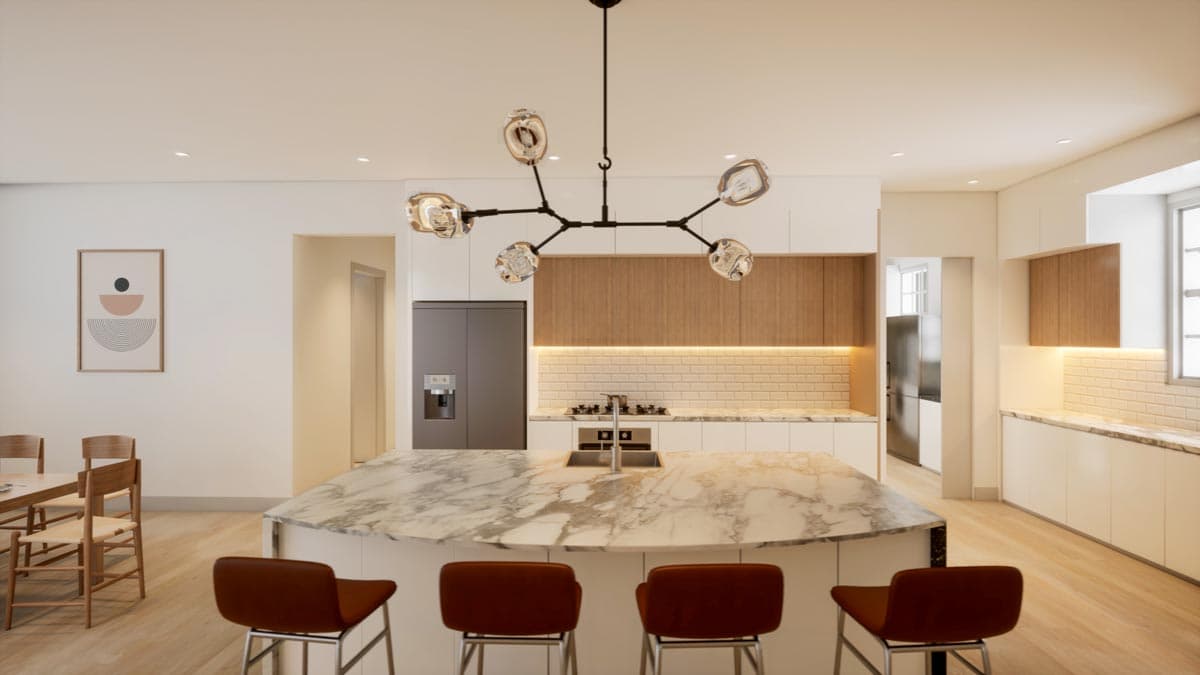

  • The kitchen provides an eat-at-island and convenient access to the dining room, with its corner sliders that completely open up to the outdoors. The refrigerator and freezer frame the front wall with a long counter and cabinets below. A walk-in pantry and laundry room with garage access are all nearby.

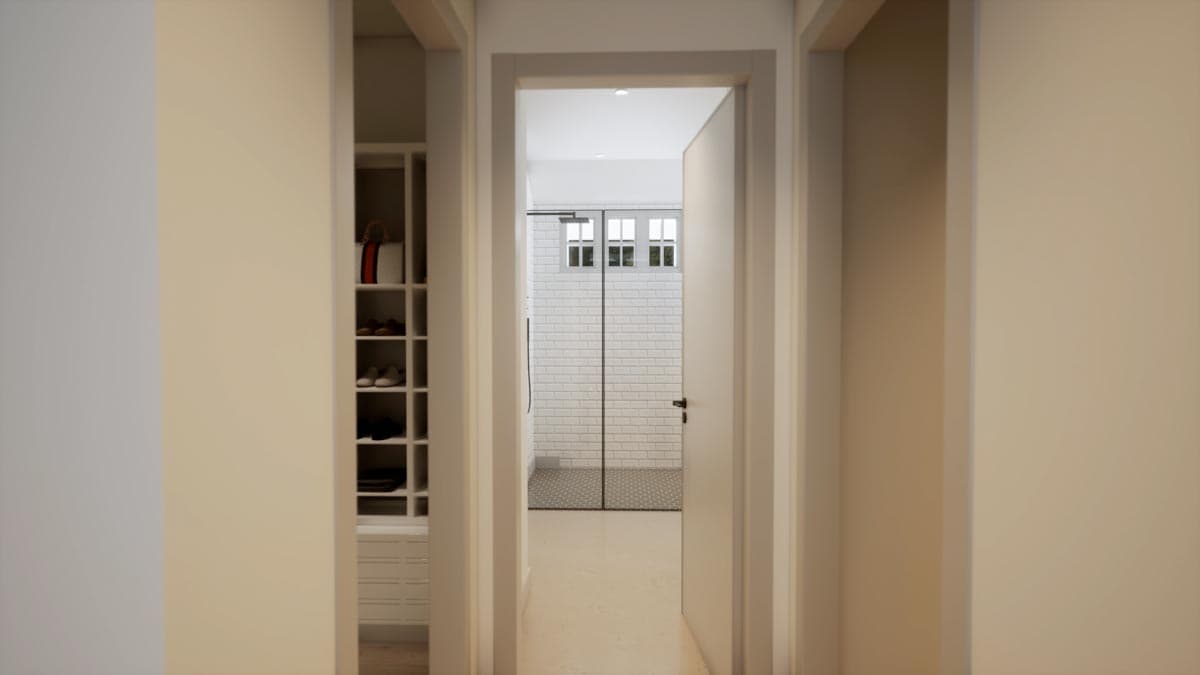

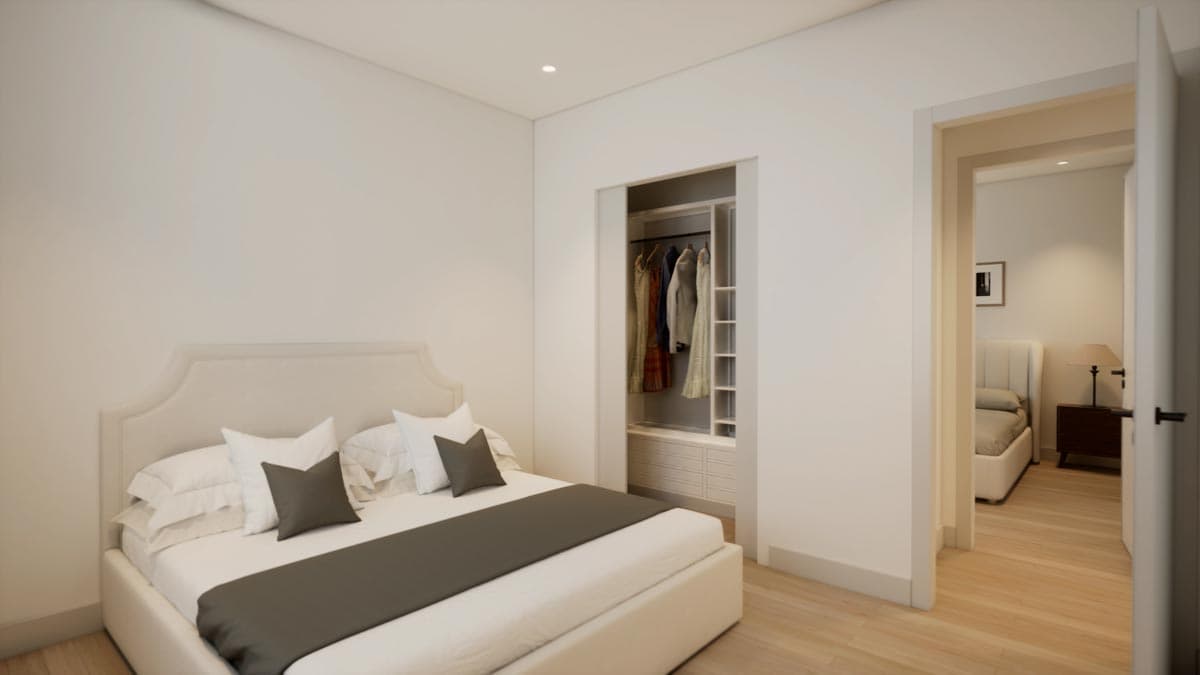

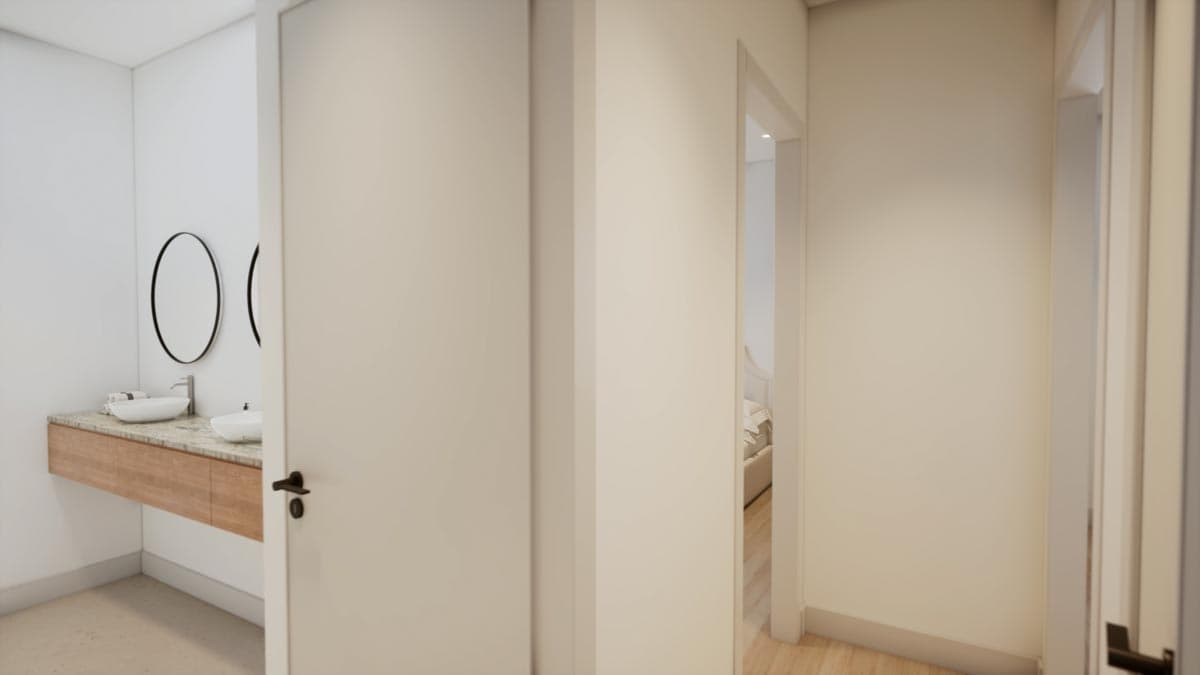

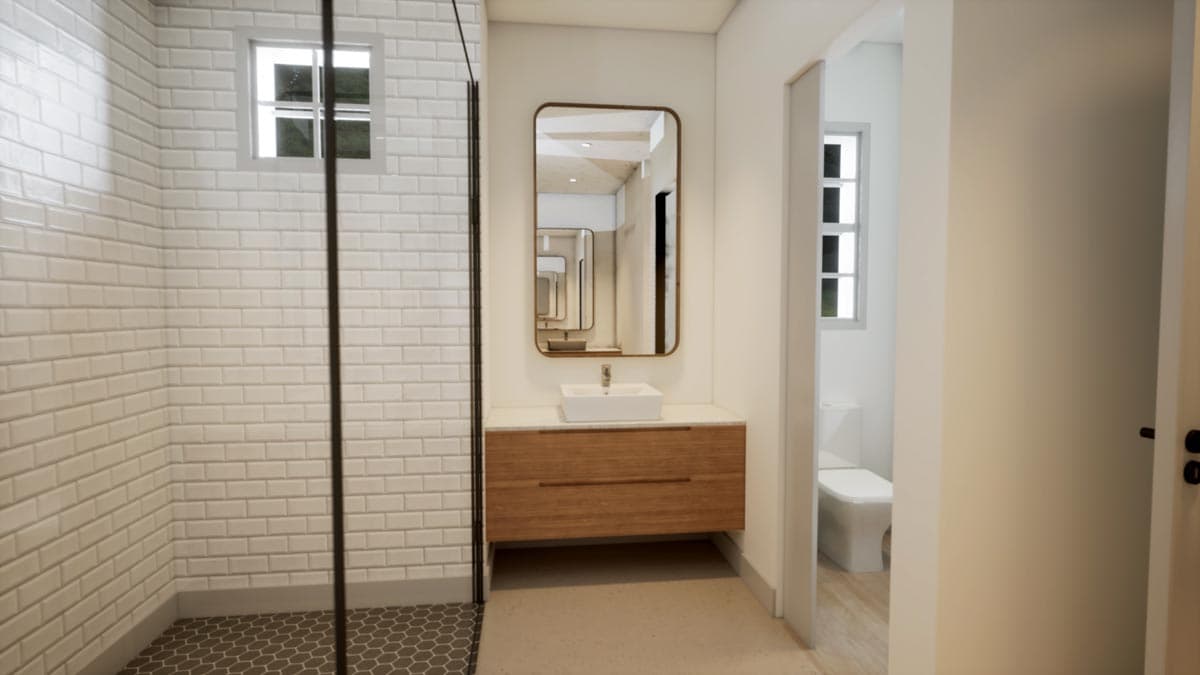

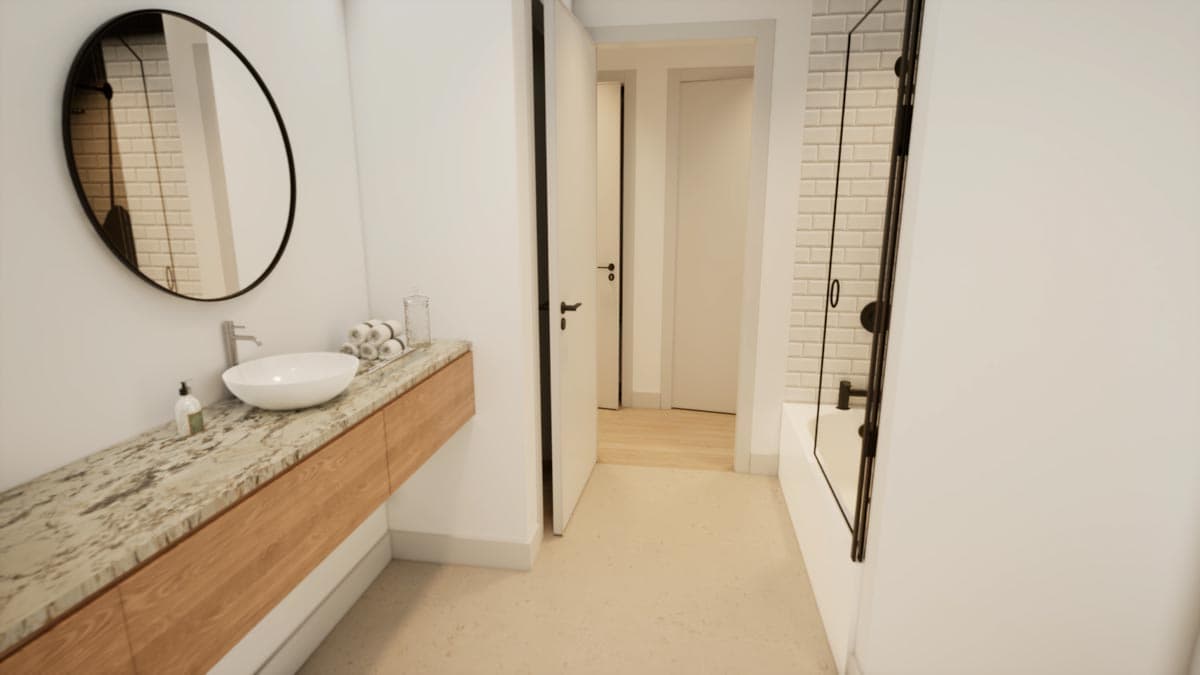

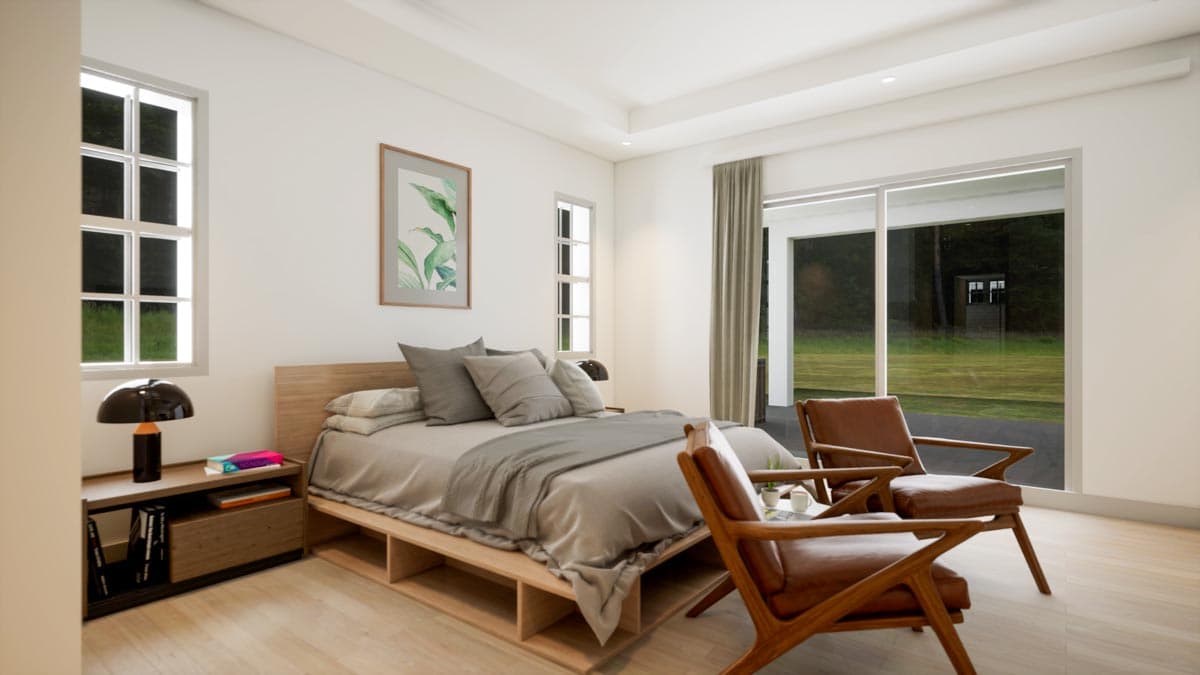

  • Access the master suite through a private entrance. Dual walk-in closets provide access to an elegant master bath with large walk-in shower and dual vanities. Across the home, two guest bedrooms share a cabana bath, both with walk-in closets.
  • The angled 3-car garage offers plenty of room for sports vehicles, patio furniture and more.
What's Included
  • COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.
  • WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.
  • FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.
  • SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.
  • FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.
  • ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.
  • REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.

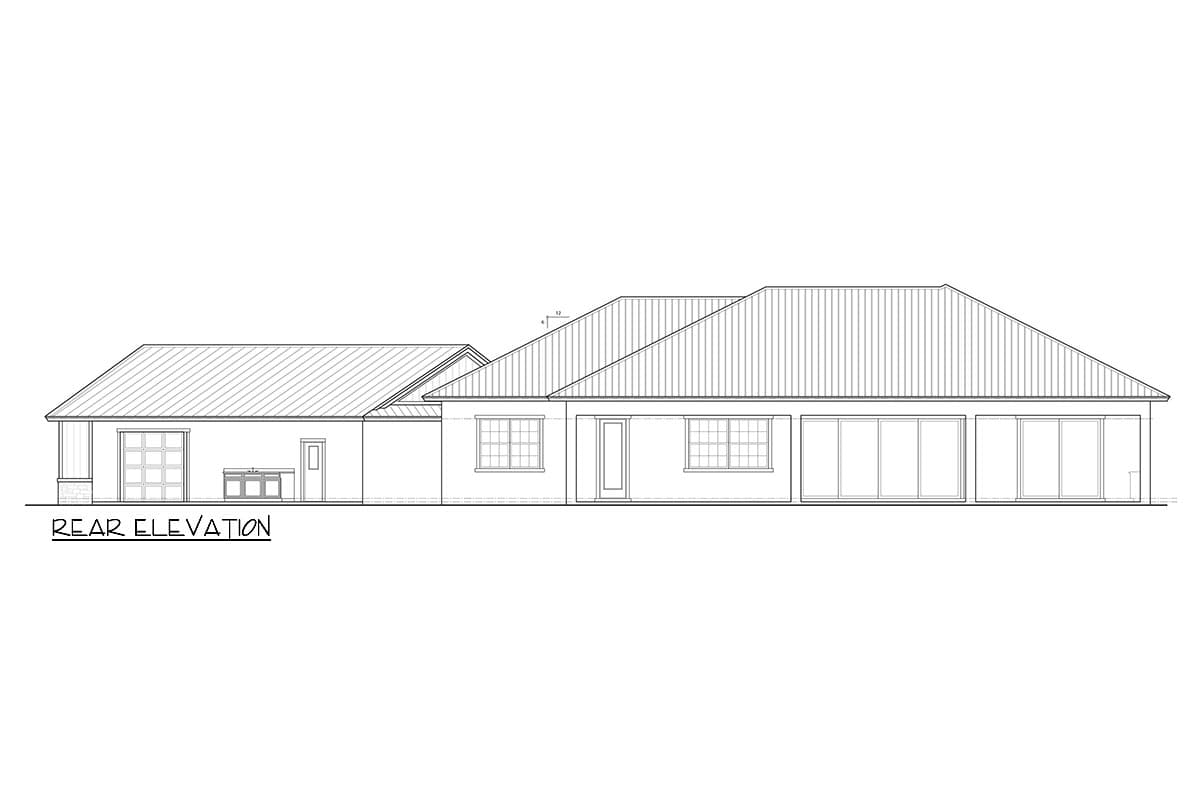

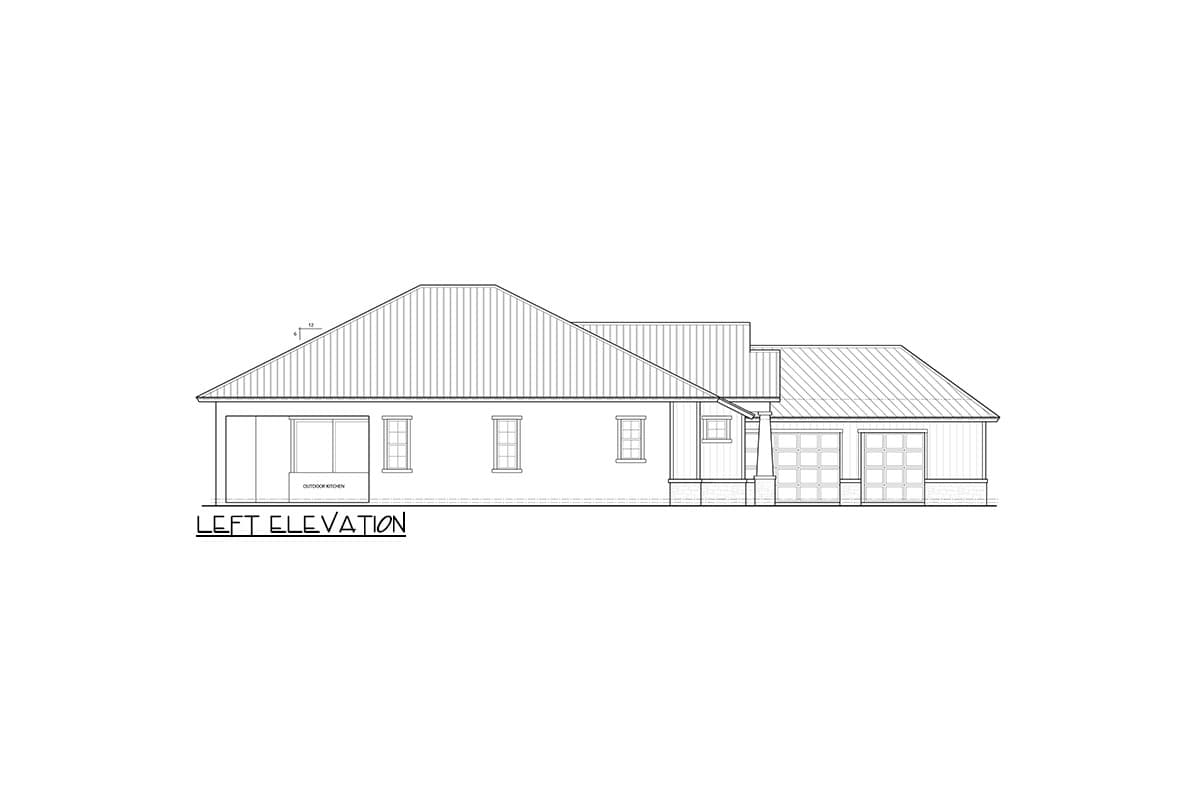

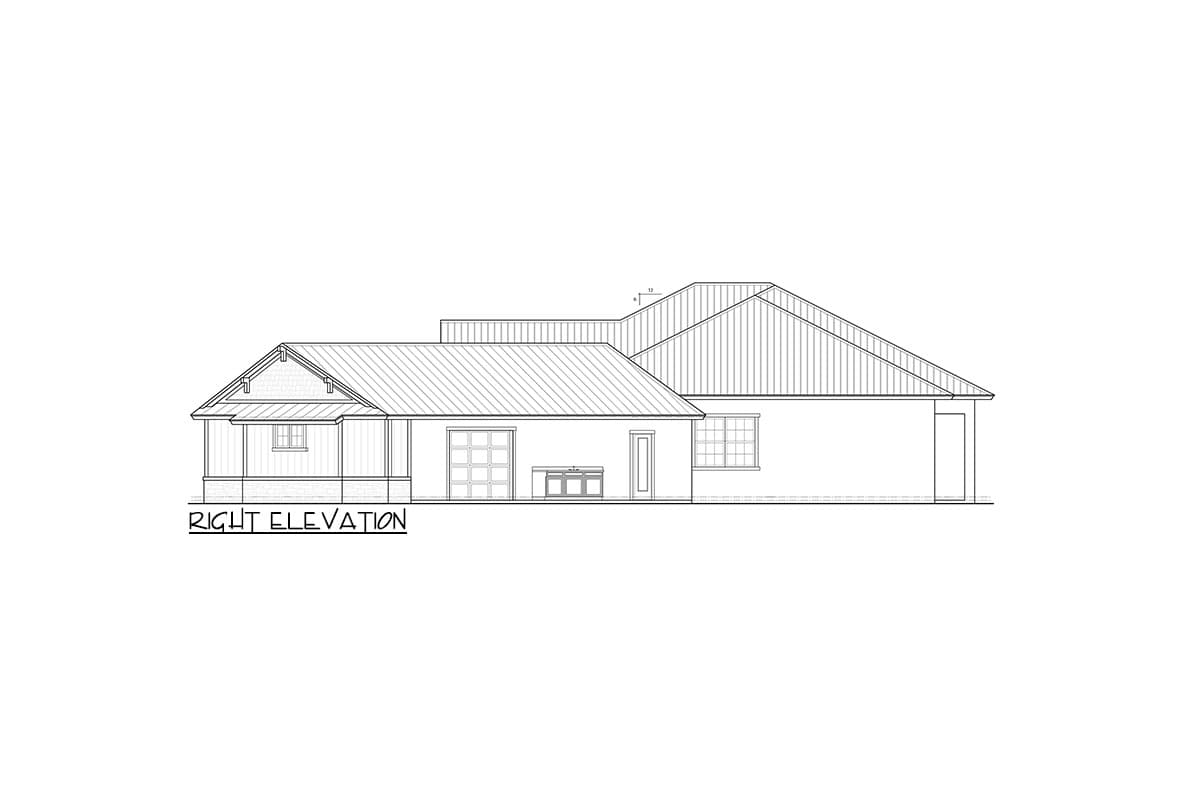

  • EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.
  • CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)
  • ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman-Style House Plan with 3 Bedrooms and Angled Garage - 2534 Sq Ft

  • 2,534

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

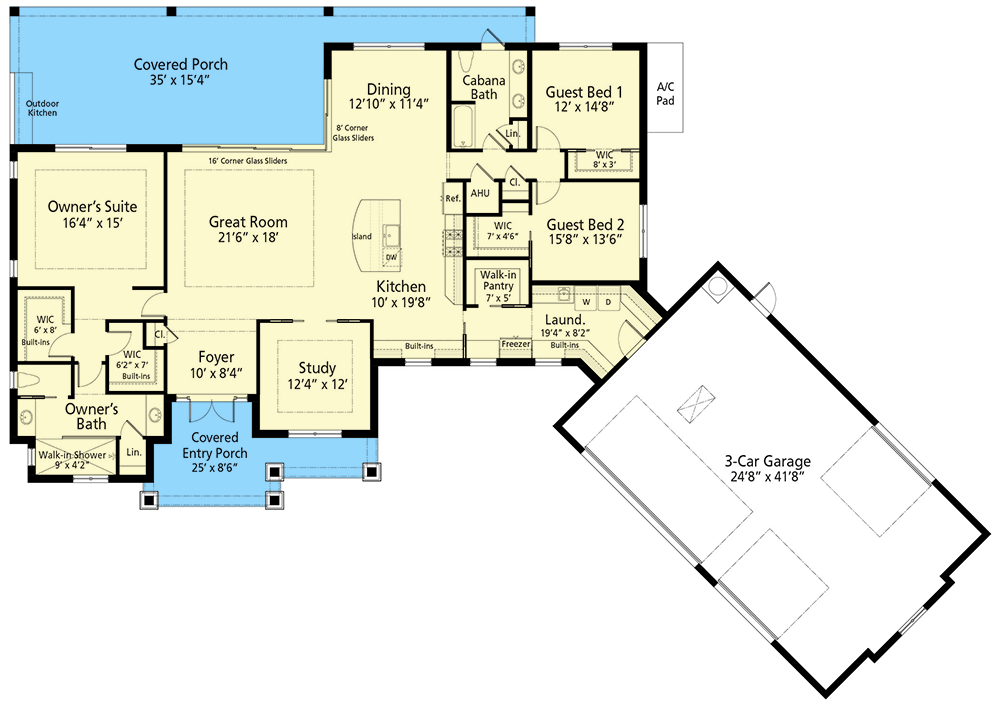

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,534 sq. ft.
  • 1st Floor: 2,534 sq. ft.

Dimensions

  • Width: 109' 4"
  • Depth: 77' 1"
  • Max ridge height: 21' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 663 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Craftsman-Style House Plan with 3 Bedrooms and Angled Garage - 2534 Sq Ft

  • 2,534

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Craftsman-Style House Plan with 3 Bedrooms and Angled Garage - 2534 Sq Ft

  • 2,534

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,534 sq. ft.
  • 1st Floor: 2,534 sq. ft.

Dimensions

  • Width: 109' 4"
  • Depth: 77' 1"
  • Max ridge height: 21' 9"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 663 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

    Main Level
