Plan 25790GE

Craftsman-Style Pool House with Cabana Bar and Bath

Name: Plan 25790GE: Craftsman-Style Pool House with Cabana Bar and Bath
Brand: Architectural Designs
SKU: 25790GE
Price: 650.0 USD
Availability: InStock

Heated S.F.

372

Beds

Baths

0.5

Stories

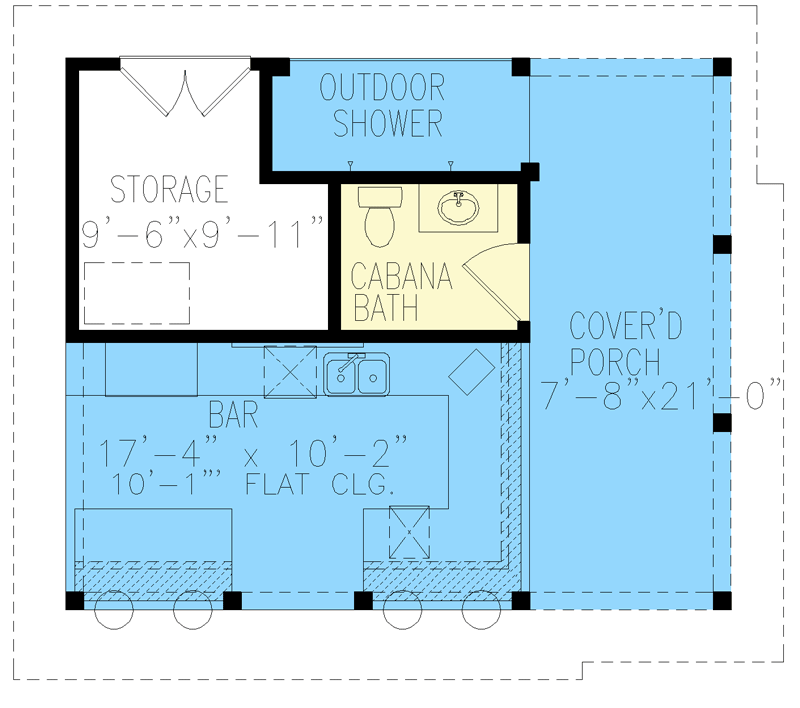

Floor Plan

Main Level

Plan Details

This Craftsman-style pool house plan has outdoor space on two sides with an attractive gable and decorative brackets on the wooden columns.
The cabana bar gives you 180 square feet of space to enjoy in the shade. The side porch gives you another 161 square feet of shady space.
A bath and storage room (149 square feet combined) are the only spaces with doors.
An outdoor shower (43 square feet) has two shower heads.

What's Included

Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
Interior Details: These drawings show the specific details and design of special interior features.
Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
Electrical: Electrical floor plan schematics for 1st and 2nd floors.
Plans include wall and cornice sections, general foundation sections and details.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Framing plans
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
