Plan 11776HZ

Craftsman Style Ranch Home Plan - 1609 Sq Ft

Heated S.F.
1,609
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 11776HZ

Main Level
Main Level
Optional Basement Stairs
Optional Basement Stairs

Plan 11776HZ

M-F 9am-5pm EST |

1-203-761-8500

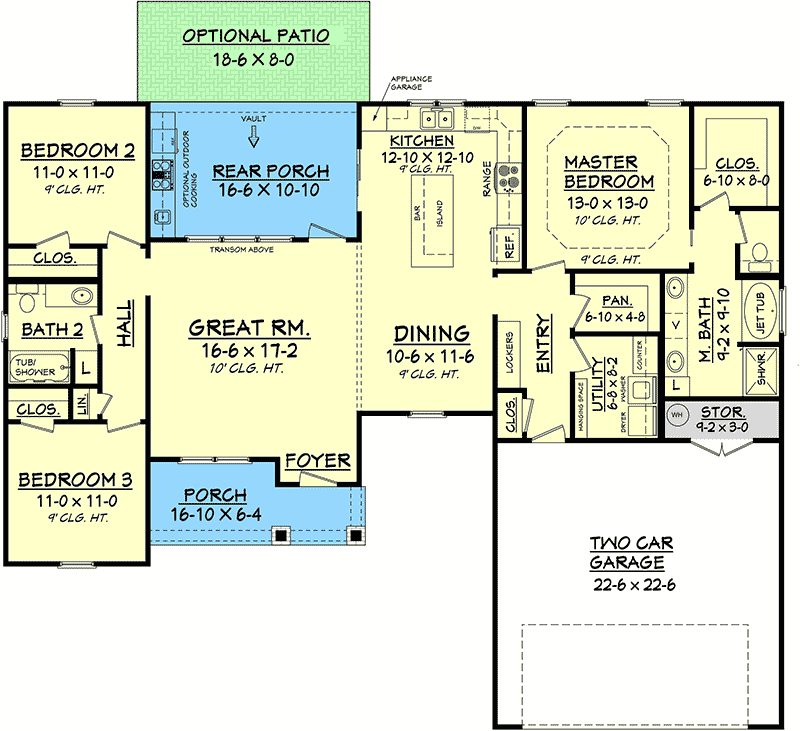

Main Level

Plan 11776HZ: Craftsman Style Ranch Home Plan - 1609 Sq Ft - Floor Plan - Main Level - Craftsman, Northwest, Ranch

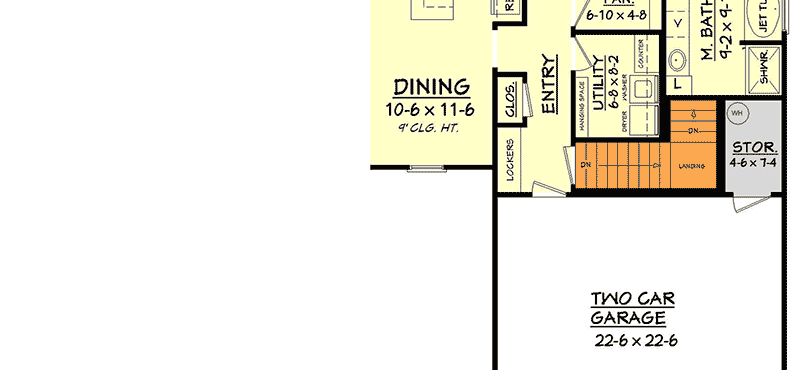

Optional Basement Stairs

Plan 11776HZ: Craftsman Style Ranch Home Plan - 1609 Sq Ft - Floor Plan - Optional Basement Stairs - Craftsman, Northwest, Ranch

Plan Details

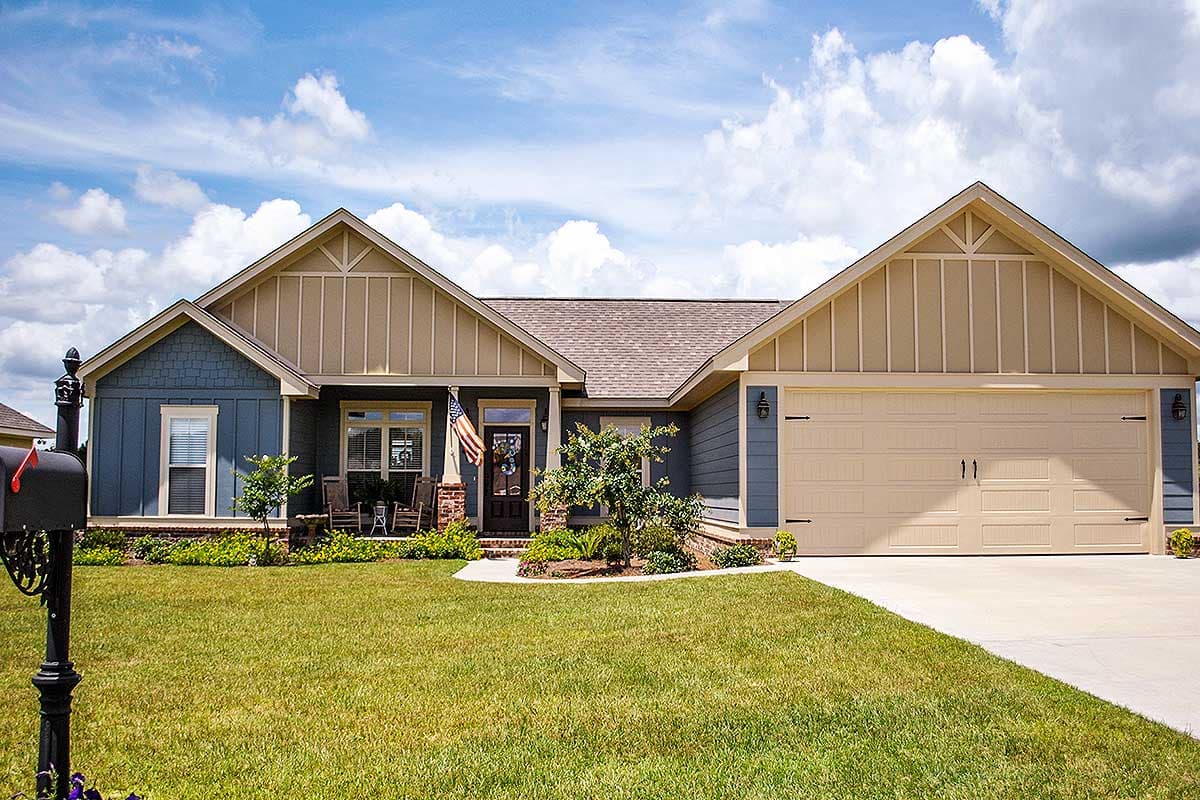

  • This charming Craftsman style ranch home plan offers an open floor plan and nice porches front and back, including a large rear porch that is great for entertaining with the optional built-in grilling kitchen.
  • From the foyer you have views through to the great room and to the rear porch beyond.
  • The dining room is conveniently located to the kitchen which has lots of counter space and storage plus a walk-in pantry.
  • The great room separates the master from the other bedrooms maximizing your privacy. The master has an oversized bath with his and her vanities.
  • Storage in the back of the garage helps keep the clutter to a minimuim.
  • The roof is stick framed and has 8:12 pitch.

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

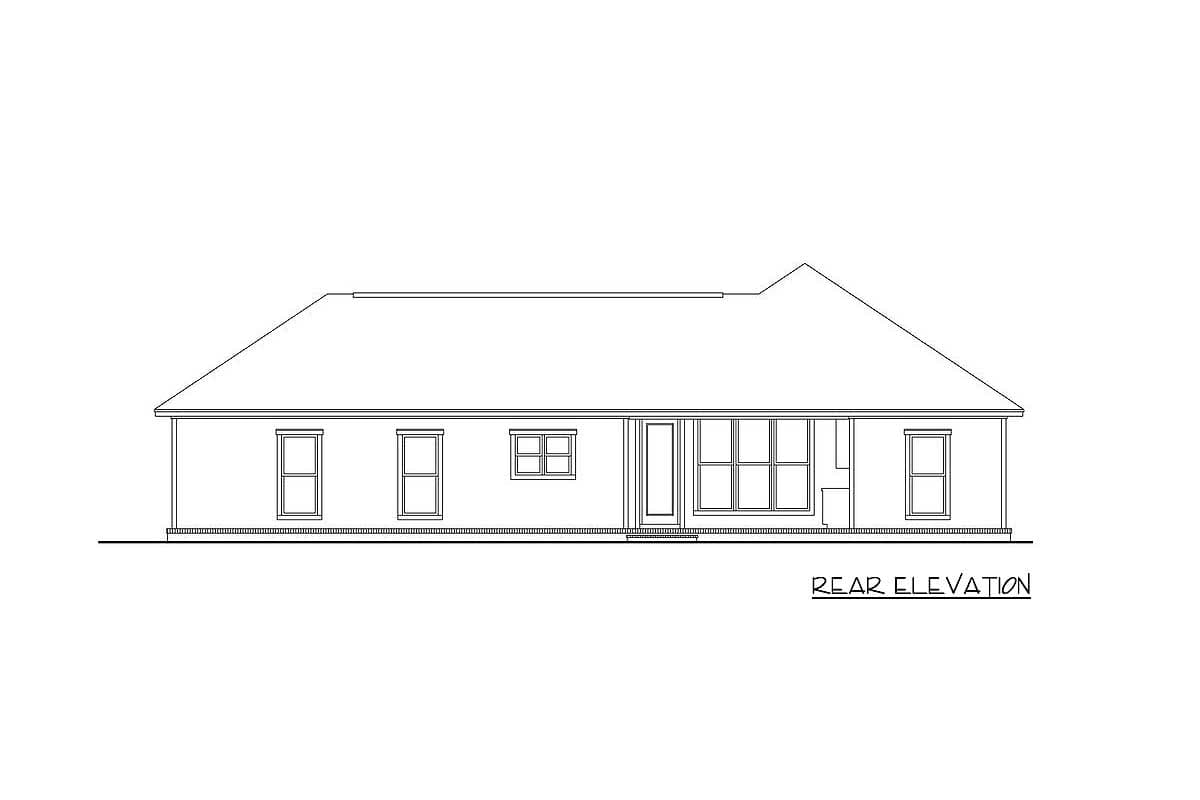

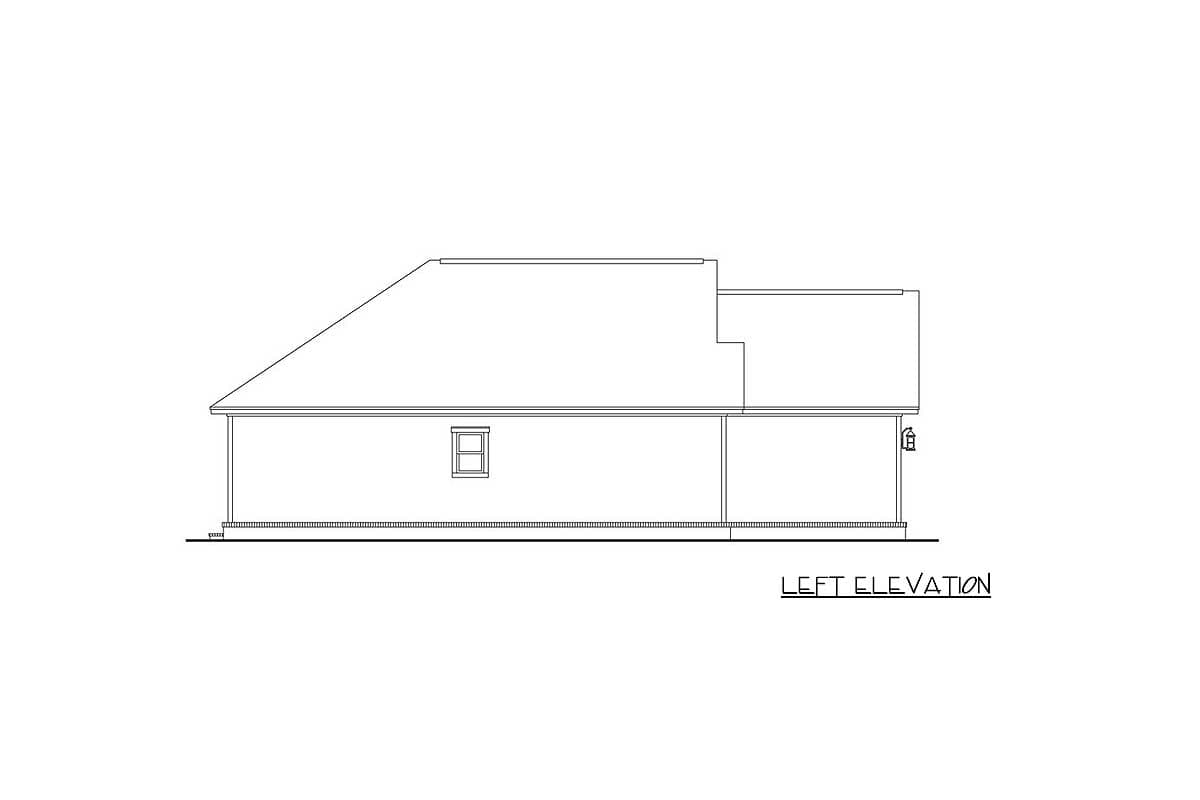

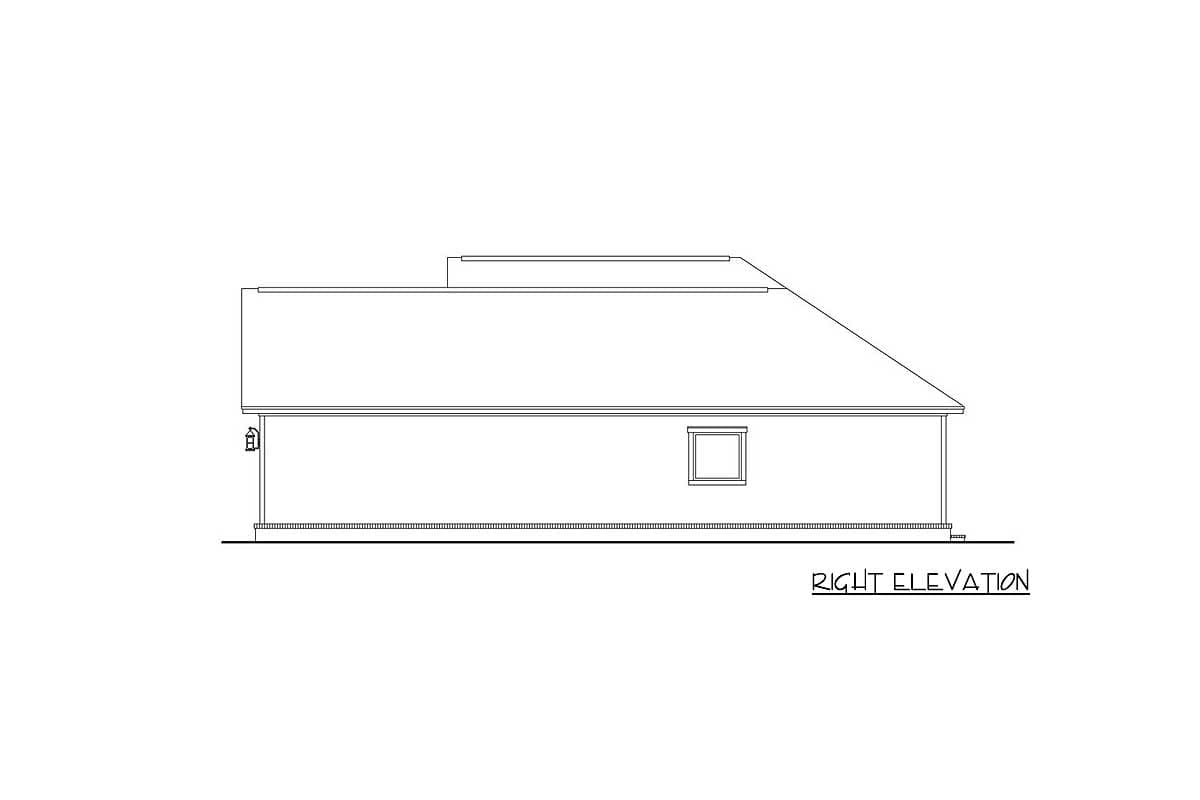

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,609 sq. ft.

1st Floor

1,609 sq. ft.

Porch, Front

106 sq. ft.

Porch, Rear

166 sq. ft.

Storage

32 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

62' 2"

Depth

50' 0"

Max Ridge Height

19' 6"

Garage

Type

Attached

Area

529 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Ranch

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Photo Gallery

USDA Approved
