Plan 95163RW Craftsman-style Ranch House Plan with Optionally Finished Basement

Craftsman-style Ranch House Plan with Optionally Finished Basement

Plan 95163RW

  • 3,771

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • An arched dormer adds personality to the front elevation of this 2 to 4-bedroom, Craftsman-style Ranch home plan. The double garage extends from the front of the home with 2 overhead doors.
  • The open and spacious living area merges the kitchen, dining area, and living room with two sets of french doors encouraging you to spend time on the covered patio.
  • A sizable laundry room, just inside from the garage, includes plenty of cabinetry for storage and a utility sink.
  • The master bedroom rests behind french doors and includes a 5-fixture bathroom with a walk-in closet. A second bedroom suite across the hall can be used for guests or as a home office.
  • Two additional bedrooms are located downstairs in the optionally finished lower level, and share the hall bath with a double-sink vanity. A rec area, workout room, and unfinished storage space complete the lower level.

  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

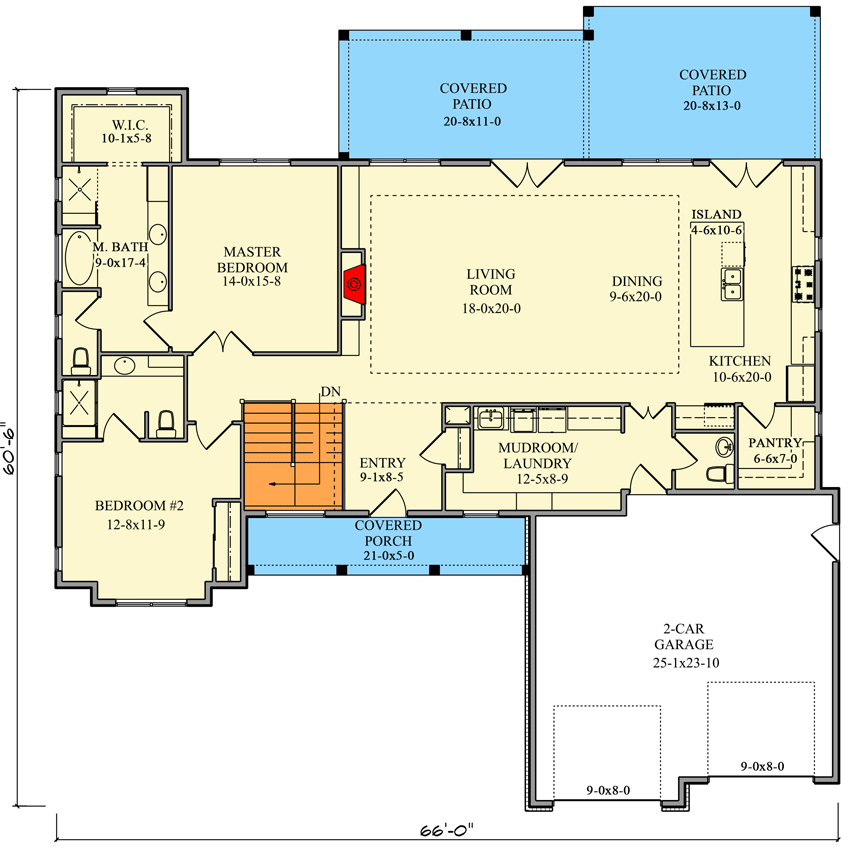

Craftsman-style Ranch House Plan with Optionally Finished Basement - 95163RW floor plan - Main Level

Optional Finished Lower Level

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

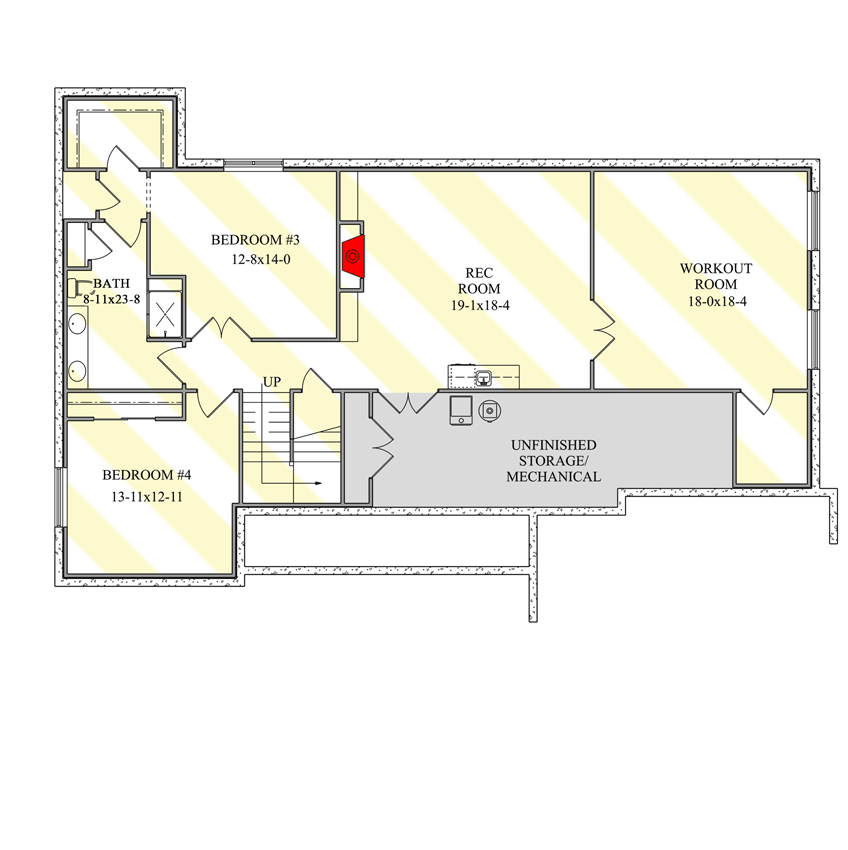

Craftsman-style Ranch House Plan with Optionally Finished Basement - 95163RW floor plan - Optional Finished Lower Level

Plan details

Craftsman-style Ranch House Plan with Optionally Finished Basement

  • 3,771

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,450
  • CAD - Single-Build $2,750
  • View all purchase option online

About This Plan

  • An arched dormer adds personality to the front elevation of this 2 to 4-bedroom, Craftsman-style Ranch home plan. The double garage extends from the front of the home with 2 overhead doors.
  • The open and spacious living area merges the kitchen, dining area, and living room with two sets of french doors encouraging you to spend time on the covered patio.
  • A sizable laundry room, just inside from the garage, includes plenty of cabinetry for storage and a utility sink.
  • The master bedroom rests behind french doors and includes a 5-fixture bathroom with a walk-in closet. A second bedroom suite across the hall can be used for guests or as a home office.
  • Two additional bedrooms are located downstairs in the optionally finished lower level, and share the hall bath with a double-sink vanity. A rec area, workout room, and unfinished storage space complete the lower level.

Floor Plans

  • Main Level

  • Optional Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,771 sq. ft.
  • Lower Level: 1,688 sq. ft.
  • 1st Floor: 2,083 sq. ft.
  • Porch, Combined: 614 sq. ft.
  • Basement Unfinished: 380 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 66' 0"
  • Depth: 67' 5"
  • Max ridge height: 24' 8"

Garage

  • Type: Attached
  • Area: 644 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 3 on 12
