Craftsman Style RV Garage Plan with Dedicated Workshop Space

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
4- 5

Floor Plan

Plan 147076RML

Floor Plan 1

Plan 147076RML

M-F 9am-5pm EST |

1-203-761-8500

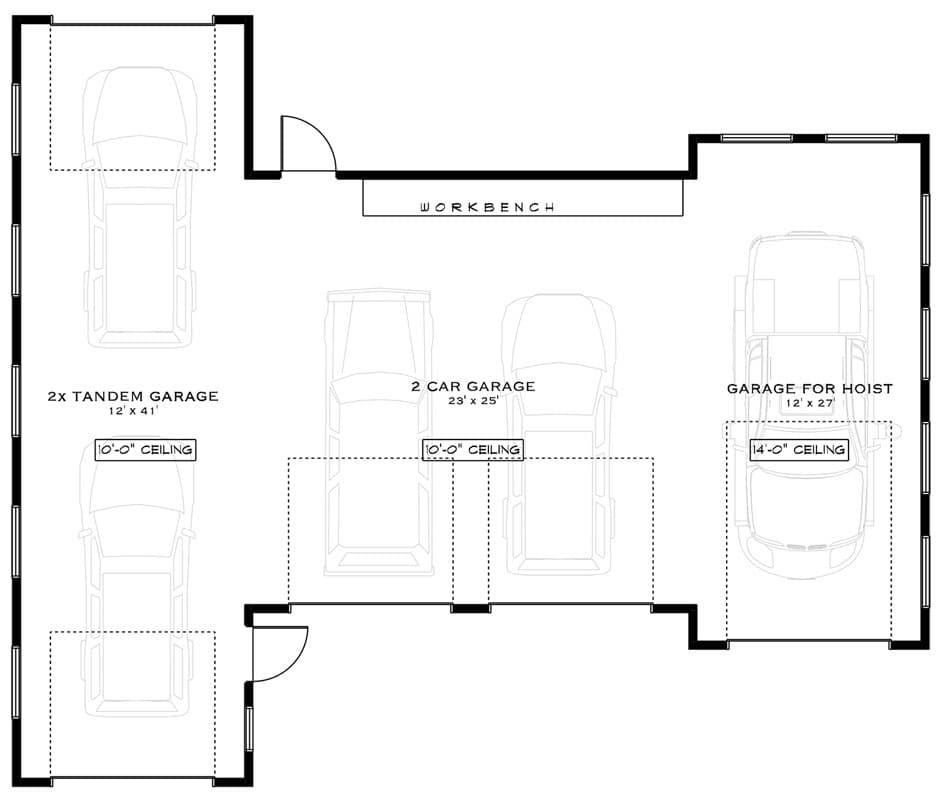

Plan 147076RML: Craftsman Style RV Garage Plan with Dedicated Workshop Space - Floor Plan - - Craftsman

Plan Details

  • This spacious 1,502 square foot Craftsman style RV garage plan provides versatile storage and workspace for vehicles and projects.
  • The expansive footprint features a dedicated RV bay alongside additional garage bays, offering flexible parking for up to six vehicles depending on the configuration.
  • A dedicated workshop area is incorporated into the layout, providing a functional environment for hobbyists, mechanics, or woodworking enthusiasts.
  • Ten-foot ceilings throughout the interior provide ample vertical clearance for large equipment, tall vehicles, and overhead storage solutions.
  • The exterior design showcases classic Craftsman detailing with a durable metal roof and vertical siding that complements any residential property.
  • Multiple entry points from the front and rear allow for convenient access to the garage and workshop areas from different sides of the lot.

What's Included

  • Title Sheet w/ Color Rendering and Sheet Index
  • General Notes and Details
  • Foundation Plan and Notes
  • Dimensioned Floor Plan(s) with Window Schedule
  • Roof Plan
  • Building Sections and Details
  • Exterior Elevations

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

42' 0"

Max Ridge Height

17' 10"

Garage

Type

RV Garage

Area

1502 sq. ft.

Count

4 or 5 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Special Features

Tandem Garage

Workshop

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

50' 0"

Depth

42' 0"

Max Ridge Height

17' 10"

Garage

Type

RV Garage

Area

1502 sq. ft.

Count

4 or 5 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Special Features

Tandem Garage

Workshop
