Craftsman Style With Balcony

Plan 69058AM

  • 2,493

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • This beautiful Craftsman style home has all the features important to today's sophisticated homebuyer. A cozy porch frames the entry and adds charm to the facade. The den and the vaulted dining room flank the two-story foyer creating more formal, secluded spaces in the front of the home.
  • Located in the center of the main floor, the kitchen serves as the command center for the family's activities. A wall of windows in the two story great room and a large bay off of the nook create a bright, open atmosphere in the rear of the home. Sharing the rear view is the master suite. Conveniently located on the main floor, it features a walk-in closet and corner spa tub sunlit by the surrounding windows.
  • Upstairs a balcony overlooks the great room and the foyer. With the two additional bedrooms on the left side of the second floor, a bonus room provides plenty of space as a playroom on the right side. A side loaded three-car garage is accessible through the utility room on the main floor.
  • Related Plan: Get an alternate exterior with house plan 69225AM.

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

Floor Plan

Plan details



Craftsman Style With Balcony

  • 2,493

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $937
  • PDF - single-use $1,287
  • 5 Sets $1,437
  • 5 Sets PLUS $1,487
  • CAD - multi-use $2,574
  • View all purchase option online

About This Plan

  • This beautiful Craftsman style home has all the features important to today's sophisticated homebuyer. A cozy porch frames the entry and adds charm to the facade. The den and the vaulted dining room flank the two-story foyer creating more formal, secluded spaces in the front of the home.
  • Located in the center of the main floor, the kitchen serves as the command center for the family's activities. A wall of windows in the two story great room and a large bay off of the nook create a bright, open atmosphere in the rear of the home. Sharing the rear view is the master suite. Conveniently located on the main floor, it features a walk-in closet and corner spa tub sunlit by the surrounding windows.
  • Upstairs a balcony overlooks the great room and the foyer. With the two additional bedrooms on the left side of the second floor, a bonus room provides plenty of space as a playroom on the right side. A side loaded three-car garage is accessible through the utility room on the main floor.
  • Related Plan: Get an alternate exterior with house plan 69225AM.

Floor Plans

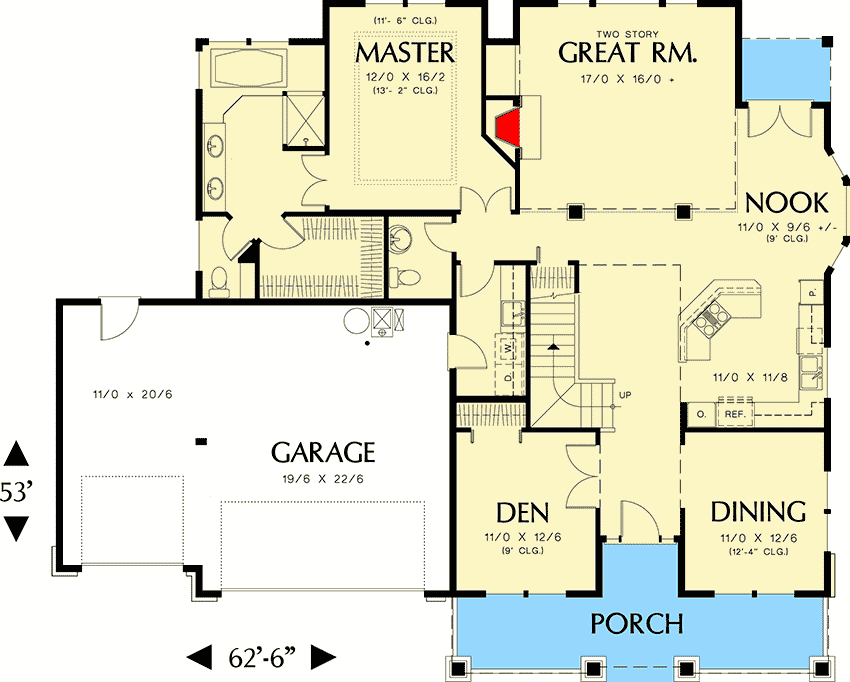

  • Main Level

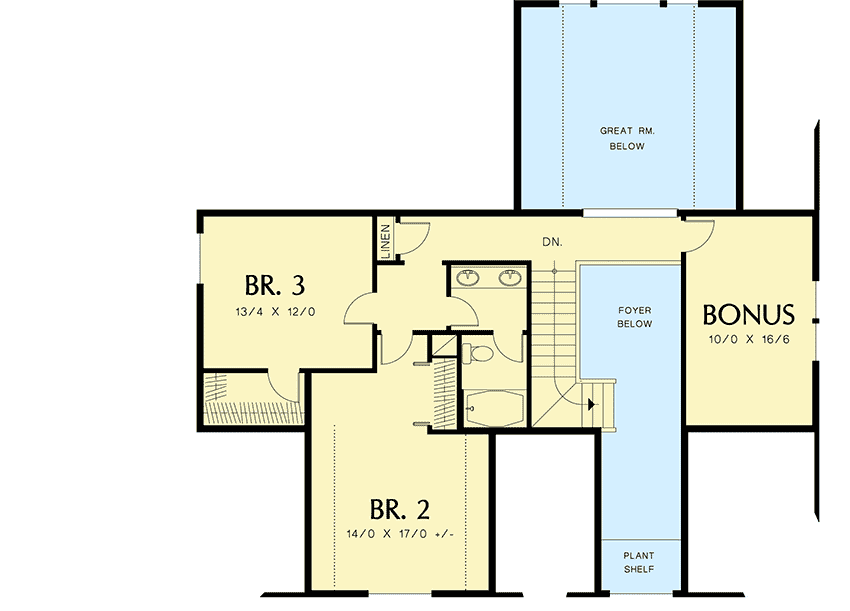

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,493 sq. ft.
  • 1st Floor: 1,783 sq. ft.
  • 2nd Floor: 710 sq. ft.
  • Bonus: 184 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 63' 0"
  • Depth: 53' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 675 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Stick

Architectural Style

  • Craftsman
  • Northwest

Special features

  • 1st Floor Master Suite
  • Bonus Room
  • CAD Available
  • Den-Office-Library-Study
  • PDF
