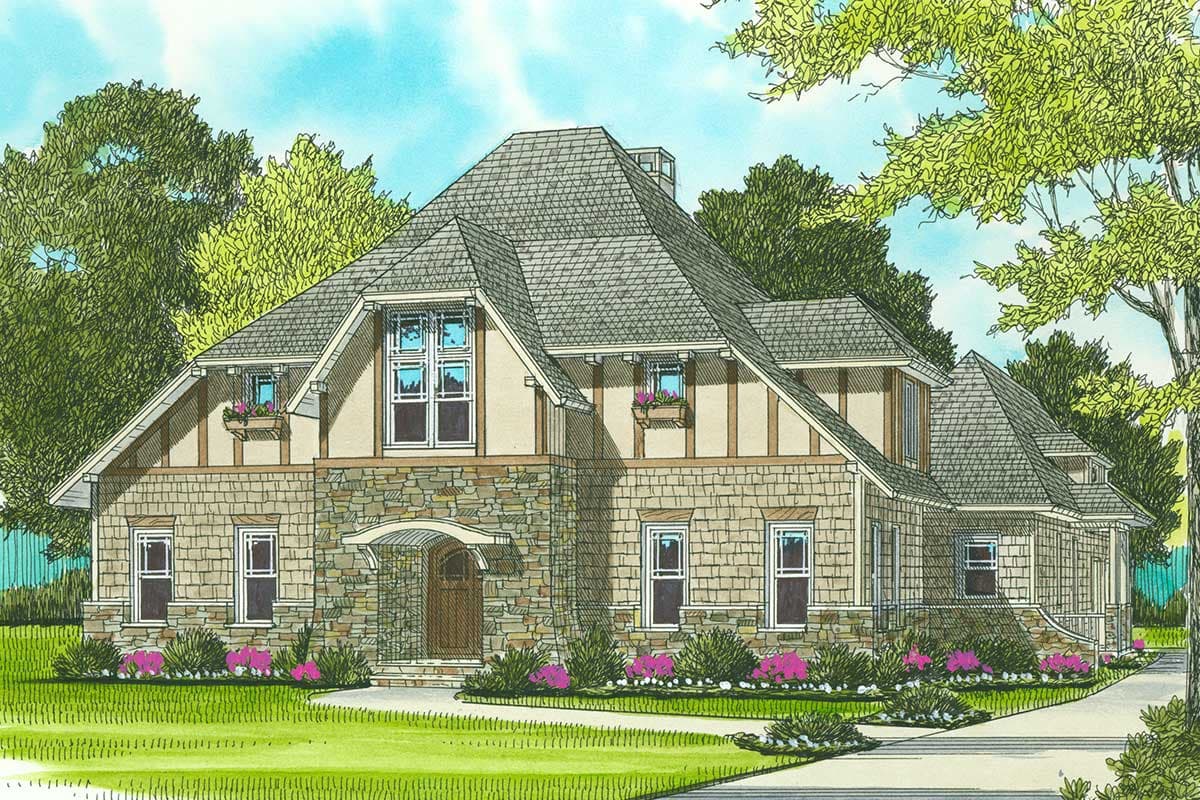

Craftsman With Great Exterior

Plan 9329EL

  • 3,836

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • You'll have your home builder on the phone a couple of minutes after seeing this stunning Craftsman style house plan that's loaded with special features. Start with a covered terrace that leads onto a large open terrace, both great for entertaining.
  • Inside, you'll find a wine cellar, a downstairs master suite with vestibule and plenty of closet space, a large gourmet kitchen with breakfast area, butlery and large walk-in pantry, plus flex space perfect for formal dining or a home office.
  • There are three large suites upstairs, plus a game room and space for an optional bonus area.
  • The garage has roomy 3-car dimensions, good for both parking and adding some work space.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

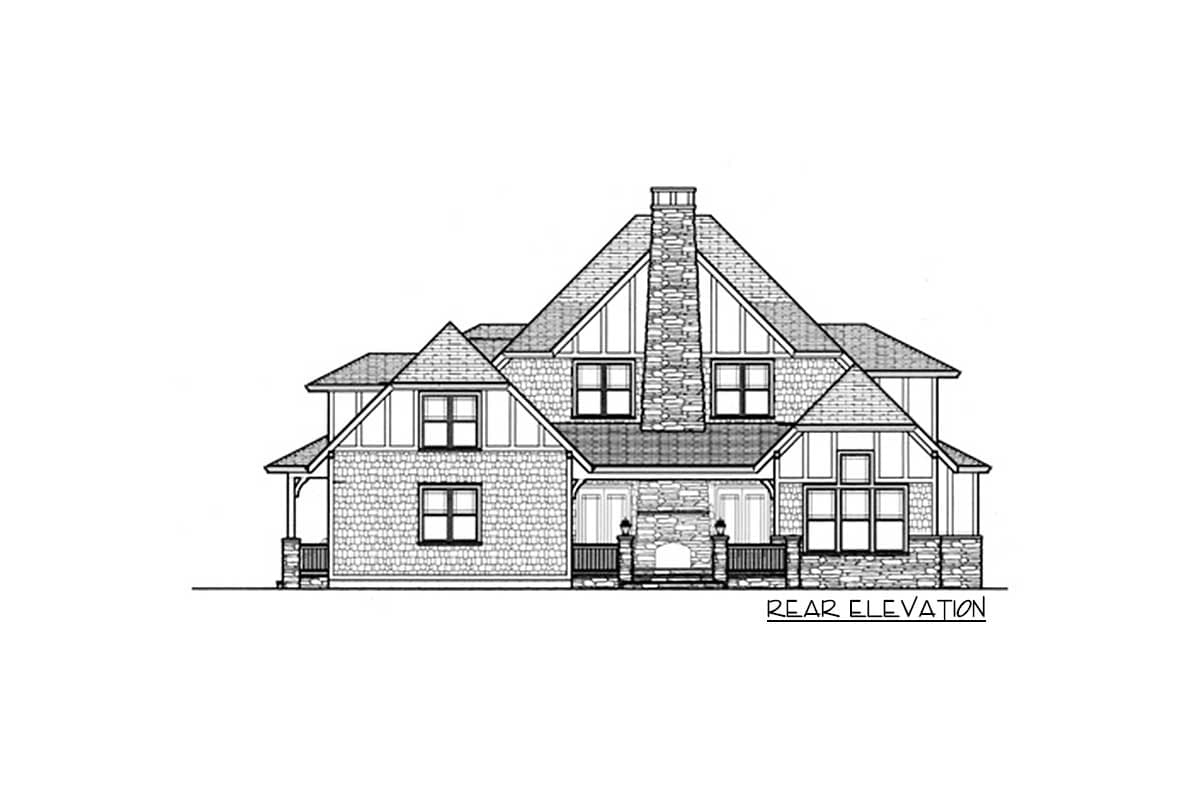

  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

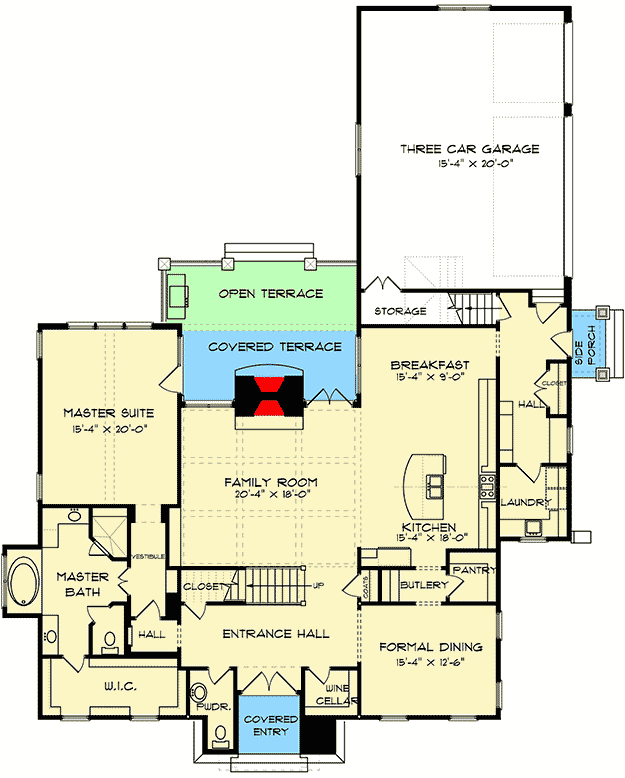

Craftsman With Great Exterior - 9329EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

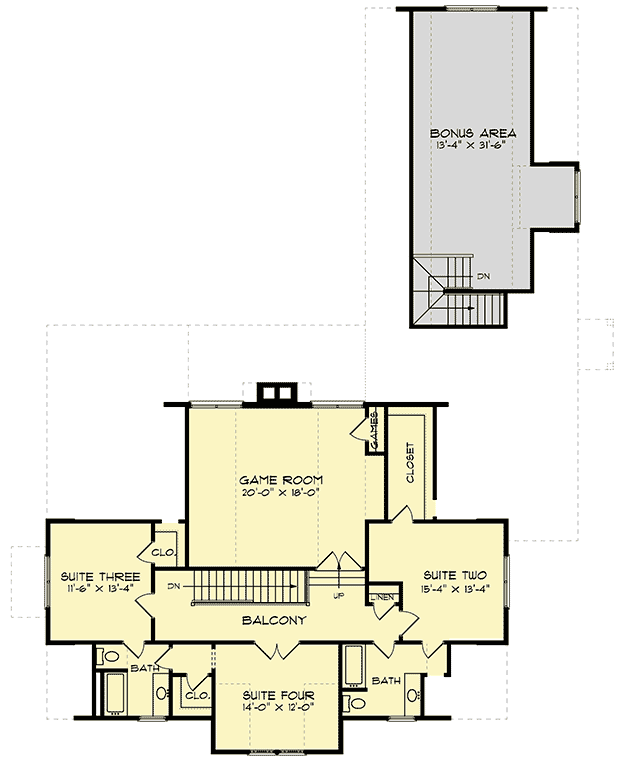

Craftsman With Great Exterior - 9329EL floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,836 sq. ft.
  • 1st Floor: 2,396 sq. ft.
  • 2nd Floor: 1,440 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 68' 0"
  • Depth: 84' 2"
  • Max ridge height: 34' 7"

Garage

  • Type: Attached
  • Area: 580 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Craftsman With Great Exterior

  • 3,836

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,095
  • CAD+PDF - Single-Build $2,750
  • PDF - Unlimited Build $2,945
  • CAD - Unlimited Build $3,600
  • View all purchase option online

About This Plan

  • You'll have your home builder on the phone a couple of minutes after seeing this stunning Craftsman style house plan that's loaded with special features. Start with a covered terrace that leads onto a large open terrace, both great for entertaining.
  • Inside, you'll find a wine cellar, a downstairs master suite with vestibule and plenty of closet space, a large gourmet kitchen with breakfast area, butlery and large walk-in pantry, plus flex space perfect for formal dining or a home office.
  • There are three large suites upstairs, plus a game room and space for an optional bonus area.
  • The garage has roomy 3-car dimensions, good for both parking and adding some work space.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,836 sq. ft.
  • 1st Floor: 2,396 sq. ft.
  • 2nd Floor: 1,440 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 68' 0"
  • Depth: 84' 2"
  • Max ridge height: 34' 7"

Garage

  • Type: Attached
  • Area: 580 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
Plan 9329EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/9329EL
|
Need Help? 800-854-7852
|
Plan 9329EL
