Plan 93013EL
EXCLUSIVE
Craftsman With LargeBonus Room
Heated S.F.
3,866
Beds
4
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details
  • This elegant house plan features plenty of space for the whole family to do their own thing with no interruptions and also hags space where everyone can get together for movie night or other family activities.
  • The downstairs features a well-designed open floor plan highlighted by a vaulted gathering room, gourmet kitchen with breakfast area, formal dining space and a home office.
  • The downstairs master suite opens onto a covered loggia, and also features a large dressing room/walk-in closet area.
  • Upstairs you'll find three suites, each opening onto a bathroom, making any of them a perfect mother-in-law suite. There is also one of the largest bonus rooms you'll find anywhere.
  • The garage with 3-car dimensions is perfect for adding workshop space -- or the ultimate man cave.
What's Included

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman With LargeBonus Room

  • 3,866

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

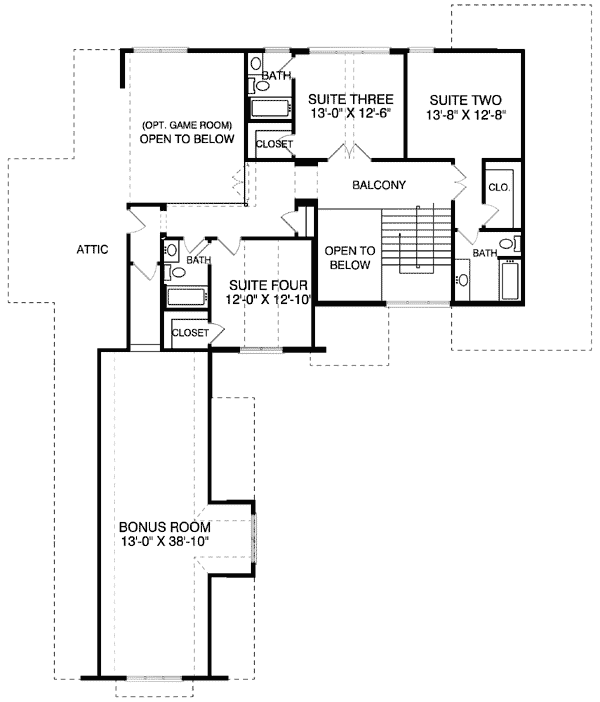

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,866 sq. ft.
  • 1st Floor: 2,159 sq. ft.
  • 2nd Floor: 1,707 sq. ft.

Dimensions

  • Width: 69' 6"
  • Depth: 82' 5"
  • Max ridge height: 38' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 827 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 14 on 12
