Plan 18235BE

Craftsman with Pergola

Pageloader

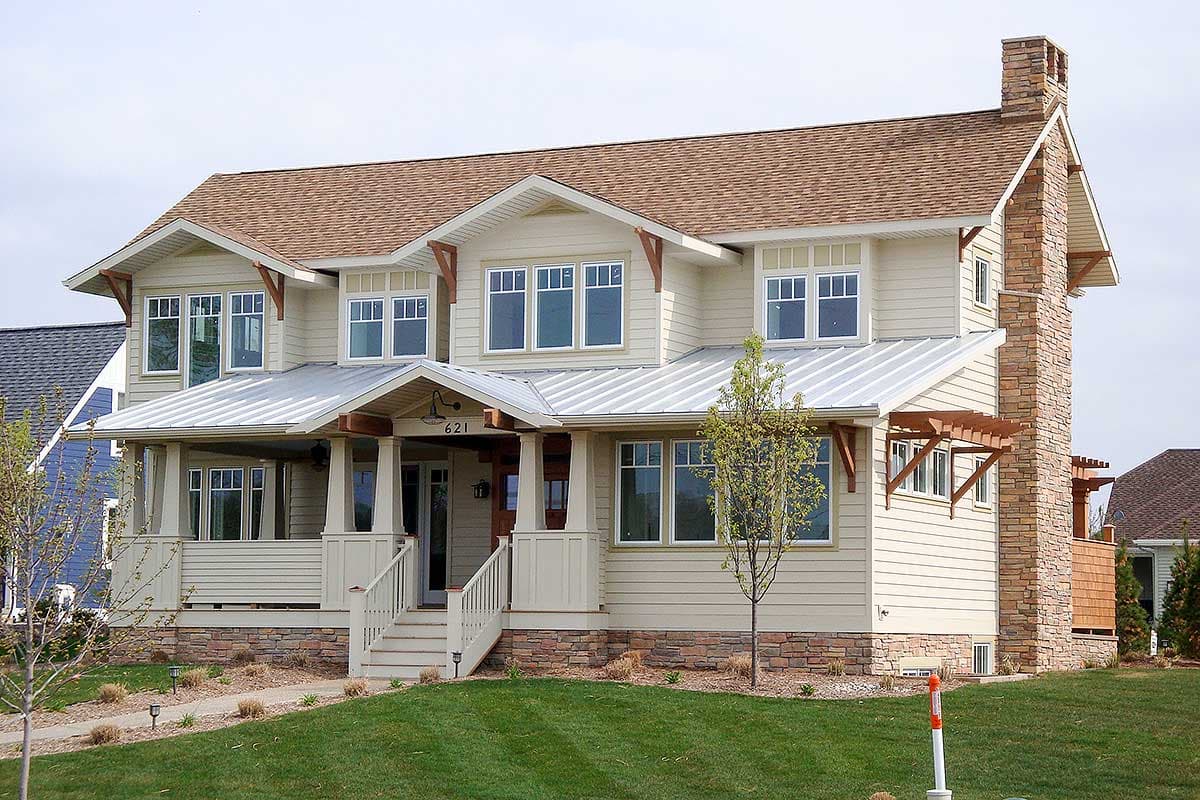

Craftsman with Pergola

Plan 18235BE

  • 2,425

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

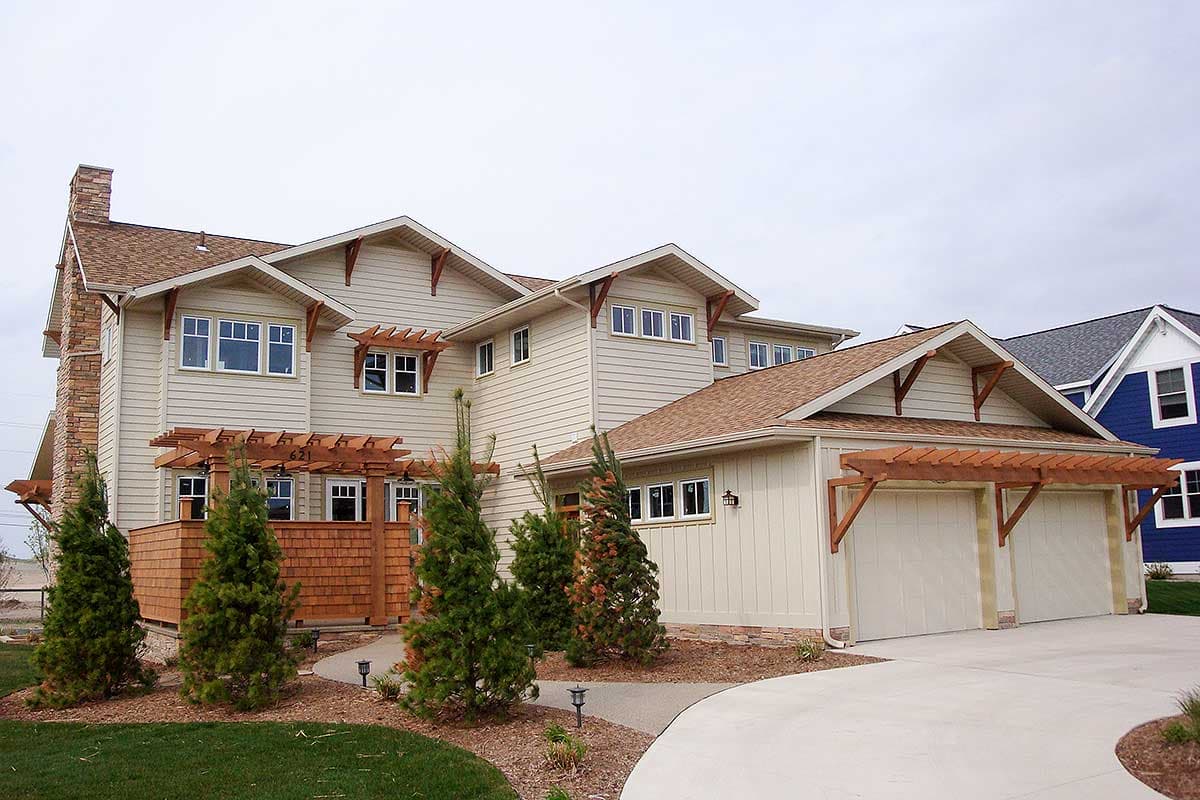

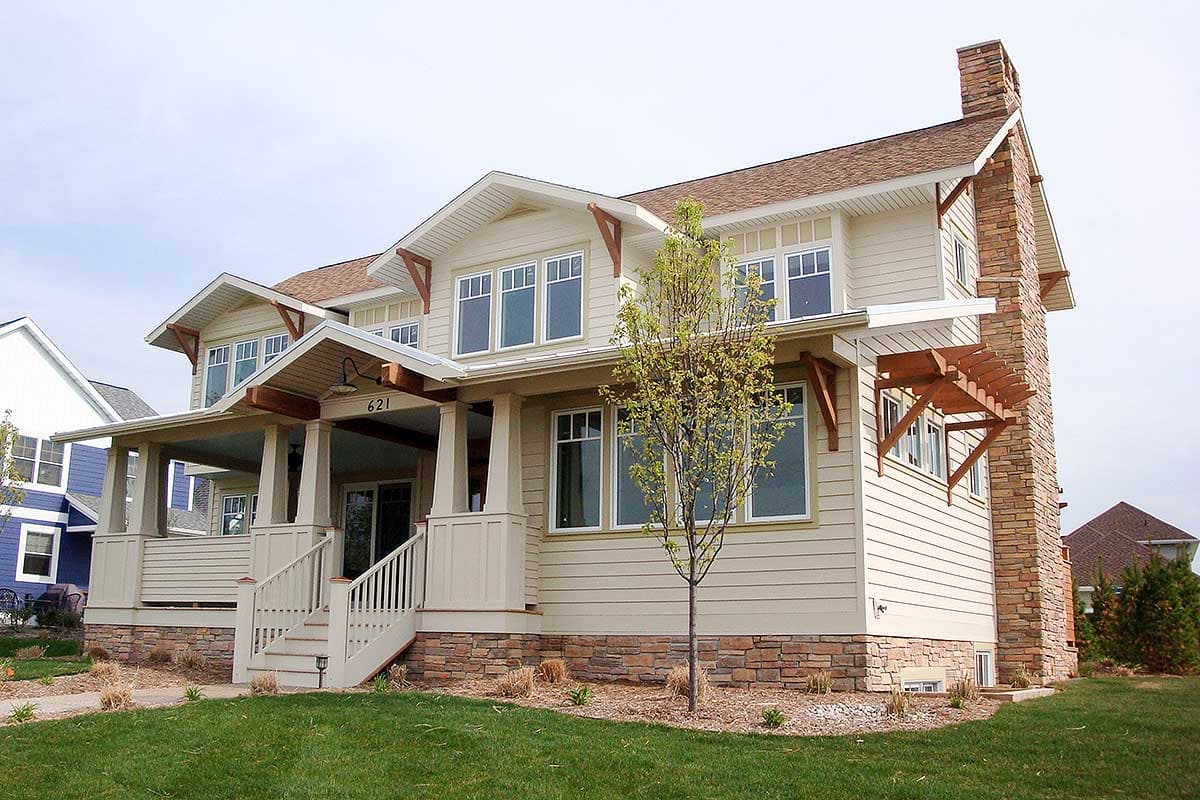

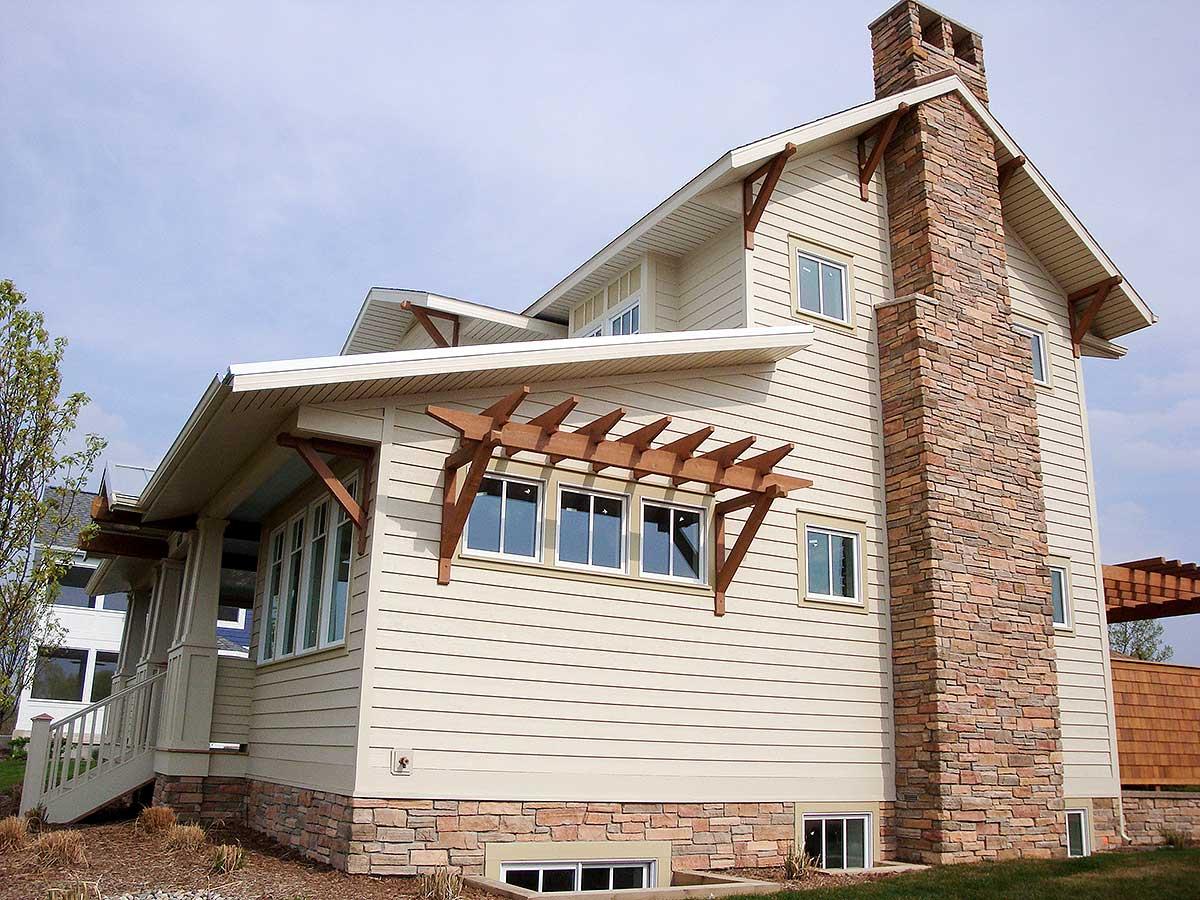

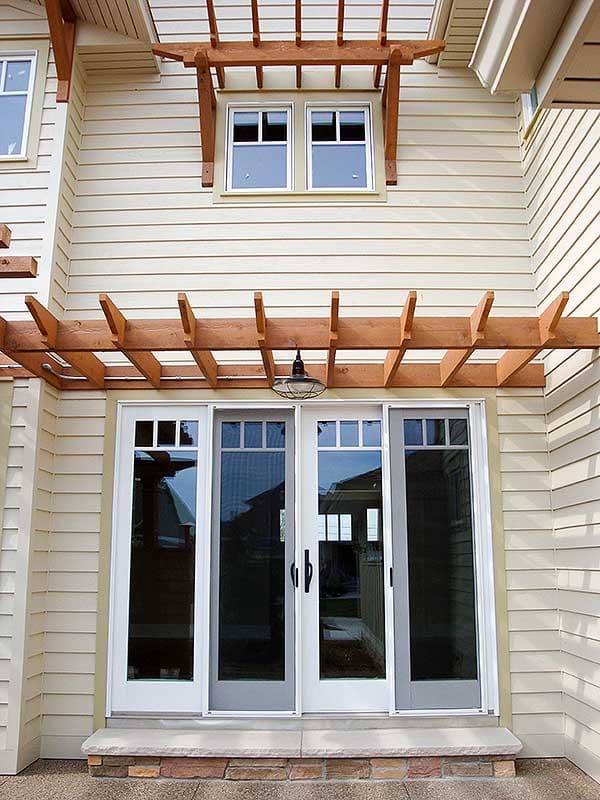

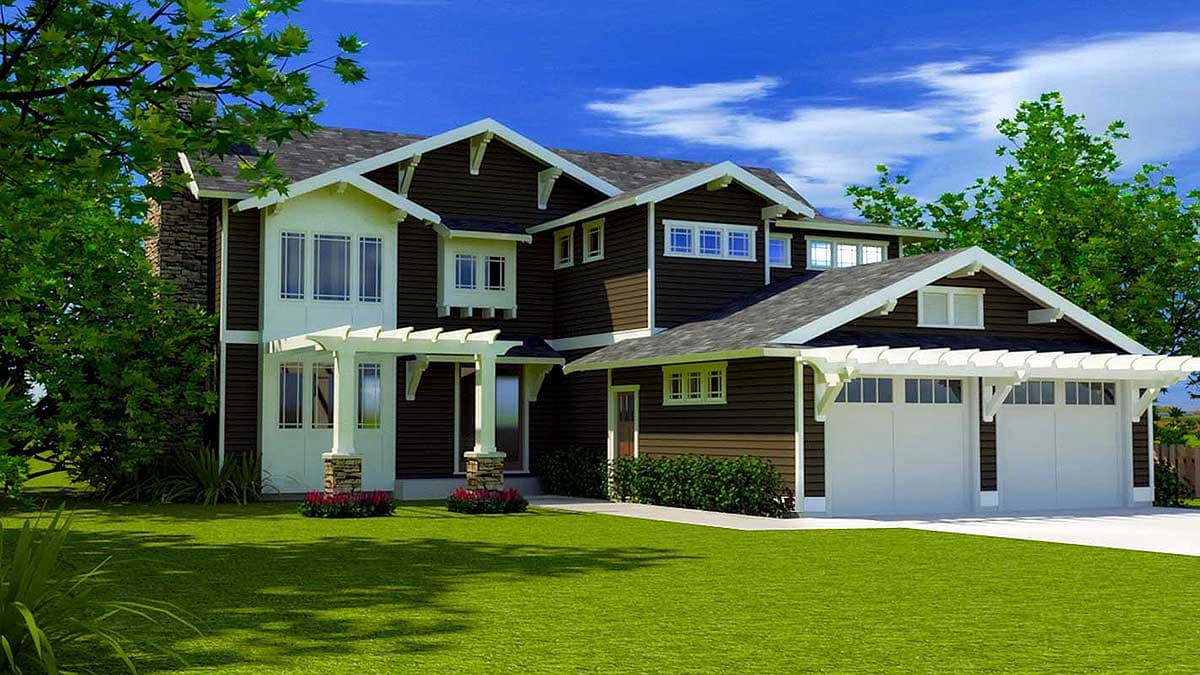

  • A charming pergola on the rear of this Craftsman home plan will have your family enjoying the outdoors in style.

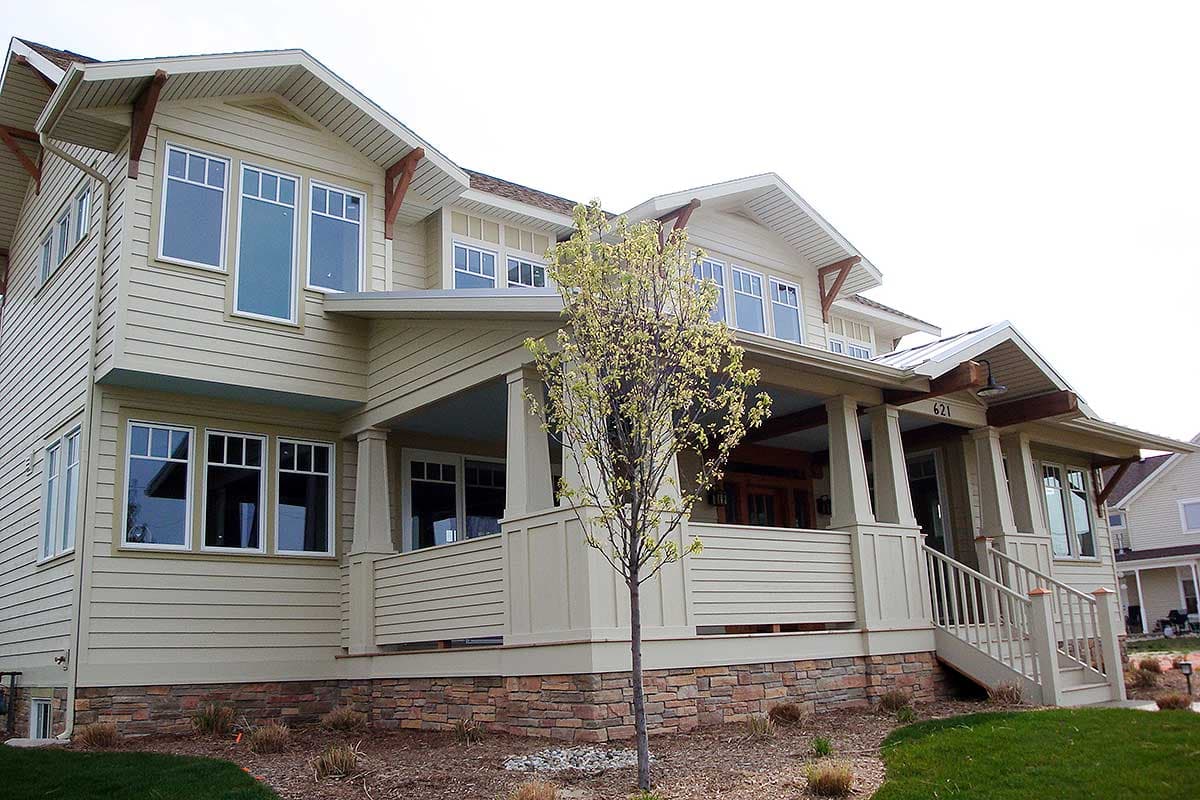

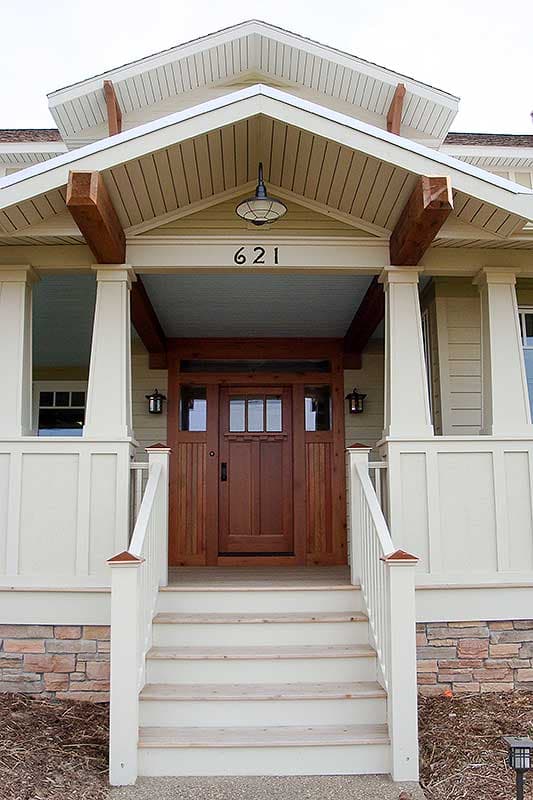

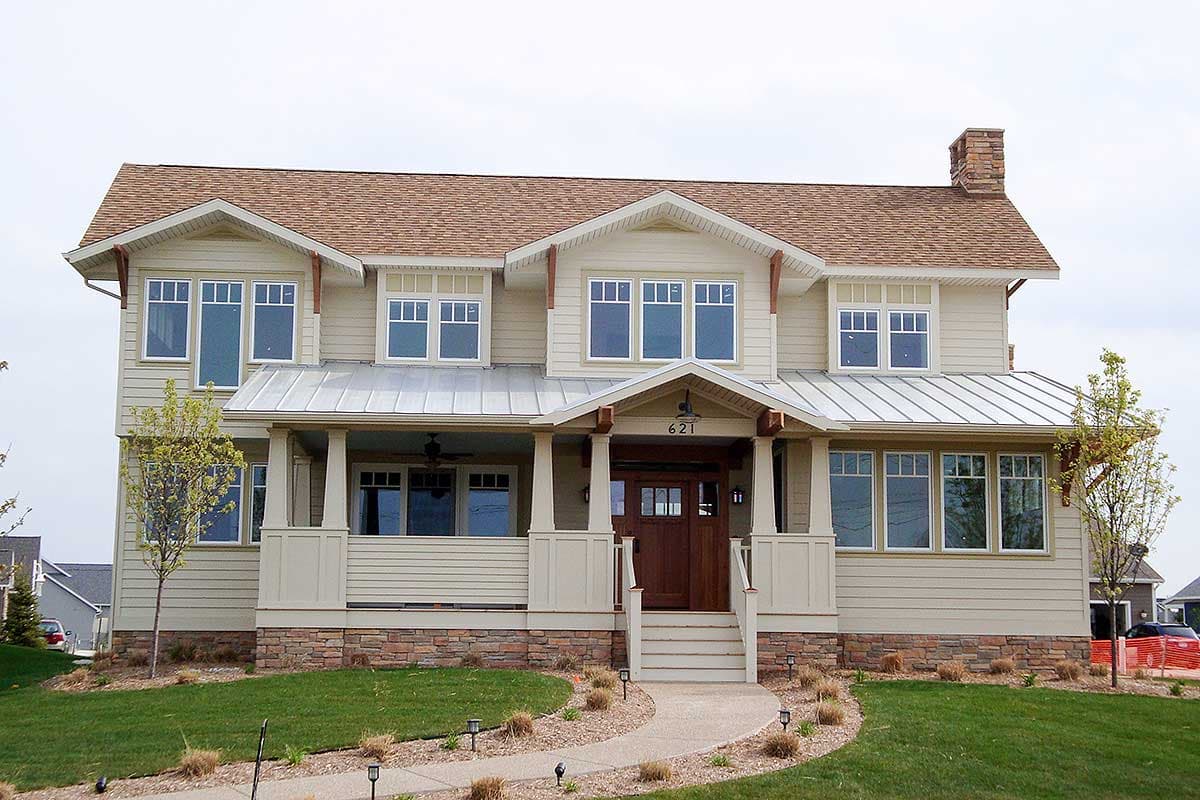

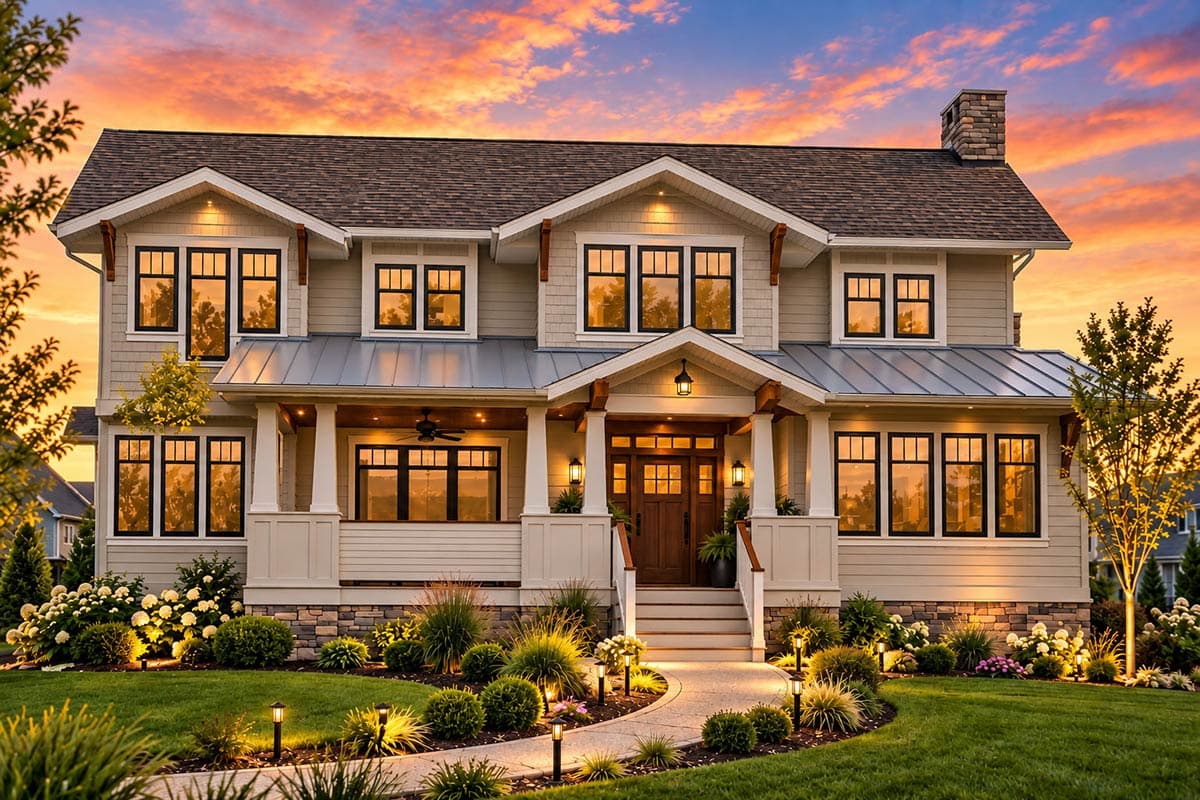

  • The spacious front porch give you another spot, with plenty of room for comfortable rocking chairs.

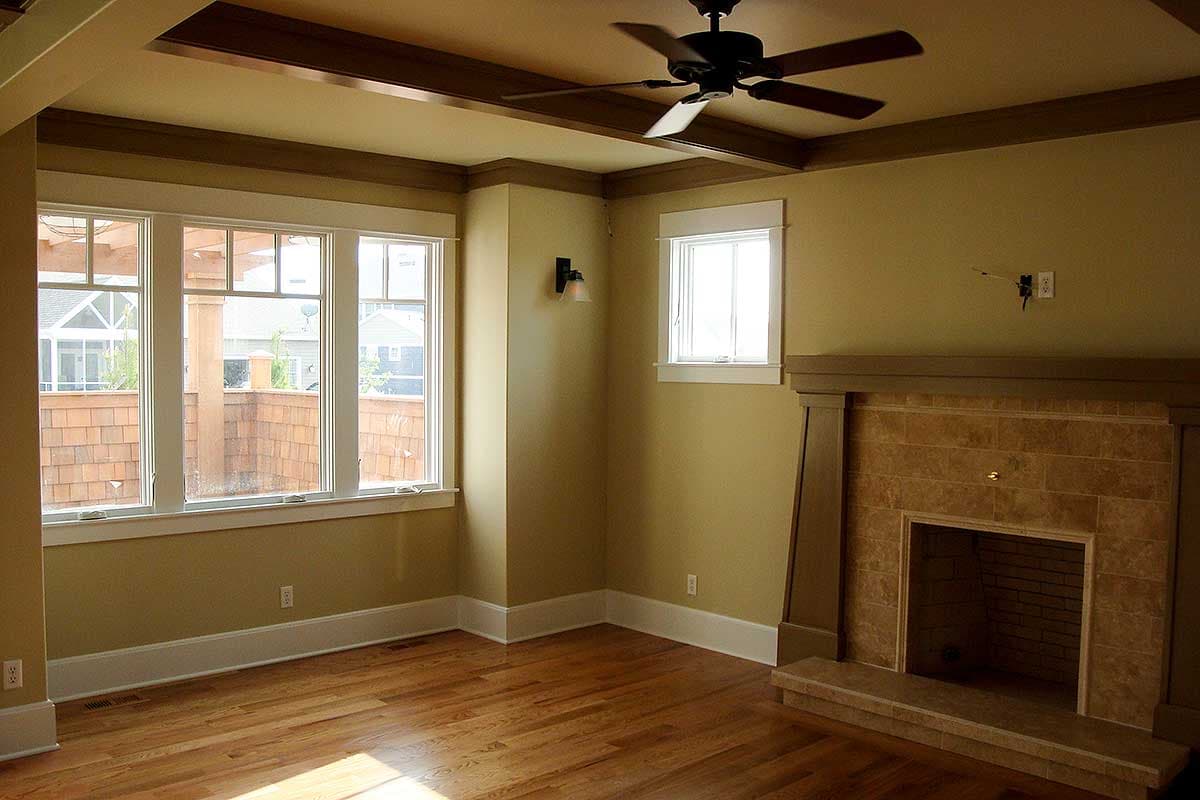

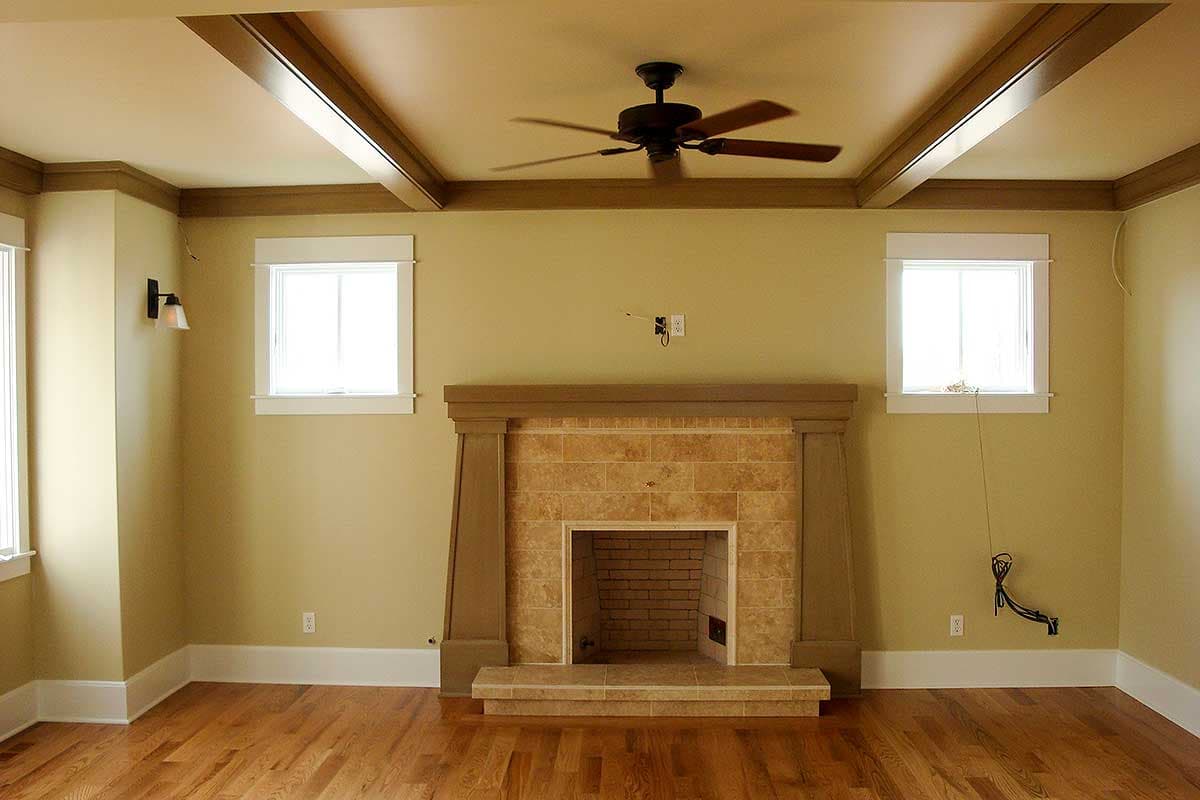

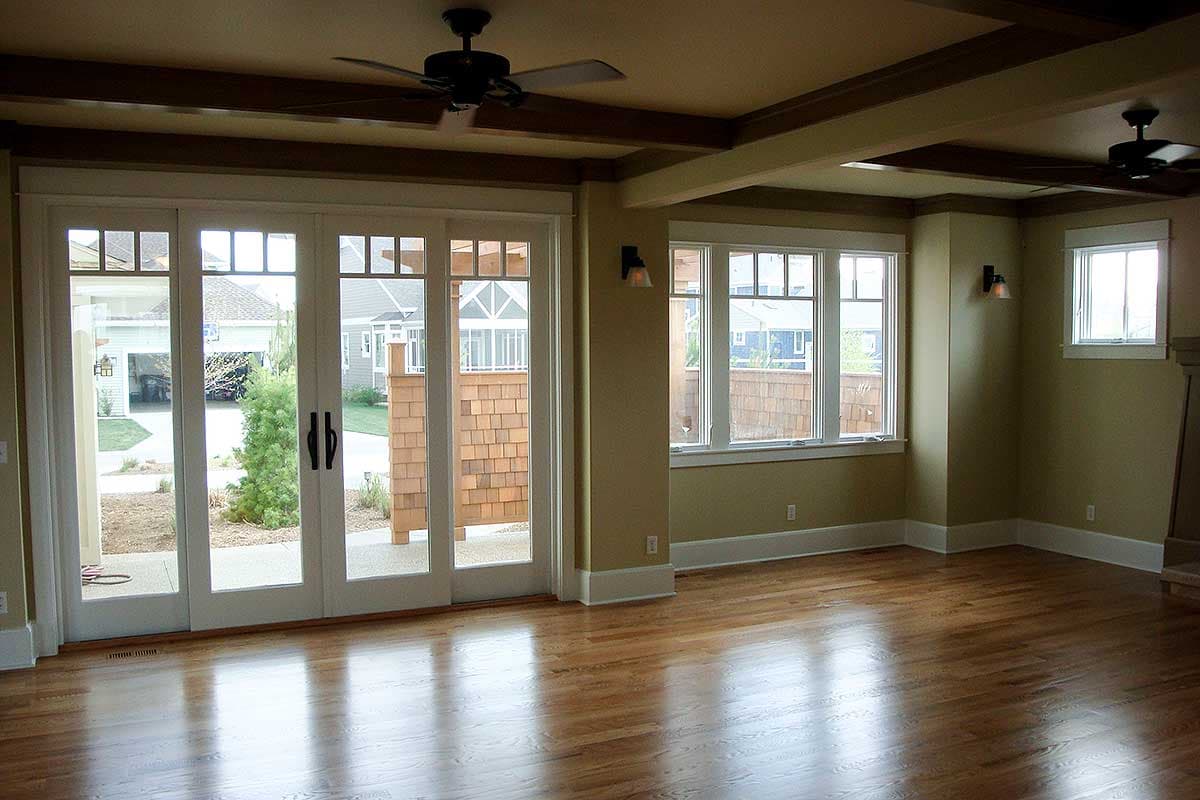

  • When it's time to come in, the enormous great room with fireplace will hold family and friends alike.

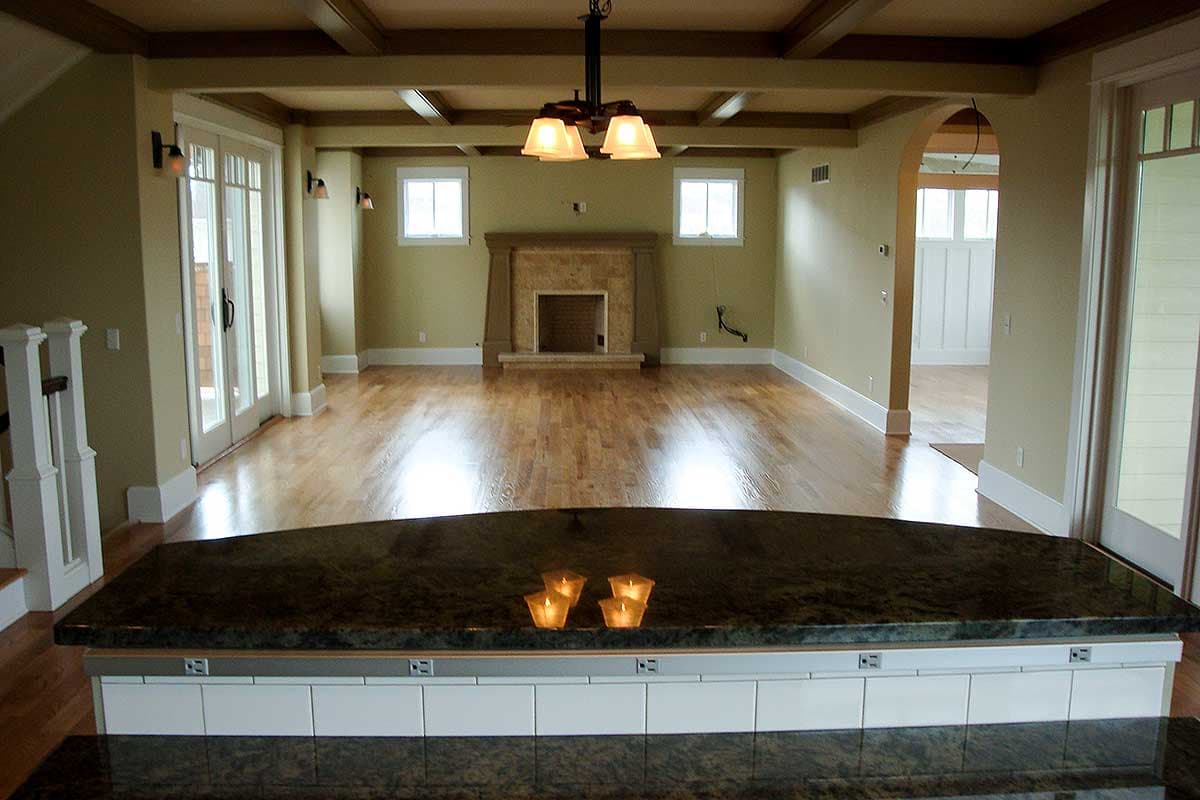

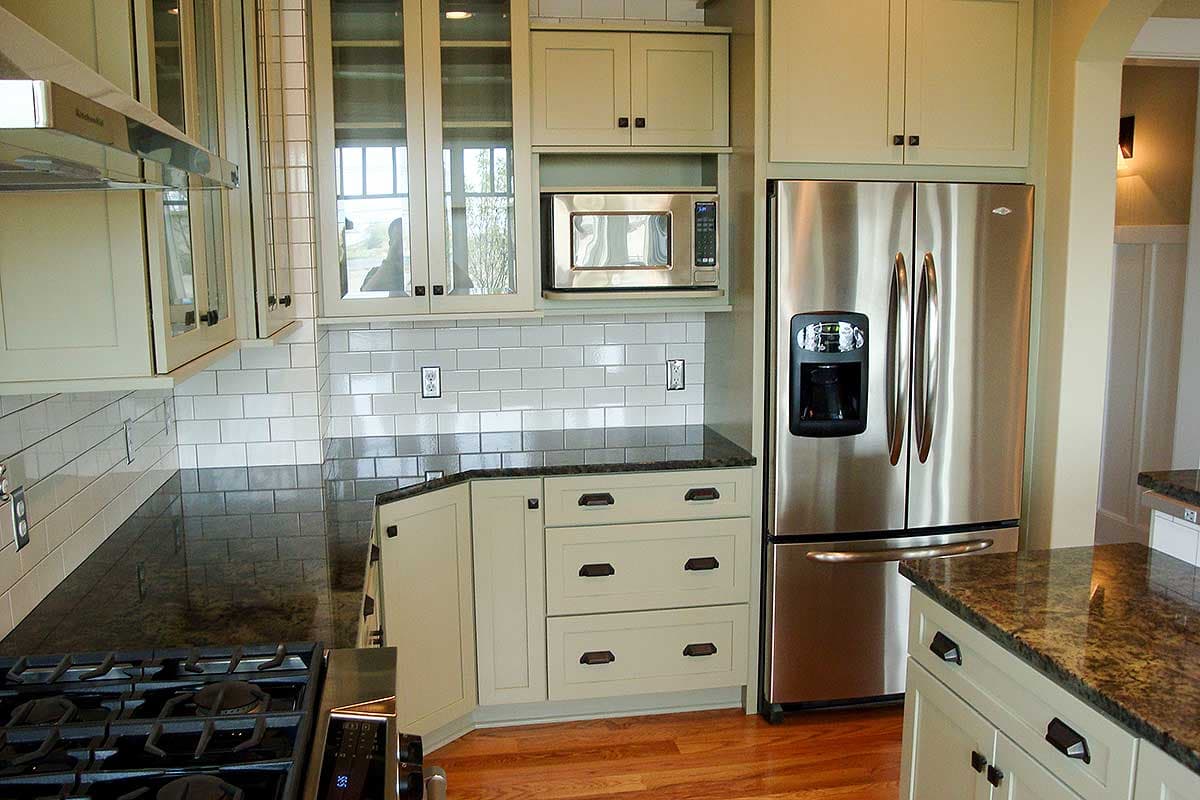

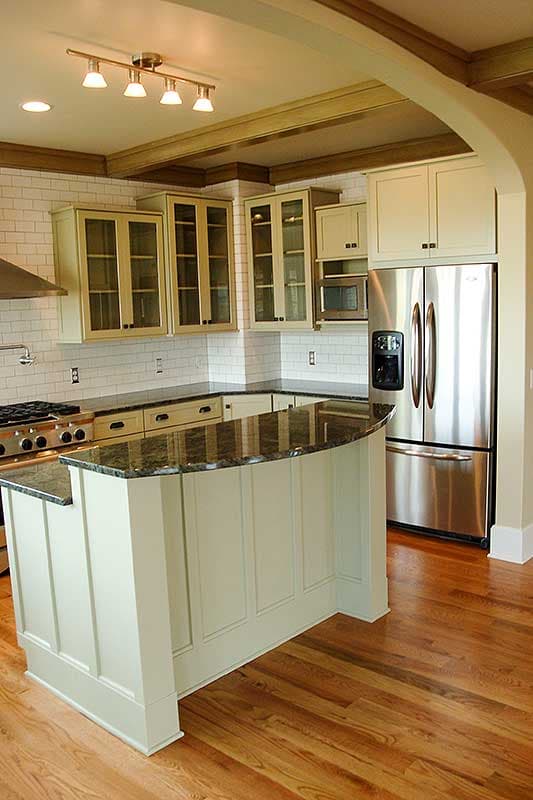

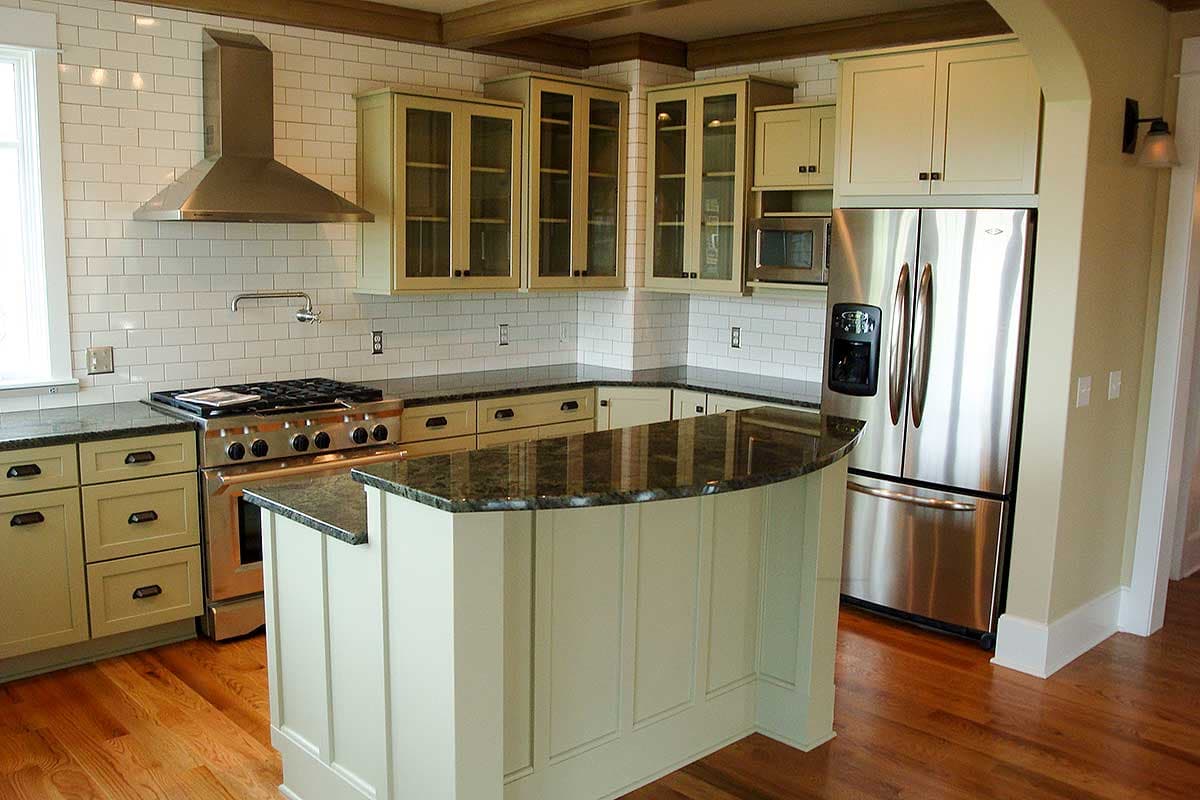

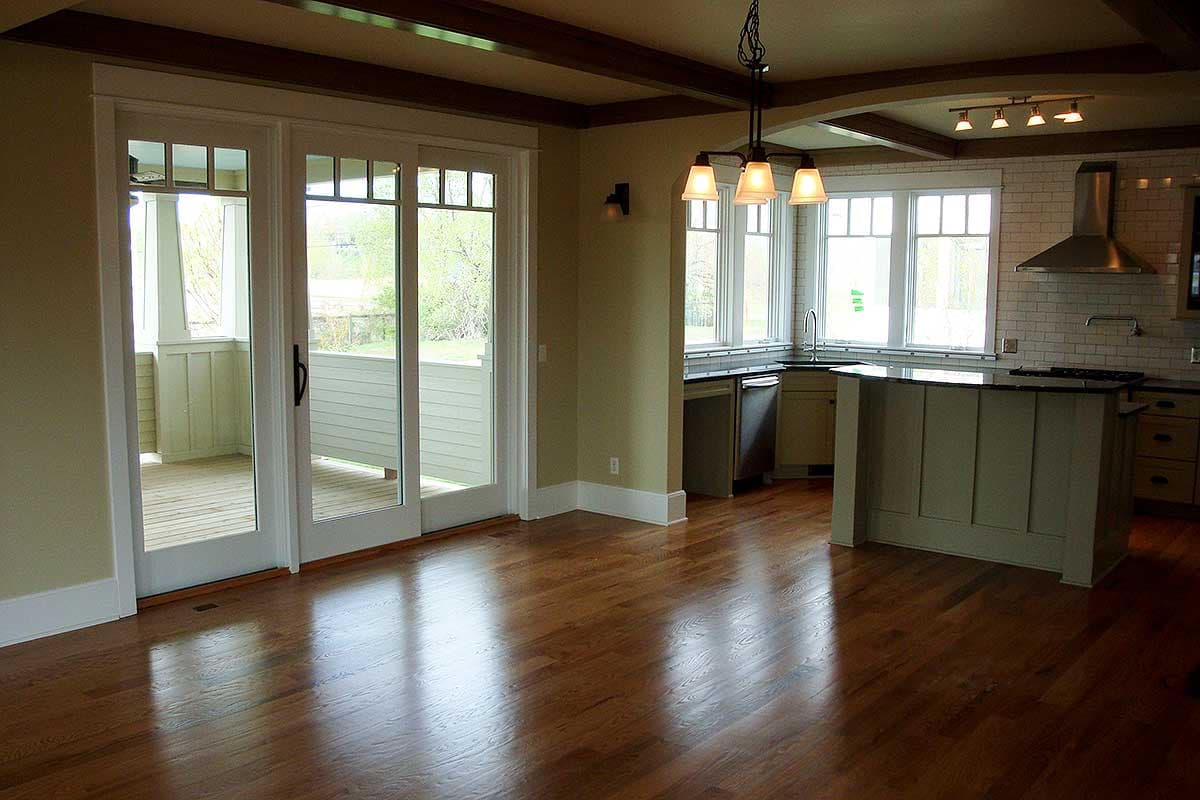

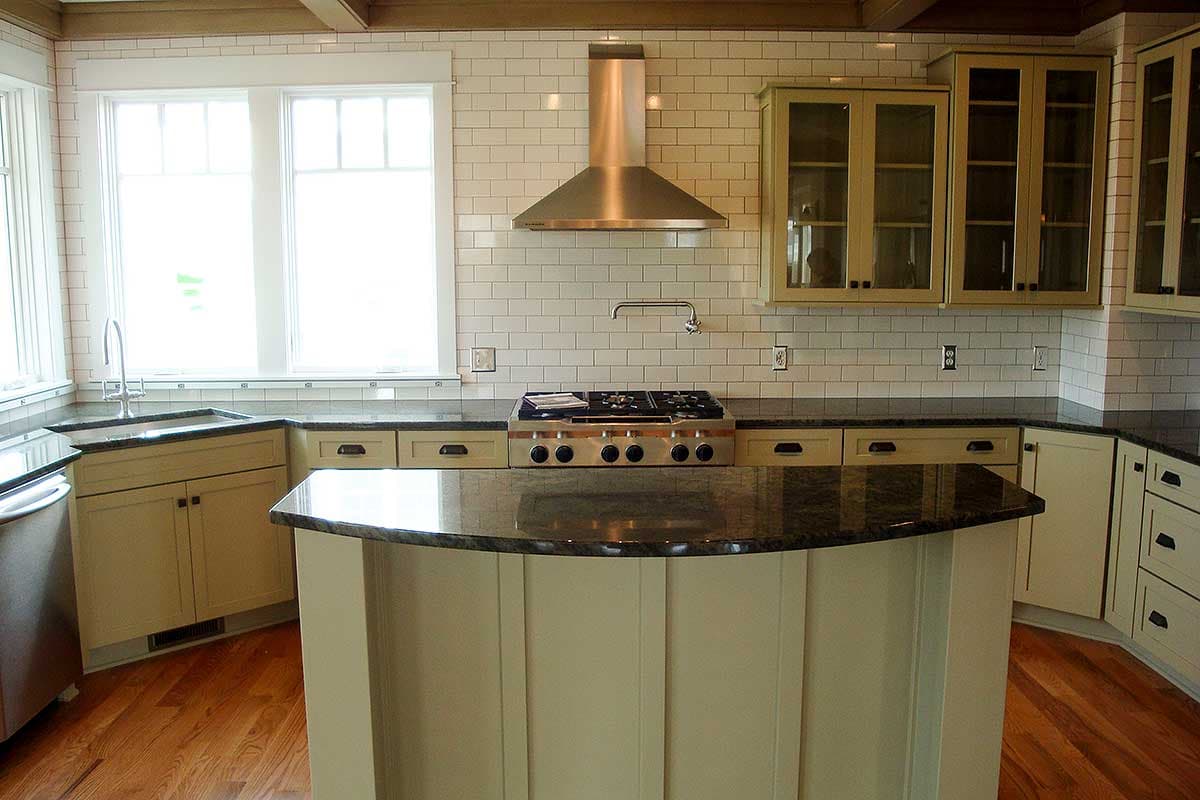

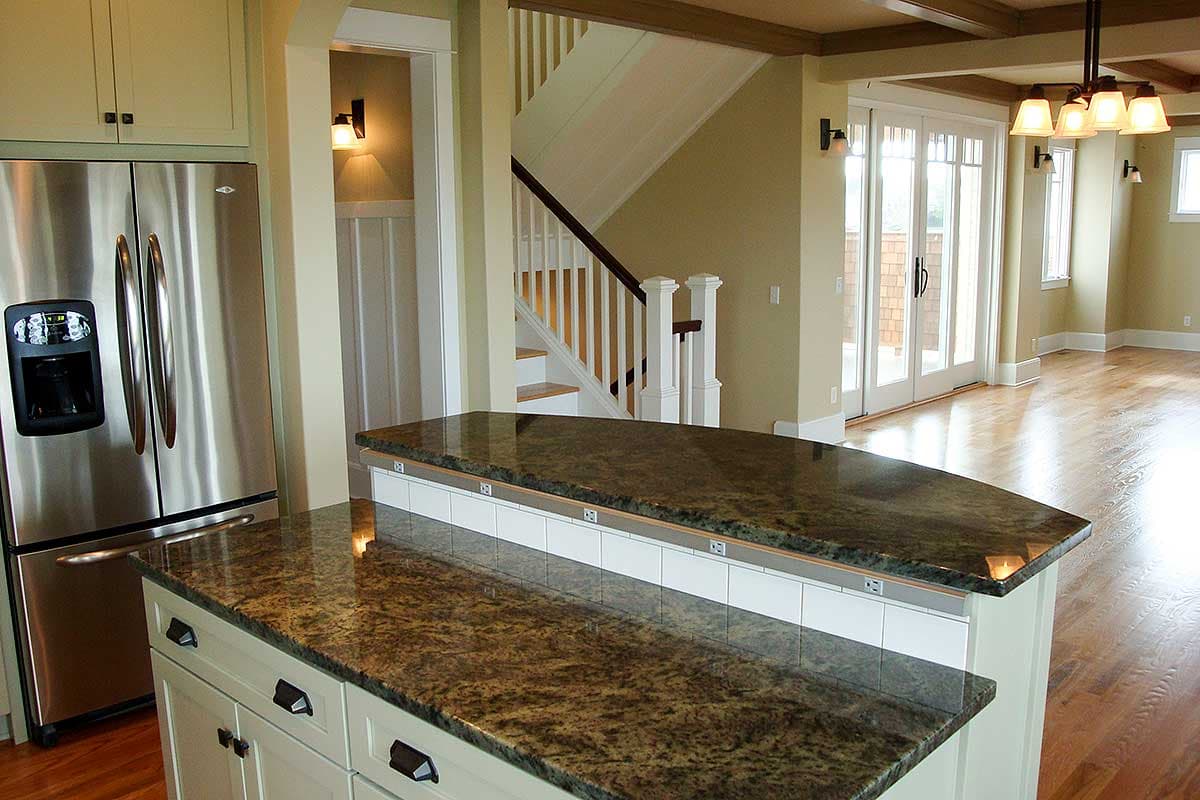

  • The kitchen with large center island is open to the dining room, allowing views of the great room beyond.

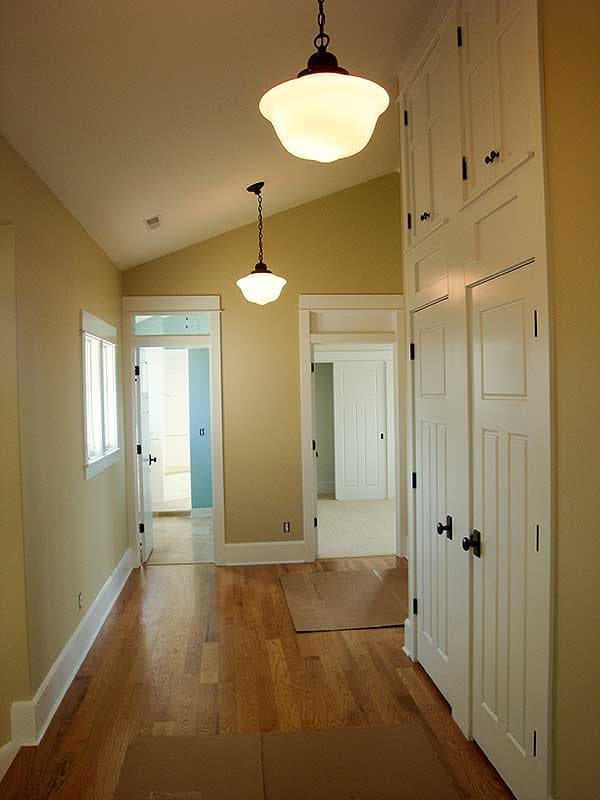

  • All the bedrooms are on the second floor, with the master suite boasting a vaulted ceiling and sitting area.

Plans include the following

  • General Notes & Design Criteria
  • Perspective views
  • Foundation plan
  • Floor plan
  • Exterior elevations
  • Cross sections
  • Door & window schedules
  • Roof plan and room finish schedule
  • Electrical plan

Floor Plan

Plan details



Craftsman with Pergola

  • 2,425

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Reproducible Set $1,085
  • PDF - single-use $1,085
  • 5 Sets $1,135
  • 8 Sets $1,285
  • CAD $1,645
  • View all purchase option online

About This Plan

  • A charming pergola on the rear of this Craftsman home plan will have your family enjoying the outdoors in style.
  • The spacious front porch give you another spot, with plenty of room for comfortable rocking chairs.
  • When it's time to come in, the enormous great room with fireplace will hold family and friends alike.
  • The kitchen with large center island is open to the dining room, allowing views of the great room beyond.
  • All the bedrooms are on the second floor, with the master suite boasting a vaulted ceiling and sitting area.

Floor Plans

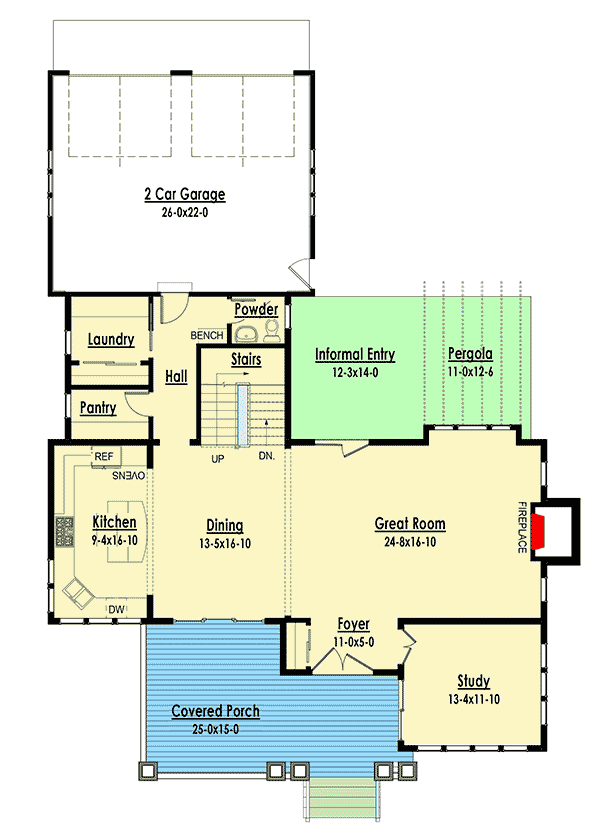

  • Main Level

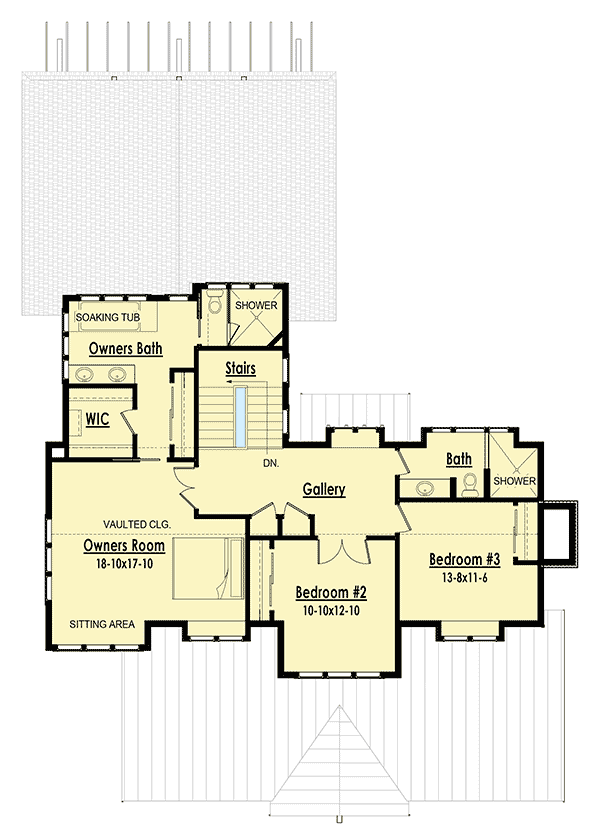

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,425 sq. ft.
  • 1st Floor: 1,299 sq. ft.
  • 2nd Floor: 1,126 sq. ft.
  • Entry: 315 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Daylight
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 69' 4"

Garage

  • Type: Attached
  • Area: 564 sq. ft.
  • Count: 2 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick and Truss
