Plan 55194BR
Craftsman with Porches, Pergola and 2 Upstairs Bedrooms
Heated S.F.
3,036
Beds
5
Baths
4
Stories
2
Cars
2
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

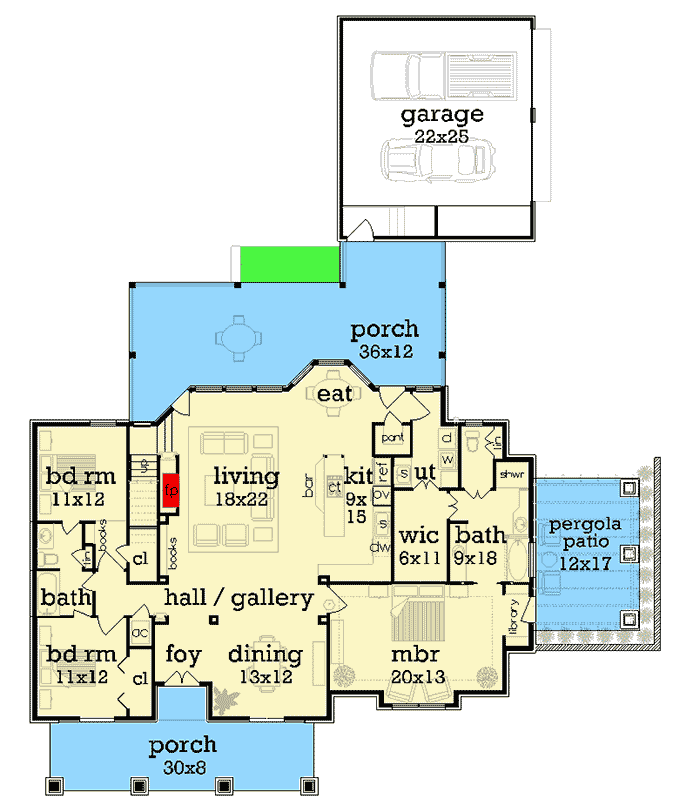

Craftsman with Porches, Pergola and 2 Upstairs Bedrooms - 55194BR floor plan - Main Level
2nd Floor
Reverse Floor Plan

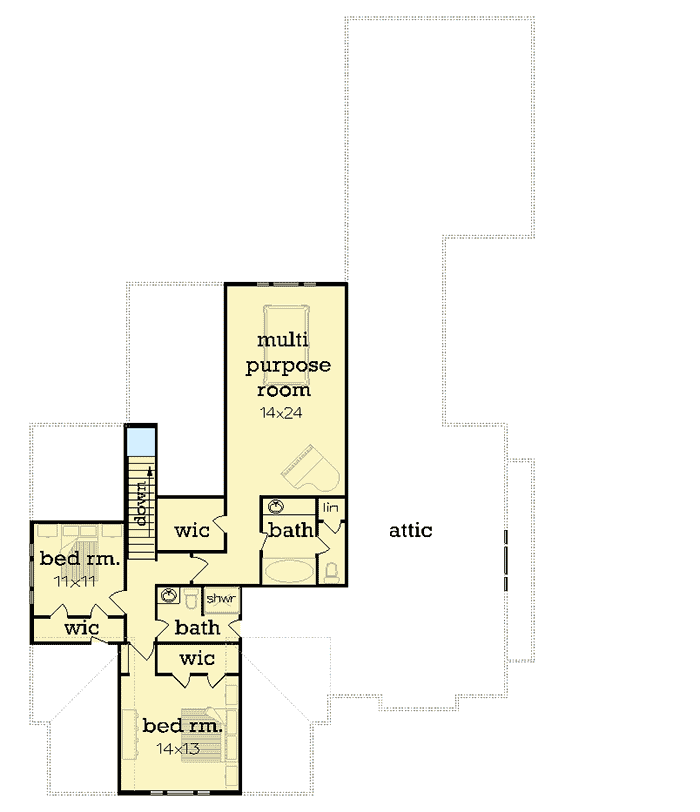

Craftsman with Porches, Pergola and 2 Upstairs Bedrooms - 55194BR floor plan - 2nd Floor
Unfinished Basement
Reverse Floor Plan

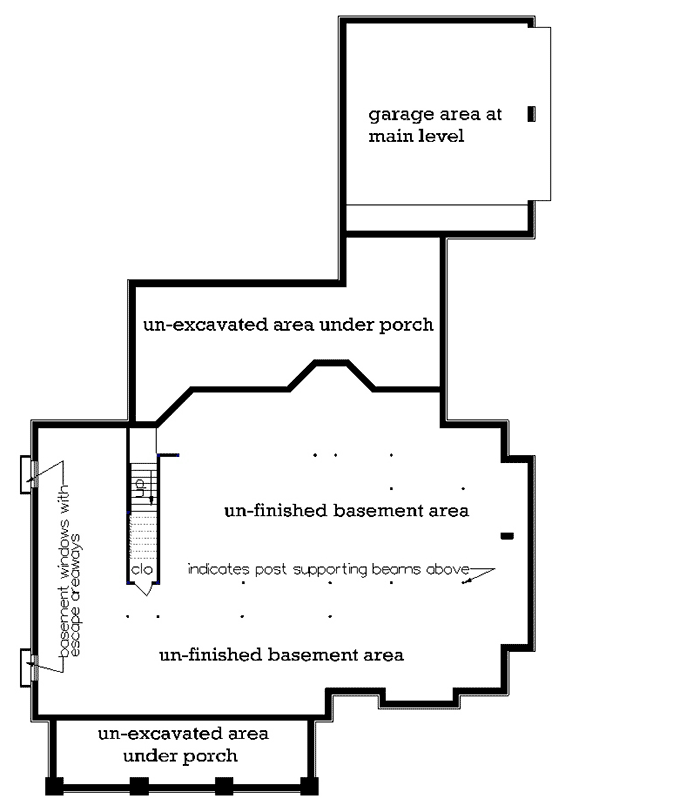

Craftsman with Porches, Pergola and 2 Upstairs Bedrooms - 55194BR floor plan - Unfinished Basement
Plan Details
  • Beautifully arranged, this 5-bed Craftsman-style home plan is super energy efficient with a host of other energy saving features.
  • The living room is open and bright and features a built-in library, wood burning fireplace and a sweeping stairwell entrance to the upper level.
  • The kitchen is large, fully appointed and has an adjoining butler’s pantry.
  • The utility room is steps away and can also be accessed from the master bath for added convenience.
  • The master bedroom generously sized, has tray ceilings and a built-in library. Best of all, there is a private patio for the owners including a low maintenance pergola for added beauty and comfort.

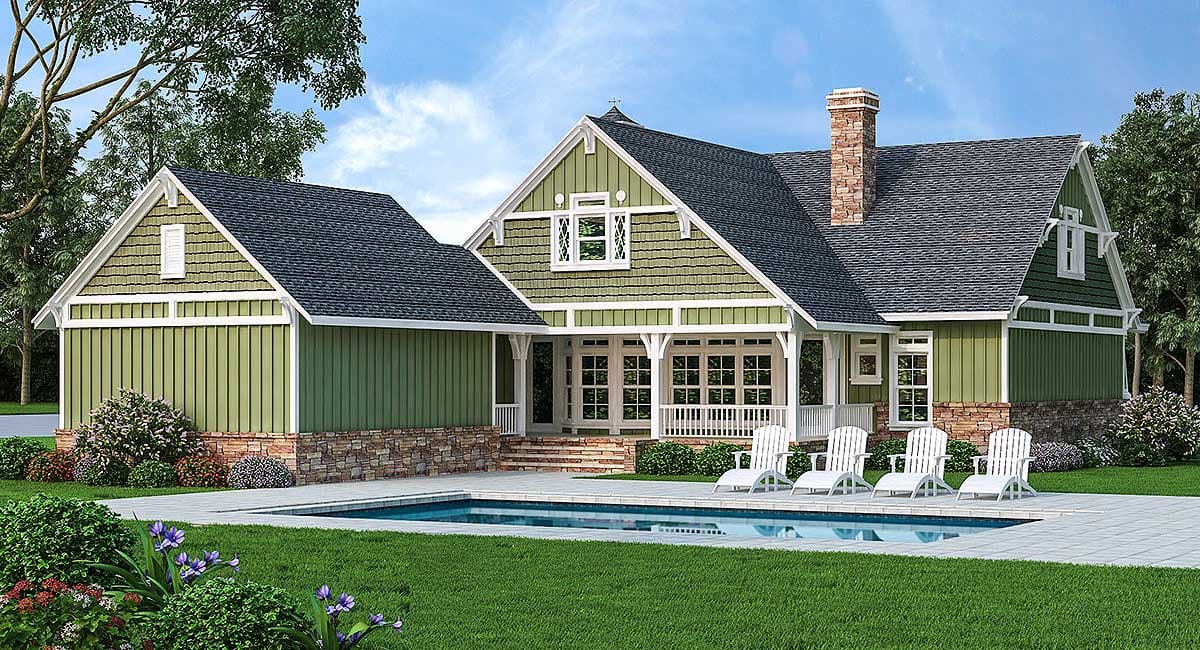

  • The large rear porch provides lots of room for outdoor entertaining and a breezeway to the 2-car garage.
  • The upper level contains 2 bedrooms that share a generous size bath with shower.  In addition, there is a giant size multi-purpose room that can accommodate a regulation size pool table with lots of room to spare.
  • Related Plan: Simplify the upstairs and get just a bonus room with bath with house plan 55174BR (1,976 sq. ft.). Change the pergola to a carport with house plan 55209BR.
What's Included
  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule
What's Not Included

  • Architectural or Engineering Stamp - handled locally if required

  • Site Plan - handled locally when required

  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this

  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this

  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman with Porches, Pergola and 2 Upstairs Bedrooms

  • 3,036

    Heated s.f.

  • 5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Unfinished Basement

Plan Details

Square Footage Breakdown

  • Total: 3,036 sq. ft.
  • 1st Floor: 1,976 sq. ft.
  • 2nd Floor: 1,060 sq. ft.

Dimensions

  • Width: 57' 0"
  • Depth: 88' 6"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 542 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
