Plan 69052AM

Craftsman With Vaulted Living Space and a 3-Car Tandem Garage

Heated S.F.
2,296
Beds
3
Baths
2.5
Stories
2
Cars
3

Floor Plan

Plan 69052AM

Main Level
Main Level
2nd Floor
2nd Floor

Plan 69052AM

M-F 9am-5pm EST |

1-203-761-8500

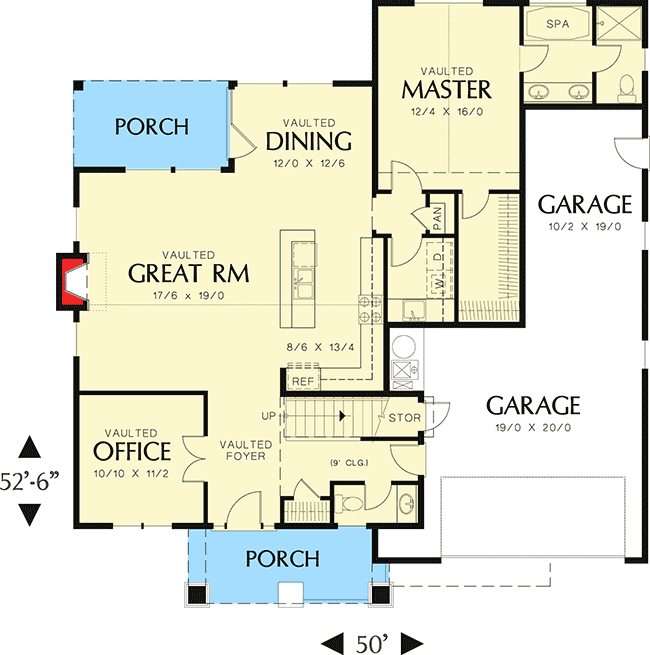

Main Level

Plan 69052AM: Craftsman With Vaulted Living Space and a 3-Car Tandem Garage - Floor Plan - Main Level - Craftsman, Northwest

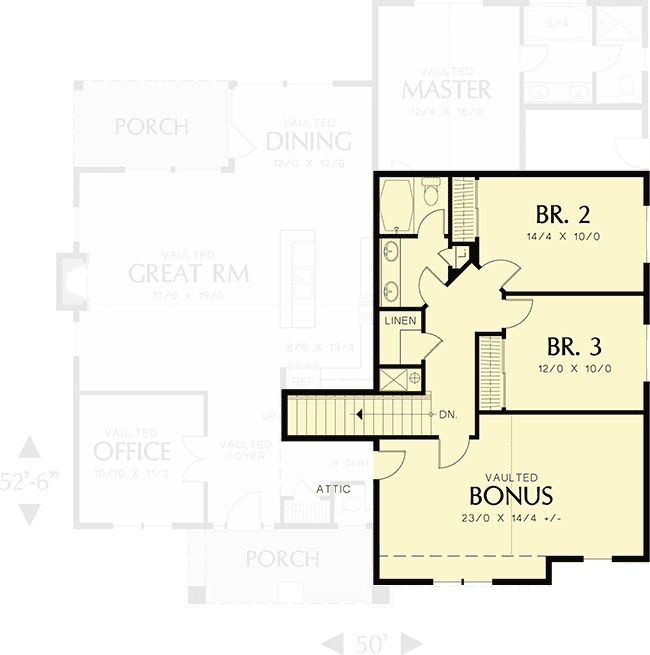

2nd Floor

Plan 69052AM: Craftsman With Vaulted Living Space and a 3-Car Tandem Garage - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

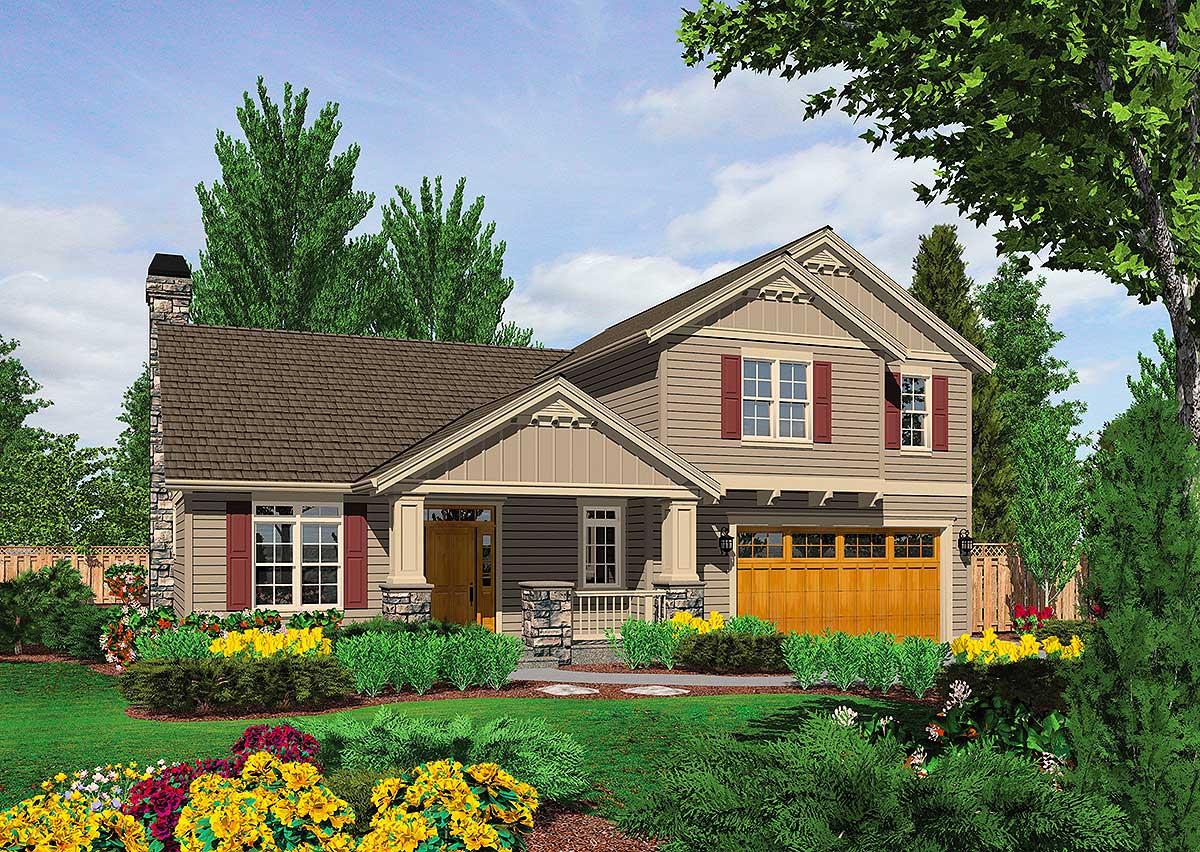

  • A covered porch adds a special touch to this Craftsman home. Its columns are wide and adorned at foundation level by stonework. Additional exterior touches only add to the overall theme: shuttered multi-pane windows, board-and-batten detail in the gable ends and a lovely stone chimney.
  • Interior spaces allow exquisite livability beginning with a home office to the left of the foyer and continuing to the vaulted great room straight ahead. A hearth warms the great room as well as an adjacent island kitchen and a vaulted dining area. A side door to a covered patio makes outdoor meals a breeze.
  • Tucked behind the three-vehicle garage is an opulent master suite, with a vaulted salon, walk-in closet and luxury bath. It is reached via a hallway that contains the laundry room and a large pantry. Two additional bedrooms are located on the upper level and share a compartmented bath and the use of a walk-in linen closet.
  • A huge vaulted bonus space across the front of the upper level can be developed in any way you choose.

What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,296 sq. ft.

1st Floor

1,464 sq. ft.

2nd Floor

832 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

50' 0"

Depth

53' 0"

Max Ridge Height

25' 4"

Garage

Type

Attached

Area

632 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Home Office

Laundry - Main Level

Master Suite - 1st Floor

Tandem Garage
