Darling Farmhouse Cottage Plan with First-Floor Owner's Bedroom

Plan 83607CRW

  • 2,816

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • Charm radiates from this 4-bedroom, cottage plan with an inviting front porch giving a grand first impression. The contrasting white siding and dark window sashes adds just the perfect modern touch.
  • A coat closet rests near the foyer, across from the dining room. A butler's pantry provides access to the kitchen from the dining room.
  • L-shaped counters surround a prep island, and the attached dinette offers a sliding door to the rear, wrap-around porch.
  • The first-floor, owner's bedroom features an attached bath with an oversized shower with two shower heads and a freestanding tub.
  • A loft greets you at the top of the stairs, and leads to 3 bedrooms that share the hall bath. A laundry closet is centrally located on the second level for ease of use.
  • Related Plans: Get an attached 2-car garage with house plans 83608CRW and 83615CRW.

This designer's plans include the following details:

  • Cover sheet with rendering
  • Foundation plan with details
  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)

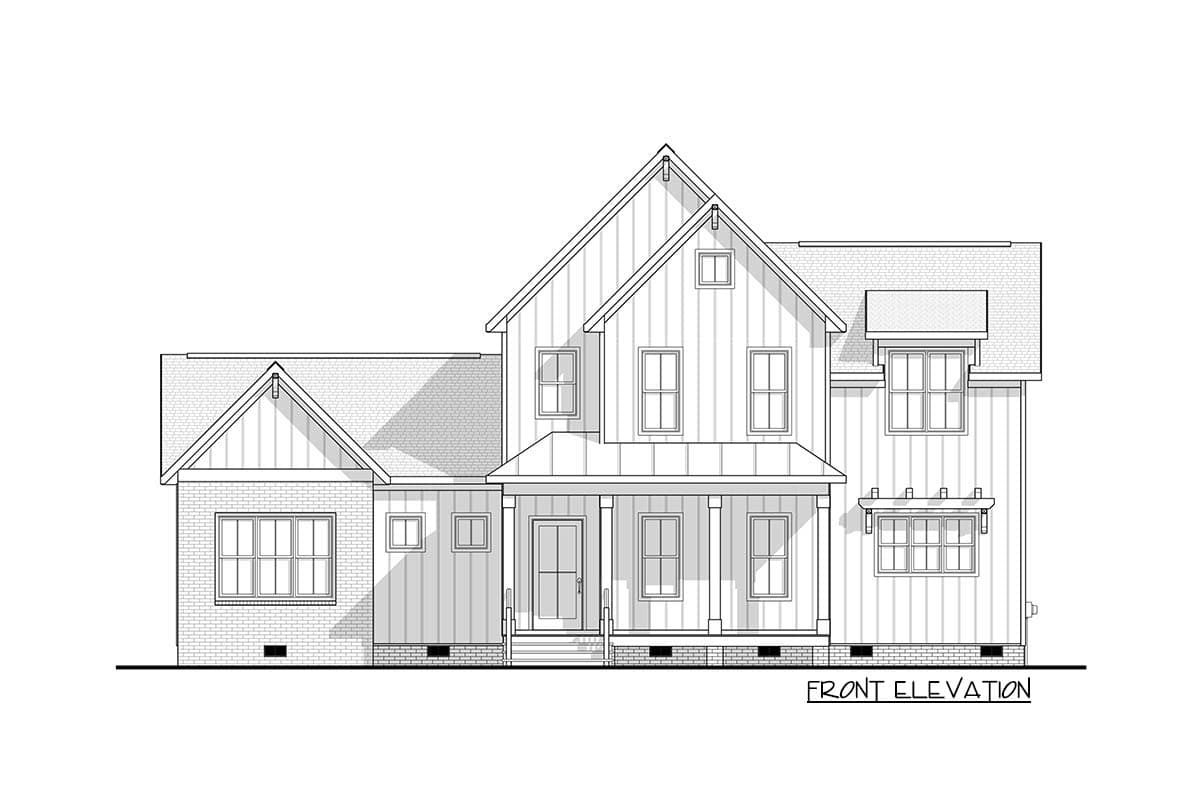

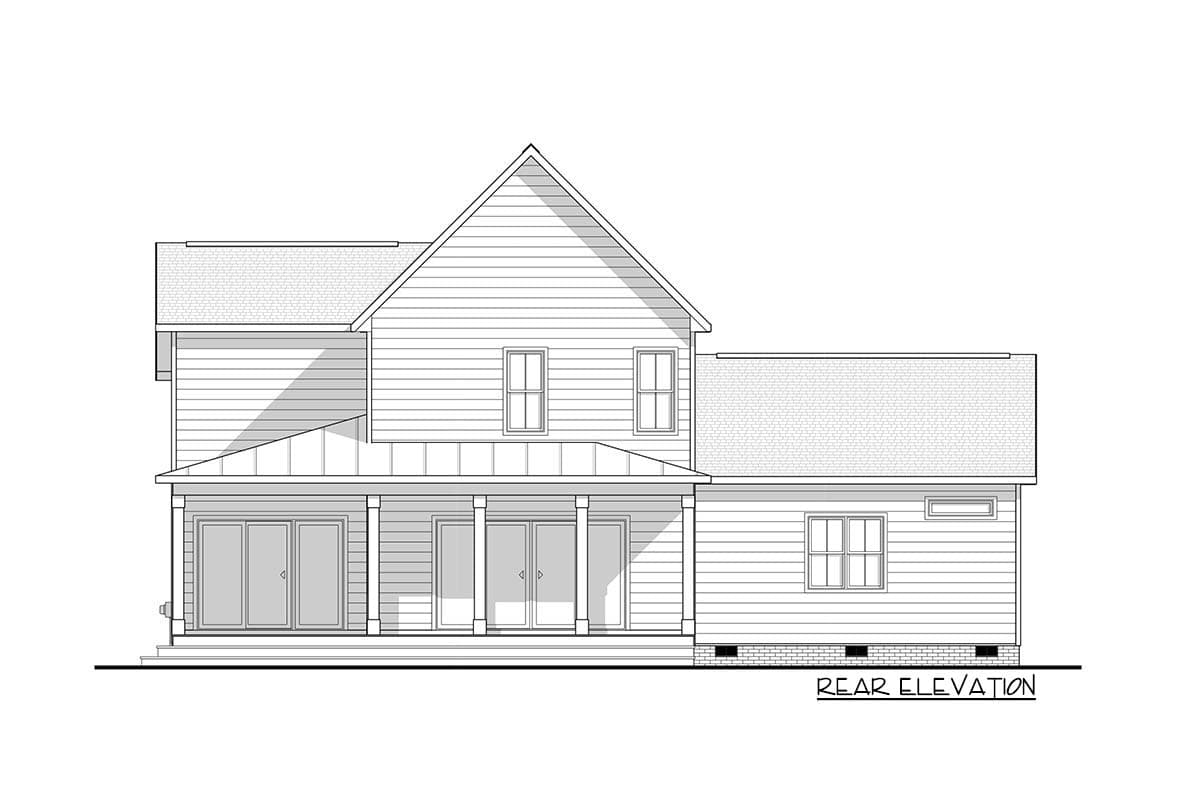

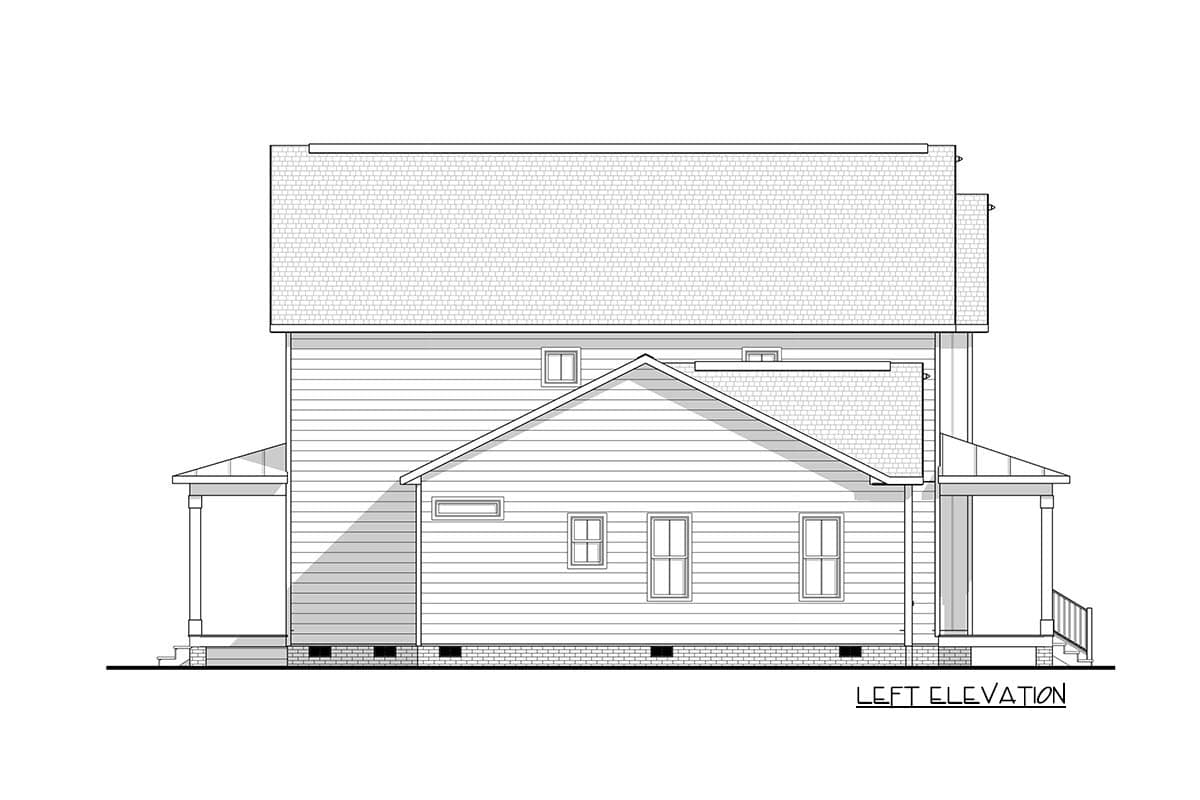

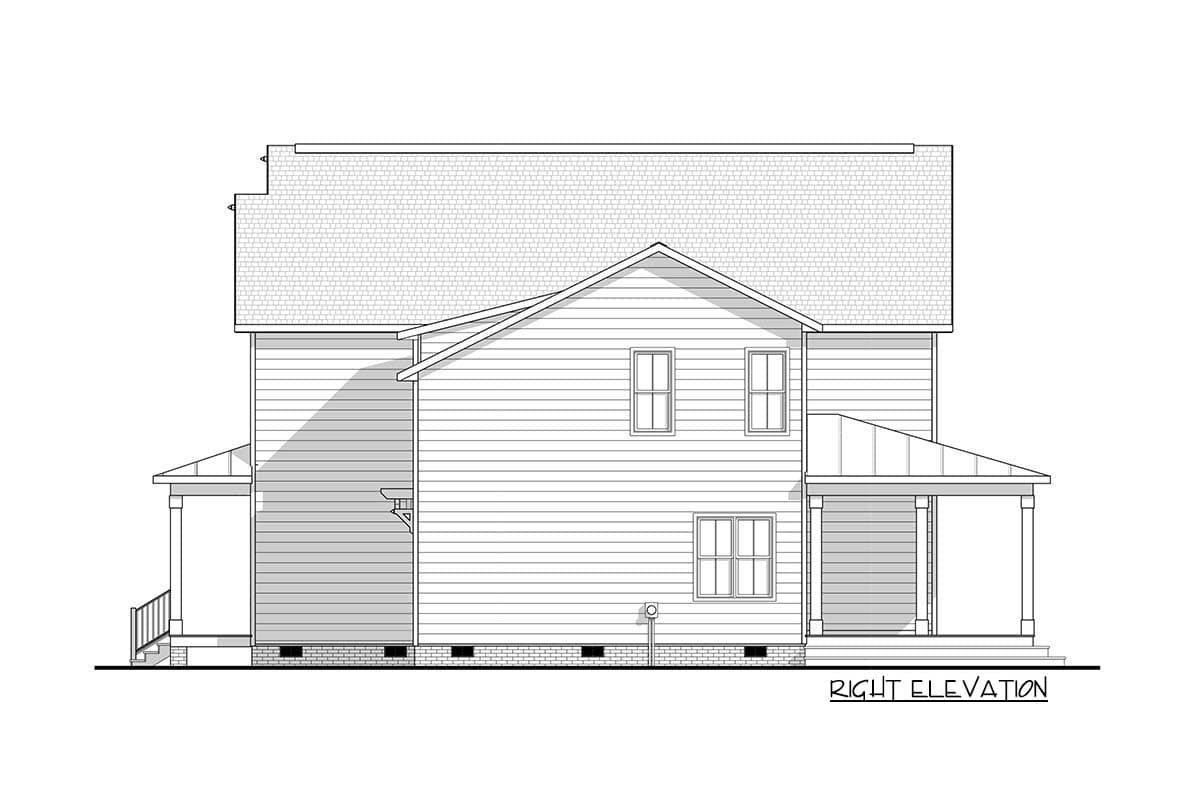

  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

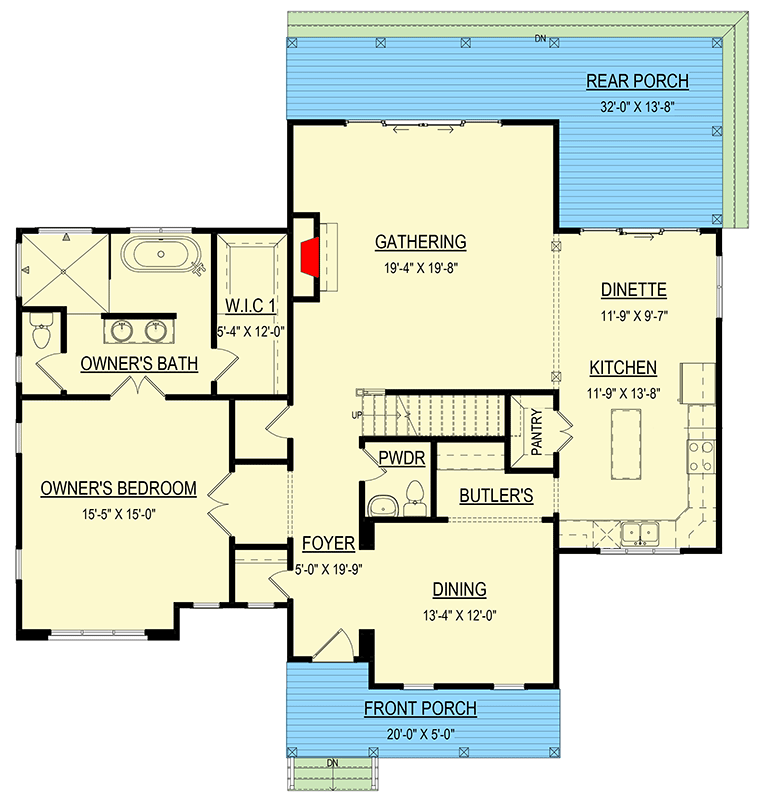

Darling Farmhouse Cottage Plan with First-Floor Owner's Bedroom - 83607CRW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

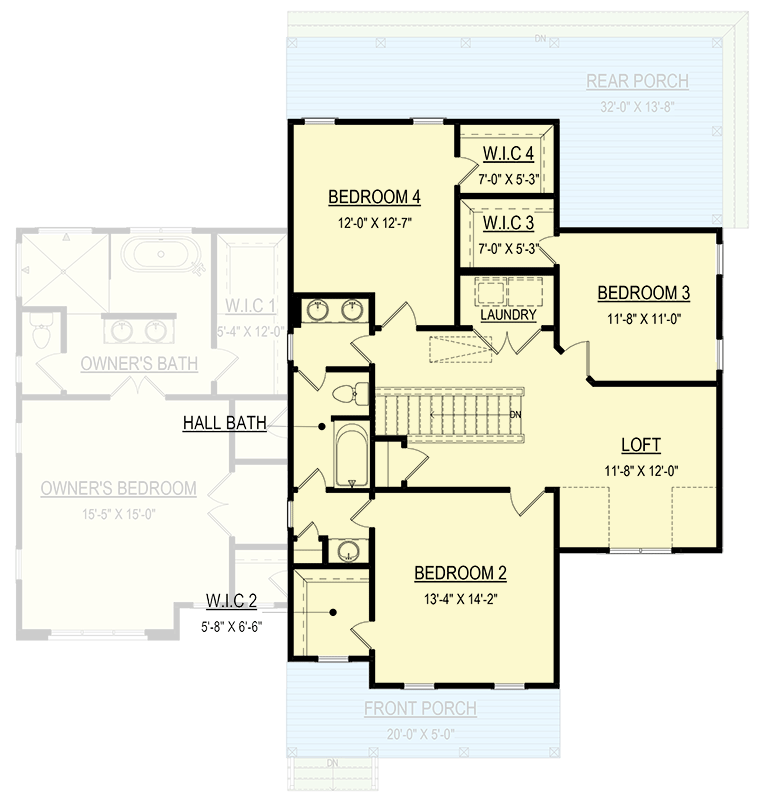

Darling Farmhouse Cottage Plan with First-Floor Owner's Bedroom - 83607CRW floor plan - 2nd Floor

Darling Farmhouse Cottage Plan with First-Floor Owner's Bedroom

  • 2,816

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,816 sq. ft.
  • 1st Floor: 1,700 sq. ft.
  • 2nd Floor: 1,116 sq. ft.

Dimensions

  • Width: 52' 0"
  • Depth: 42' 0"
  • Max ridge height: 32' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick And Truss
