Plan 62539DJ

Dashing European Home with Turreted Staircase

Heated S.F.
3,549
Beds
3 - 4
Baths
2.5 - 3.5
Stories
2
Cars
2

Floor Plan

Plan 62539DJ

Main Level
Main Level
2nd Floor
2nd Floor

Plan 62539DJ

M-F 9am-5pm EST |

1-203-761-8500

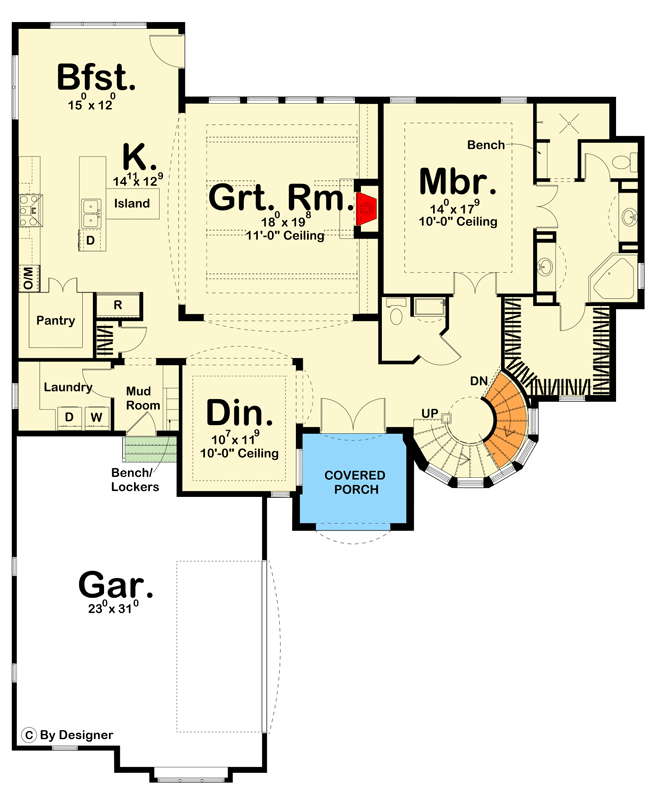

Main Level

Plan 62539DJ: Dashing European Home with Turreted Staircase - Floor Plan - Main Level - European, Traditional

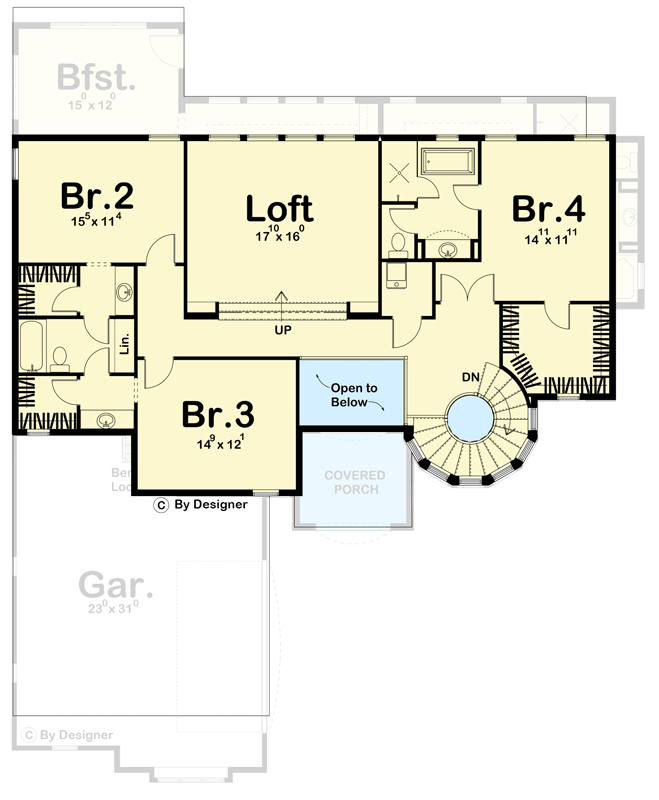

2nd Floor

Plan 62539DJ: Dashing European Home with Turreted Staircase - Floor Plan - 2nd Floor - European, Traditional

Plan Details

  • Amazing curb appeal blends with fabulous interior amenities to make this European home plan special.
  • Beamed and tray ceilings add a custom touch and the built-ins on either side of the great room fireplace give you extra storage.
  • The kitchen has a huge walk-in pantry and a T-shaped island for extra counter space.
  • The key design element for this house plan is its gorgeous curved staircase with windows all the way up to bring in light.
  • Three spacious bedrooms have easy access to the raised loft area brightened by four big windows.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,549 sq. ft.

1st Floor

2,020 sq. ft.

2nd Floor

1,529 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

59' 0"

Depth

68' 0"

Max Ridge Height

32' 0"

Garage

Type

Attached

Area

675 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Architectural Style

European

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor

Mudroom

Walk-in Pantry

Plan Collections

Photo Gallery
