Plan 66337WE

Delightful 4-Bedroom Coastal House Plan with Outdoor Fireplace and Kitchen - 4094 Sq Ft

Name: Plan 66337WE: Delightful 4-Bedroom Coastal House Plan with Outdoor Fireplace and Kitchen - 4094 Sq Ft
Brand: Architectural Designs
SKU: 66337WE
Price: 2100.0 USD
Availability: InStock

Heated S.F.

4,094

Beds

Baths

4.5+

Stories

Cars

Floor Plan

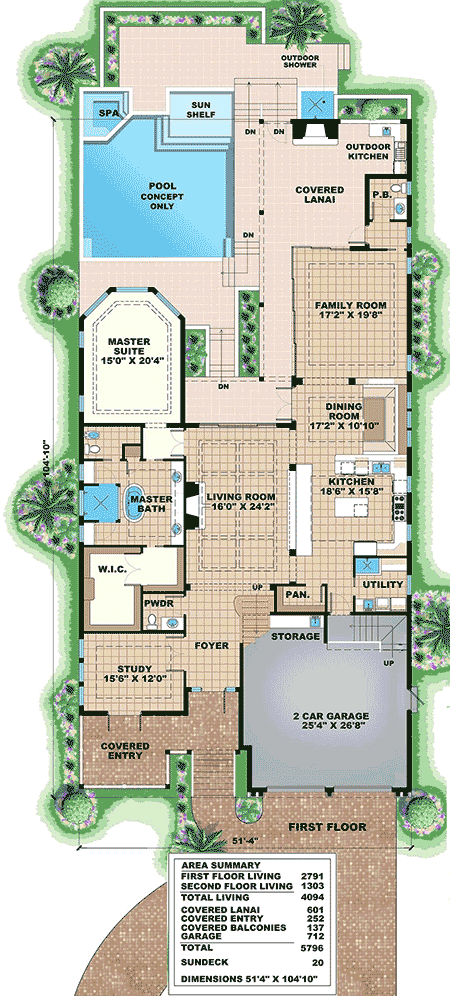

Main Level

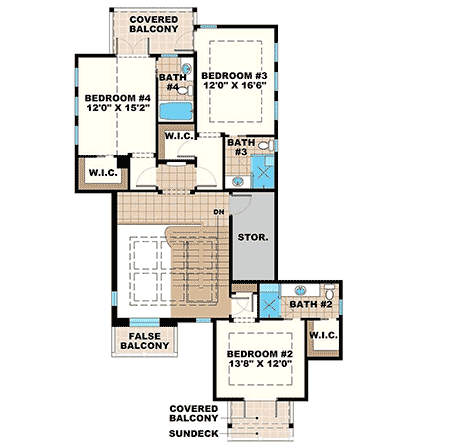

2nd Floor

Plan Details

Light and airy, this coastal house plan is a tropical delight.
With over 4,000 square feet of finished living space, this home has lots to offer your family.
A quiet study is set off by itself in the front of the home and has double doors to one of the front porches.

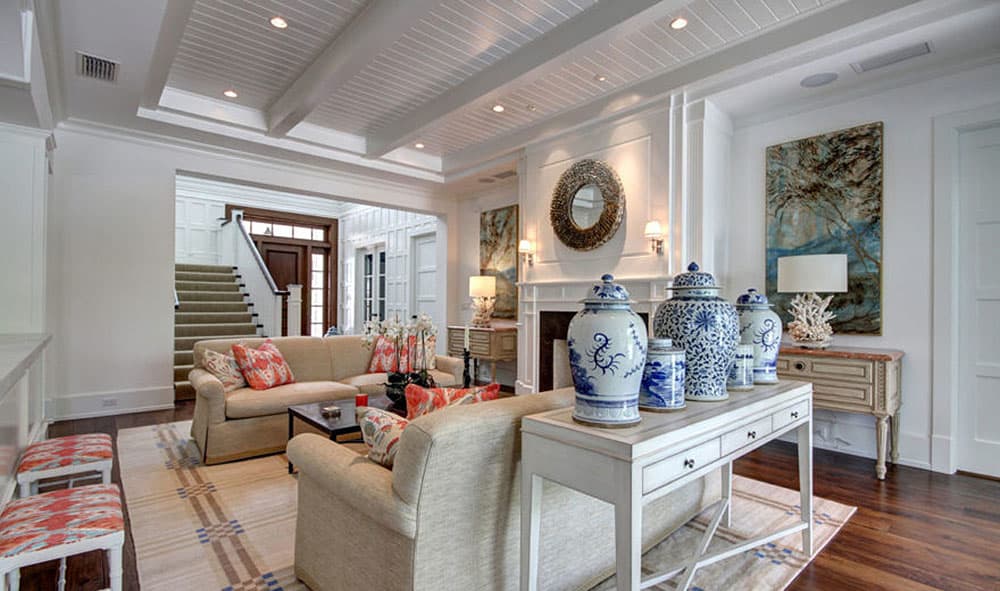

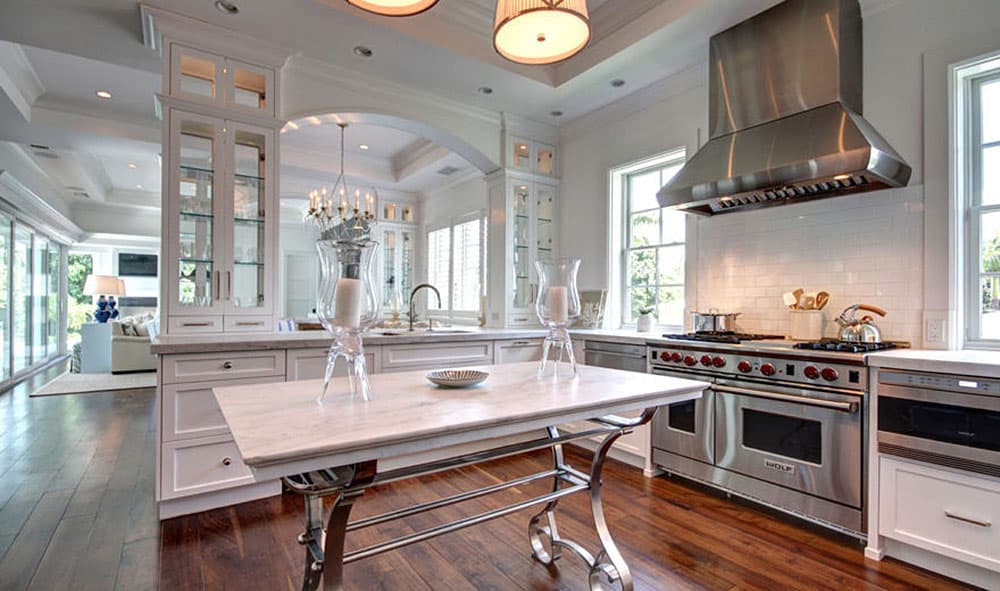

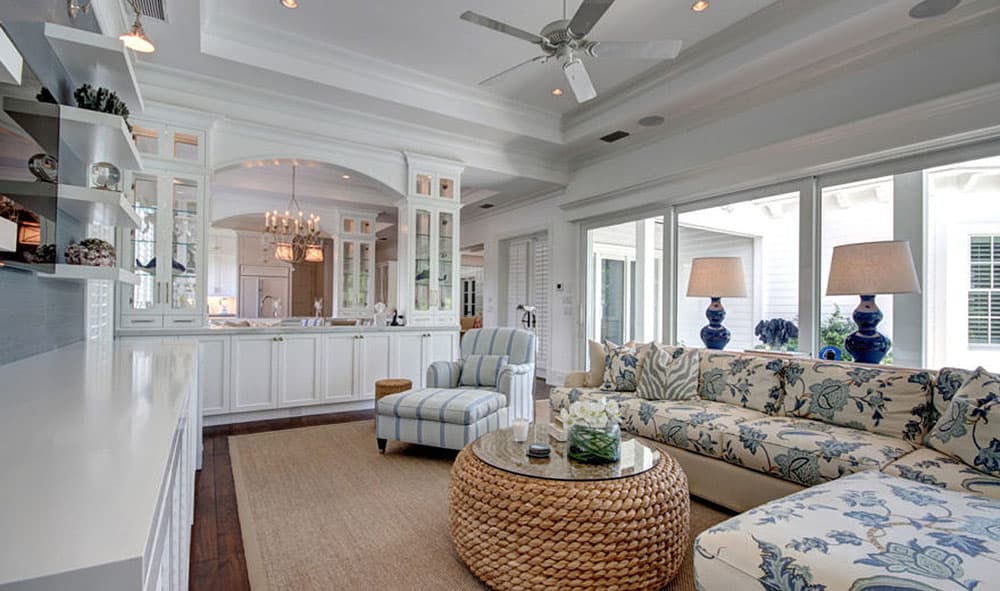

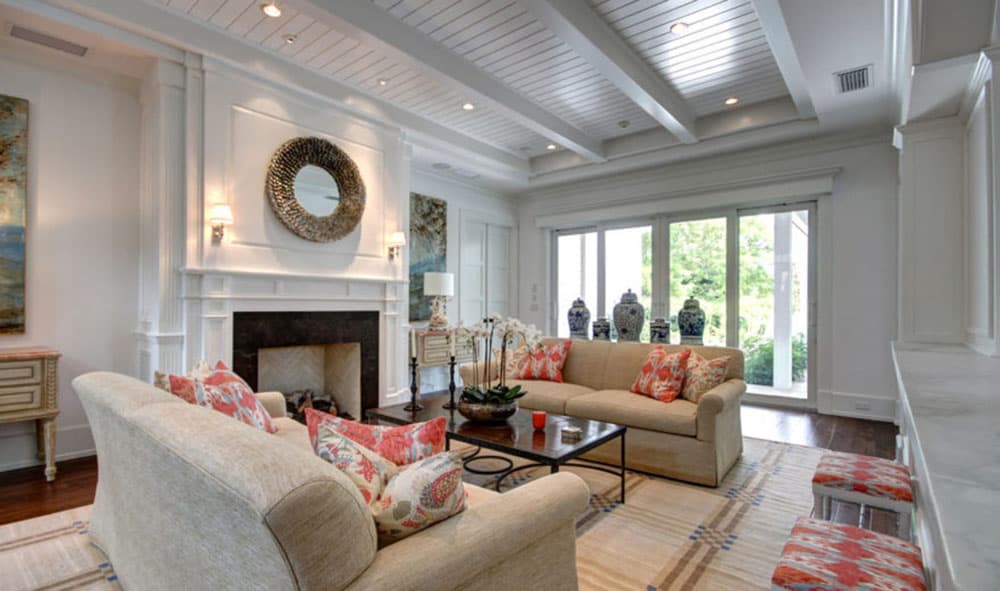

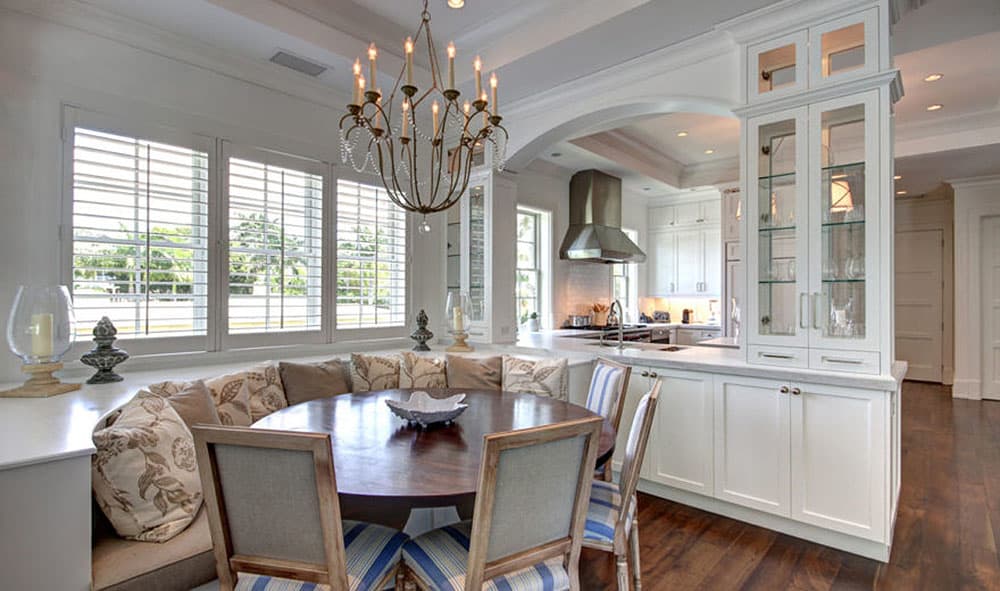

A gorgeous coffered ceiling crowns the enormous family room where you have views of the big fireplace and the open kitchen.

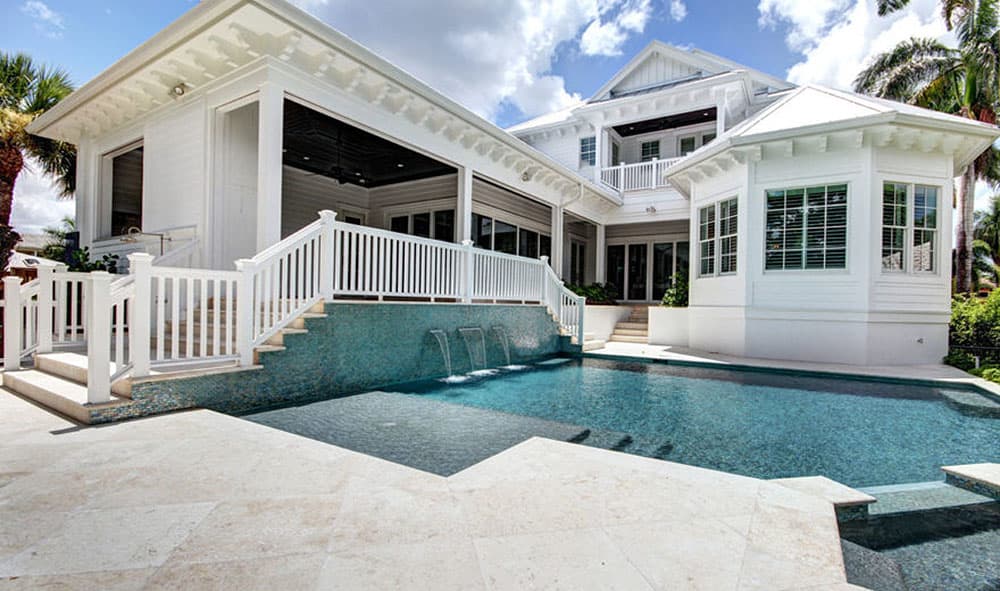

Sliding glass doors line two walls of the spacious family room so you can see the covered lanai with its outdoor fireplace and summer kitchen.

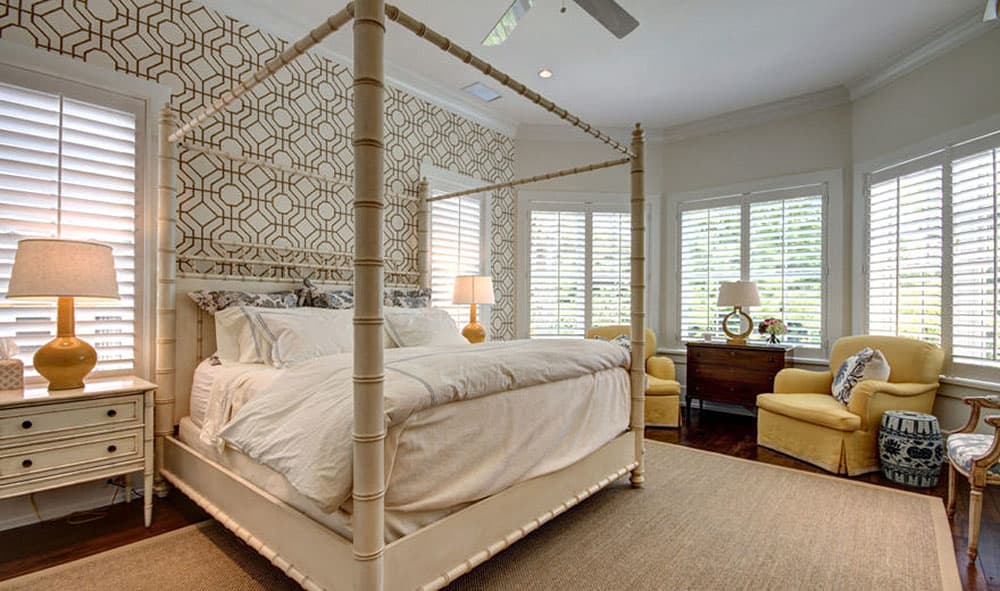

The master suite is no less impressive and boasts a bayed sitting area, tray ceiling and a huge L-shaped walk-in closet.

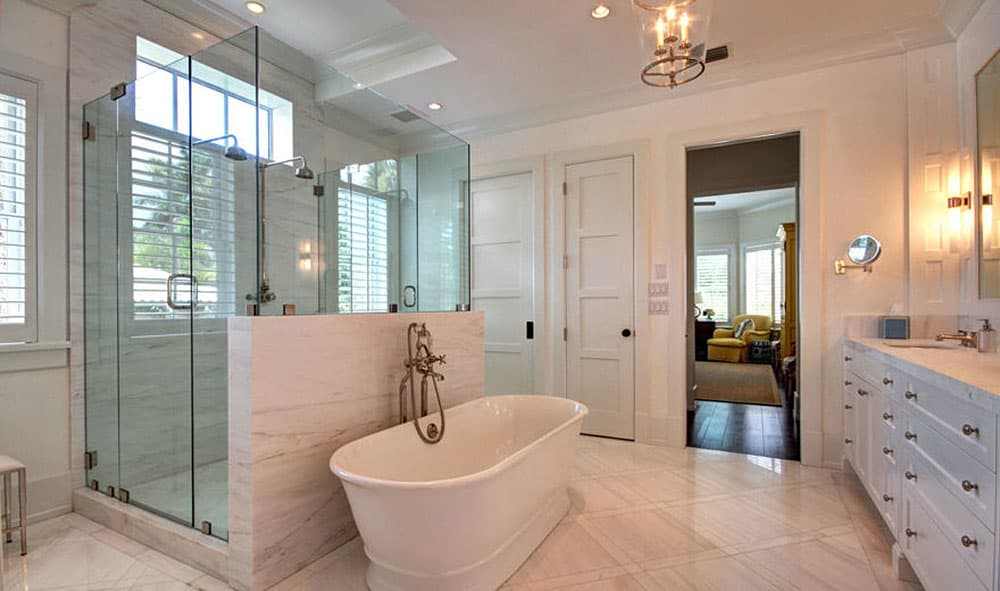

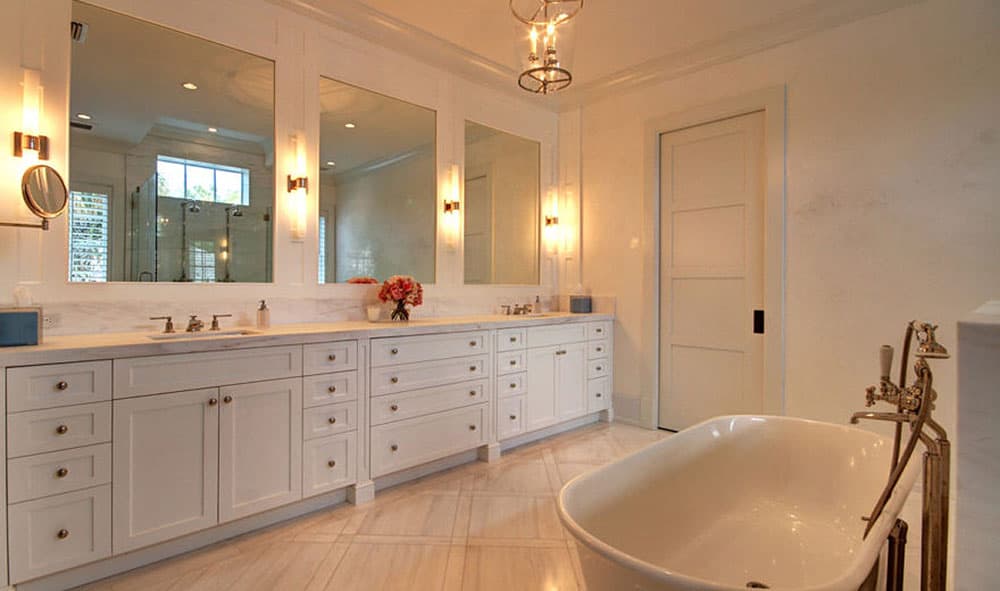

A grand soaking tub takes center stage in the master bathroom and is set in front of the walk-in shower that has two doors.
The remaining bedrooms are up on the second floor, each one with either a tray or vaulted ceiling, a private bathroom and access to covered outdoor balconies.

What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Material Labels
Floor-to-Floor Heights
Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Door and Window Sizes
Completely Dimensioned Floor Plan
Room Labels and Interior Room Sizes

Electrical Layouts

Building Section Markers
All Electrical Outlets, Fixtures, and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor and Deck Joist Size and Spacing
Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:

All Beam and Header Heights and Locations
All Hips, Gables, Ridges, and Valleys
Building Section Markers

Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:

Floor Joist Size and Spacing
Floor-to-Floor Heights
Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:

All Labels Indicating Wall Construction
Foundation Wall Thickness and Reinforcing
Insulation Type and Thickness

Miscellaneous Notes and Details

Miscellaneous General Notes
Stairway details (if applicable)

We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you. Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
