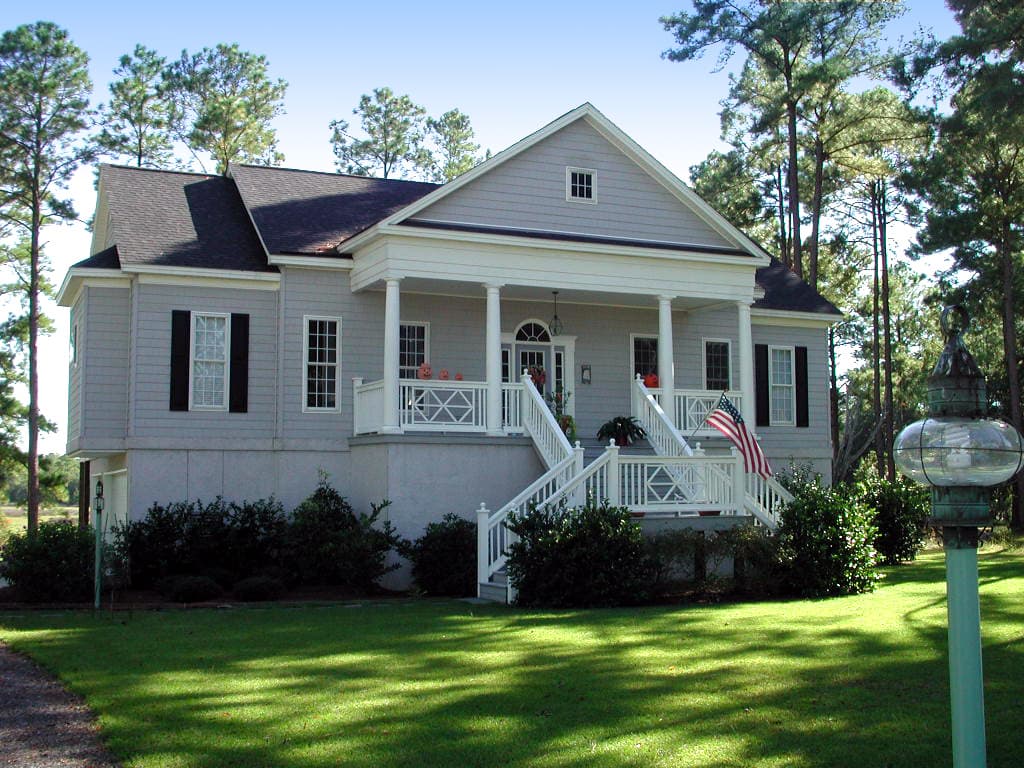

  • Ideal for a beach retreat or a permanent family home, this Coastal style house plan welcomes you home with dual flanked and curved steps leading to a covered porch.
  • Relax in the sunroom and for those cool nights enjoy the warmth of a fireplace in the comfort of the great room.
  • The second floor of this Coastal home plan offers a loft/bedroom and separate bath.

The plan set includes the following:

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • The plans are designed to meet the International Residential Code but are not designed for a specific area.  These plans do not come engineered or with structural drawings. They do not include framing plans.
  • Plans do include wall and cornice sections, general foundation sections and details.

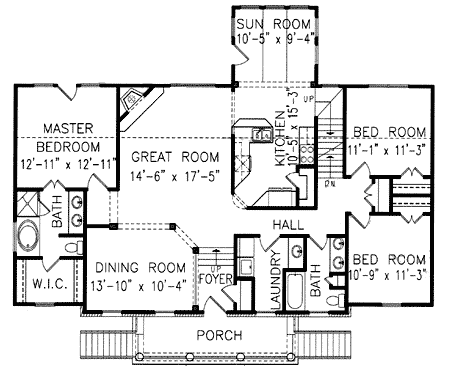

Floor Plan

Plan details



Delightful Coastal Home Plan

  • 2,017

    Heated s.f.

  • 3 - 4

    Beds

  • 2 +

    Baths

  • 1-2

    Floors

Buy This Plan
  • PDF - single-use $895
  • CAD $1,745
  • View all purchase option online

About This Plan

  • Ideal for a beach retreat or a permanent family home, this Coastal style house plan welcomes you home with dual flanked and curved steps leading to a covered porch.
  • Relax in the sunroom and for those cool nights enjoy the warmth of a fireplace in the comfort of the great room.
  • The second floor of this Coastal home plan offers a loft/bedroom and separate bath.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,017 sq. ft.
  • 1st Floor: 1,656 sq. ft.
  • 2nd Floor: 361 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 54' 0"
  • Depth: 39' 0"
