Plan 39166ST
Delightful Covered Porch Design
Heated S.F.
1,808
Beds
3
Baths
2
Stories
2
Cars
2
What's Included
Plan Details
  • The covered front porch on this delightful home is an indication of the warmth and charm found inside. The vaulted ceiling in the entry, the turned stairs and wood stair rail offer a luxurious touch to the foyer.
  • The large great room enjoys much natural light, a gas fireplace, and spacious built-in entertainment alcove. The generous opening into the dining area and the counter seating at the kitchen pulls all these areas together for a large cohesive gathering space.
  • Entry from the garage is orderly with the presence of a closet, laundry room and half bath.
  • A cozy den set to the front of the home offers a private retreat.
  • The second floor master bedroom enjoys a walk-in closet, bath with whirlpool tub and rear yard view.
  • Two additional bedrooms on the same floor keep the younger family members conveniently close at hand.
What's Included
  • General notes and specifications

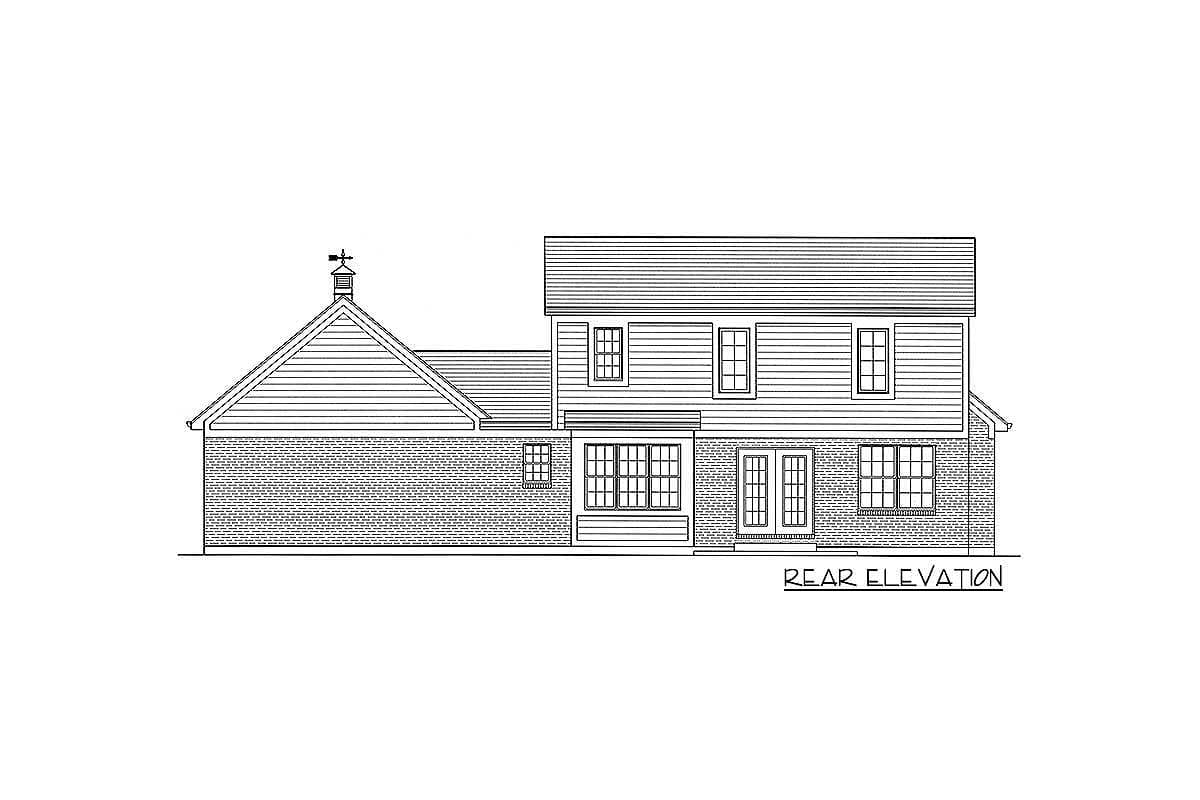

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Delightful Covered Porch Design

  • 1,808

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 2

    Car garage

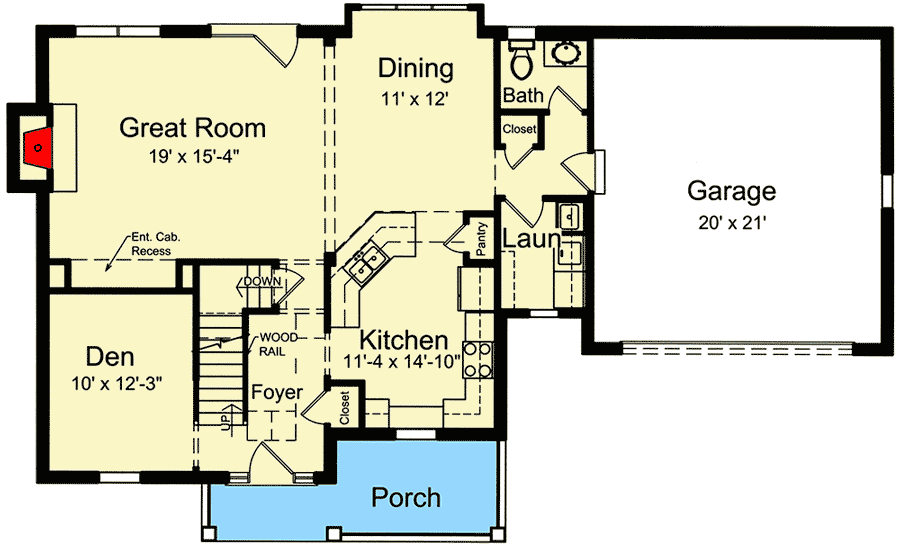

Floor Plan

  • Main Level

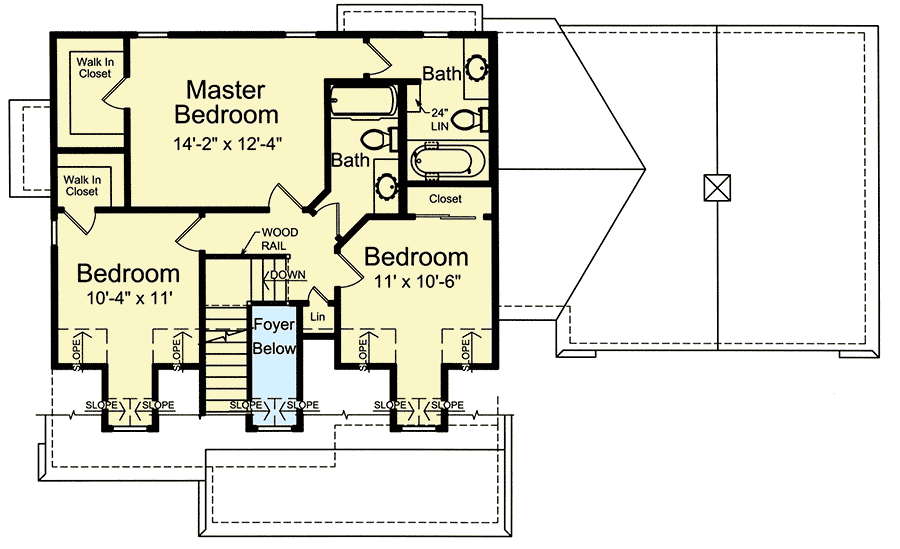

  • 2nd Floor

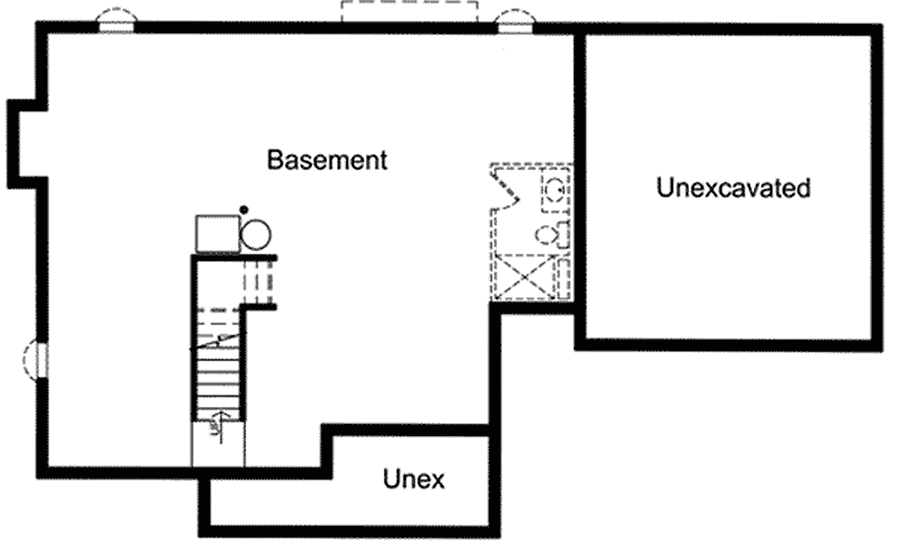

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 1,808 sq. ft.
  • 1st Floor: 1,055 sq. ft.
  • 2nd Floor: 753 sq. ft.

Dimensions

  • Width: 60' 9"
  • Depth: 36' 10"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 416 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"
