Plan 56315SM

Delightful Open Floor Plan

2,048 4 3 1-2 2
Pageloader

Delightful Open Floor Plan

Plan 56315SM

  • 2,048

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Only a little over 2,000 square feet, this French Country home manages to fit in four bedrooms.
  • The delightful open floor plan takes advantage of the views from all the main rooms.
  • The bedroom wing is on the right side of the home, with the master suite in the rear.
  • A rear covered porch shelters you from the hot sun and leads you to the double carport.
  • A bonus room with sloped ceilings lies over the carport.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
  • DOOR, WINDOW AND ROOF FINISH SCHEDULES: Window & Door schedules as well as room finish schedules showing flooring specs, crown molding, cabinets, countertop materials, & ceiling heights.
  • FOUNDATION PLAN AND CEILING JOISTS LAYOUT:  Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, smoke detectors, cable TV and telephones.
  • HVAC / MECHANICAL PLAN: Specifications, notes, air handler details and plans showing the locations and size of HVAC units, compressors, vents, grills, cfm flows, attic access and clearances.
  • FRONT AND REAR ELEVATIONS: The front and rear elevation of the house as drawn.  Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
  • SIDE ELEVATIONS, ROOF PLANS, WALL SECTIONS AND FRAMING DETAILS: Side views of house, and necessary framing and roofing details.  Also included are wall sections, and any other necessary details for your framer or other subcontractors

Plan details



Delightful Open Floor Plan

  • 2,048

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 6 Sets $725
  • 8 Sets $825
  • PDF - single-use $825
  • CAD $1,825
  • View all purchase option online

About This Plan

  • Only a little over 2,000 square feet, this French Country home manages to fit in four bedrooms.
  • The delightful open floor plan takes advantage of the views from all the main rooms.
  • The bedroom wing is on the right side of the home, with the master suite in the rear.
  • A rear covered porch shelters you from the hot sun and leads you to the double carport.
  • A bonus room with sloped ceilings lies over the carport.

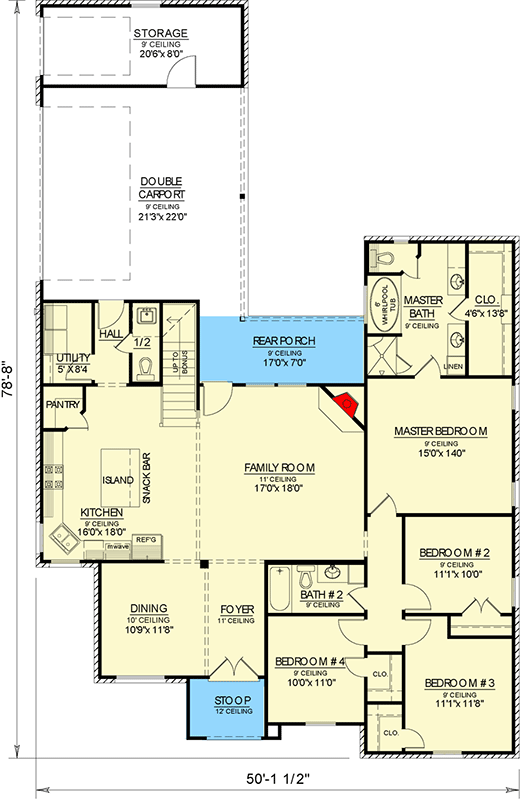

Floor Plans

  • Main Level

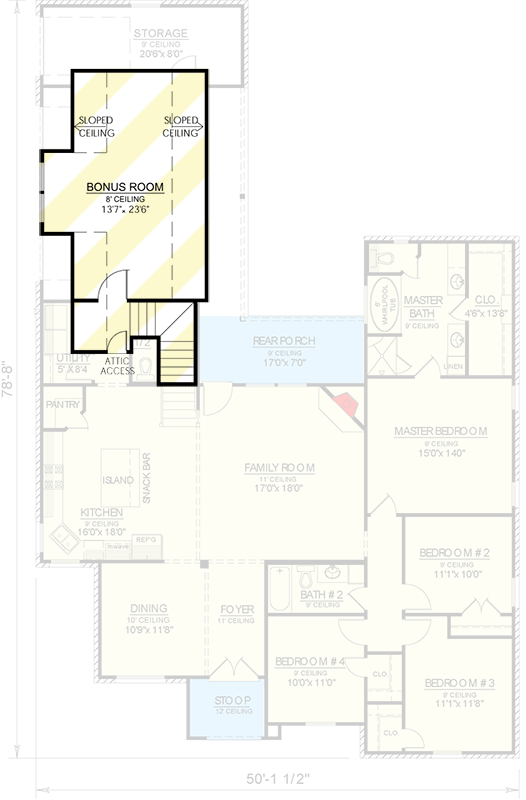

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,048 sq. ft.
  • 1st Floor: 2,048 sq. ft.
  • Bonus: 407 sq. ft.
  • Storage: 164 sq. ft.
  • Porch, Front: 63 sq. ft.
  • Porch, Rear: 119 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 2"
  • Depth: 78' 8"
  • Max ridge height: 25' 9"

Garage

  • Type: Carport
  • Area: 468 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
