Deluxe Craftsman House Plan with Walk-out Lower Level

Pageloader

Deluxe Craftsman House Plan with Walk-out Lower Level

Plan 23841JD

  • 3,928

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This deluxe Craftsman house plan boasts a walk-out lower level, making it ideal for a sloped lot. The downstairs level includes a covered patio, 1-car garage, recreation room, and two bedrooms.
  • The formal entry on the main level is located on the right side of the home, next to the 2-car garage. The heart of the home is forward facing, oriented to take advantage of any frontal views.
  • Exposed beams in the kitchen define the space, and rest above the cooktop island. The adjoining breakfast nook provides a space for casual meals, while the formal dining room extends onto a back patio.
  • Pocket doors part to reveal a quiet den, and multiple decks encourage outdoor living.
  • The master bedroom neighbors the laundry room for added convenience, and includes a lavish en suite with a corner, garden tub and a walk-in closet. A second bedroom resides down the hall, next to a full bath.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet

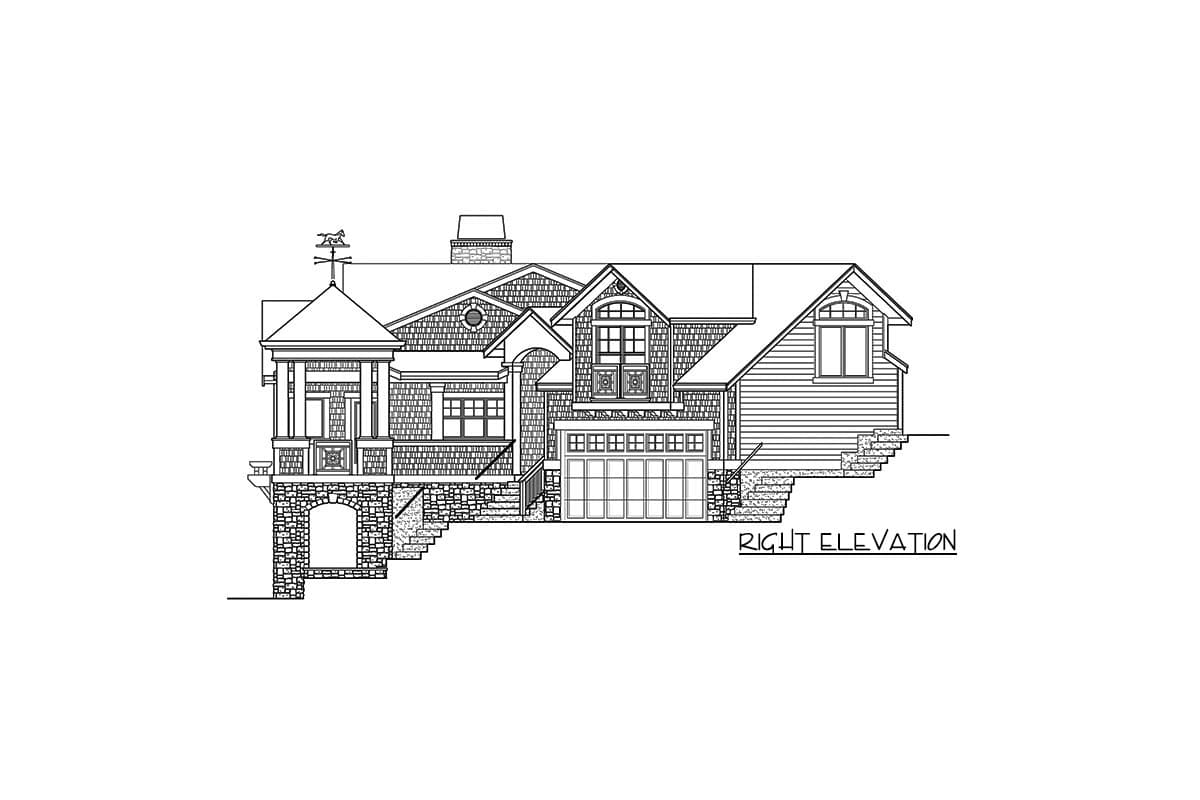

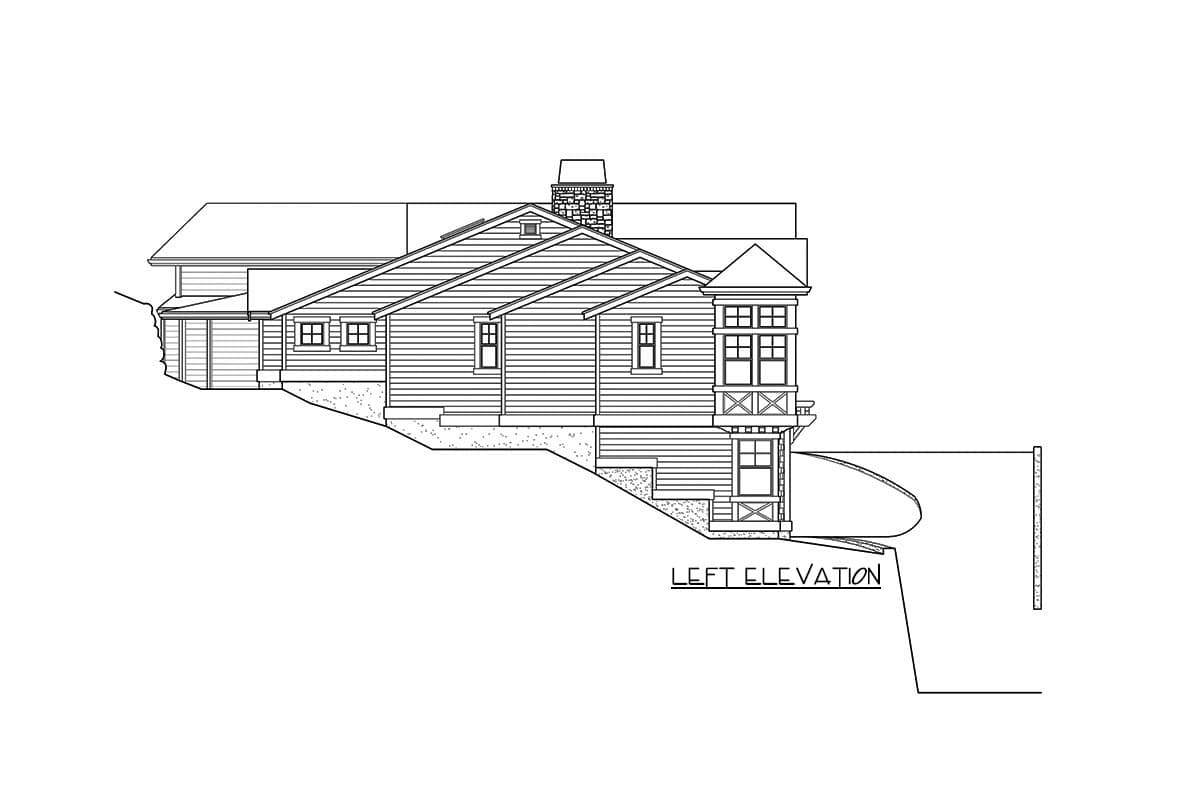

Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Plan details



Deluxe Craftsman House Plan with Walk-out Lower Level

  • 3,928

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,650
  • 5 Sets PLUS $1,800
  • CAD - multi-use $2,900
  • View all purchase option online

About This Plan

  • This deluxe Craftsman house plan boasts a walk-out lower level, making it ideal for a sloped lot. The downstairs level includes a covered patio, 1-car garage, recreation room, and two bedrooms.
  • The formal entry on the main level is located on the right side of the home, next to the 2-car garage. The heart of the home is forward facing, oriented to take advantage of any frontal views.
  • Exposed beams in the kitchen define the space, and rest above the cooktop island. The adjoining breakfast nook provides a space for casual meals, while the formal dining room extends onto a back patio.
  • Pocket doors part to reveal a quiet den, and multiple decks encourage outdoor living.
  • The master bedroom neighbors the laundry room for added convenience, and includes a lavish en suite with a corner, garden tub and a walk-in closet. A second bedroom resides down the hall, next to a full bath.

Floor Plans

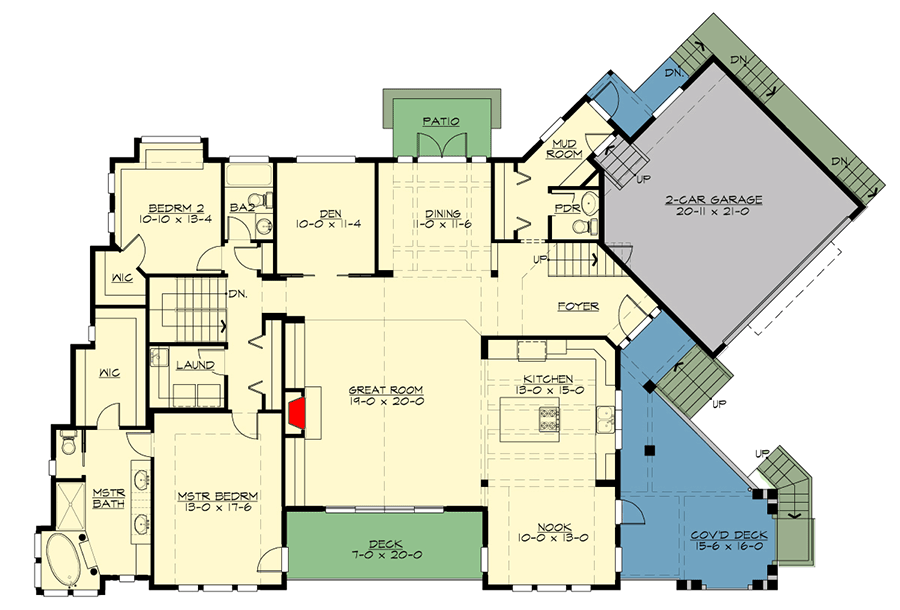

  • Main Level

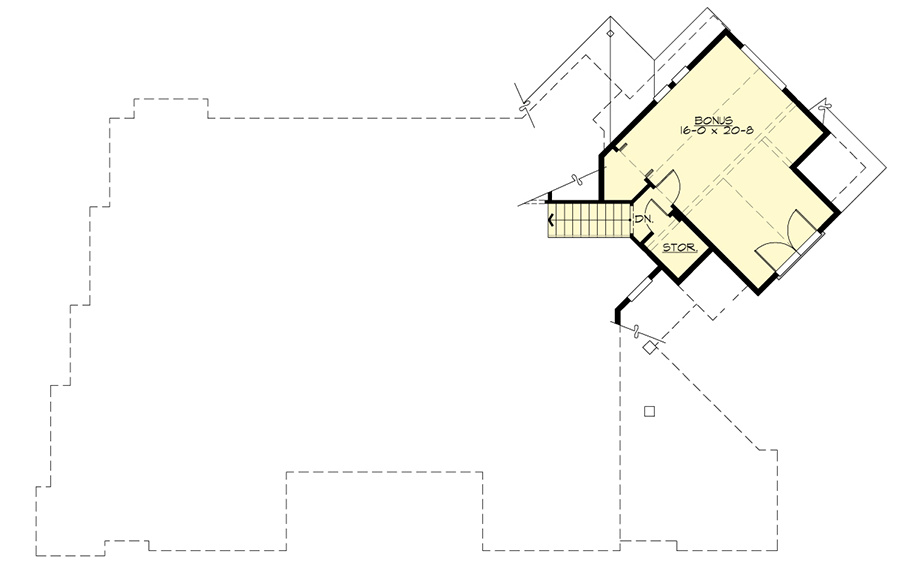

  • Bonus Level

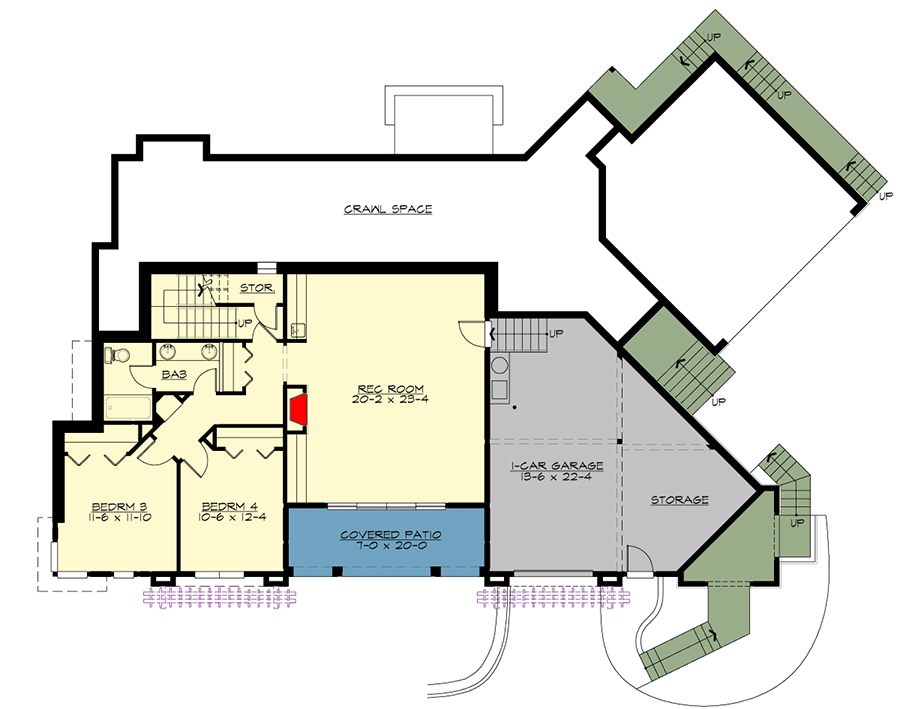

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,928 sq. ft.
  • Lower Level: 1,186 sq. ft.
  • 1st Floor: 2,344 sq. ft.
  • 2nd Floor: 398 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 90' 6"
  • Depth: 54' 6"
  • Max ridge height: 18' 4"

Garage

  • Type: Drive Under, Attached
  • Area: 1007 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Truss
