Plan 57230HA

Designed For Energy Efficiency

Heated S.F.
2,882
Beds
2 - 3
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 57230HA

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 57230HA

M-F 9am-5pm EST |

1-203-761-8500

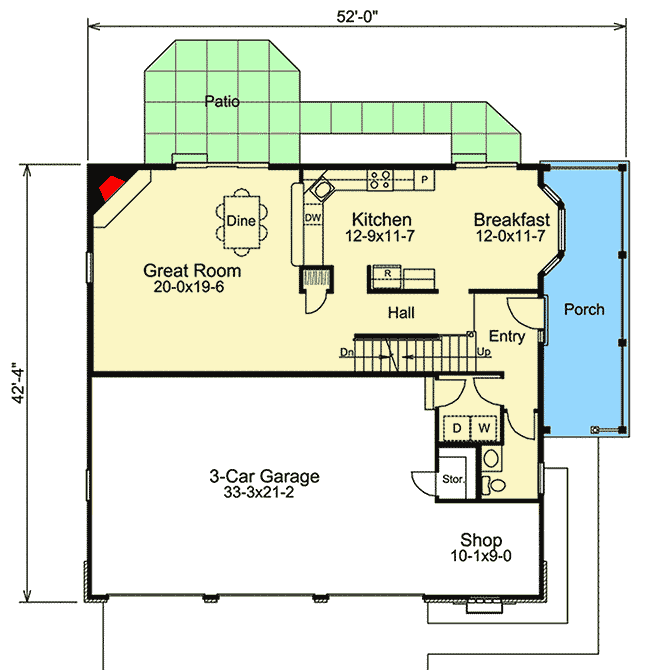

Main Level

Plan 57230HA: Designed For Energy Efficiency - Floor Plan - Main Level - Carriage, Traditional

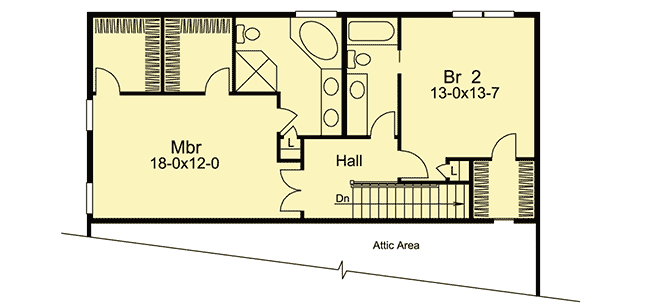

2nd Floor

Plan 57230HA: Designed For Energy Efficiency - Floor Plan - 2nd Floor - Carriage, Traditional

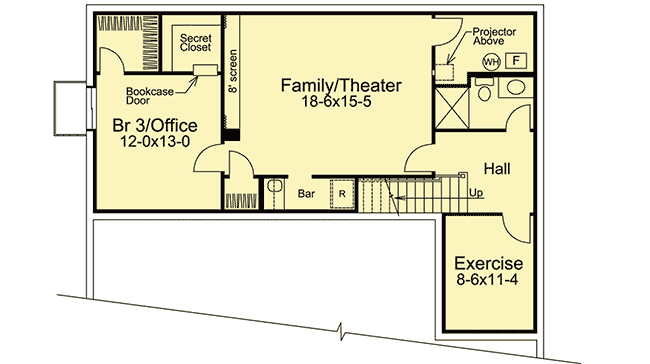

Lower Level

Plan 57230HA: Designed For Energy Efficiency - Floor Plan - Lower Level - Carriage, Traditional

Plan Details

  • Three dormers add charm to this simple home plan with its uncomplicated foundation shape.
  • The kitchen is open to the breakfast nook on one side and the great room with fireplace on the other.
  • Two bedrooms on the upper level each have their own bathroom.
  • A workshop area in the garage adds functionality.
  • The lower level has a big rec room and another bedroom and bath.
  • This was designed for a north orientation and the insulated garage acts as a thermal barrier to the home's finished spaces, and triple-glazed insulated wood windows and doors are used in major glass areas facing south with no windows in north walls.
  • 2x6 walls with multiple insulating materials create an approximate value of R34 with R70 in the attic
  • The basement has insulated walls inside and out and a natural cooling system created by a 40' long buried pipe that provides a constant 55-degree earth temperature.

What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

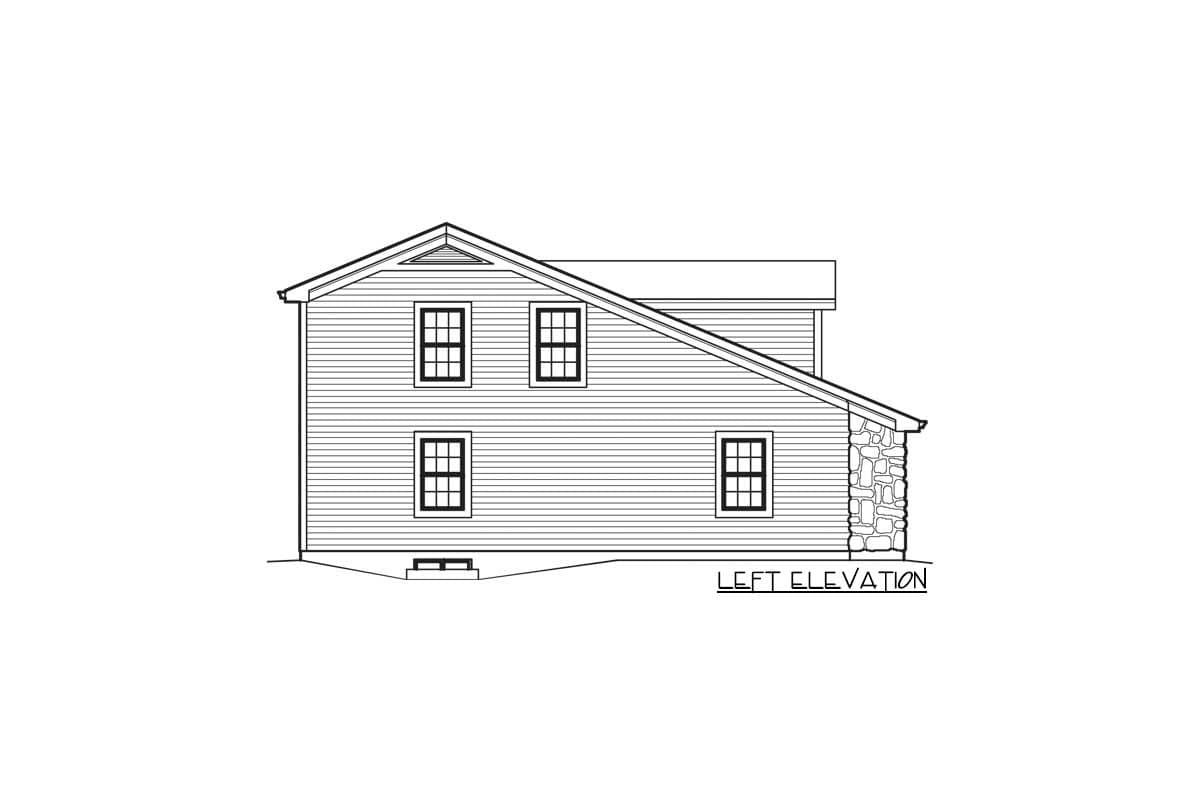

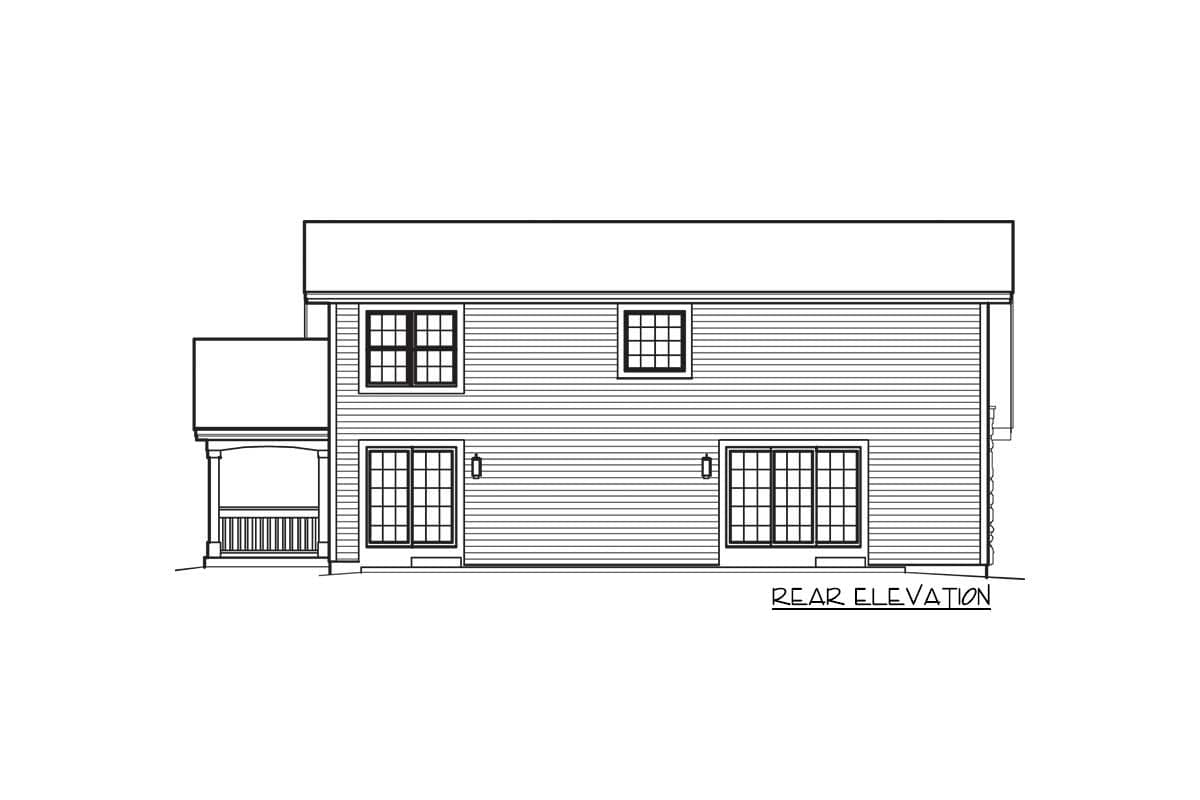

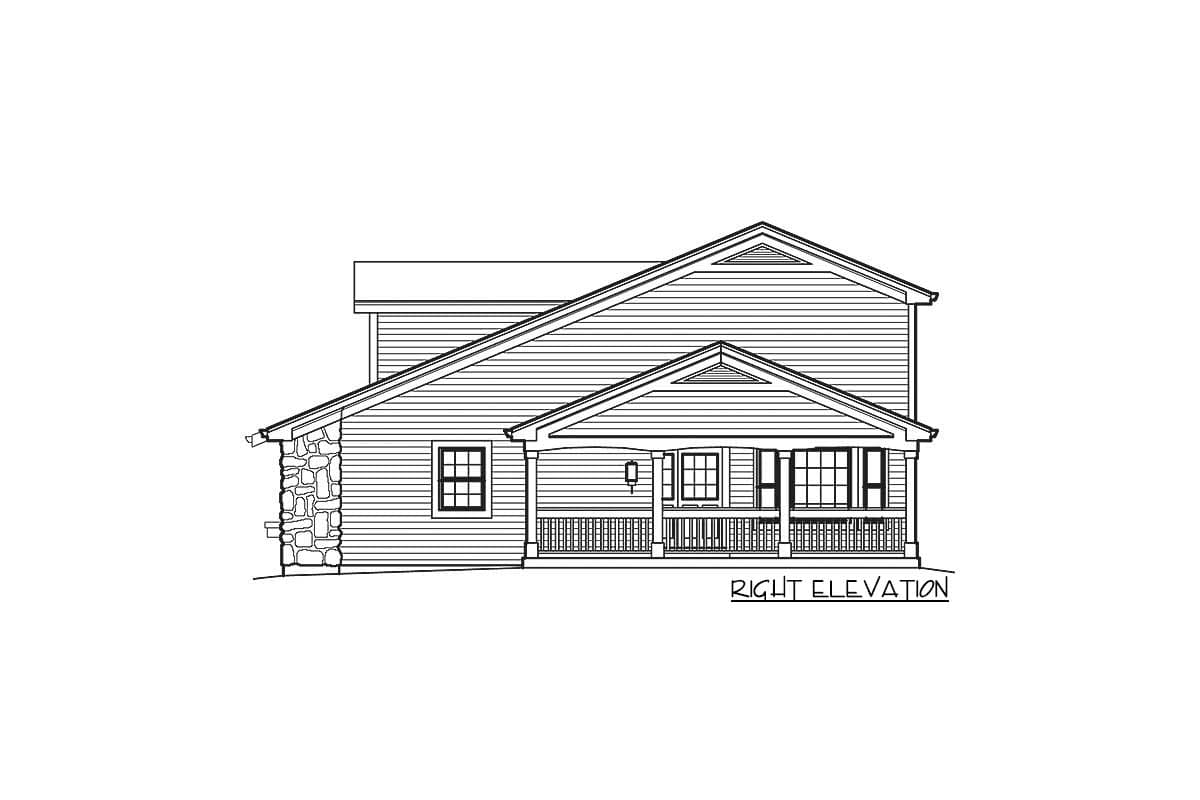

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,882 sq. ft.

Lower Level

937 sq. ft.

1st Floor

1,043 sq. ft.

2nd Floor

902 sq. ft.

Workshop

90 sq. ft.

Beds/Baths

Bedrooms

2 or 3

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

52' 0"

Depth

42' 4"

Garage

Type

Attached

Area

704 sq. ft.

Count

3 Cars

Entry Location

Front

Architectural Style

Carriage

Traditional

Special Features

Breakfast Nook

Flex Room

Game/Rec Room

Home Office

Home Theater

Laundry - Main Level

Master Suite - Upstairs

Mudroom

Workshop

Plan Collections

Home Office

Sloping Lot
