Plan 17703LV Designed to Amaze

9,104 5 5.5+ 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Designed to Amaze

Plan 17703LV

  • 9,104

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Stories

  • 3

    Cars

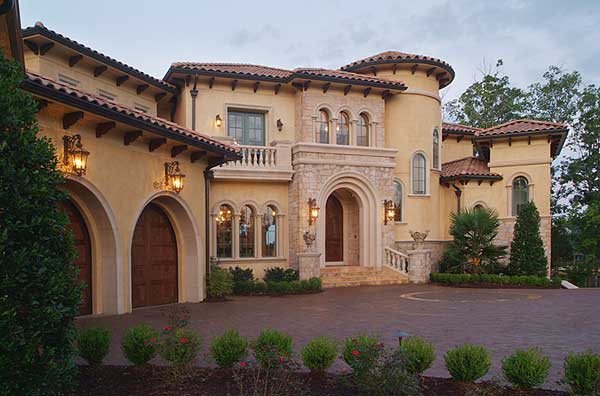

  • Designed to maximize views from every room, this stunning Mediterranean/Tuscan inspired home plan will hit everything on your wish list.

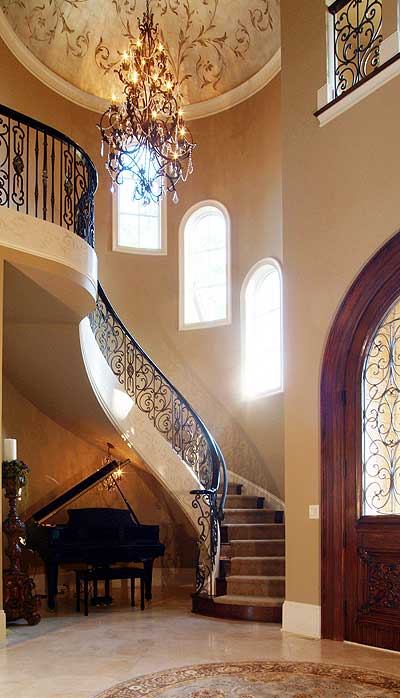

  • Two stairs plus an elevator give you great access across the home.
  • The main floor master accesses the covered terrace and has his-and-her walk-ins plus a glorious bath.
  • The grand room soars two-stories and can be viewed from the foyer.

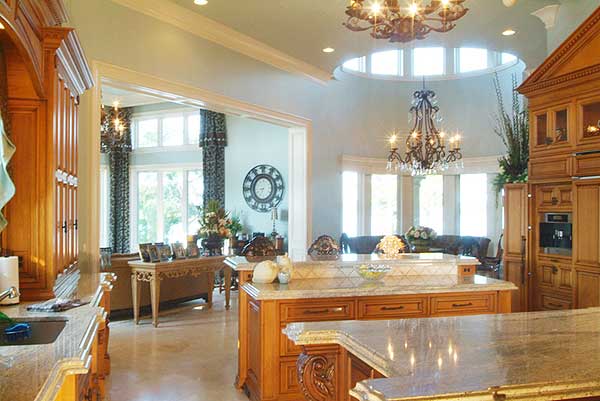

  • The kitchen is made for entertaining and has views to the family room with fireplace.
  • Four suites plus a study are on the upper floor and a great finished lower level opens to the back.

Each plan set includes the following:

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans

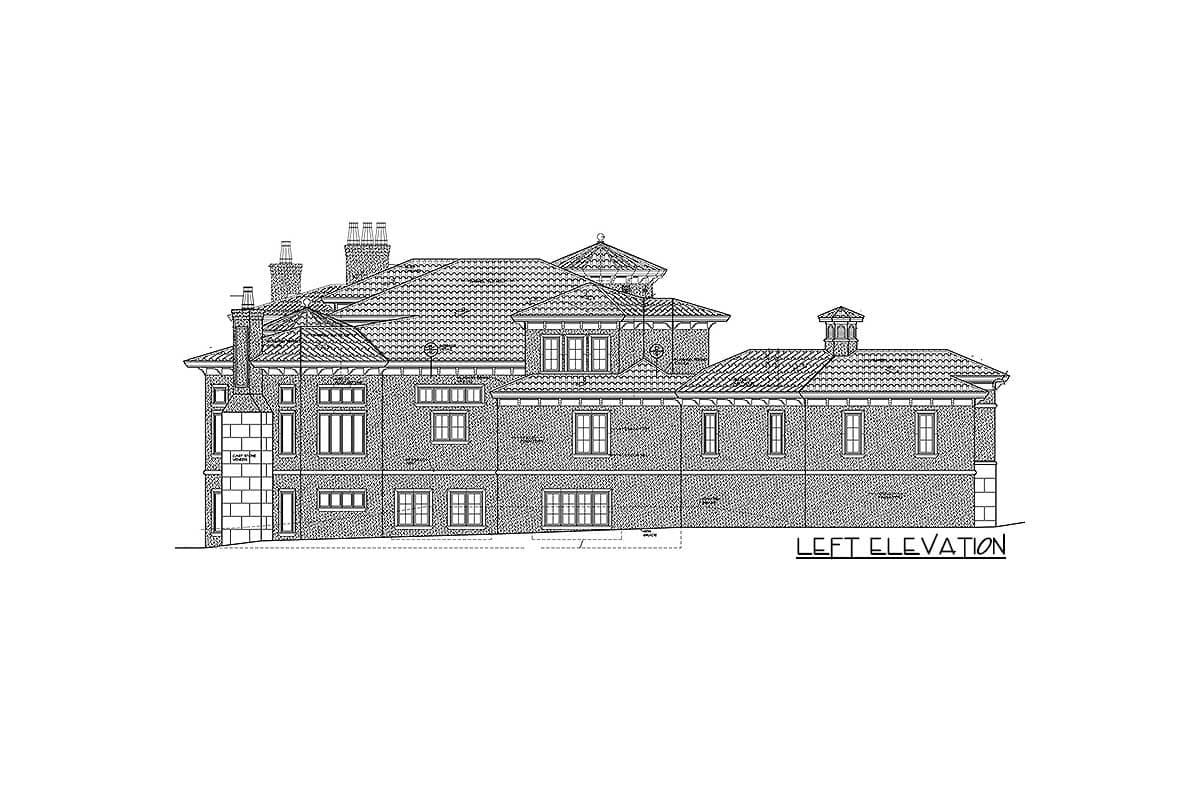

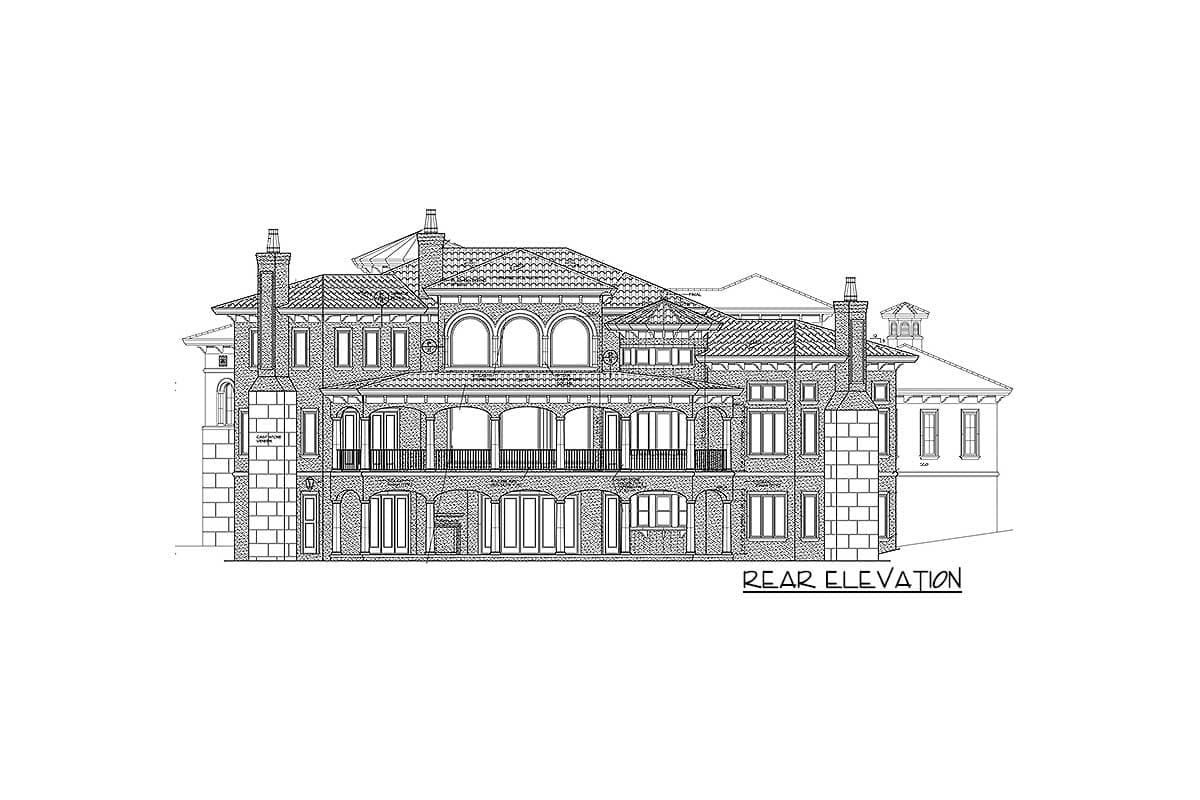

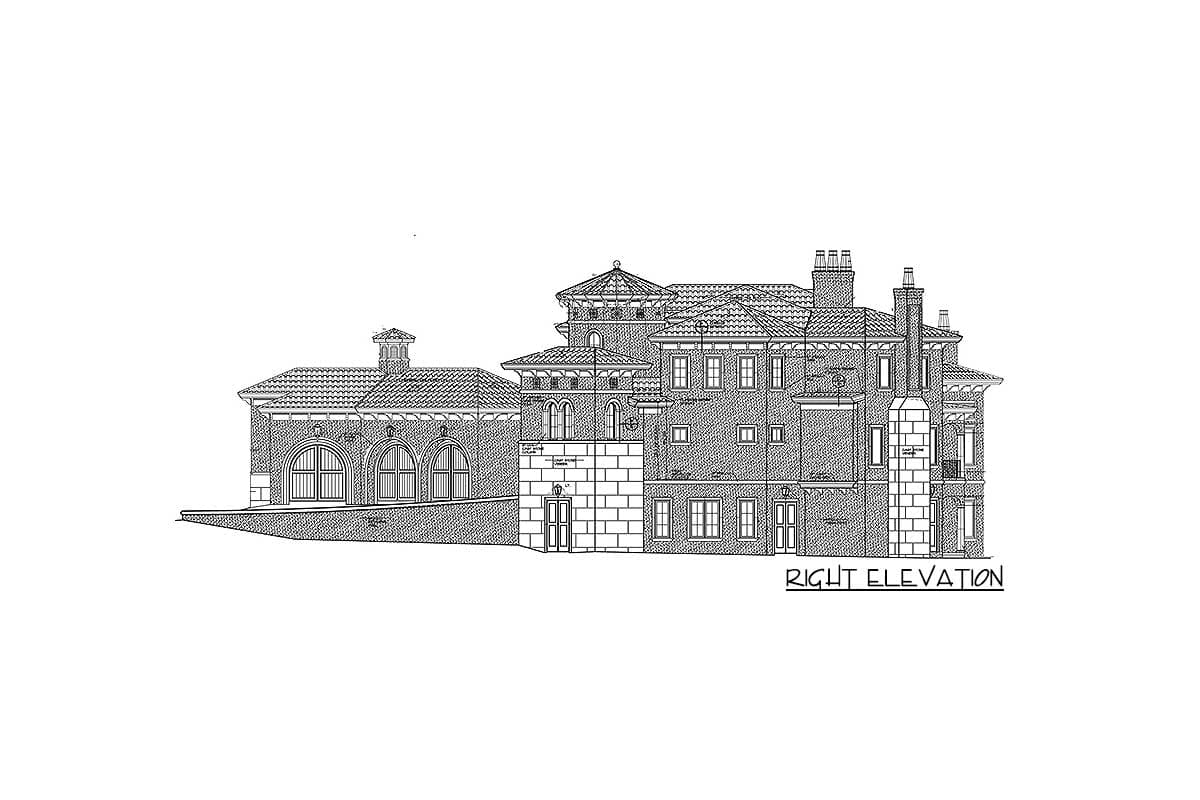

  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

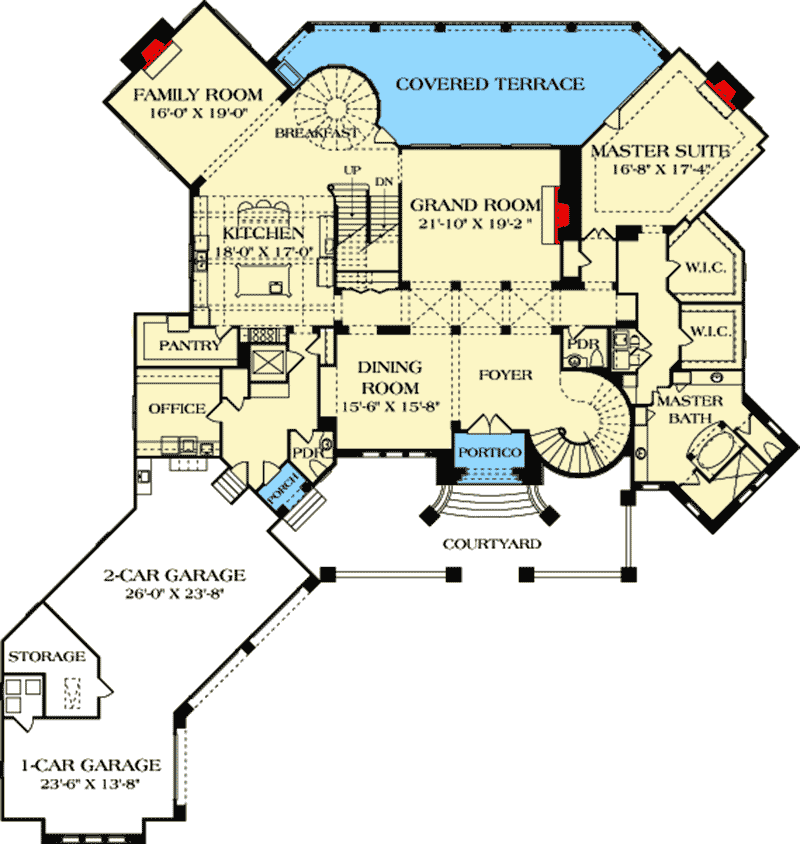

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Designed to Amaze - 17703LV floor plan - Main Level

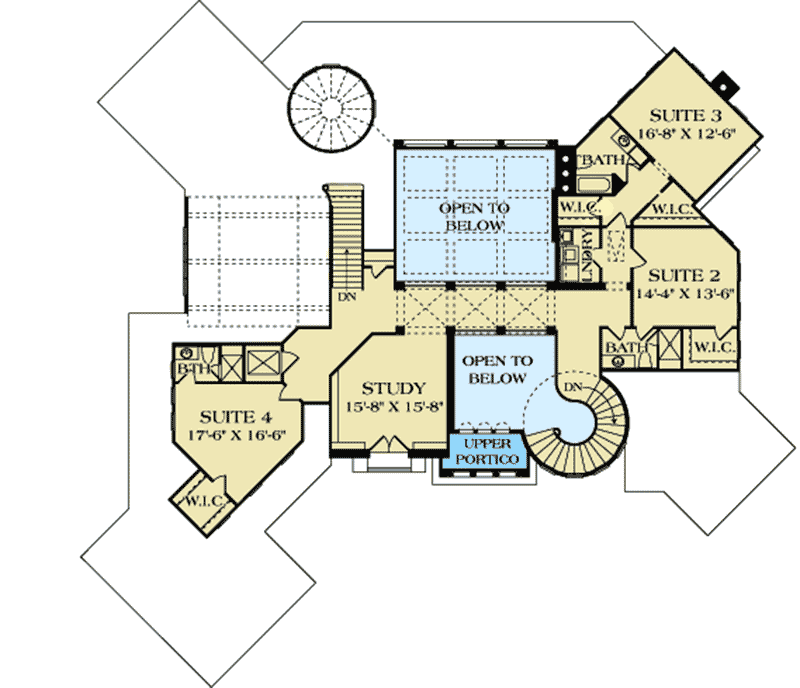

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Designed to Amaze - 17703LV floor plan - 2nd Floor

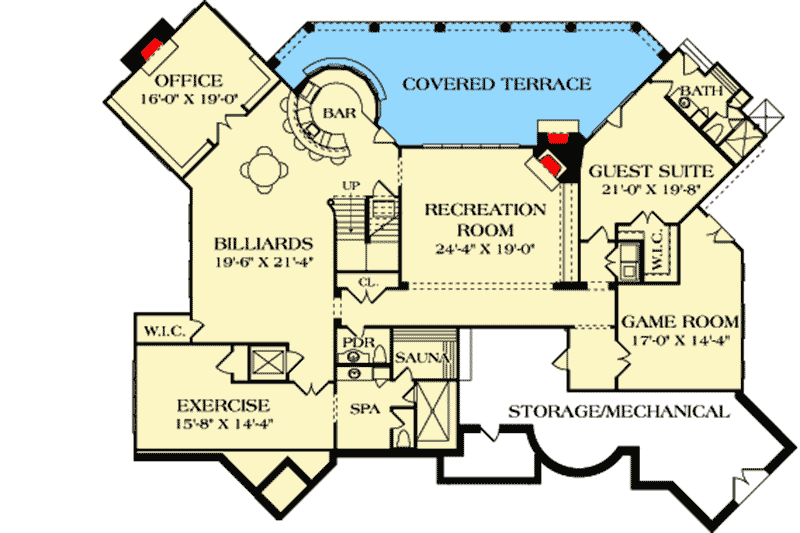

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Designed to Amaze - 17703LV floor plan - Basement

Plan details

Square Footage Breakdown

  • Total Heated Area: 9,104 sq. ft.
  • Lower Level: 2,999 sq. ft.
  • 1st Floor: 4,240 sq. ft.
  • 2nd Floor: 1,865 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 3

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 109' 7"
  • Depth: 115' 10"

Garage

  • Type: Attached
  • Area: 1387 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Designed to Amaze

  • 9,104

    Heated s.f.

  • 5

    Beds

  • 5.5+

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • Reproducible Set $2,399
  • PDF - Single-Build $2,399
  • CAD - Single-Build $4,799
  • View all purchase option online

About This Plan

  • Designed to maximize views from every room, this stunning Mediterranean/Tuscan inspired home plan will hit everything on your wish list.
  • Two stairs plus an elevator give you great access across the home.
  • The main floor master accesses the covered terrace and has his-and-her walk-ins plus a glorious bath.
  • The grand room soars two-stories and can be viewed from the foyer.
  • The kitchen is made for entertaining and has views to the family room with fireplace.
  • Four suites plus a study are on the upper floor and a great finished lower level opens to the back.

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 9,104 sq. ft.
  • Lower Level: 2,999 sq. ft.
  • 1st Floor: 4,240 sq. ft.
  • 2nd Floor: 1,865 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 3

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 109' 7"
  • Depth: 115' 10"

Garage

  • Type: Attached
  • Area: 1387 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"
