Plan 72415DA

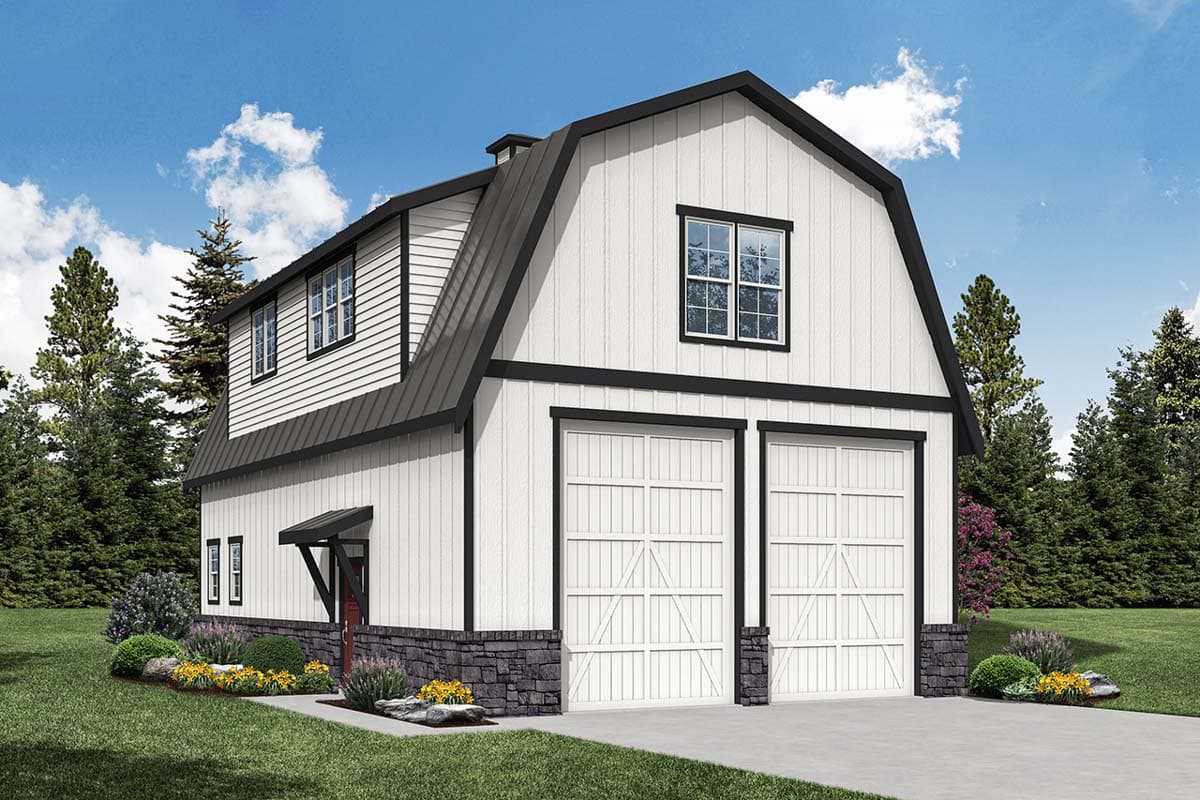

Detached 1500 Square Foot RV Garage with 2-Bed Apartment Above - 1314 Sq Ft

Heated S.F.
1,314
Beds
2
Baths
2.5
Stories
2
Cars
3- 4

Floor Plan

Plan 72415DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72415DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

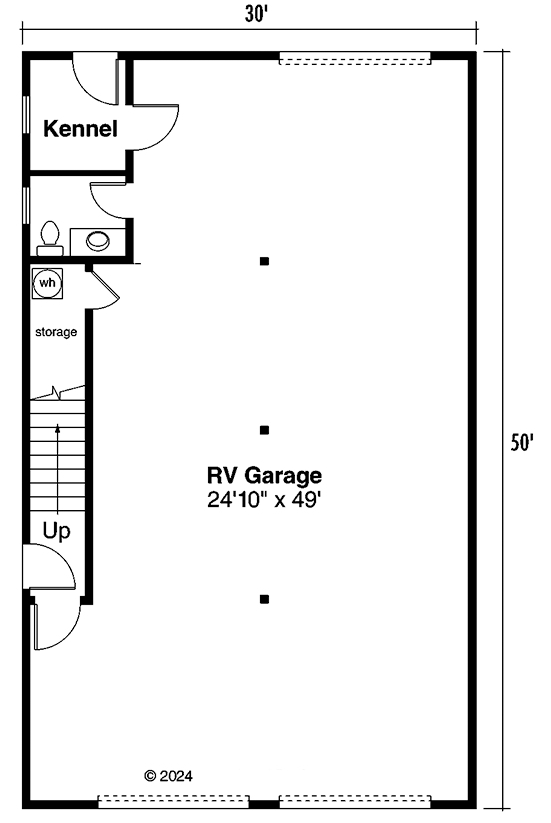

Plan 72415DA: Detached 1500 Square Foot RV Garage with 2-Bed Apartment Above - 1314 Sq Ft - Floor Plan - Main Level - Country, Farmhouse, Traditional

2nd Floor

Plan 72415DA: Detached 1500 Square Foot RV Garage with 2-Bed Apartment Above - 1314 Sq Ft - Floor Plan - 2nd Floor - Country, Farmhouse, Traditional

Plan Details

  • This detached RV garage gives you 1,500 square feet of space on the ground floor and 1,314 square feet of heated square feet in the living level above.
  • Architectural Designs' primary focus is to make the process of finding and buying house plans more convenient for those interested in constructing new homes - single family and multi-family ones - as well as garages, pool houses and even sheds and backyard offices.
  • Our website offers a vast collection of home designs, encompassing various architectural styles, sizes, and features, which can be customized to meet specific needs and preferences.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.
  • Related Plans: Get detached garages without living space above with garage plans 72362DA and 72827DA.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

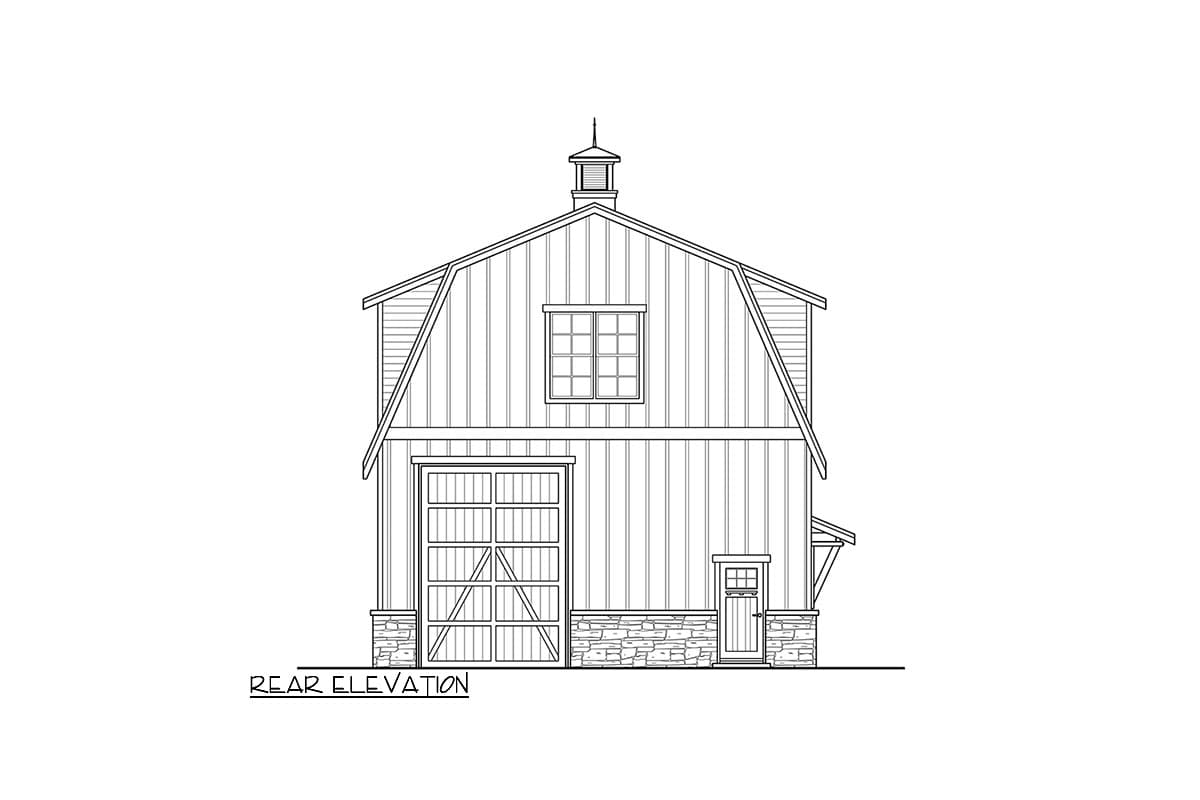

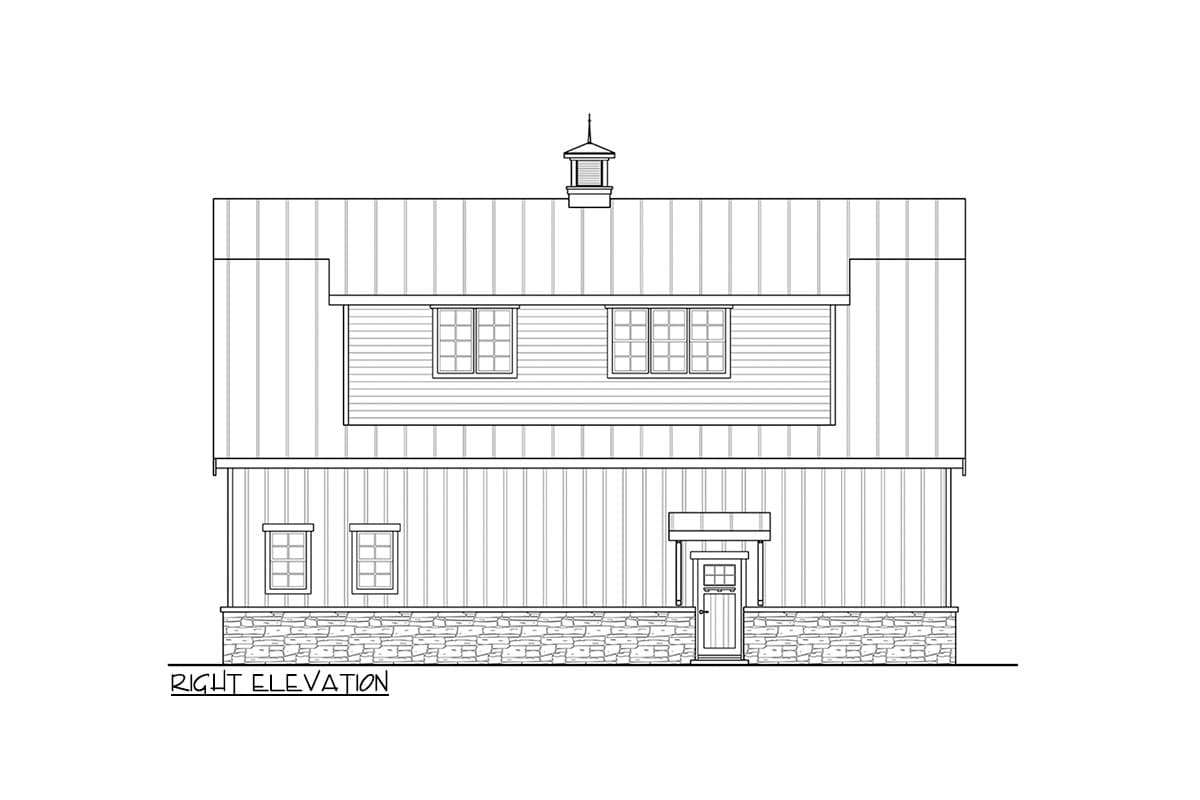

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,314 sq. ft.

2nd Floor

1,314 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

50' 0"

Max Ridge Height

32' 3"

Garage

Type

Detached, RV Garage

Area

1500 sq. ft.

Count

3 or 4 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

14'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Farmhouse

Traditional

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,314 sq. ft.

2nd Floor

1,314 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

50' 0"

Max Ridge Height

32' 3"

Garage

Type

Detached, RV Garage

Area

1500 sq. ft.

Count

3 or 4 Cars

Entry Location

Front, Rear

Ceiling Heights

First Floor

14'

Second Floor

9'

Roof Details

Primary Pitch

5 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Farmhouse

Traditional

Special Features

Bedrooms - Split

Game/Rec Room

Laundry - Upstairs

Master Suite - Upstairs
