Plan 88330SH
Detached 2-Bed Garage Plan with Bedroom Suite Above
Heated S.F.
484
Beds
1
Baths
1
Stories
1-2
Cars
2
What's Included
Plan Details
  • This handy two-car garage has charm galore, plus additional space on the second level for guests or in-laws, or to be used as a rental apartment.
  • It's a 484 square-foot one-bedroom apartment, with living and dining space, complete kitchen, and full bath.
  • The bedroom contains a box-bay window and wall closet.
  • A deck off the living room is reached via sliding glass doors.
  • The dining room, kitchen and bath all feature windows.
  • Access this apartment by a stairway to the left of the double garage.
What's Included
  • Front perspective
  • Foundation plan
  • Fully dimensioned floor plans
  • Cross sections
  • Floor structural supports
  • Electrical plans

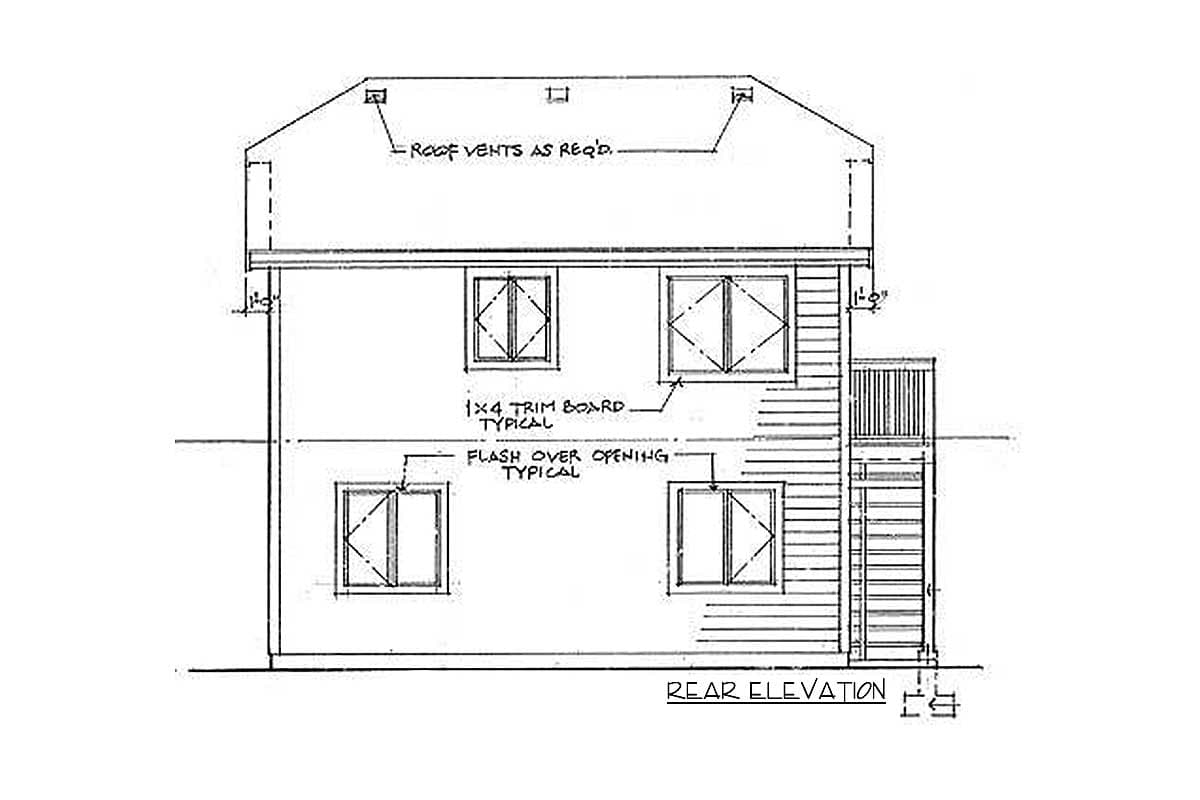

  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Detached 2-Bed Garage Plan with Bedroom Suite Above

  • 484

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

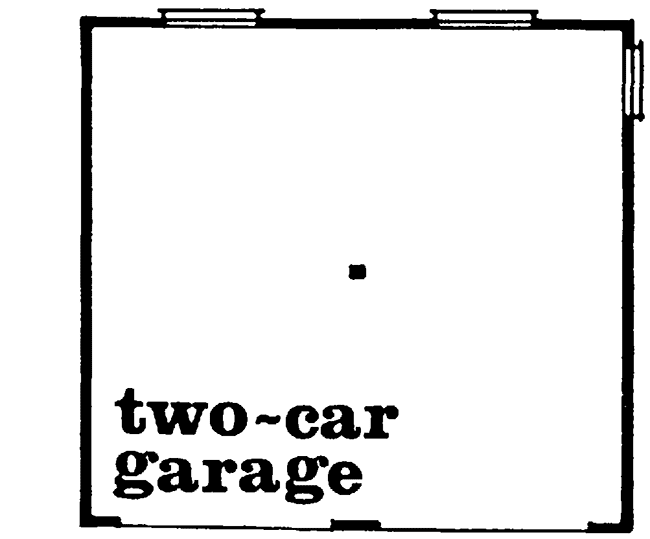

  • Main Level

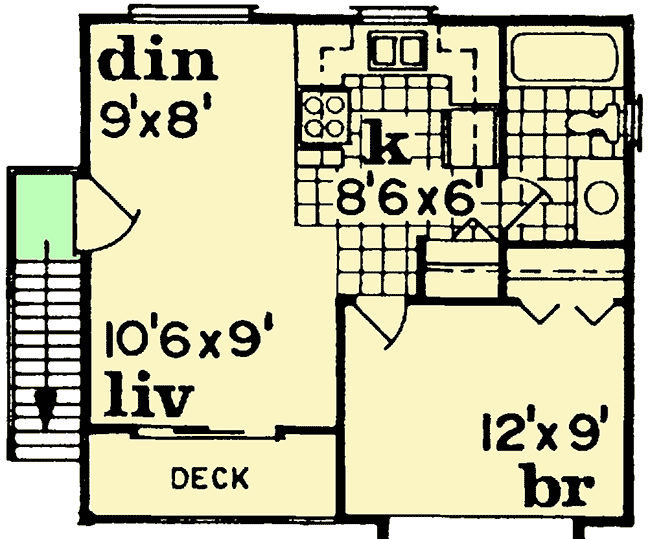

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 484 sq. ft.
  • 2nd Floor: 484 sq. ft.

Dimensions

  • Width: 24' 0"
  • Depth: 22' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Area: 528 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 7 on 12
  • Framing Type: Truss
