Plan 360092DK

Detached 3-Car Garage with Workshop and Loft

Heated S.F.
0
Beds
0
Baths
0
Stories
2
Cars
3

Floor Plan

Plan 360092DK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 360092DK

M-F 9am-5pm EST |

1-203-761-8500

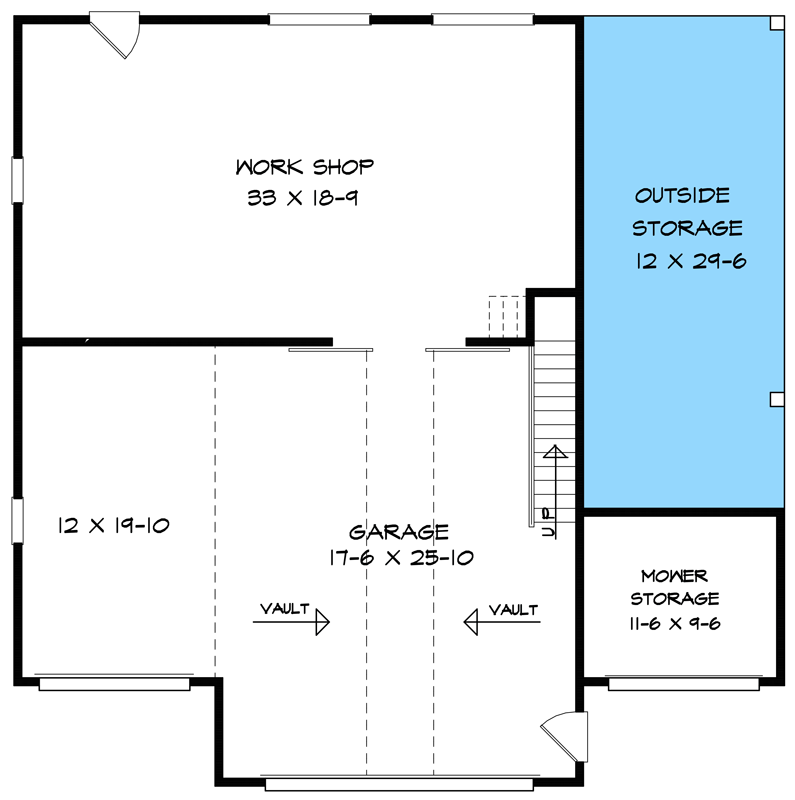

Main Level

Plan 360092DK: Detached 3-Car Garage with Workshop and Loft - Floor Plan - Main Level - Country, Traditional

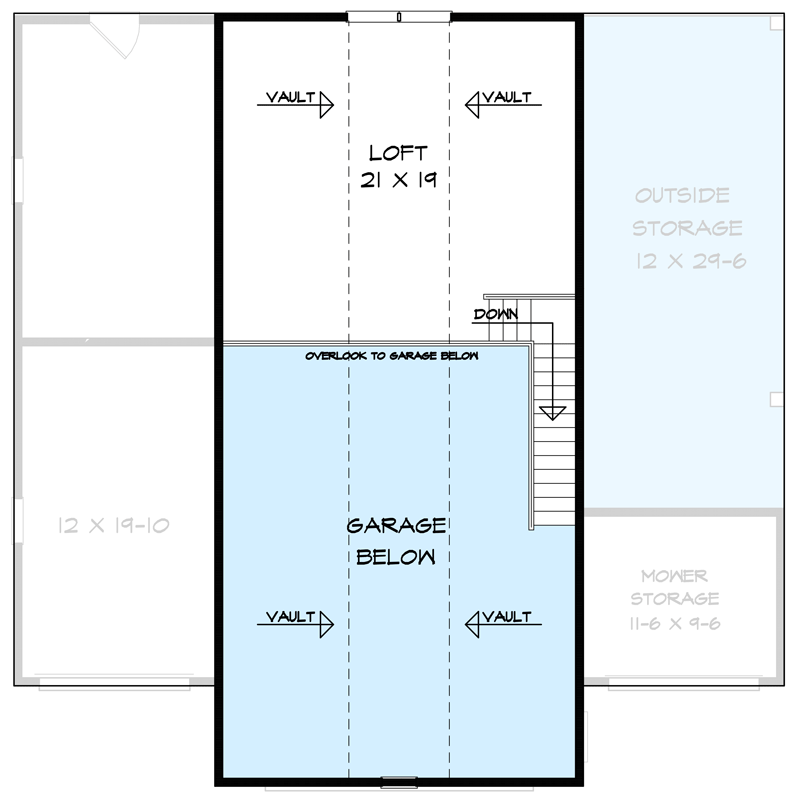

2nd Floor

Plan 360092DK: Detached 3-Car Garage with Workshop and Loft - Floor Plan - 2nd Floor - Country, Traditional

Plan Details

  • This detached garage offers a charming exterior with three forward-facing overhead doors and metal roof accents. The garage door in the middle is 10' by 8' and the doors to either side are 8' by 8'.
  • Extending from the right, you will find a smaller storage area for lawn equipment, in front of a 12'-deep covered porch.
  • The three garage bays are topped by a two-story vaulted ceiling.
  • Barn doors part to reveal a 33' by 18' 9" workshop with exterior access.
  • Upstairs, a loft provides a multi-purpose space that overlooks the garage below.

What's Included

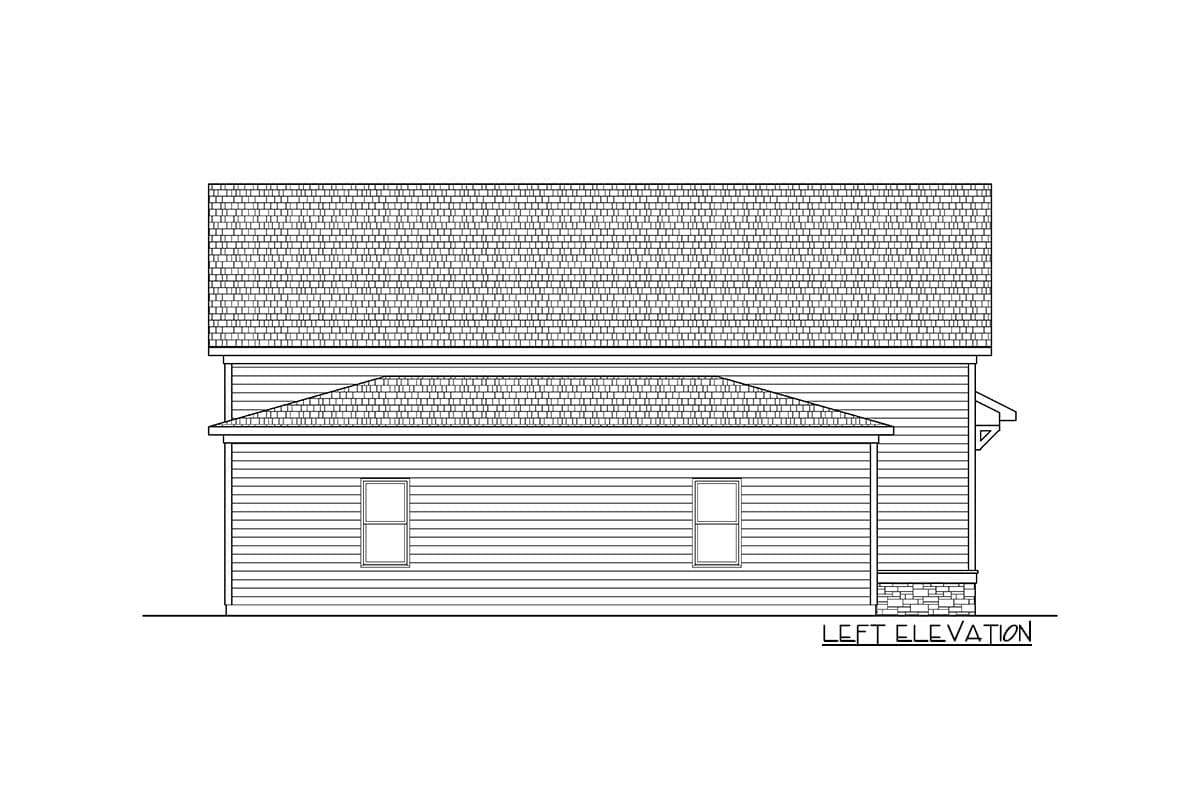

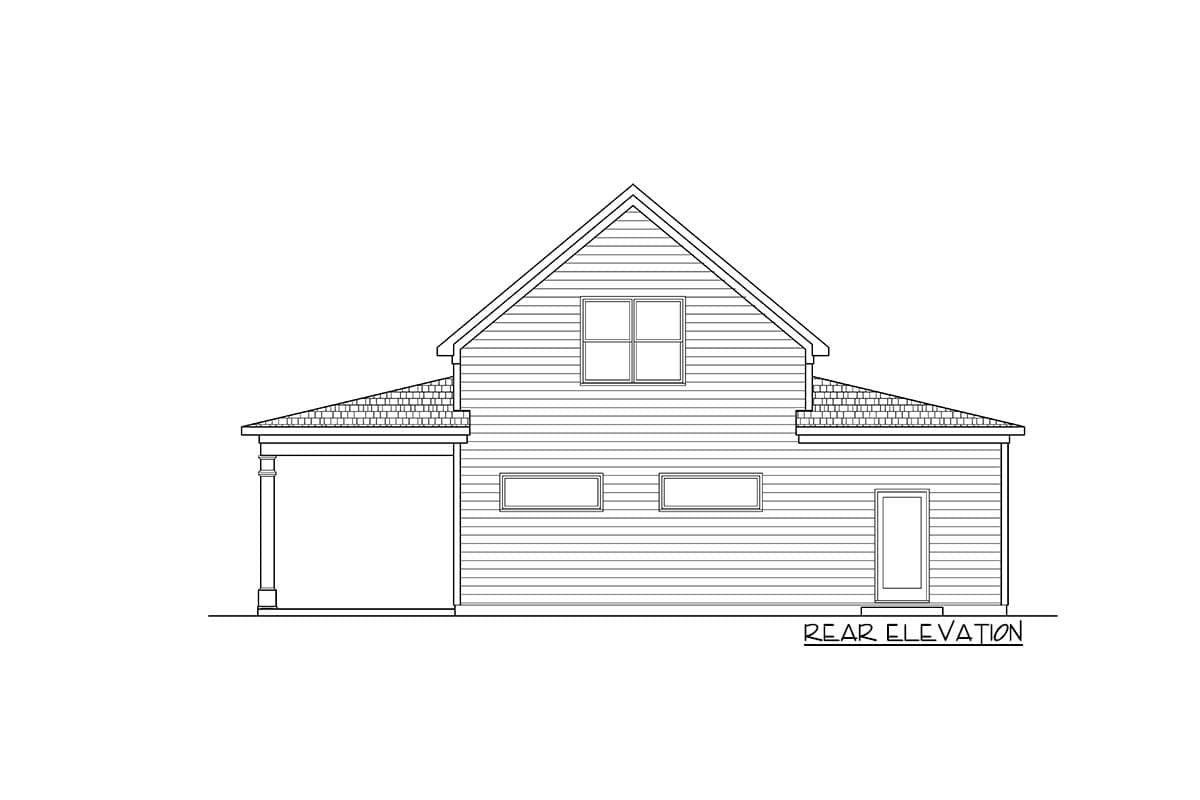

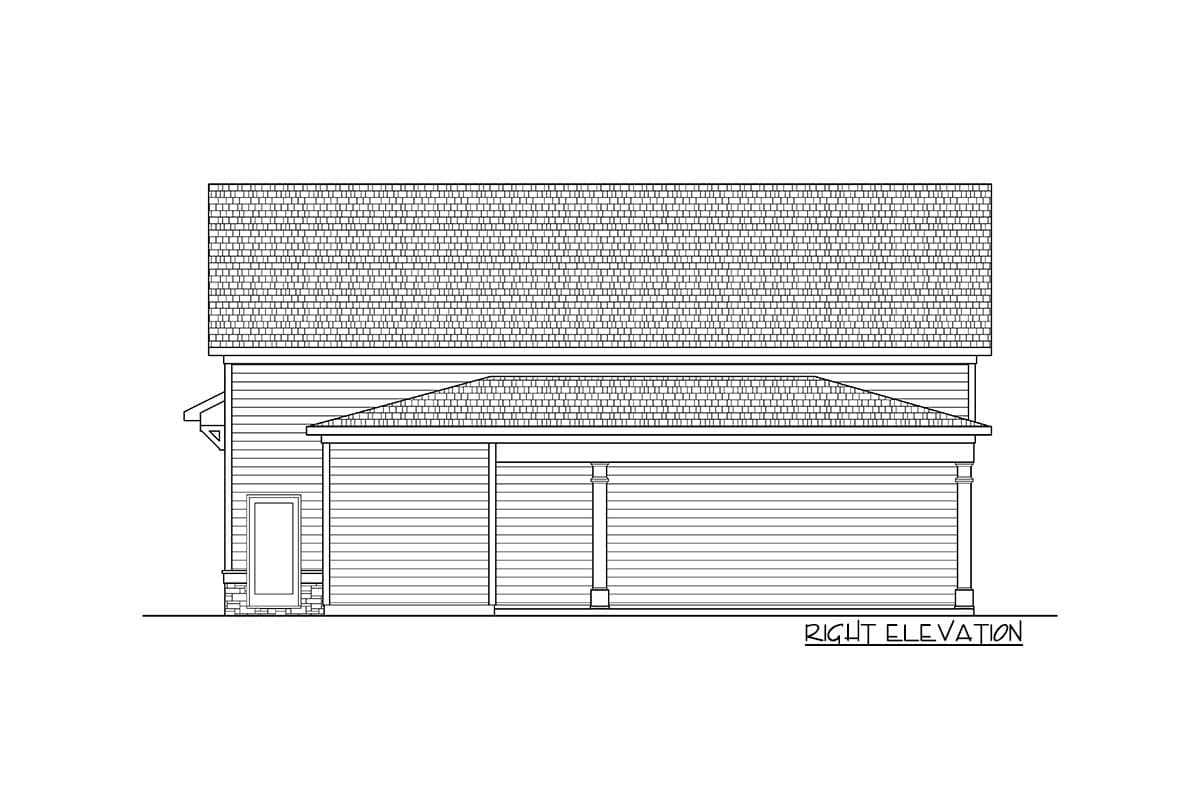

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

437 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

46' 0"

Max Ridge Height

26' 2"

Garage

Type

Detached

Area

1492 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3.5 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Loft

Workshop

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Loft

437 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 0"

Depth

46' 0"

Max Ridge Height

26' 2"

Garage

Type

Detached

Area

1492 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

3.5 on 12

Framing Type

Stick

Architectural Style

Country

Traditional

Special Features

Loft

Workshop
