Detached Carriage House with Sun Deck

Heated S.F.
672
Beds
0
Baths
0.5
Stories
2-3
Cars
2

Floor Plan

Plan 68575VR

Main Level
Main Level
2nd Floor
2nd Floor
3rd Floor
3rd Floor

Plan 68575VR

M-F 9am-5pm EST |

1-203-761-8500

Main Level

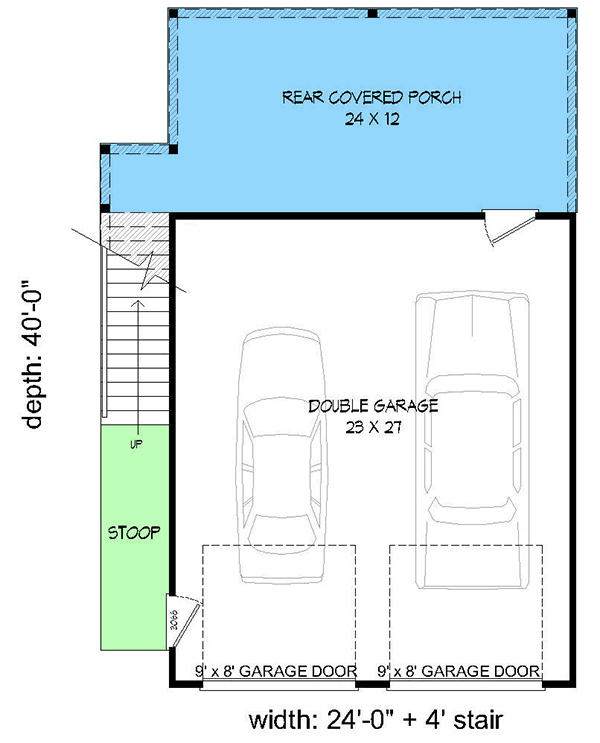

Plan 68575VR: Detached Carriage House with Sun Deck - Floor Plan - Main Level - Carriage

2nd Floor

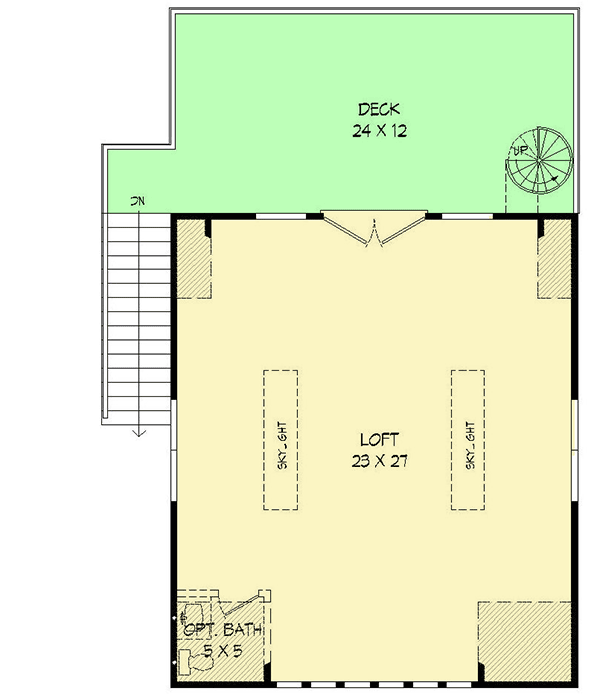

Plan 68575VR: Detached Carriage House with Sun Deck - Floor Plan - 2nd Floor - Carriage

3rd Floor

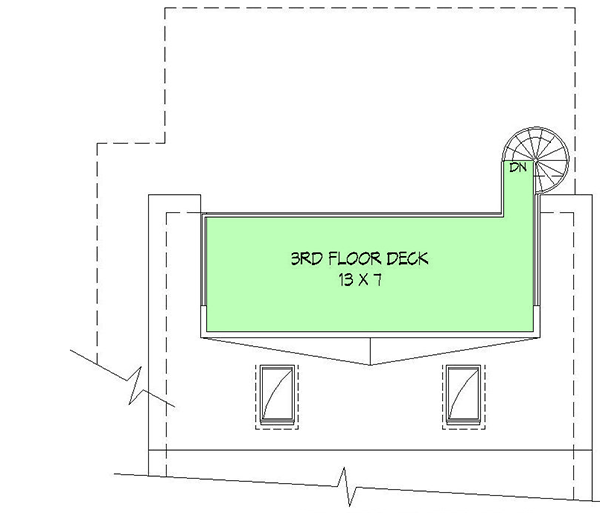

Plan 68575VR: Detached Carriage House with Sun Deck - Floor Plan - 3rd Floor - Carriage

Plan Details

  • This detached carriage house features a 2-car garage with a metal roof overhang and multiple outdoor spaces.
  • Stairs to the left of the garage lead to a large deck, which provides for a covered patio below.
  • A clerestory dormer window, along with skylights, allows natural light to permeate within the loft, which includes an optional half bath.
  • Follow the spiral staircase on the deck and enjoy the views from the 3rd floor, sun deck.

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

672 sq. ft.

2nd Floor

672 sq. ft.

Porch, Rear

304 sq. ft.

Balcony / Veranda

140 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

40' 0"

Max Ridge Height

26' 7"

Garage

Type

Detached

Area

672 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Carriage

Special Features

Loft

Square Footage Breakdown

Total Heated Area

672 sq. ft.

2nd Floor

672 sq. ft.

Porch, Rear

304 sq. ft.

Balcony / Veranda

140 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

28' 0"

Depth

40' 0"

Max Ridge Height

26' 7"

Garage

Type

Detached

Area

672 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Carriage

Special Features

Loft
