Plan 135119GRA

Detached Craftsman Garage with Home Office

Heated S.F.
973
Beds
1
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 135119GRA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 135119GRA

M-F 9am-5pm EST |

1-203-761-8500

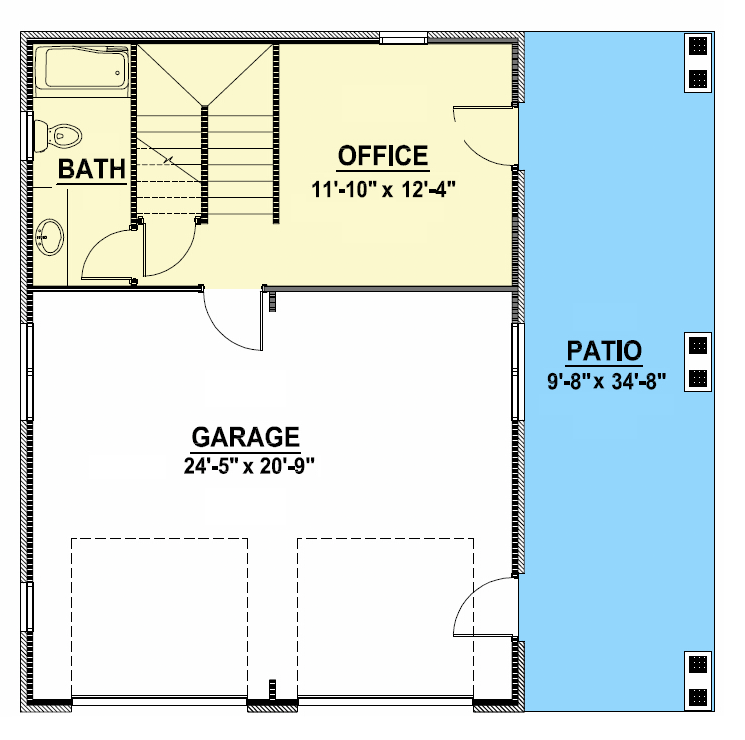

Main Level

Plan 135119GRA: Detached Craftsman Garage with Home Office - Floor Plan - Main Level - Country, Craftsman, New American

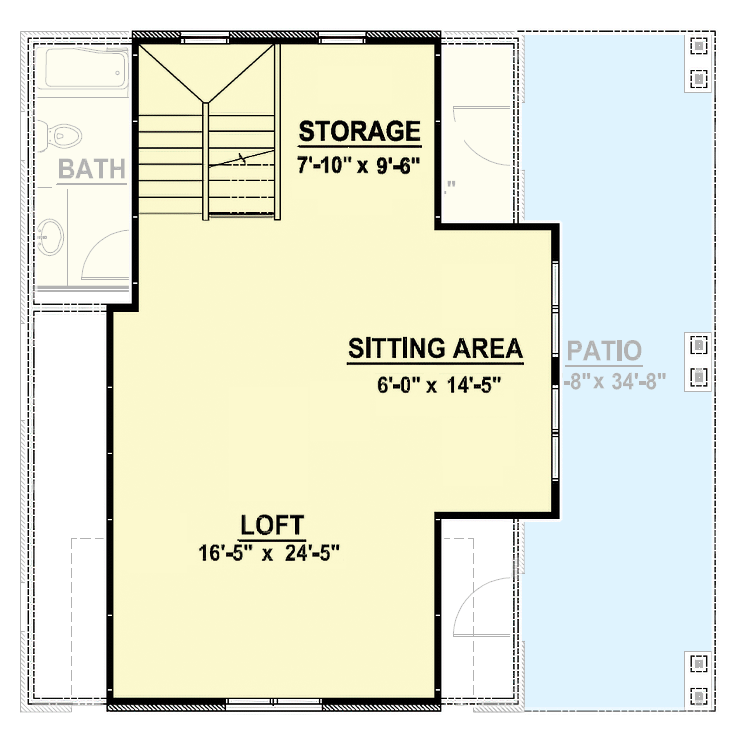

2nd Floor

Plan 135119GRA: Detached Craftsman Garage with Home Office - Floor Plan - 2nd Floor - Country, Craftsman, New American

Plan Details

  • This brick-clad, Craftsman garage offers a charming exterior with a 34'8" by 9'8" patio extending from the side.
  • Two overhead doors grant access to the double garage, while a home office and full bathroom complete the main level.
  • The flexible second level provides plenty of space for storage or additional living space.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

973 sq. ft.

1st Floor

323 sq. ft.

2nd Floor

650 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

34' 7"

Depth

34' 0"

Max Ridge Height

25' 8"

Garage

Type

Detached

Area

527 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

New American

Special Features

Home Office

Loft

Plan Collections

Home Office

Square Footage Breakdown

Total Heated Area

973 sq. ft.

1st Floor

323 sq. ft.

2nd Floor

650 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

34' 7"

Depth

34' 0"

Max Ridge Height

25' 8"

Garage

Type

Detached

Area

527 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

14 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

New American

Special Features

Home Office

Loft

Plan Collections

Home Office
