Plan 360065DK
Detached Garage Apartment with Parking for 3 Cars
Heated S.F.
1,180
Beds
1
Baths
1.5
Stories
2
Cars
3
Flyer
What's Included
Plan Details
  • This garage apartment / carriage house plan gives you parking for the vehicles in a split parking arrangement that allows for stairs to be placed off-center between the two-car side on the left and the one-car side on the right. Each garage door is 10' by 8'.

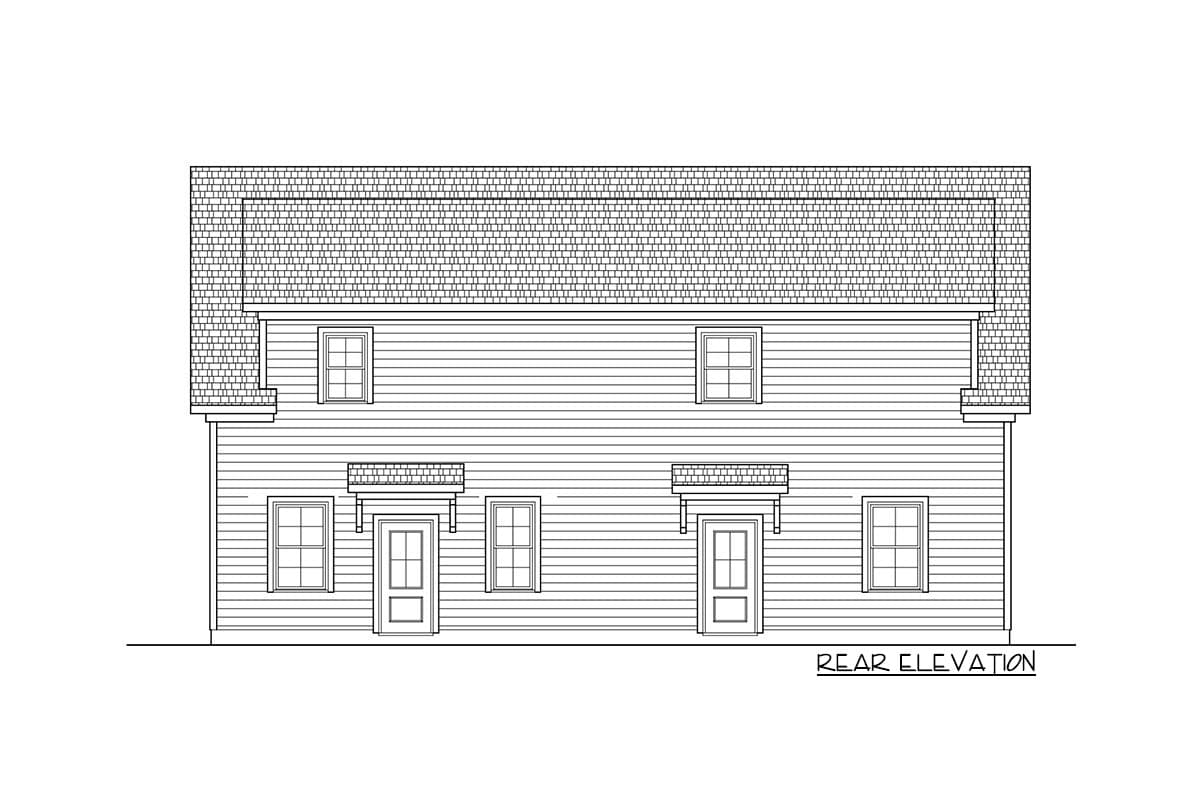

  • Each side has a covered door accessing the back and the left side has a half bath.

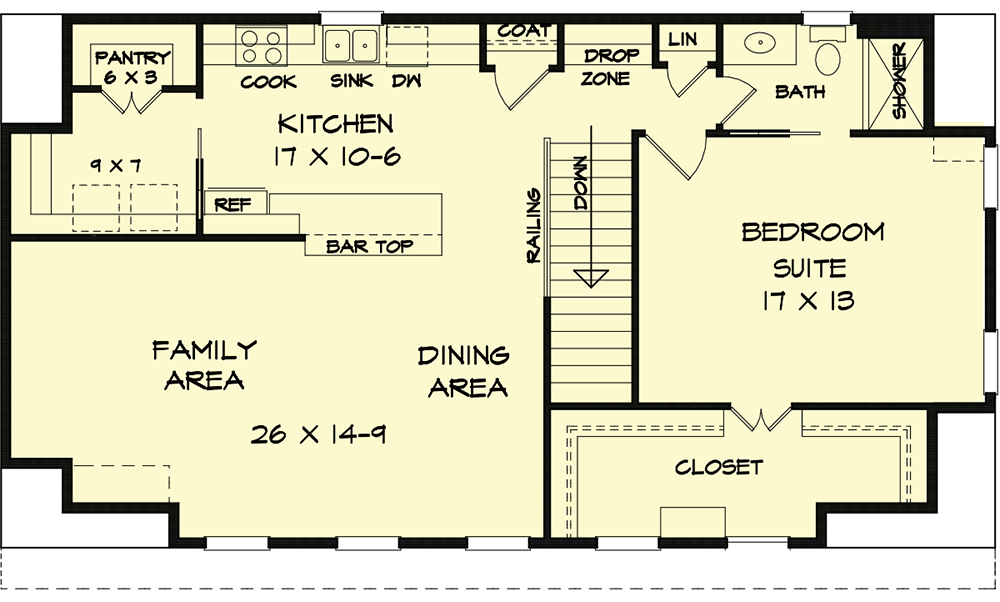

  • Upstairs you have everything needed for comfortable living in a space that gets great natural light thanks to the windows in the front. The left side has an open layout with a bar top separating the kitchen from the family room instead of a wall. A barn door separates the pantry and laundry/storage room from the kitchen.
  • The right side gives you a comfortable bedroom suite with a large walk-in closet and a bathroom with shower.
What's Included

This plan includes the following elements:

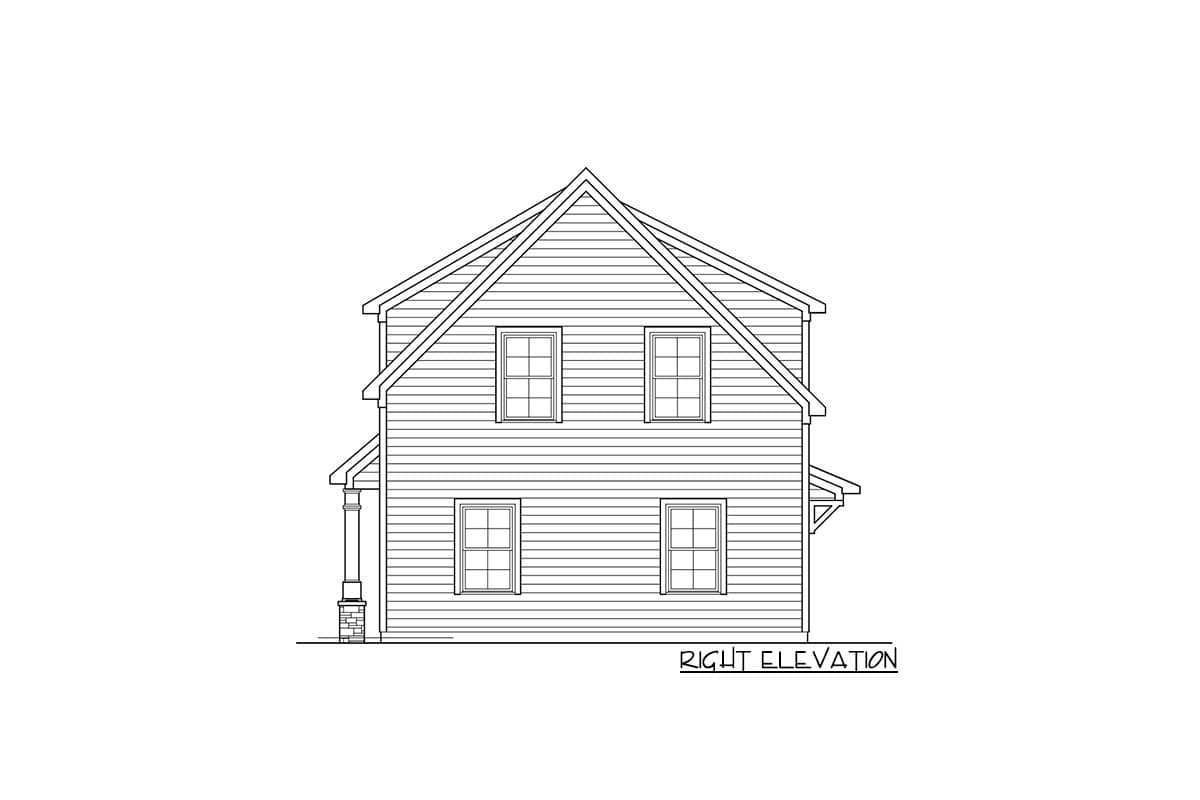

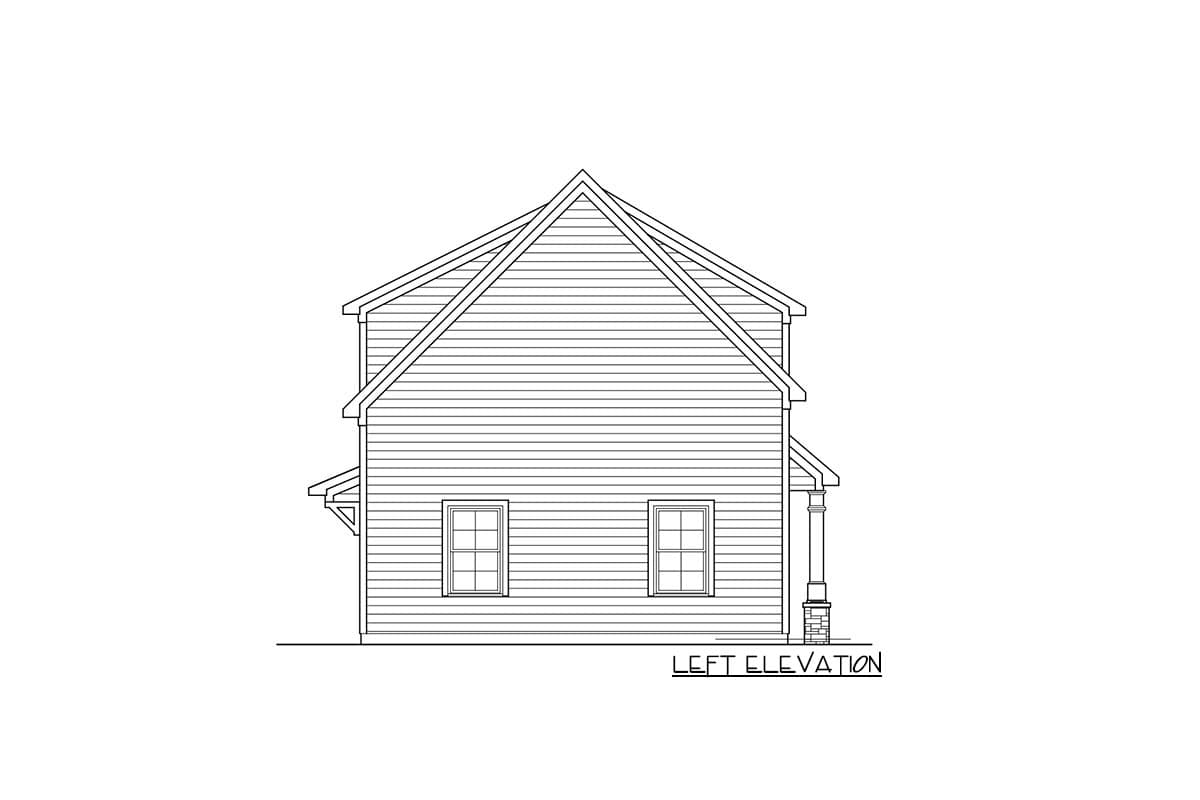

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Detached Garage Apartment with Parking for 3 Cars

  • 1,180

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

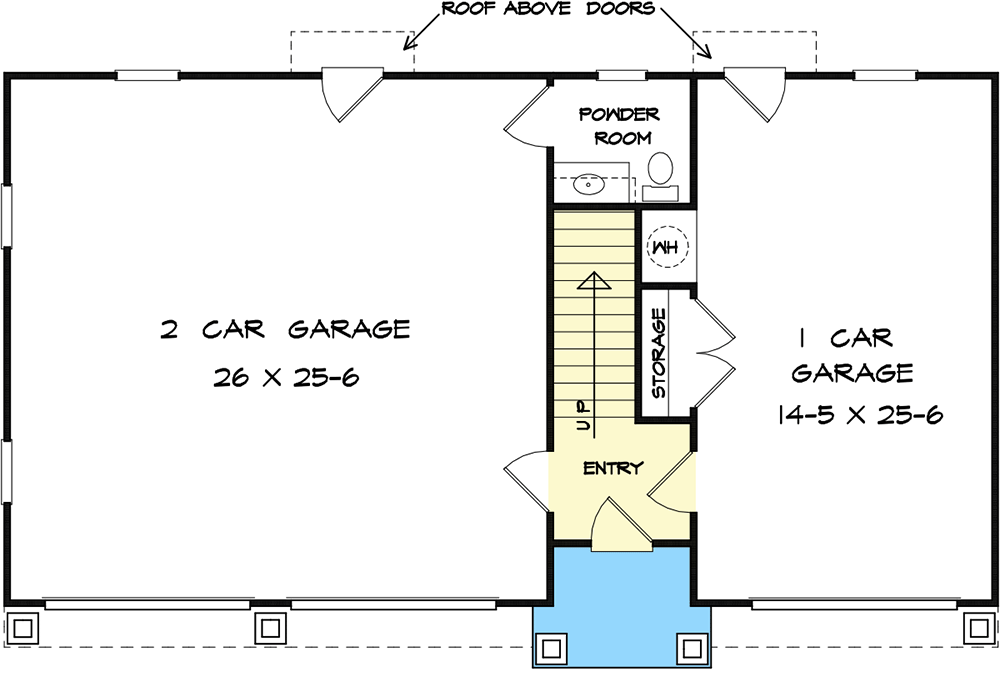

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,180 sq. ft.
  • 2nd Floor: 1,180 sq. ft.

Dimensions

  • Width: 48' 0"
  • Depth: 29' 0"
  • Max ridge height: 28' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Type: Detached
  • Area: 1267 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
