Detached Garage or Man Cave - You Choose

Plan 22506DR

  • 0

    Heated s.f.

  • 1

    Stories

  • 2

    Cars

  • This small detached garage plan can be used for vehicles or as a man cave or game room.
  • Two garage doors open for vehicle access.

Each plan includes the following:

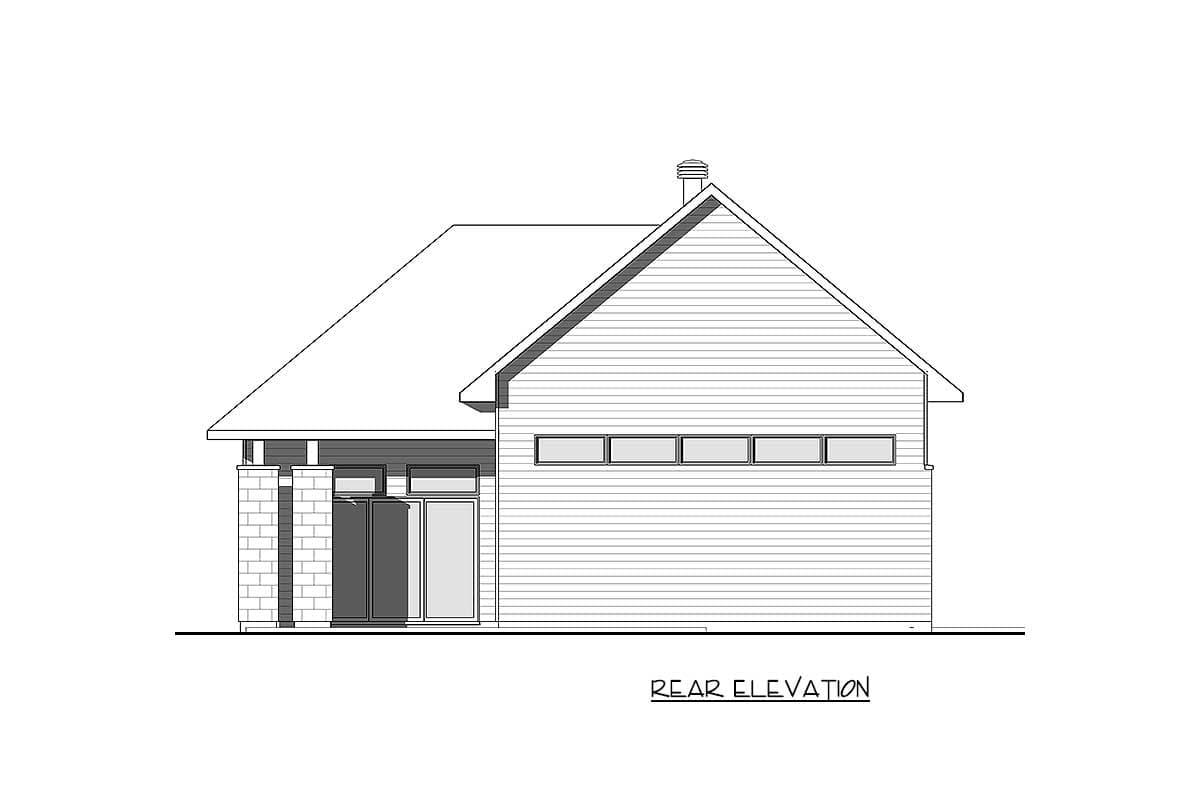

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

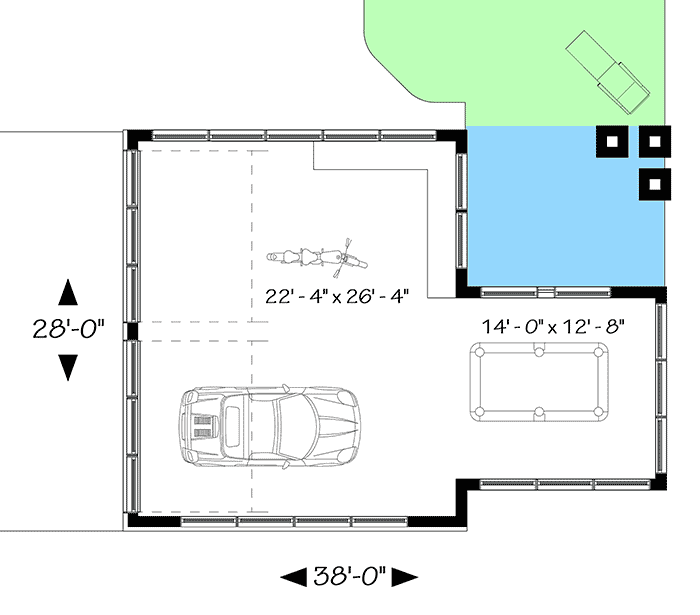

Detached Garage or Man Cave - You Choose - 22506DR floor plan - Main Level

Architectural Style

Special features

Plan Collections

Detached Garage or Man Cave - You Choose

  • 0

    Heated s.f.

  • Beds

  • 0

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.

Dimensions

  • Width: 38' 0"
  • Depth: 28' 0"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Garage

  • Area: 868 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 12' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
