Plan 72403DA

Detached Garage Plan with RV-Friendly Bay and Storage - 937 Sq Ft

Heated S.F.
103
Beds
0
Baths
0
Stories
2
Cars
2

Floor Plan

Plan 72403DA

Main Level
Main Level
Storage
Storage

Plan 72403DA

M-F 9am-5pm EST |

1-203-761-8500

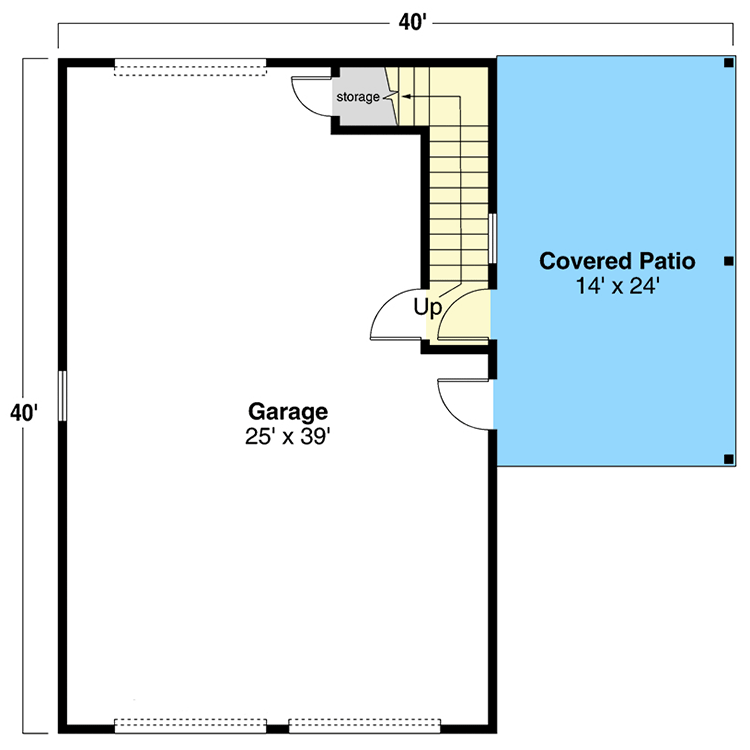

Main Level

Plan 72403DA: Detached Garage Plan with RV-Friendly Bay and Storage - 937 Sq Ft - Floor Plan - Main Level - Traditional

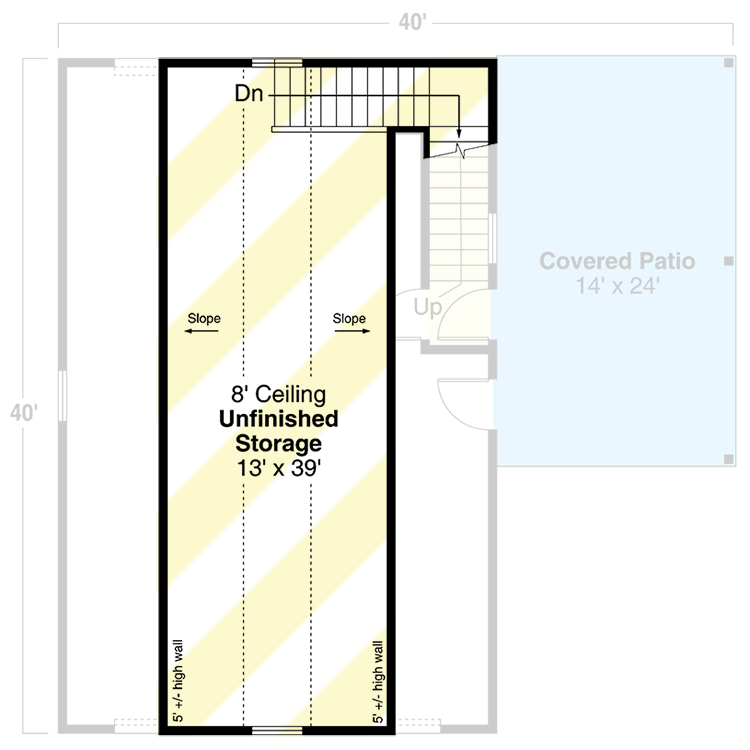

Storage

Plan 72403DA: Detached Garage Plan with RV-Friendly Bay and Storage - 937 Sq Ft - Floor Plan - Storage - Traditional

Plan Details

  • This detached garage plan gives you 937 square feet of parking for your vehicles and includes an RV-friendly drive-through bay. There is enough space for three cars on the first floor if you choose to park tandem-style in the RV bay.
  • The bay on the right has a 9' by 8' overhead door and the one on the left has a 9' by 11' overhead door in front and in back.
  • Stairs are at the back of the garage and take you to 531 square feet of storage space above with 8' ceilings that slope down to 5'.
  • A large covered patio area covers the right side of the garage's exterior.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

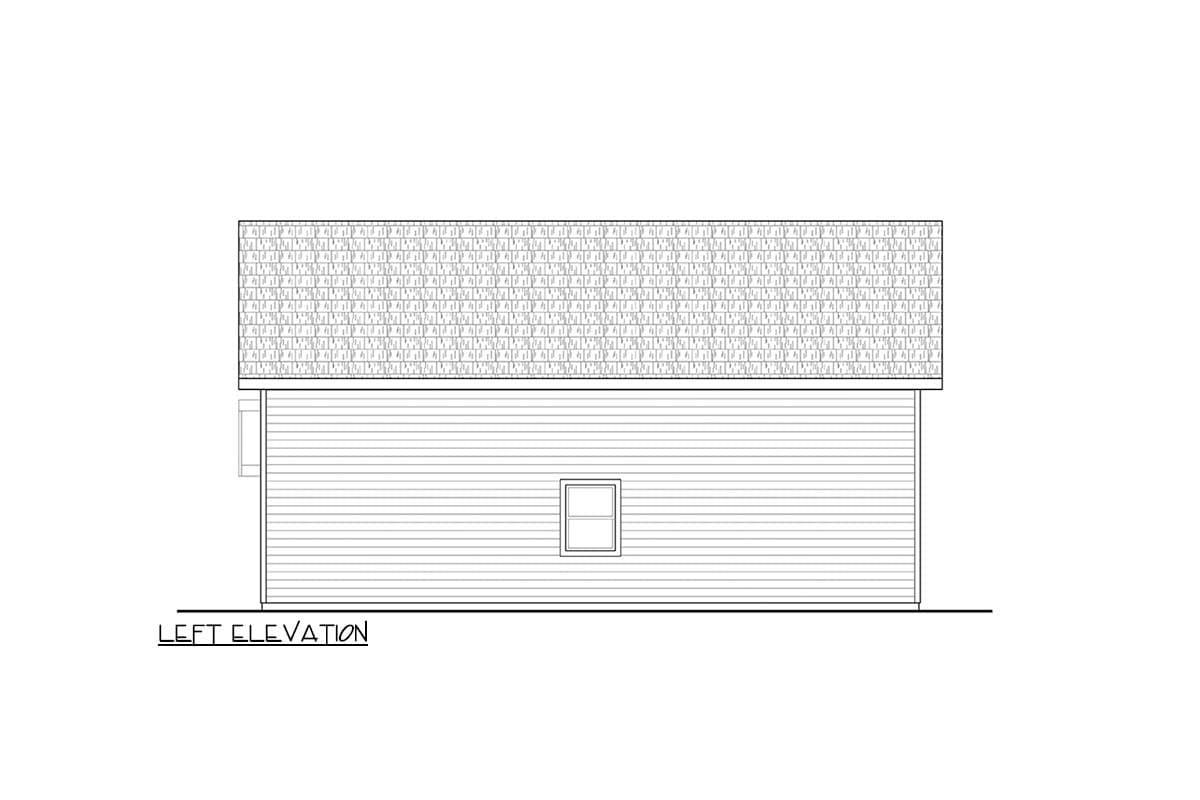

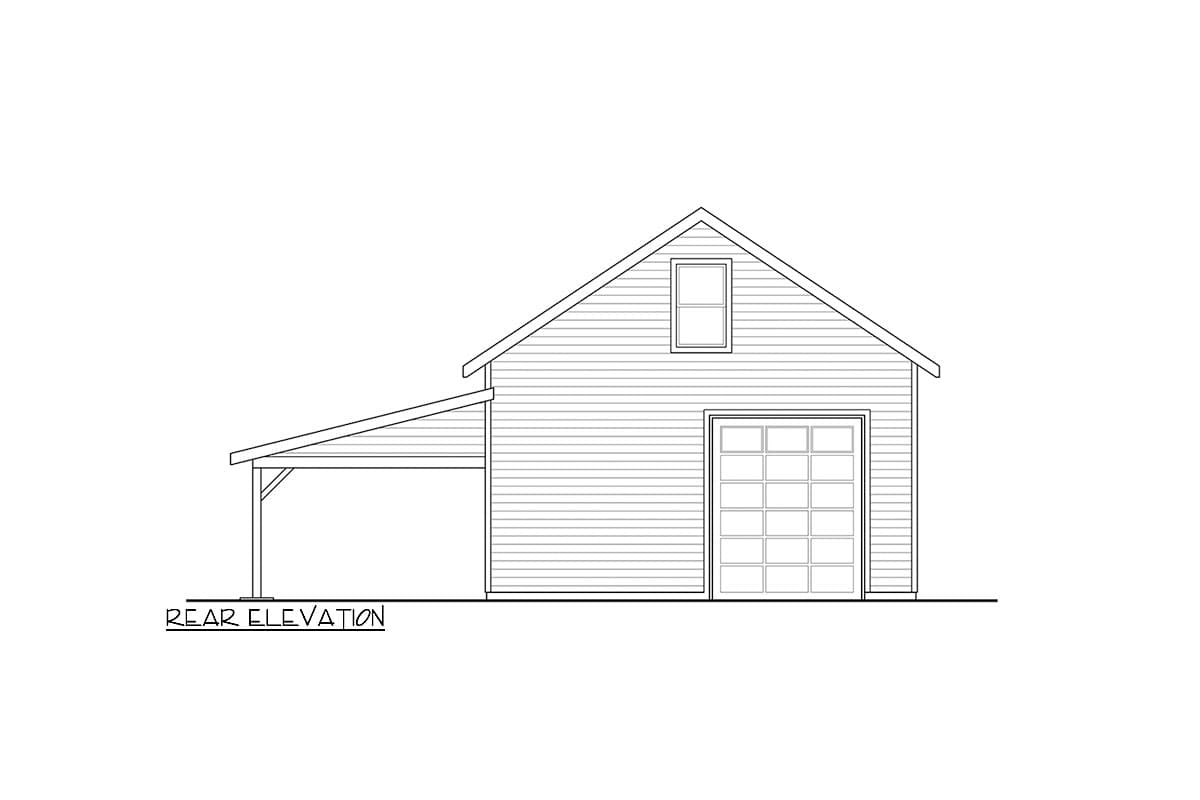

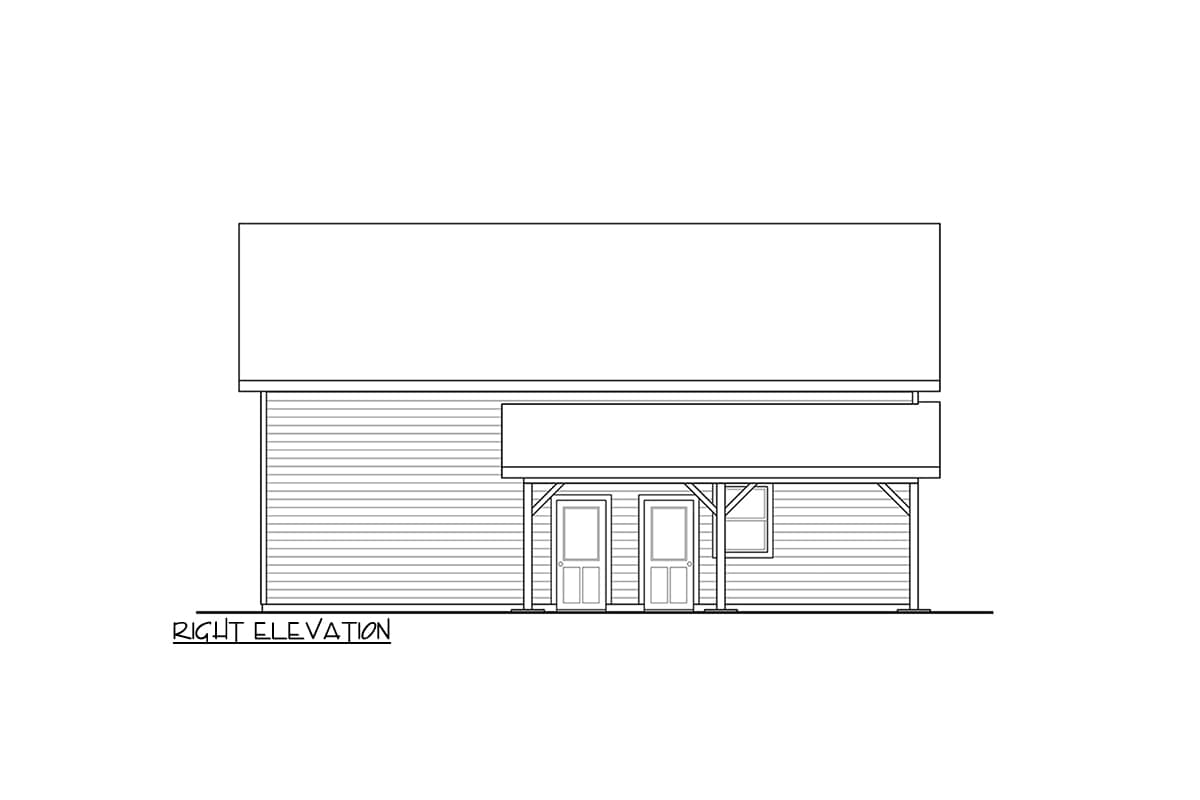

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

103 sq. ft.

1st Floor

103 sq. ft.

Storage

531 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

40' 0"

Max Ridge Height

23' 9"

Garage

Type

RV Garage, Detached

Area

937 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

12'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick And Truss

Architectural Style

Traditional

Special Features

Tandem Garage

Square Footage Breakdown

Total Heated Area

103 sq. ft.

1st Floor

103 sq. ft.

Storage

531 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

40' 0"

Max Ridge Height

23' 9"

Garage

Type

RV Garage, Detached

Area

937 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

12'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick And Truss

Architectural Style

Traditional

Special Features

Tandem Garage
