Plan 72958DA

Detached Garage Plan with Upstairs Loft with Full Bathroom

Heated S.F.
414
Beds
0
Baths
1
Stories
2
Cars
2

Floor Plan

Plan 72958DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72958DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

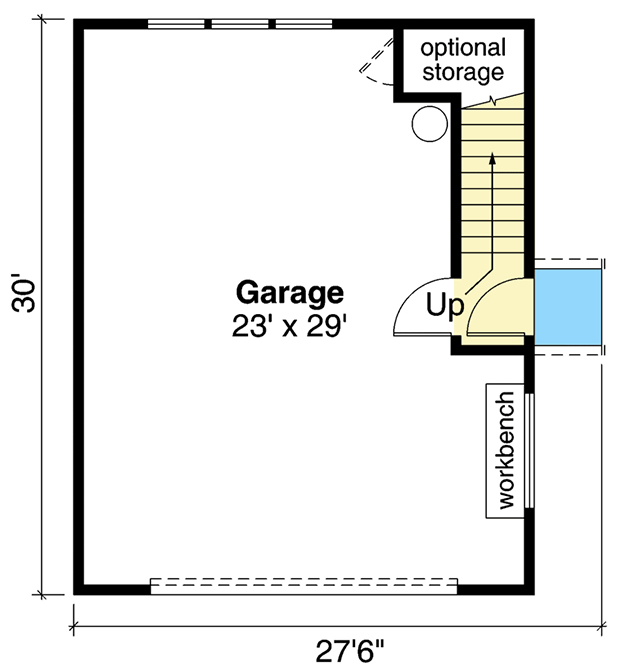

Plan 72958DA: Detached Garage Plan with Upstairs Loft with Full Bathroom - Floor Plan - Main Level - Carriage

2nd Floor

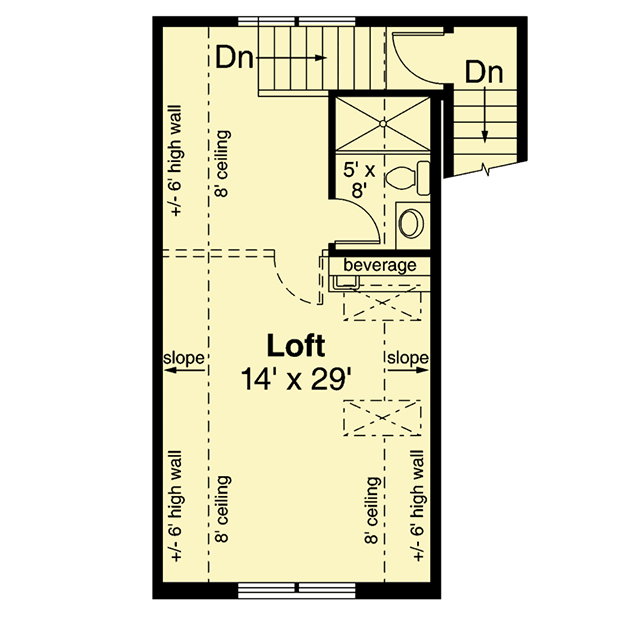

Plan 72958DA: Detached Garage Plan with Upstairs Loft with Full Bathroom - Floor Plan - 2nd Floor - Carriage

Plan Details

  • This charming classic garage has a single 16' by 10' overhead door that gives you access to 720 square feet of parking space.
  • The first floor features a traditional 2-car garage with a built-in workbench and optional under-the-stairs storage area.
  • The walk-through door on the side leads into the staircase that goes up to a loft.
  • The second floor has 8' ceilings that slope down to 6' on the ends. The loft is a great additional gathering space or hobby room for your property with a beverage bar and full bath.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

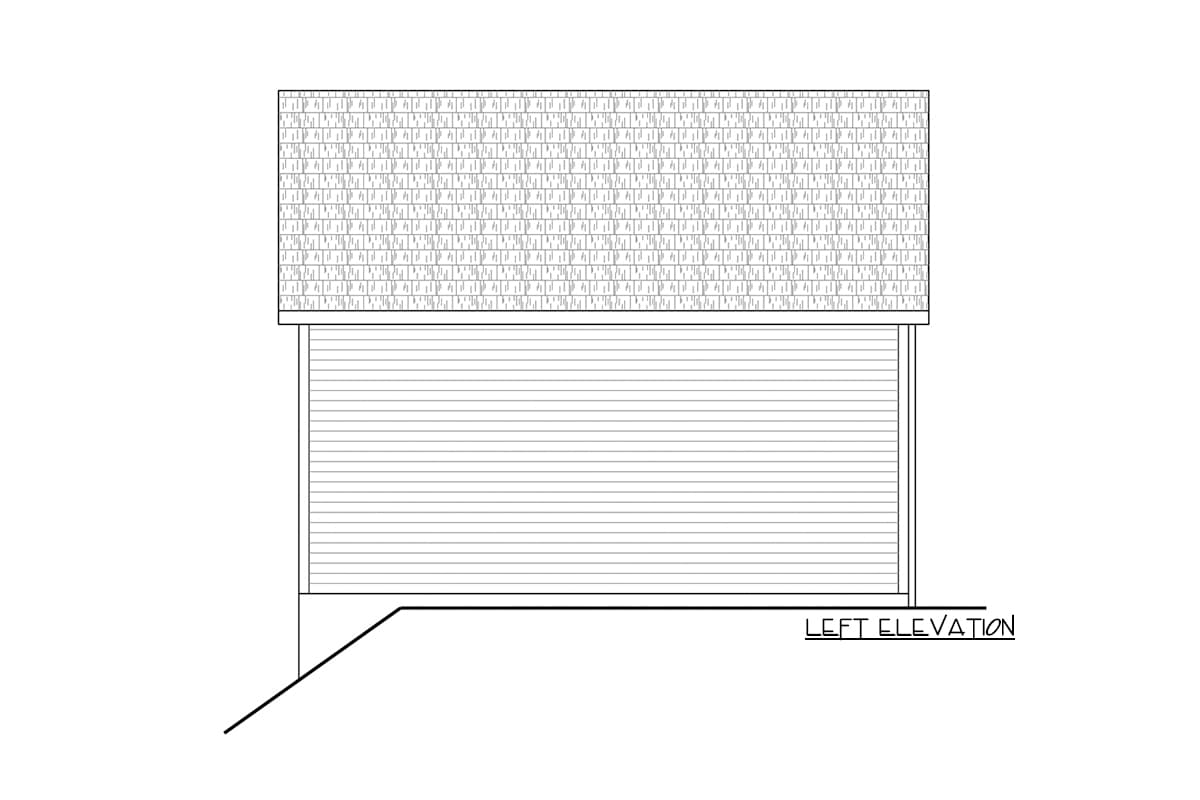

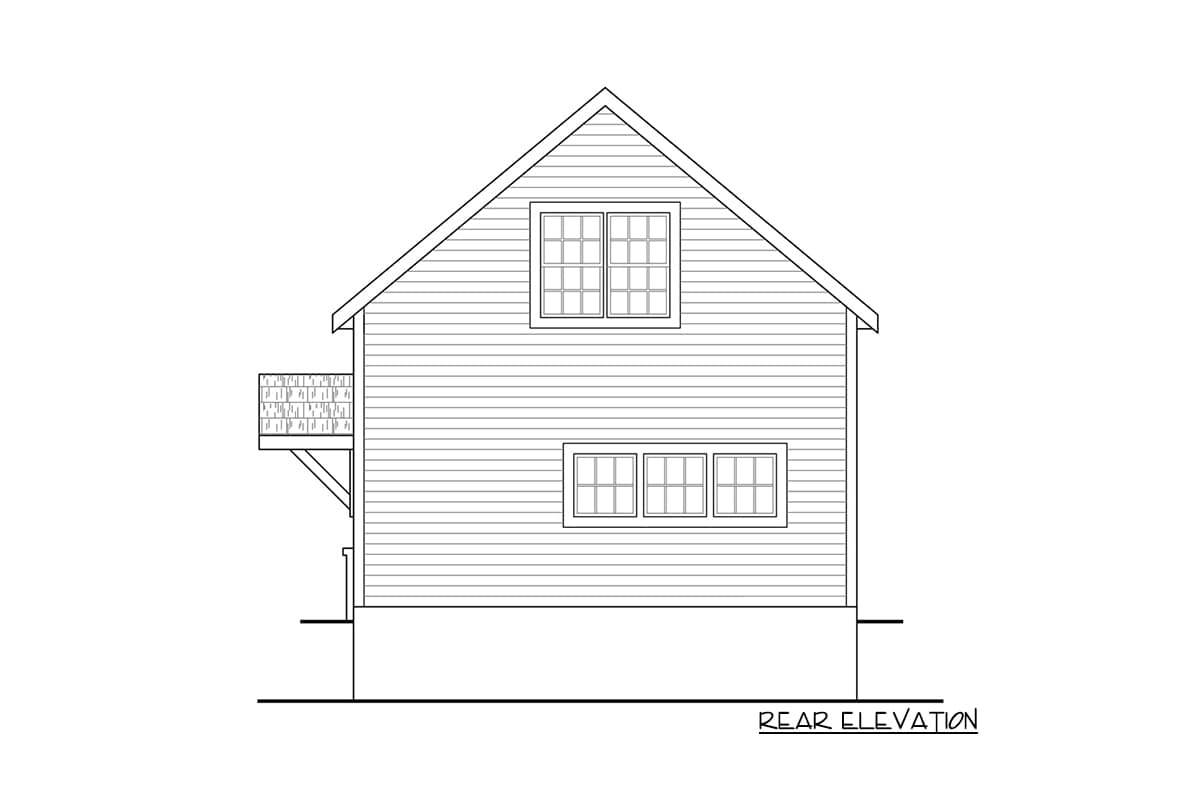

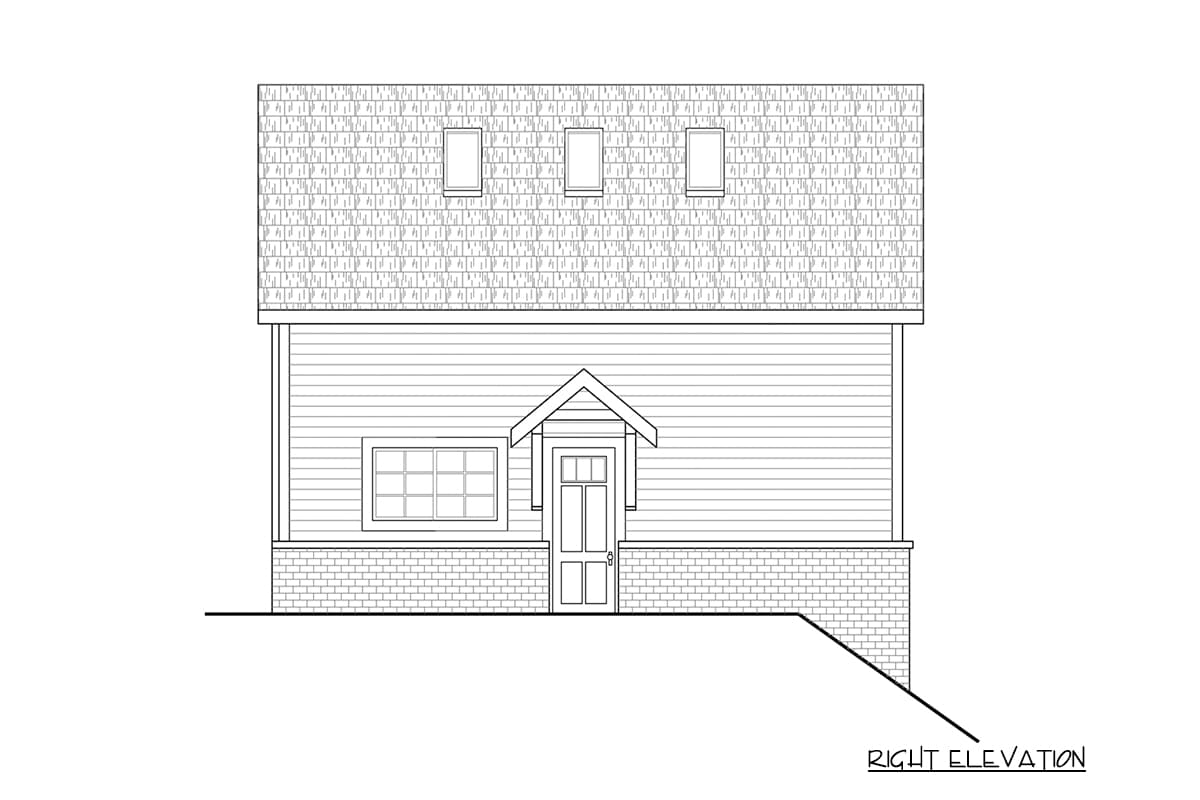

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

414 sq. ft.

1st Floor

414 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

27' 6"

Depth

30' 0"

Max Ridge Height

25' 6"

Garage

Type

Detached

Area

720 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Carriage

Special Features

Loft

Square Footage Breakdown

Total Heated Area

414 sq. ft.

1st Floor

414 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

27' 6"

Depth

30' 0"

Max Ridge Height

25' 6"

Garage

Type

Detached

Area

720 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

11'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Architectural Style

Carriage

Special Features

Loft
