Plan 21943DR Detached Garage with Extra Storage

0 0 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Detached Garage with Extra Storage

Plan 21943DR

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 2

    Cars

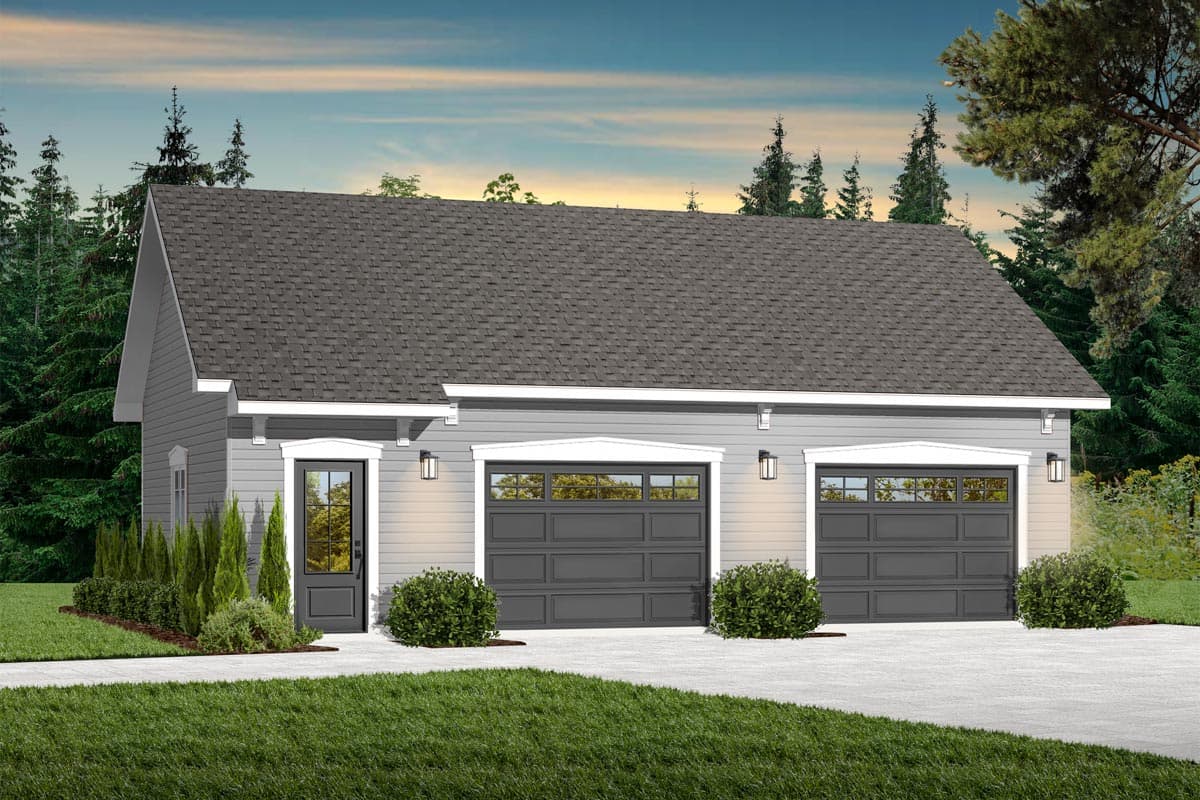

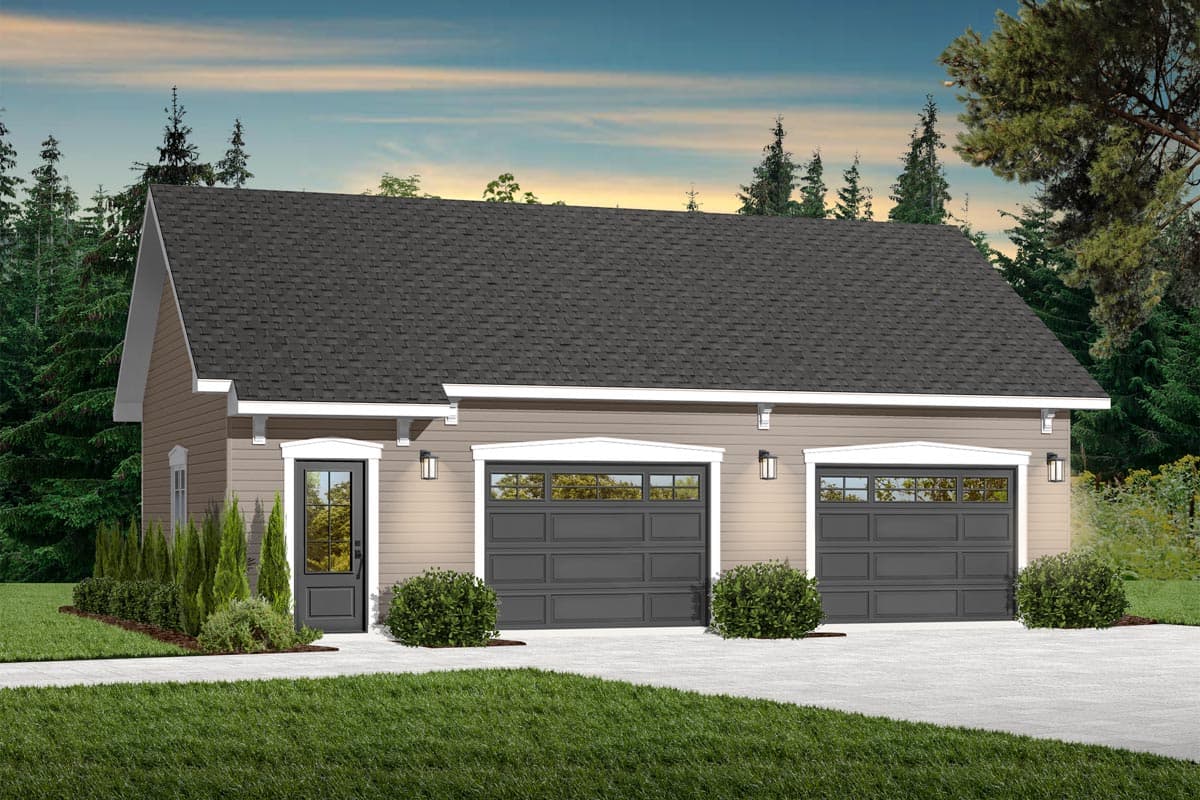

  • This two car garage plan has extra space on the side for all your lawn equipment and other storage needs.
  • The garage doors are 10' wide and 7' high and the man door is 34" by 82" high.
  • Attic space above is 36'8" x 10' with a maximum ceiling height in the middle of 7' sloping down to knee walls that are 4' high. The access is through an opening for a pull down staircase that is 22" x 54" (min) located approximately in the middle (from front to back) between the man door and the first garage door.
  • Related Plan: Get a smaller garage with garage plan 21708DR.

Each plan includes the following:

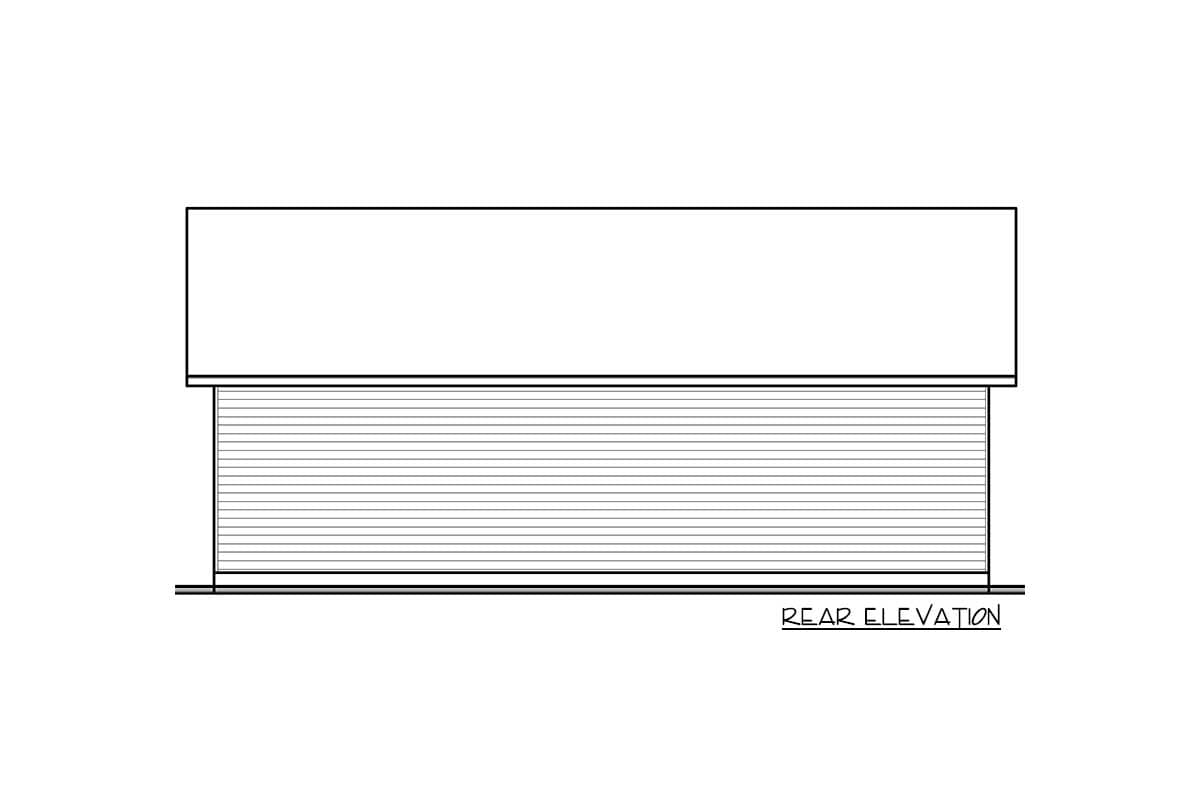

* 4 Elevations
* Foundation Plan
* Main Floor Plan
* Upper Floor Plans (if applicable)
* Roof Plan
* Building Section
* Construction Details
* Typical Wall Section

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

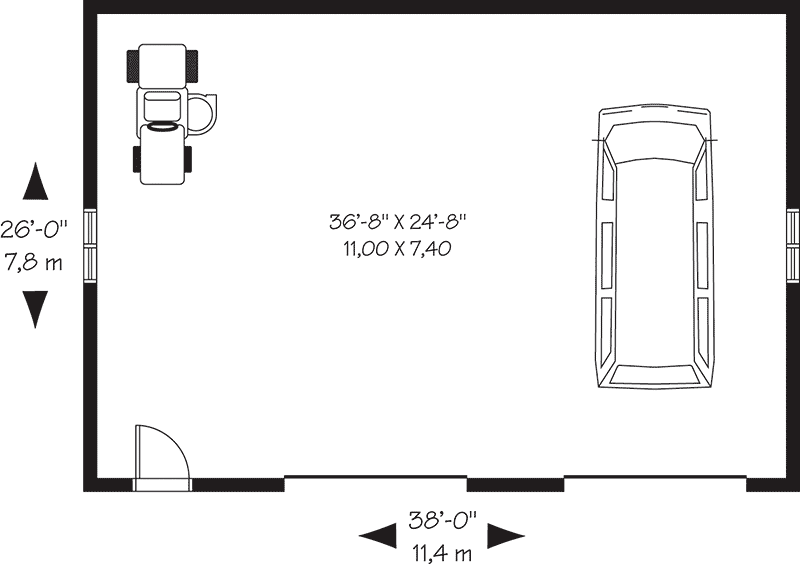

Detached Garage with Extra Storage - 21943DR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 26' 0"
  • Max ridge height: 17' 11"

Garage

  • Type: Detached
  • Area: 988 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof Details

  • Framing Type: Truss

Plan Collections

Detached Garage with Extra Storage

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $525
  • 3 Sets + PDF $630
  • CAD + PDF - Single-Build $825
  • View all purchase option online

About This Plan

  • This two car garage plan has extra space on the side for all your lawn equipment and other storage needs.
  • The garage doors are 10' wide and 7' high and the man door is 34" by 82" high.
  • Attic space above is 36'8" x 10' with a maximum ceiling height in the middle of 7' sloping down to knee walls that are 4' high. The access is through an opening for a pull down staircase that is 22" x 54" (min) located approximately in the middle (from front to back) between the man door and the first garage door.
  • Related Plan: Get a smaller garage with garage plan 21708DR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 26' 0"
  • Max ridge height: 17' 11"

Garage

  • Type: Detached
  • Area: 988 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Framing Type: Truss
Plan 21943DR
View this and more for this plan by visiting www.architechtecturaldesigns.com/21943DR
|
