Detached Garage with Loft Above

Plan 68501VR

0
Heated s.f.
0
Beds
2
Stories
2
Cars

This detached garage house plan gives you parking for two cars in front with a single 18'-wide garage door and plenty of storage as well.
Stairs go to a loft with natural light from the two dormers in front.
Related Plan: Turn the storage area in back to parking for a third car, accessible from a side door, and put the stairs along the side of the home with garage plan 68502VR,

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

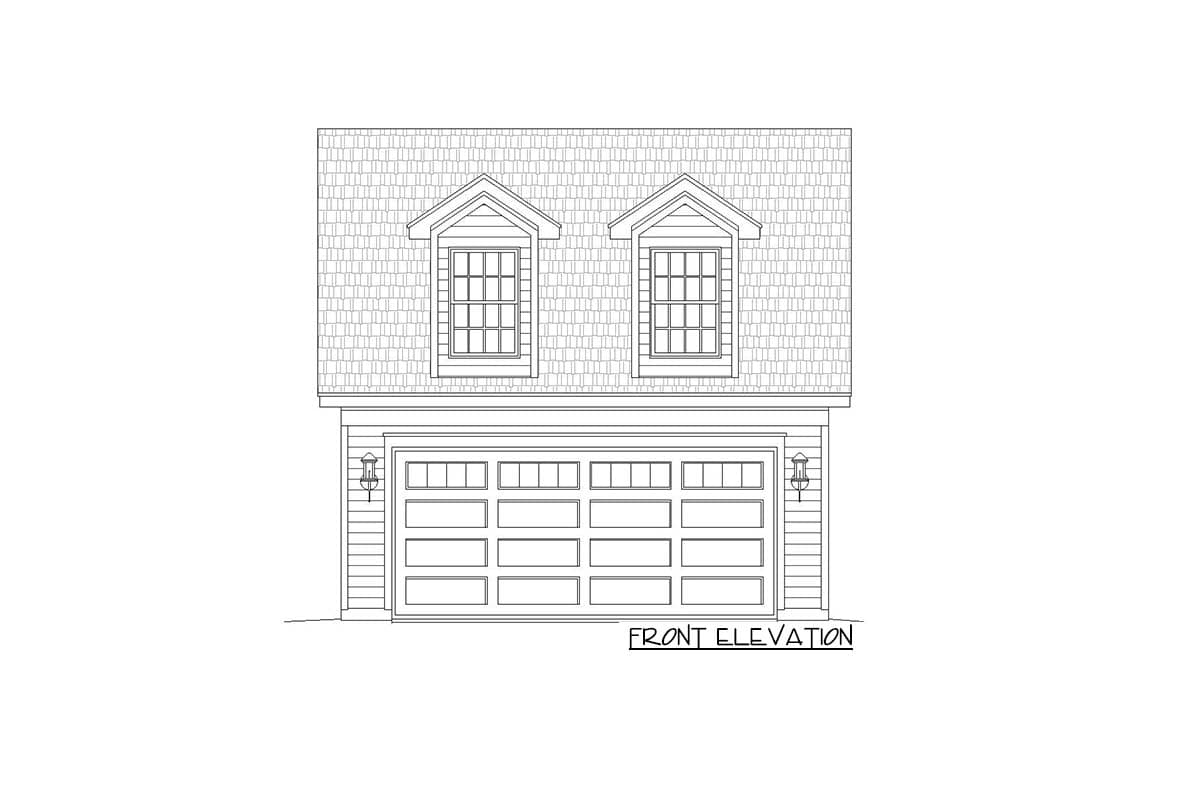

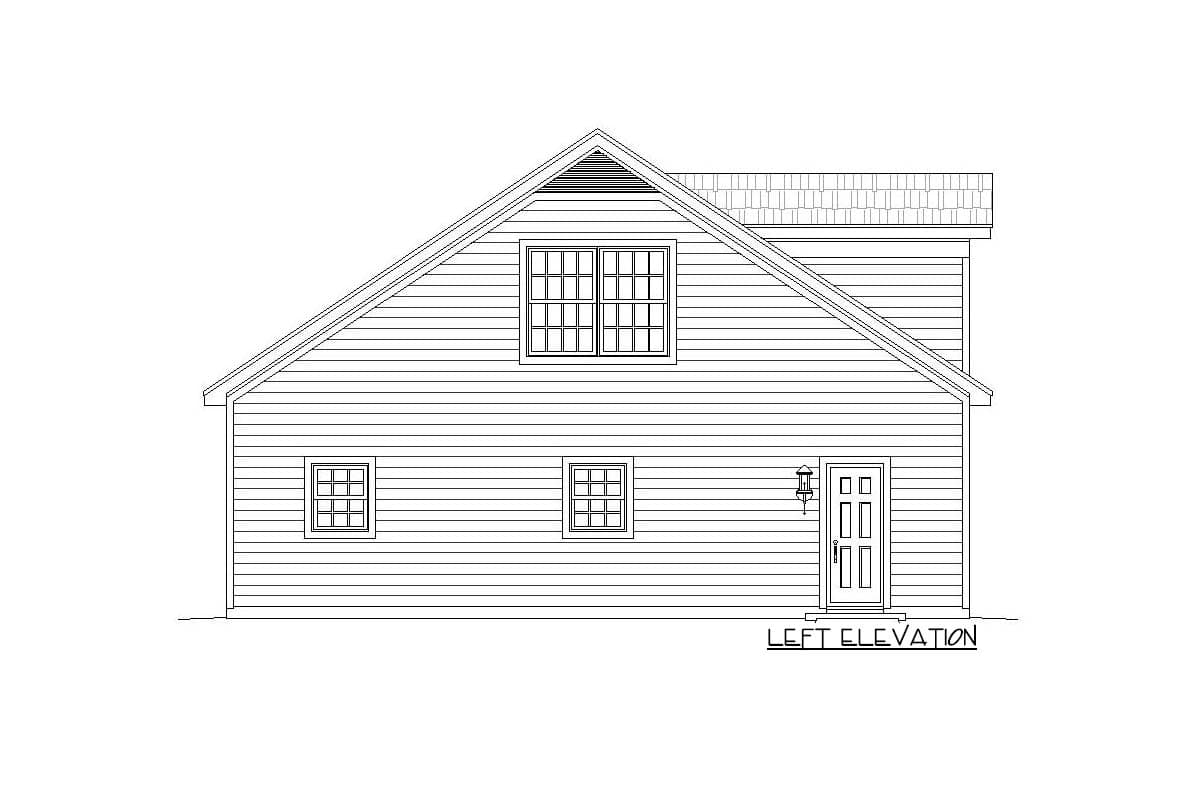

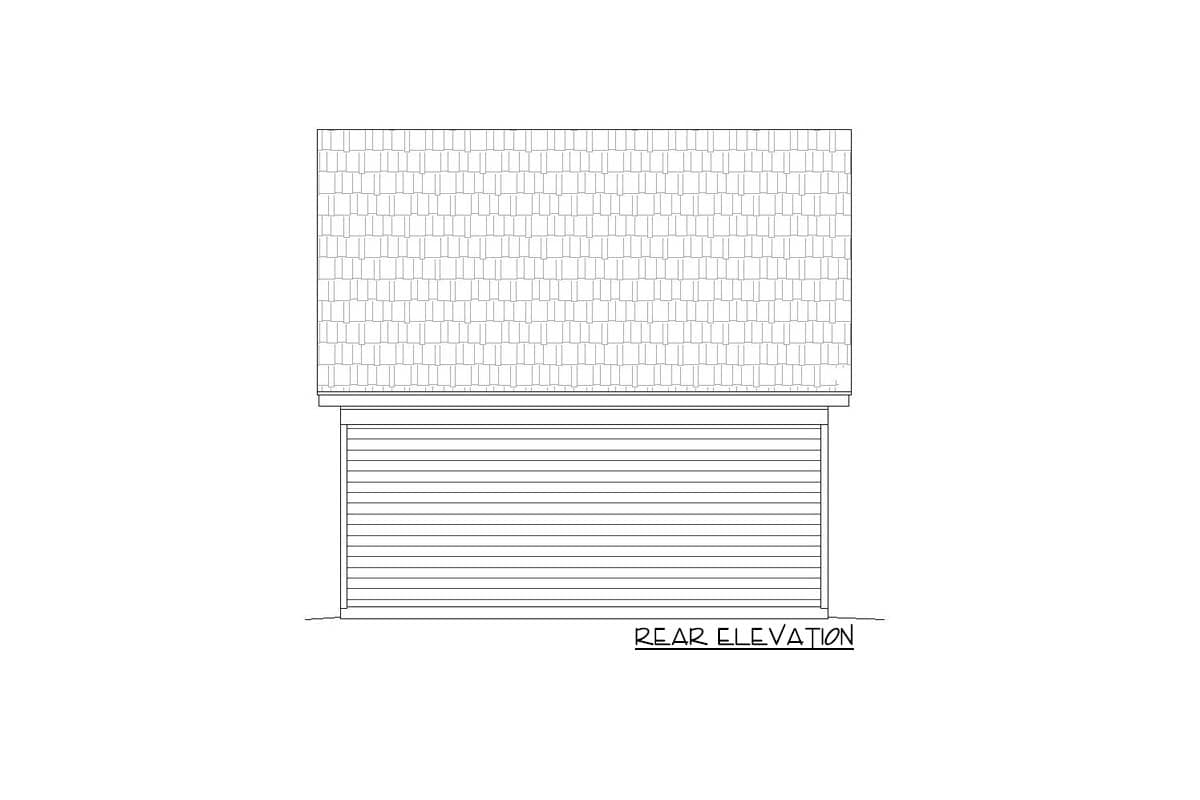

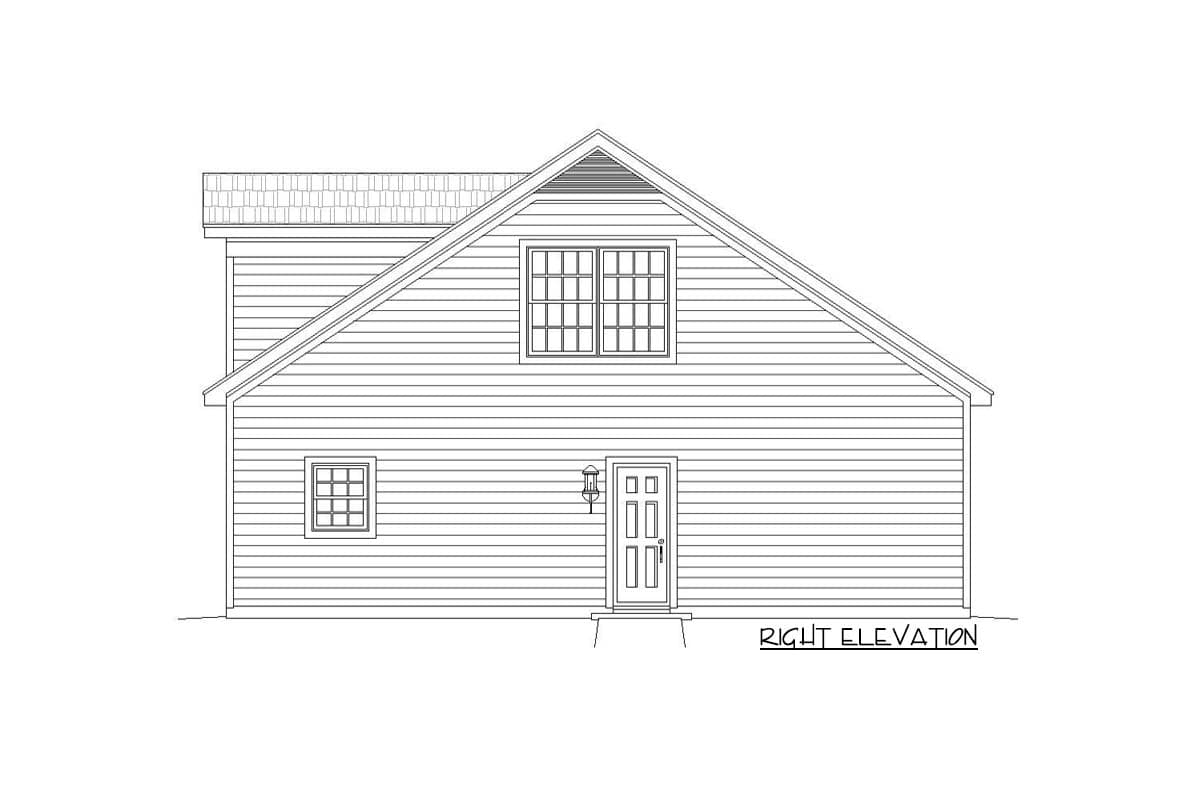

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

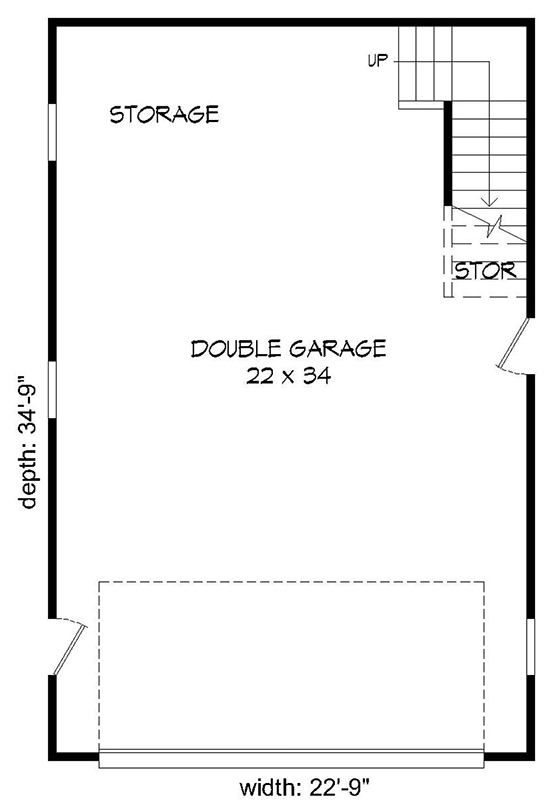

Detached Garage with Loft Above - 68501VR floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Detached Garage with Loft Above - 68501VR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 0 sq. ft.

Storage: 571 sq. ft.

Beds/Baths

Bedrooms: 0

Foundation Type

Standard Foundations: Slab

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 22' 9"
Depth: 34' 9"
Max ridge height: 22' 4"

Garage

Type: Detached
Area: 791 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 8 on 12

Framing Type: Stick
