Plan 42550DB Detached Garage with Open Living Area Above

348 0 1 2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Detached Garage with Open Living Area Above

Plan 42550DB

  • 348

    Heated s.f.

  • 0

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

  • Build this garage plan and you'll get parking for 3 cars on the main level.
  • Stairs, accessible from the parking area as well as outside, take you to an open living area with a kitchen and full bath.
  • Use this as a guest apartment, an office, a game room or a man cave.

This house plan set has the following details:

  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

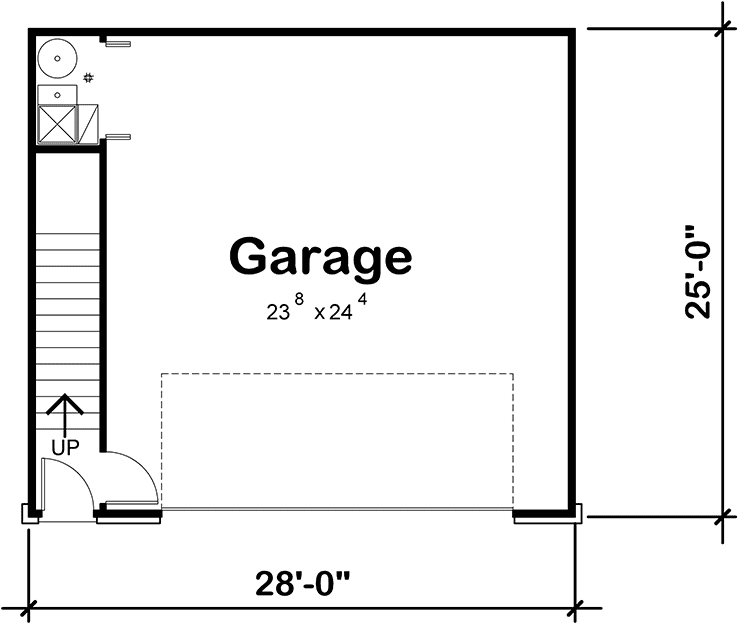

Detached Garage with Open Living Area Above - 42550DB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

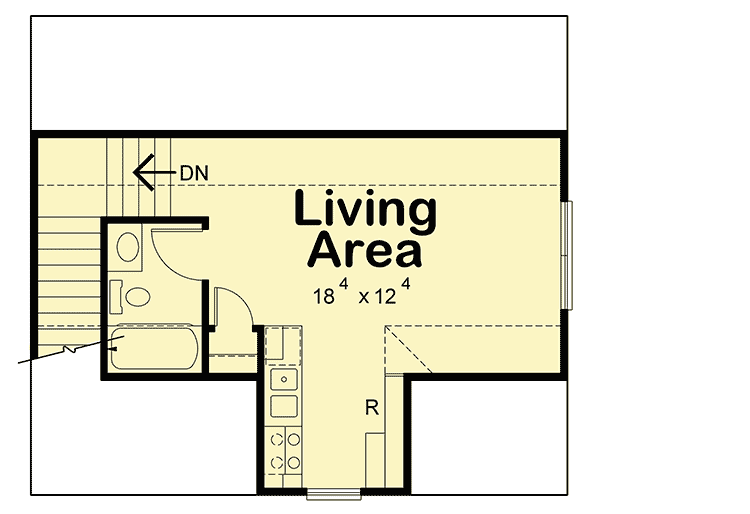

Detached Garage with Open Living Area Above - 42550DB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 348 sq. ft.
  • 2nd Floor: 348 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 25' 0"
  • Max ridge height: 23' 6"

Garage

  • Type: Detached
  • Area: 700 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12

Architectural Style

Special features

Plan Collections

Detached Garage with Open Living Area Above

  • 348

    Heated s.f.

  • 0

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set - Digital $340
  • PDF - Single-Build $575
  • CAD + PDF - Single-Build $940
  • PDF - Unlimited Build $1,075
  • CAD - Unlimited Build $1,440
  • View all purchase option online

About This Plan

  • Build this garage plan and you'll get parking for 3 cars on the main level.
  • Stairs, accessible from the parking area as well as outside, take you to an open living area with a kitchen and full bath.
  • Use this as a guest apartment, an office, a game room or a man cave.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 348 sq. ft.
  • 2nd Floor: 348 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 28' 0"
  • Depth: 25' 0"
  • Max ridge height: 23' 6"

Garage

  • Type: Detached
  • Area: 700 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
Plan 42550DB
View this and more for this plan by visiting www.architechtecturaldesigns.com/42550DB
|
