Plan 680229VR
Detached Garage with Oversized Bay and a Kitchenette and an Office - 496 Sq Ft
Heated S.F.
496
Baths
1
Stories
2
Cars
1
What's Included
Plan Details
  • This garage apartment plan has a large 12' by 14' overhead door that gives you room for a boat or truck. Step in off the 4' by 4' stoop and you'll discover there's a whole lot more going on with this garage plan: there is a workshop, kitchenette and a full bath as well.
  • Stairs go to a vaulted great room and an office.
  • The ceiling goes from 7' to 11'3" on the second floor.
  • There is 856 square feet of shop and garage space and 496 square feet of heated space (92 square feet in the bathroom and 404 square feet upstairs).
  • Related Plan: Get an alternate version with garage apartment plan 680230VR (499 sq. ft.), 680113VR (680 sq. ft.) and 680170VR (584 sq. ft.).
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

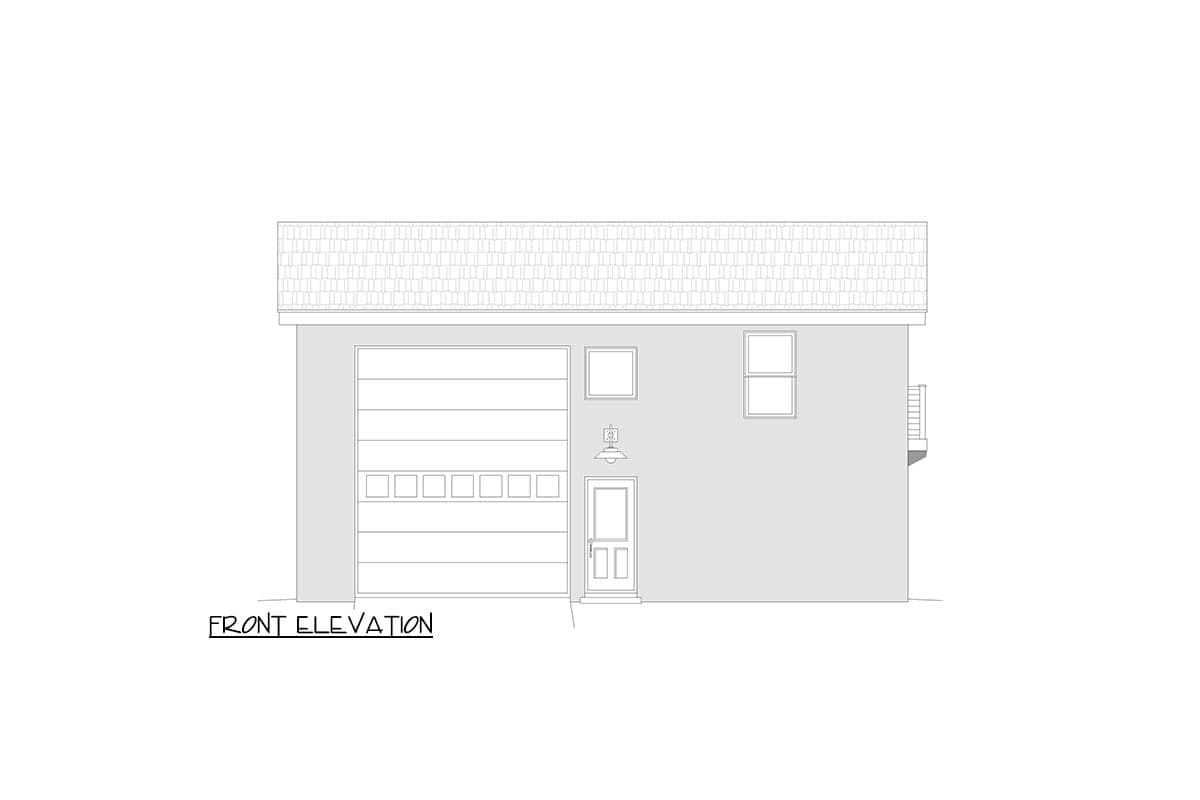

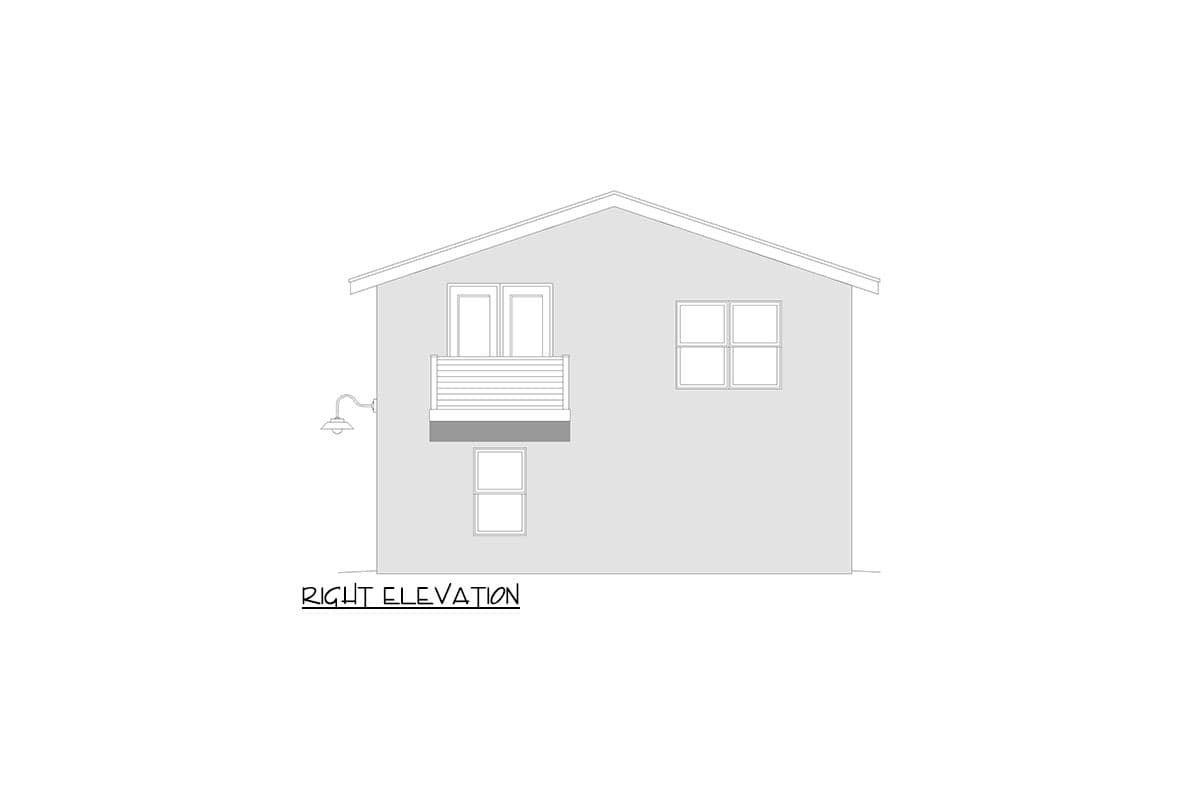

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Detached Garage with Oversized Bay and a Kitchenette and an Office - 496 Sq Ft

  • 496

    Heated s.f.

  • Beds

  • 1

    Baths

  • 2

    Floors

  • 1

    Car garage

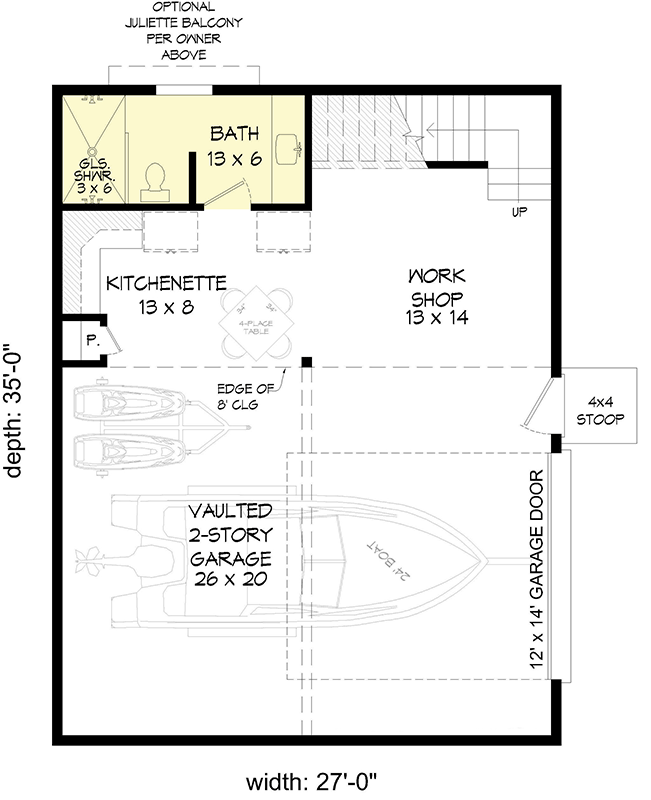

Floor Plan

  • Main Level

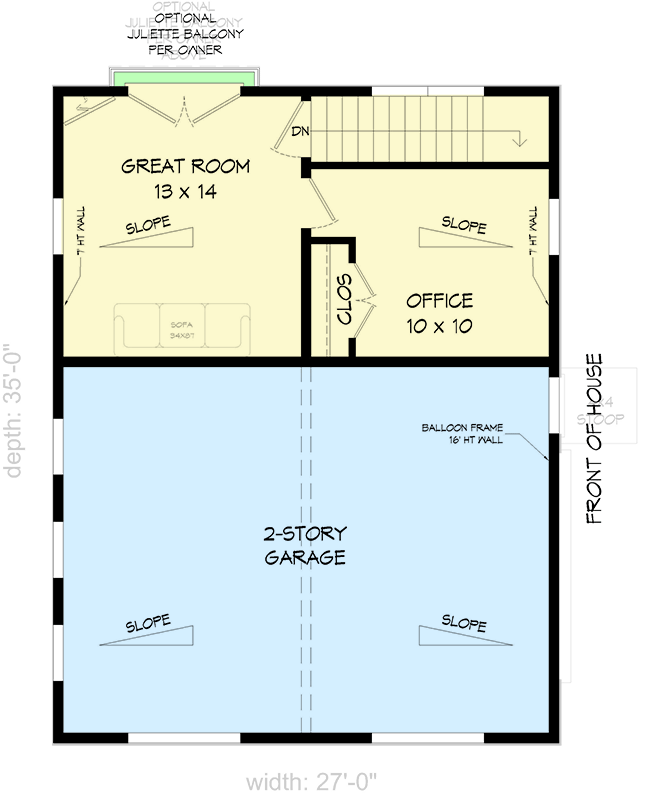

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 496 sq. ft.
  • 1st Floor: 92 sq. ft.
  • 2nd Floor: 404 sq. ft.

Dimensions

  • Width: 27' 0"
  • Depth: 35' 0"
  • Max ridge height: 21' 3"

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Garage

  • Type: Detached
  • Area: 853 sq. ft.
  • Count: 1 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 11' 3"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Stick
