Name: Plan 21189DR: Detached Garage with Storage Space Above
SKU: 21189DR
Price: 350.0 USD
Availability: InStock

About this plan What's included

Detached Garage with Storage Space Above

Plan 21189DR

0
Heated s.f.
0
Beds
1-2
Stories
1
Cars

This garage plan has 384 s.f. on the main level and 274 s.f. above for storage.
This garage plan matches house plan 21219DR.

Each plan includes the following:

* 4 Elevations

* Foundation Plan

* Main Floor Plan

* Upper Floor Plans (if applicable)

* Roof Plan

* Truss Diagrams & Building Section

* Construction Details

* Typical Wall Section

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Detached Garage with Storage Space Above - 21189DR floor plan - Main Level

2nd Floor

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

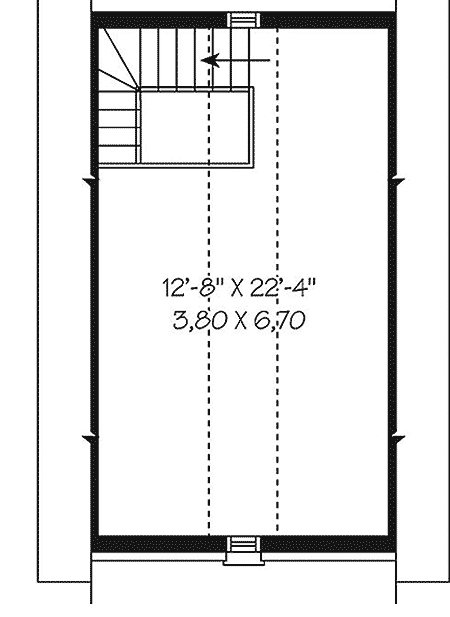

Detached Garage with Storage Space Above - 21189DR floor plan - 2nd Floor

Plan details

Square Footage Breakdown

Total Heated Area: 0 sq. ft.

Bonus: 320 sq. ft.

Beds/Baths

Bedrooms: 0

Foundation Type

Standard Foundations: Slab

Exterior Walls

Standard Type(s): 2x4

Dimensions

Width: 16' 0"
Depth: 24' 0"
Max ridge height: 18' 0"

Garage

Type: Detached
Area: 384 sq. ft.
Count: 1 Cars
Entry Location: Front

Roof Details

Primary Pitch: 10 on 12

Framing Type: Stick

Special features

Plan Collections

Scroll


Detached Garage with Storage Space Above 0 Heated s.f. 0 Beds 0 Baths 1-2 Floors 1 Car garage Buy This Plan Reproducible Set $350 PDF - Single-Build $350 CAD - Single-Build $650 View all purchase option online About This Plan This garage plan has 384 s.f. on the main level and 274 s.f. above for storage. This garage plan matches house plan 21219DR. Floor Plans Main Level 2nd Floor Plan Details Square Footage Breakdown Total Heated Area: 0 sq. ft. Bonus: 320 sq. ft. Beds/Baths Bedrooms: 0 Foundation Type Standard Foundations: Slab Exterior Walls Standard Type(s): 2x4 Dimensions Width: 16' 0" Depth: 24' 0" Max ridge height: 18' 0" Garage Type: Detached Area: 384 sq. ft. Count: 1 Cars Entry Location: Front Roof Primary Pitch: 10 on 12 Framing Type: Stick
