Detailed Stone Accents

Plan 3997ST

  • 4,328

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Detailed stone accents provide warmth and character to the exterior of this one level home plan. An arched entry introduces you to the interior where elegant window styles and dramatic ceiling treatments create an impressive showplace.
  • Overall ceiling heights are 9' with the foyer and library ceiling at 11' and the master bedroom 11' at the center.
  • The beautiful great room is complimented by a window wall and has a barrel ceiling framed at 11' sloping to 13'5'.
  • Accented by wood rail, an extra wide stairway leads to the lavish lower level.
  • Two additional bedrooms with a tandem bath, a media room, billiard room and exercise room are created in the finished basement.

  • General notes and specifications

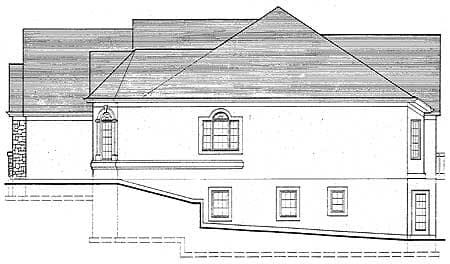

  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Detailed Stone Accents - 3997ST floor plan - Basement

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Detailed Stone Accents - 3997ST floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,328 sq. ft.
  • Lower Level: 1,746 sq. ft.
  • 1st Floor: 2,582 sq. ft.
  • Basement Unfinished: 836 sq. ft.
  • Deck: 406 sq. ft.
  • Entry: 62 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 70' 8"
  • Depth: 64' 0"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 765 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Detailed Stone Accents

  • 4,328

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $795
  • PDF - Single-Build $995
  • 5 Sets + PDF $1,050
  • PDF - Unlimited Build $1,305
  • View all purchase option online
