Plan 6999AM Distinctive Home Plan with European Styling

Distinctive Home Plan with European Styling

Plan 6999AM

  • 2,605

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

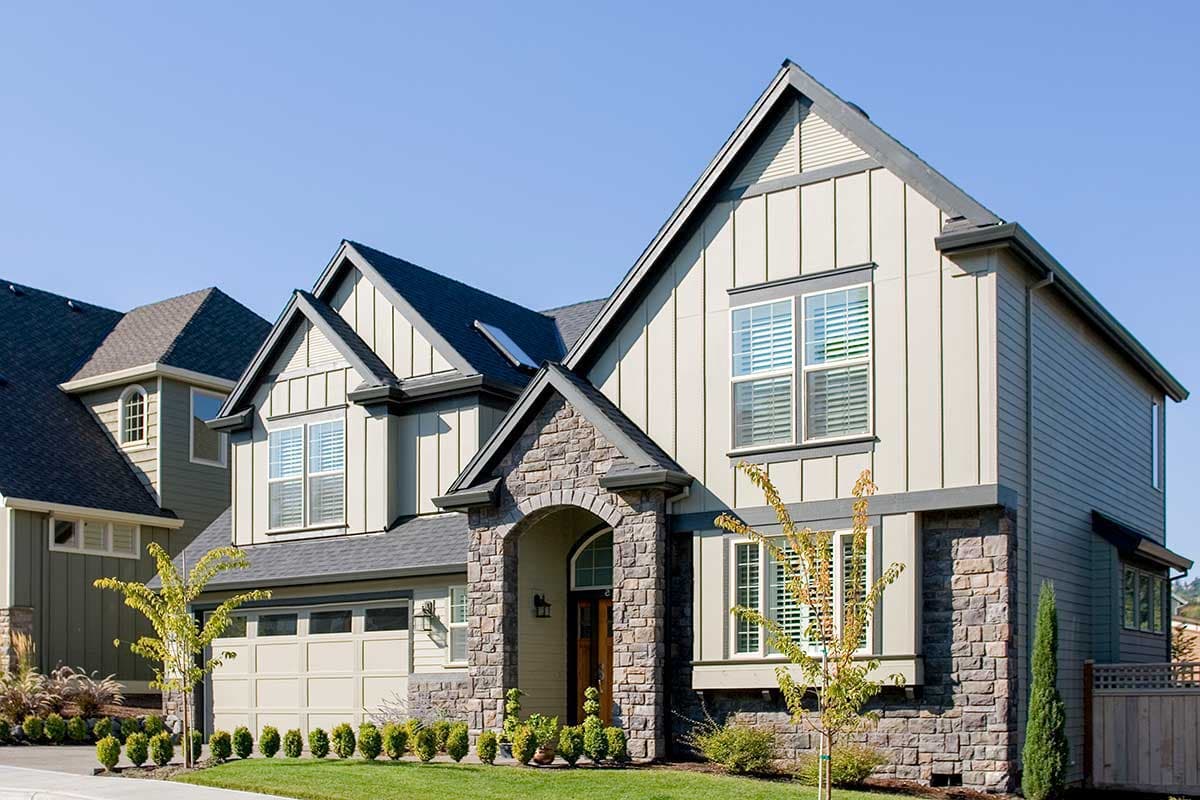

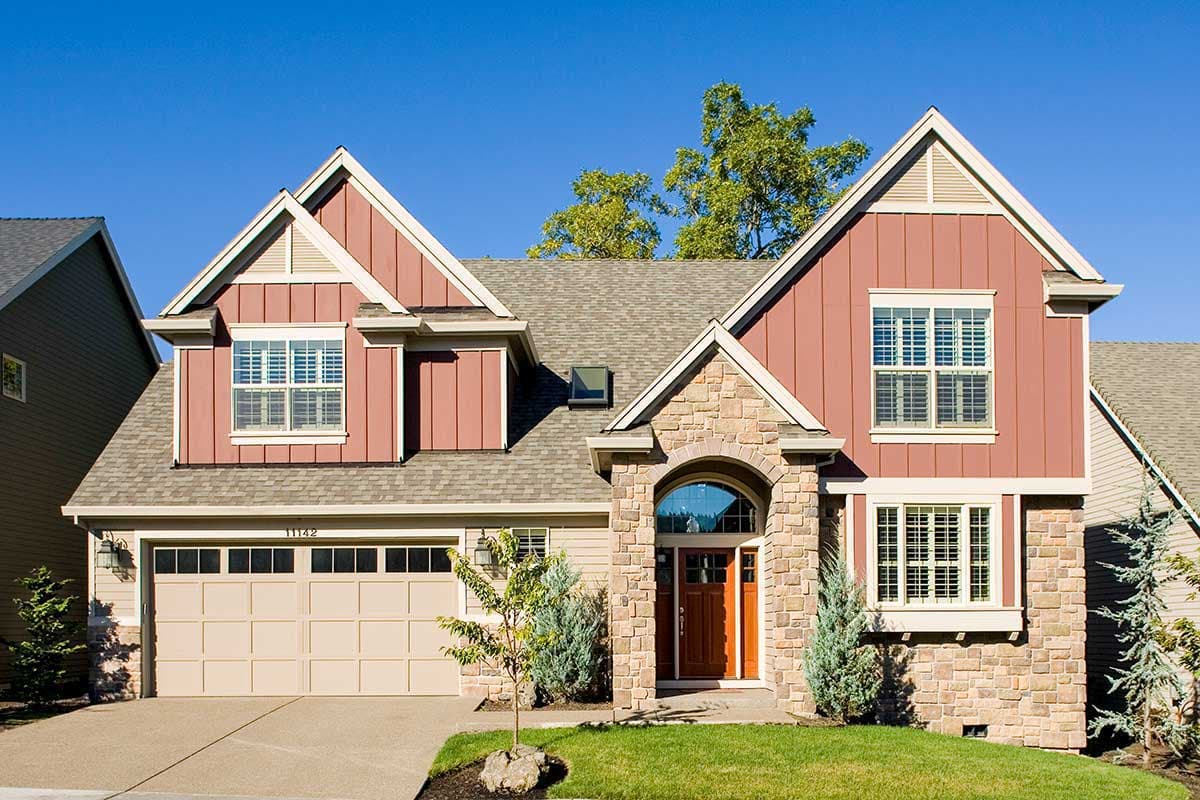

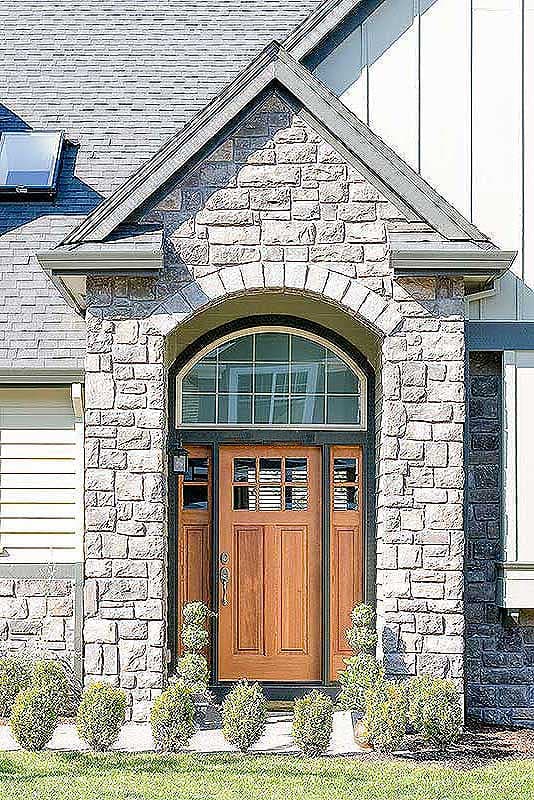

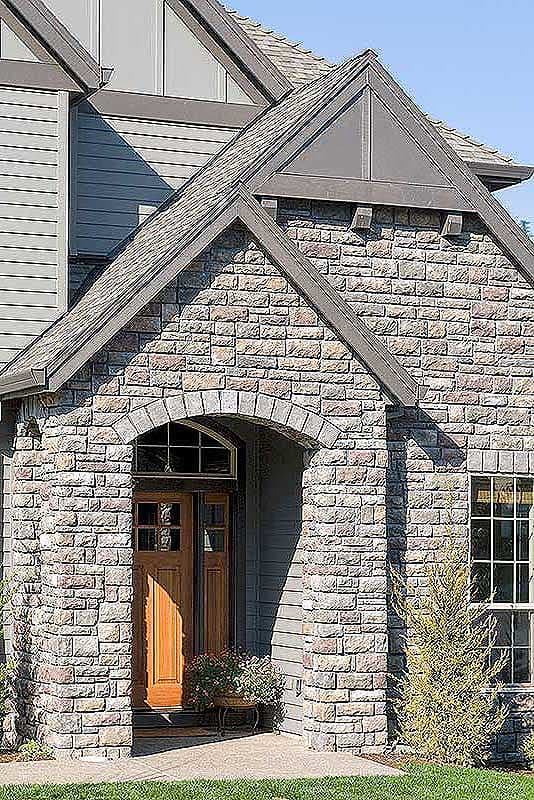

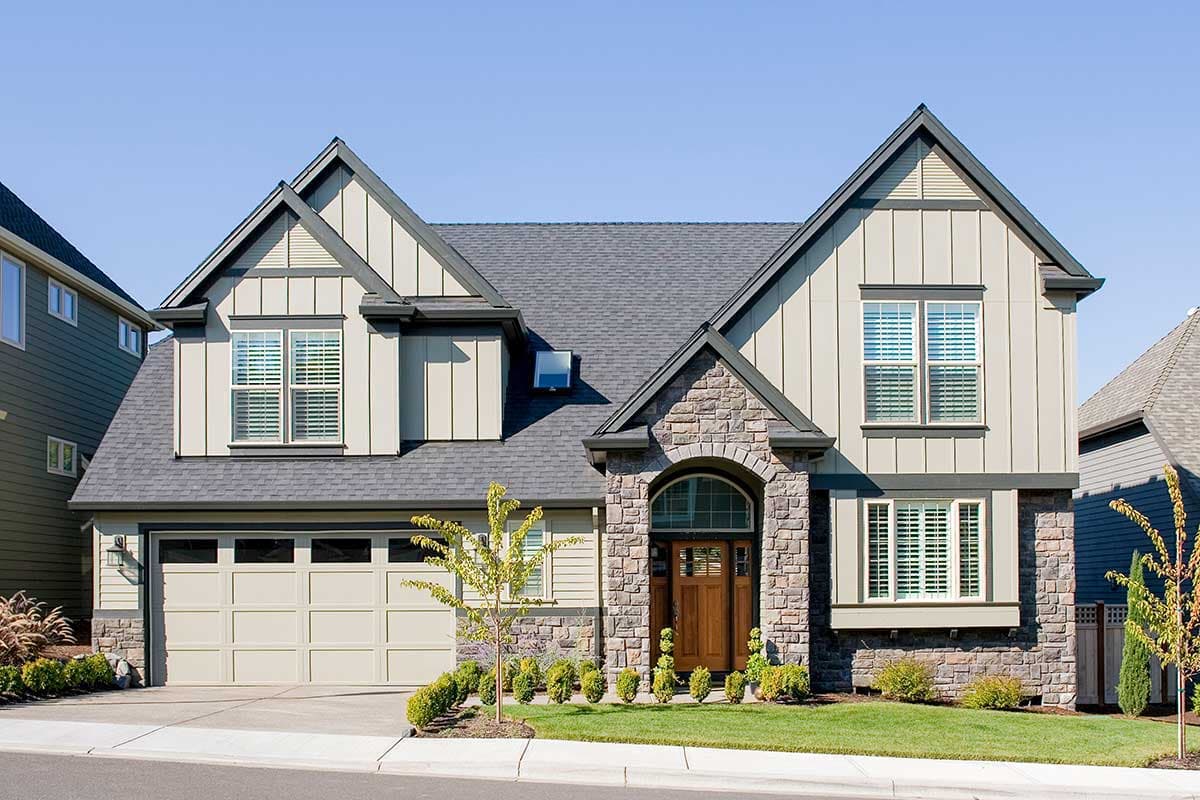

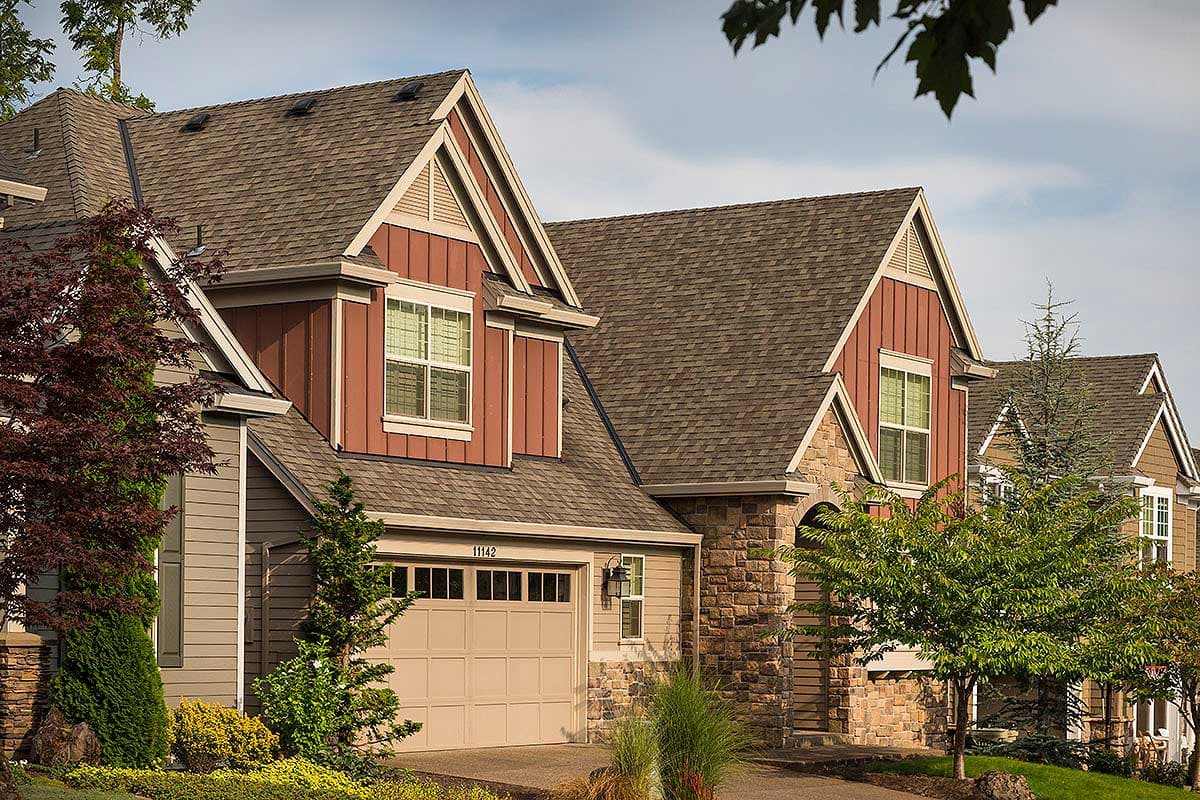

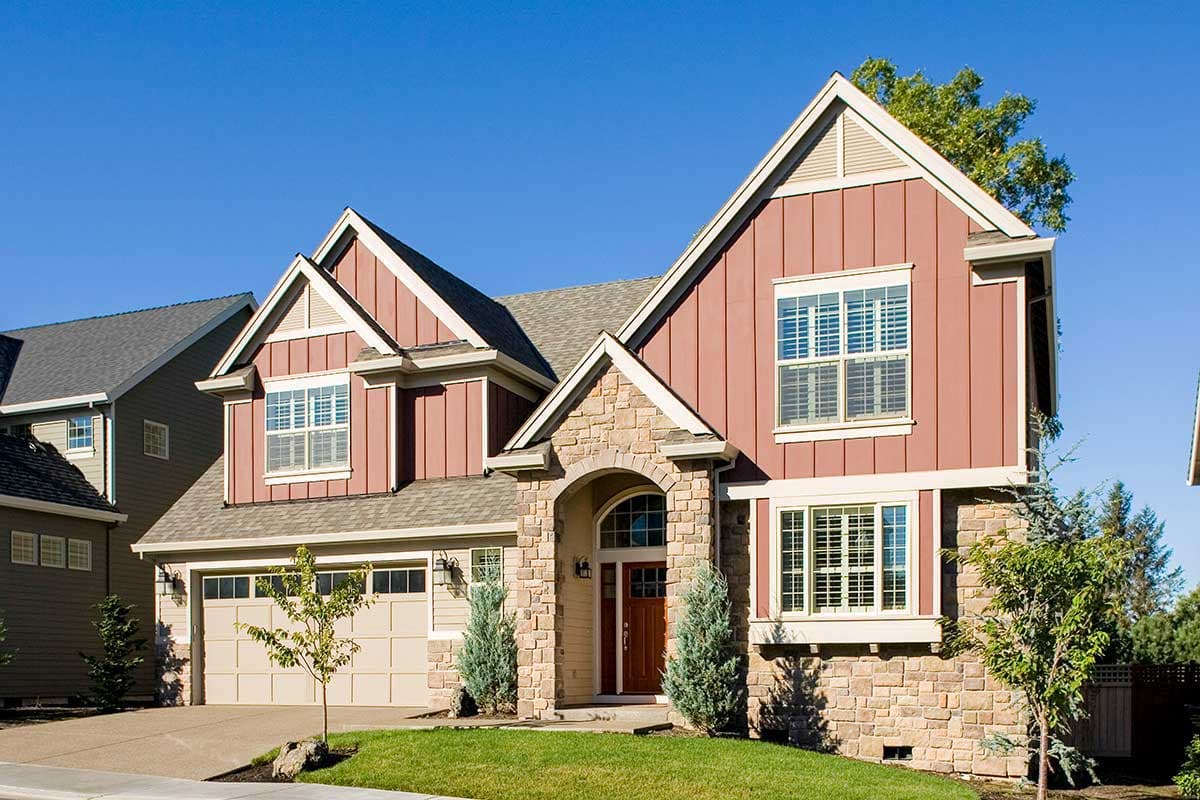

  • A touch of European styling dresses the fa'ade of this comfortable two-story home plan. Stone detailing at the main level and around the entryway complements board-and-batten siding above.
  • A side lighted entry gains admittance to a central foyer with a half-bath on the left. Beyond this foyer lies open living space with a great room, dining room and kitchen. Decorative columns define the areas and help to visually separate them while still providing a sense of space. The great room rises a full two stories and is graced by a hearth and media center. The dining room has wall of windows on one side and sliding glass doors to the rear yard on the other. A tucked-away nook at the back of the plan serves well as a home office or den.
  • On the upper level is a vaulted master suite with vaulted bath. A compartmented toilet, walk-in closet, and spa tub are just a few of the coveted amenities here. Bedroom 3 is also vaulted and shares a full bath with Bedroom 2. An optional games room opens through double doors. Shop space in the two-car garage will appeal to the family handyman.
  • Related Plan: Get an alternate exterior with house plan 69000AM.

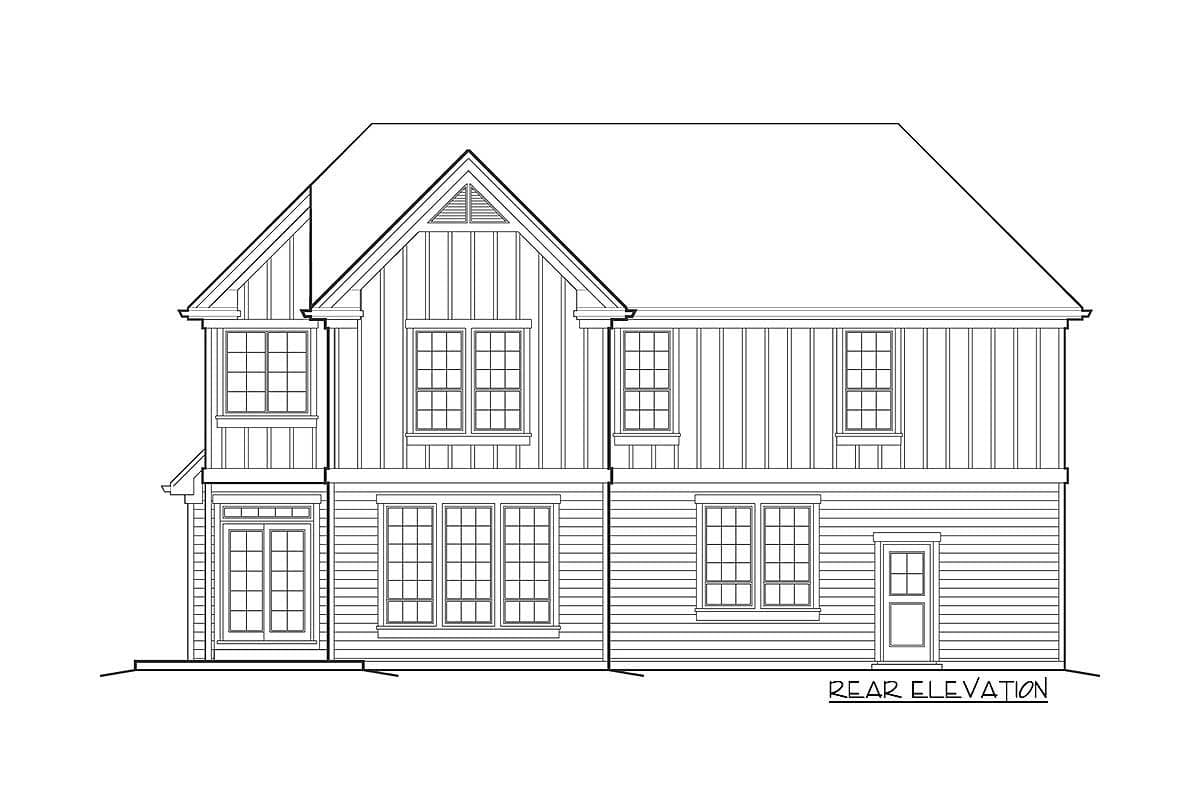

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

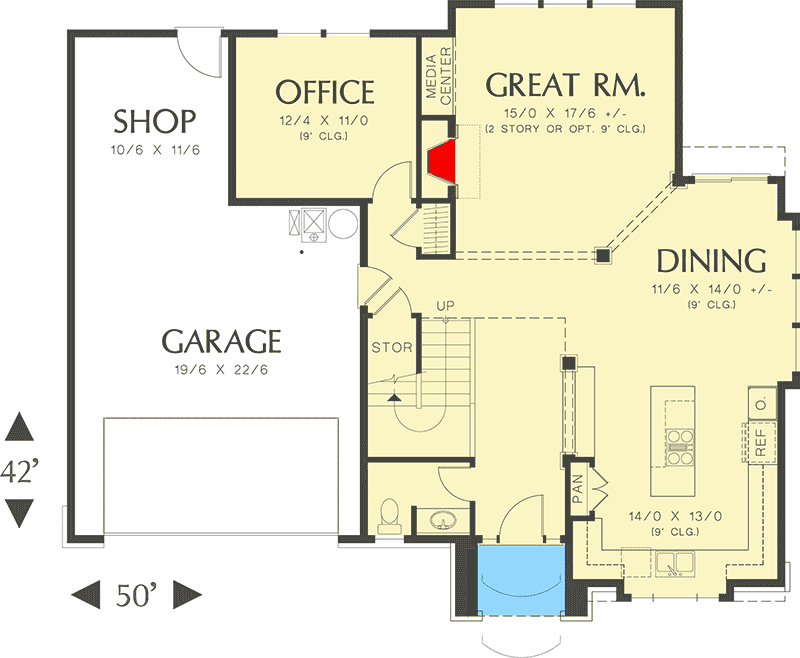

Distinctive Home Plan with European Styling - 6999AM floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

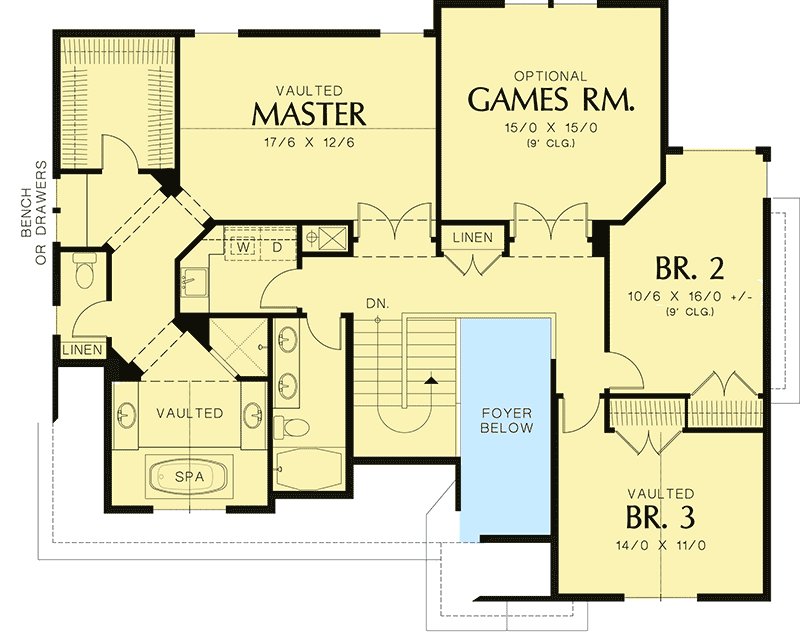

Distinctive Home Plan with European Styling - 6999AM floor plan - 2nd Floor

Basement Stairs

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

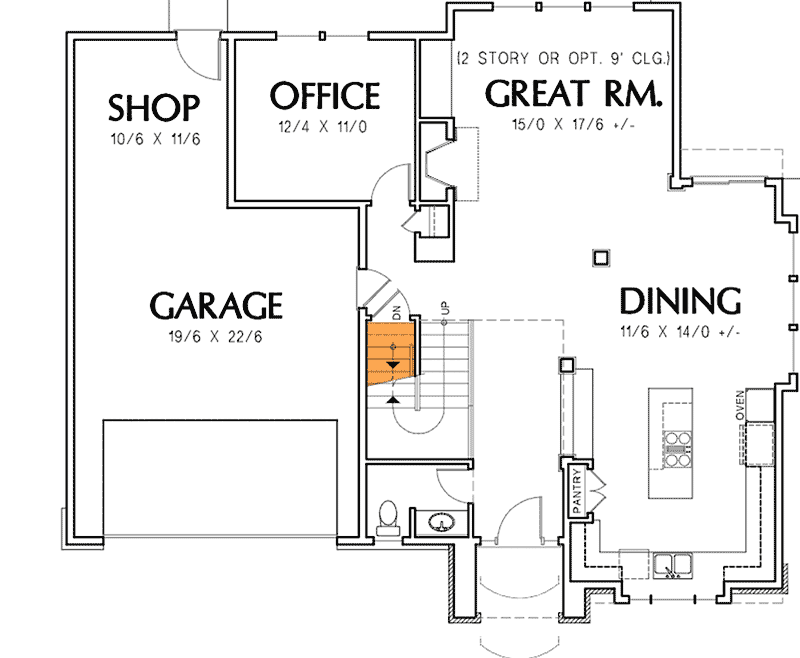

Distinctive Home Plan with European Styling - 6999AM floor plan - Basement Stairs
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

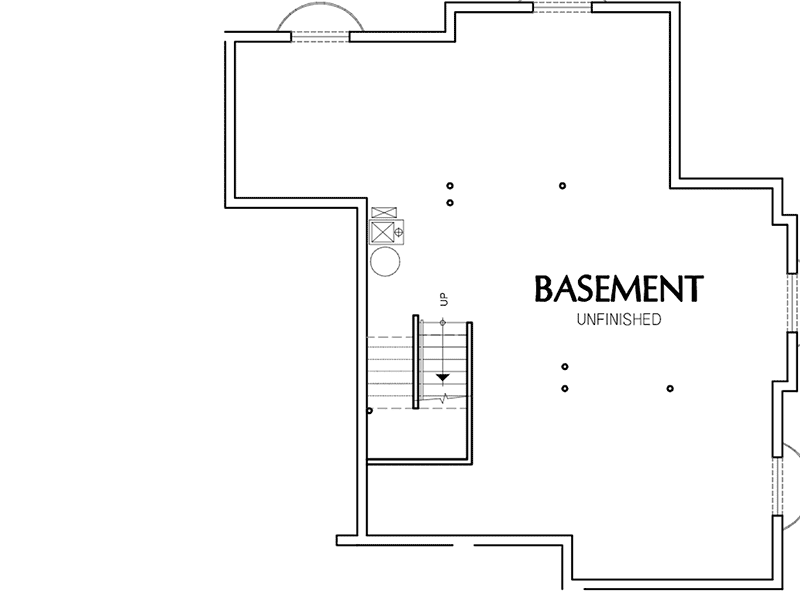

Distinctive Home Plan with European Styling - 6999AM floor plan - Basement

Plan details

Distinctive Home Plan with European Styling

  • 2,605

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,615
  • 5 Sets $1,815
  • 5 Sets + PDF $1,865
  • CAD + PDF - Unlimited Build $3,230
  • View all purchase option online

About This Plan

  • A touch of European styling dresses the fa'ade of this comfortable two-story home plan. Stone detailing at the main level and around the entryway complements board-and-batten siding above.
  • A side lighted entry gains admittance to a central foyer with a half-bath on the left. Beyond this foyer lies open living space with a great room, dining room and kitchen. Decorative columns define the areas and help to visually separate them while still providing a sense of space. The great room rises a full two stories and is graced by a hearth and media center. The dining room has wall of windows on one side and sliding glass doors to the rear yard on the other. A tucked-away nook at the back of the plan serves well as a home office or den.
  • On the upper level is a vaulted master suite with vaulted bath. A compartmented toilet, walk-in closet, and spa tub are just a few of the coveted amenities here. Bedroom 3 is also vaulted and shares a full bath with Bedroom 2. An optional games room opens through double doors. Shop space in the two-car garage will appeal to the family handyman.
  • Related Plan: Get an alternate exterior with house plan 69000AM.

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement Stairs

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,605 sq. ft.
  • 1st Floor: 1,142 sq. ft.
  • 2nd Floor: 1,463 sq. ft.
  • Workshop: 120 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 50' 0"
  • Depth: 42' 0"
  • Max ridge height: 29' 6"

Garage

  • Type: Attached
  • Area: 592 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Framing Type: Truss
