Distinctive Ranch House Plan

Plan 67734MG

  • 1,238

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Clipped roof lines and a big bay window add distinction to this one level Ranch house plan.
  • Modest in size, the home works well for those who want to downsize or a couple just starting out.
  • The living room and dining room are joined into one large space which is ideal when entertaining.
  • The kitchen and informal breakfast nook form another large room, with sliding glass doors to take you outside.
  • All the bedrooms are on the right side of the home with the master suite in back away from street noise.

  • Foundation plan
  • Electrical plan calling out locations,  not wiring
  • Fully dimensioned floor plans

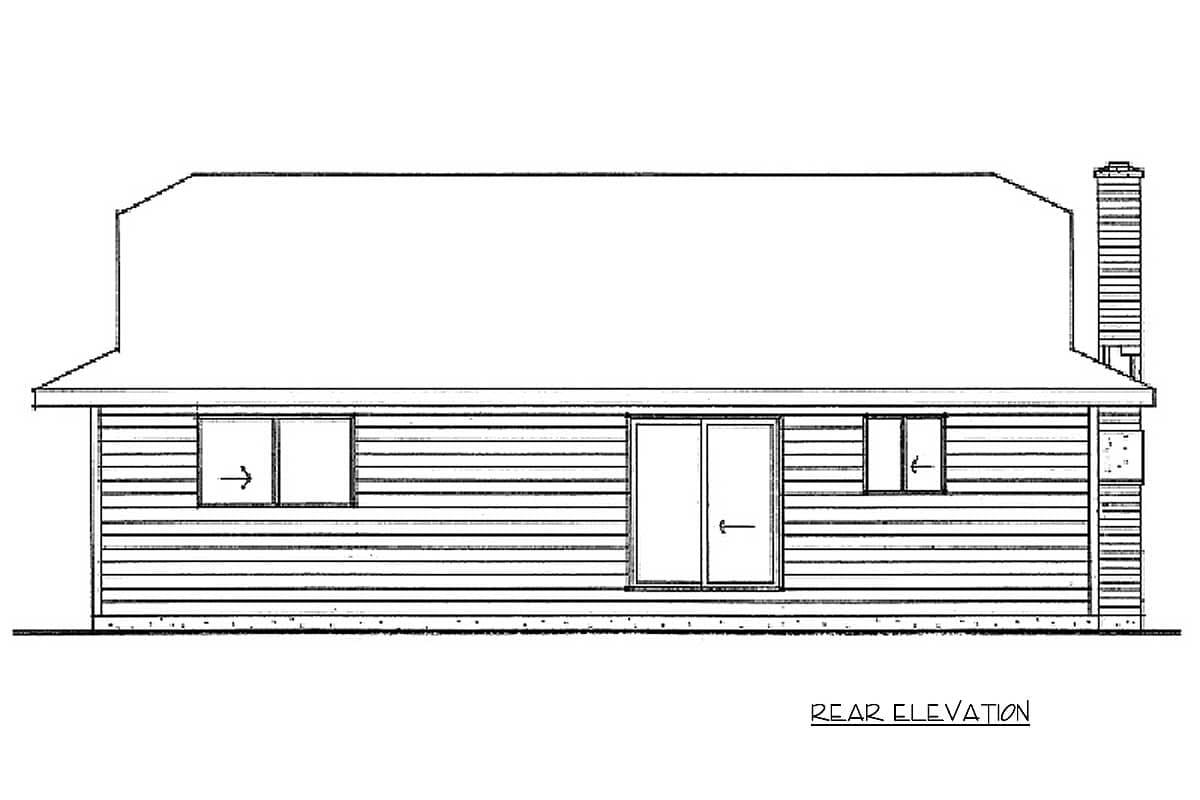

  • 4 elevations
  • Cross section
  • Wall details, etc.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

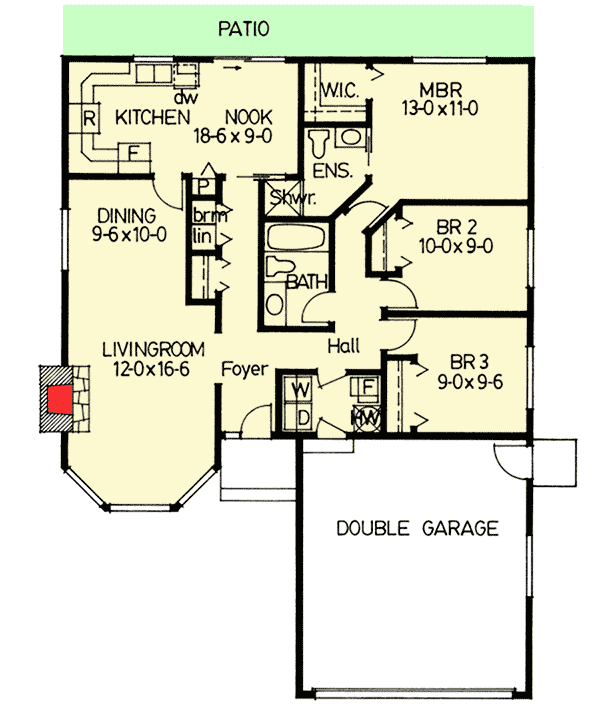

Distinctive Ranch House Plan - 67734MG floor plan - Main Level

Plan details

Architectural Style

Distinctive Ranch House Plan

  • 1,238

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,090
  • 5 Sets $1,215
  • 5 Sets + PDF $1,340
  • CAD + PDF - Single-Build $1,585
  • View all purchase option online

About This Plan

  • Clipped roof lines and a big bay window add distinction to this one level Ranch house plan.
  • Modest in size, the home works well for those who want to downsize or a couple just starting out.
  • The living room and dining room are joined into one large space which is ideal when entertaining.
  • The kitchen and informal breakfast nook form another large room, with sliding glass doors to take you outside.
  • All the bedrooms are on the right side of the home with the master suite in back away from street noise.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,238 sq. ft.
  • 1st Floor: 1,238 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 38' 0"
  • Depth: 52' 0"
  • Max ridge height: 17' 0"

Garage

  • Type: Attached
  • Area: 399 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 6 on 12
