Plan 149005AND
EXCLUSIVE

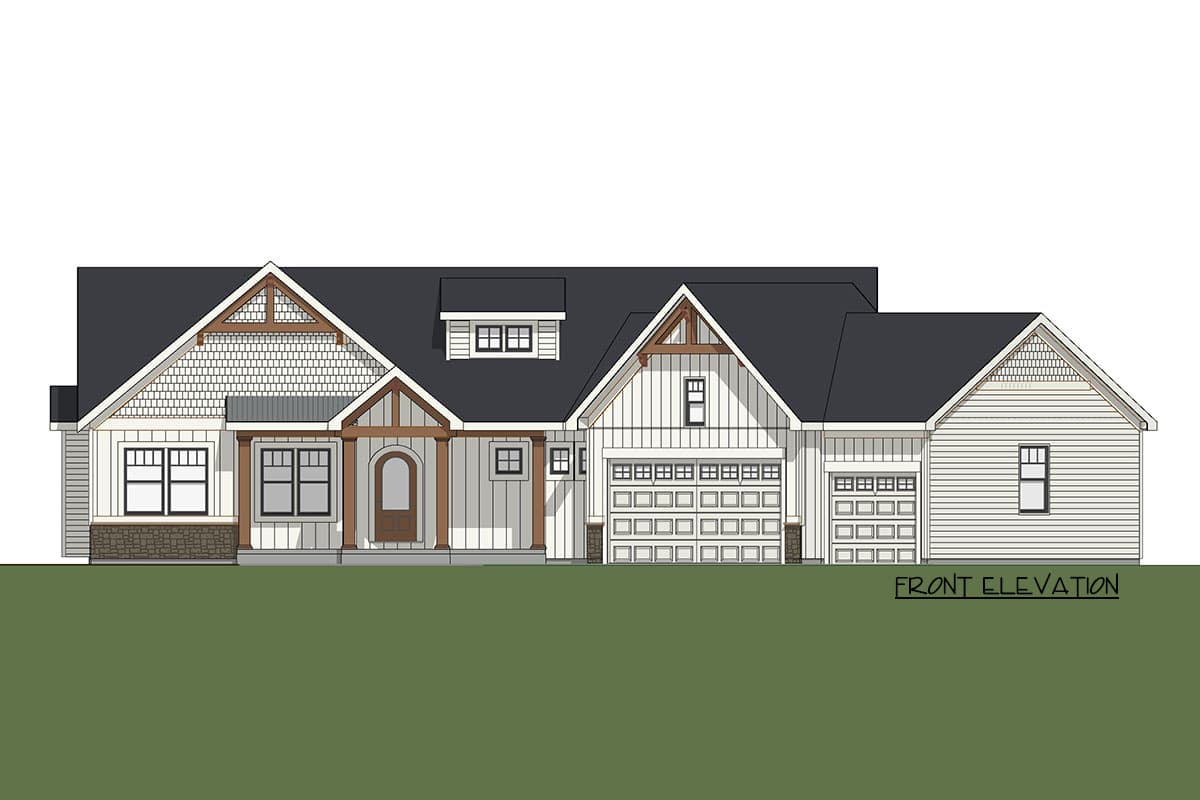

Downsized Exclusive 3-Bed House Plan with Split Bedrooms
Heated S.F.
1,640
Beds
3-5
Baths
2.5 - 3.5
Stories
1
Cars
3
Flyer
Photos
What's Included
Floor Plan
PRINT PLANS
Main Level
Reverse Floor Plan

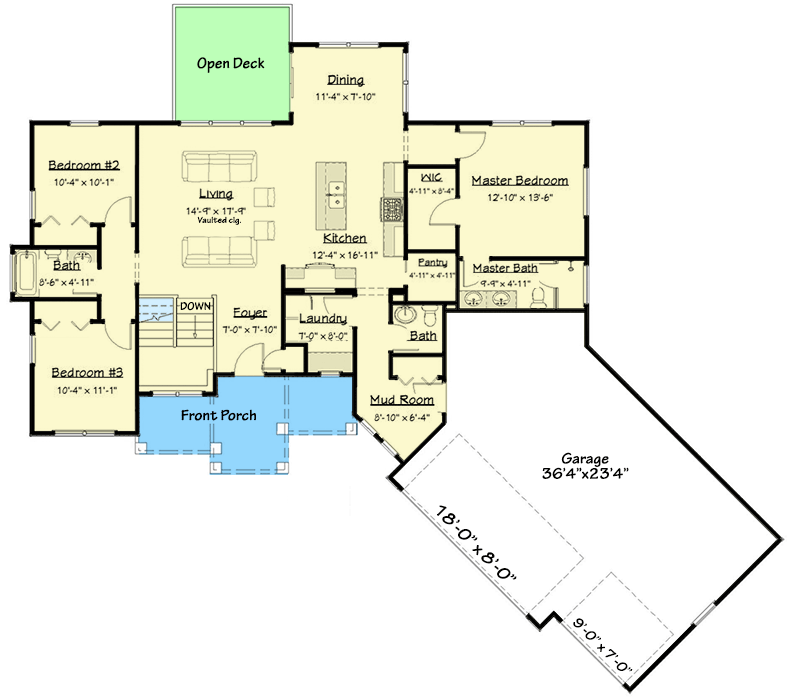

Downsized Exclusive 3-Bed House Plan with Split Bedrooms - 149005AND floor plan - Main Level
Optionally Finished Lower Level
Reverse Floor Plan

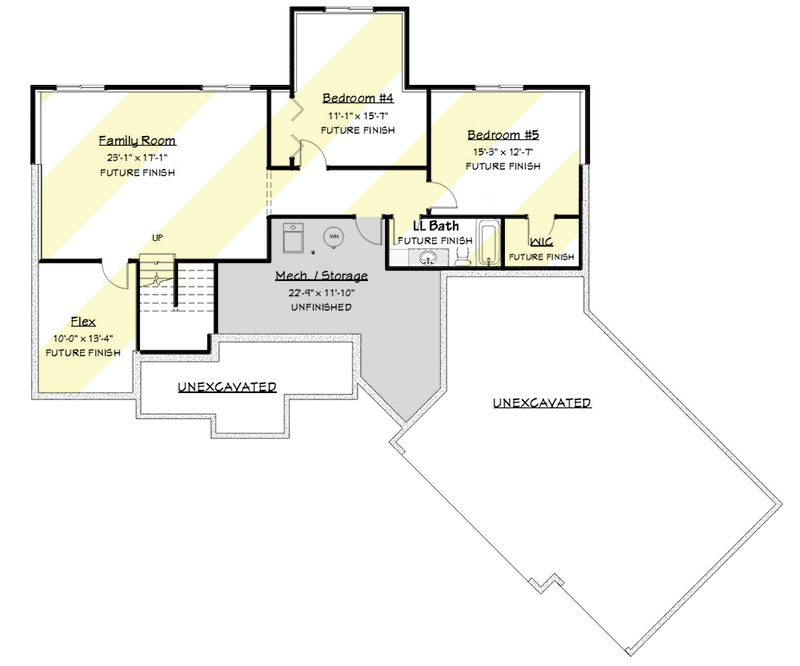

Downsized Exclusive 3-Bed House Plan with Split Bedrooms - 149005AND floor plan - Optionally Finished Lower Level
Plan Details
  • We took Exclusive house plan 149001AND and downsized it to meet a lower budget limit while retaining the features that make the home a classic. The angled, 3-car garage opens into a spacious mudroom with a coat closet and neighboring powder bath.
  • Inside the formal entry, views are provided through the great room, onto the deck, and beyond. The vaulted ceiling above the combined great room and kitchen creates a feeling a spaciousness.
  • The chef's kitchen boasts a large island with seating for casual meals, and a pocket door reveals the walk-in pantry nearby.
  • The master bedroom is situated away from the secondary bedrooms for the utmost privacy and has a 5-fixture bath. Bedrooms 2 and 3 are identical in size and share the hall bath.
  • Gain 1,339 sq. ft. of living space when you finish the lower level, which includes a family room, an adjacent a flex space, two bedrooms, and a full bath.
  • Related Plan: Get a larger version with house plan 149001AND.
What's Included
  • Project Overview
  • General Specifications

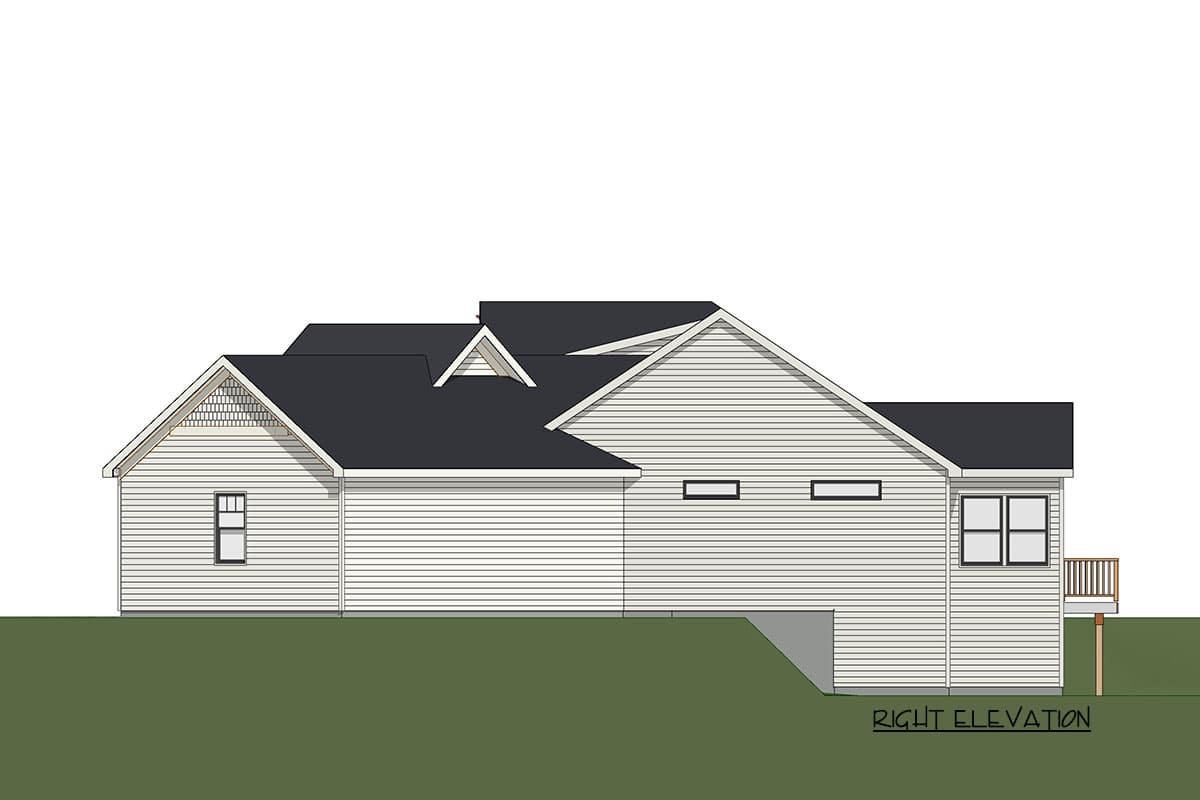

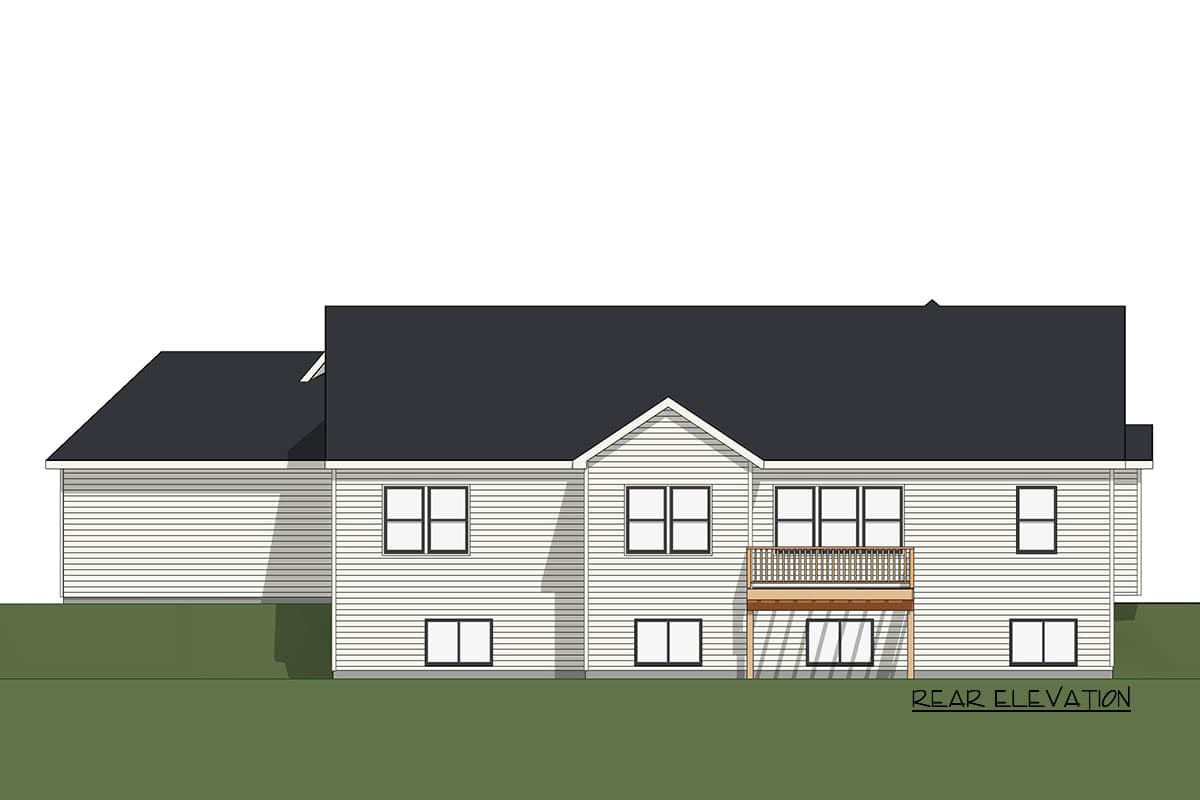

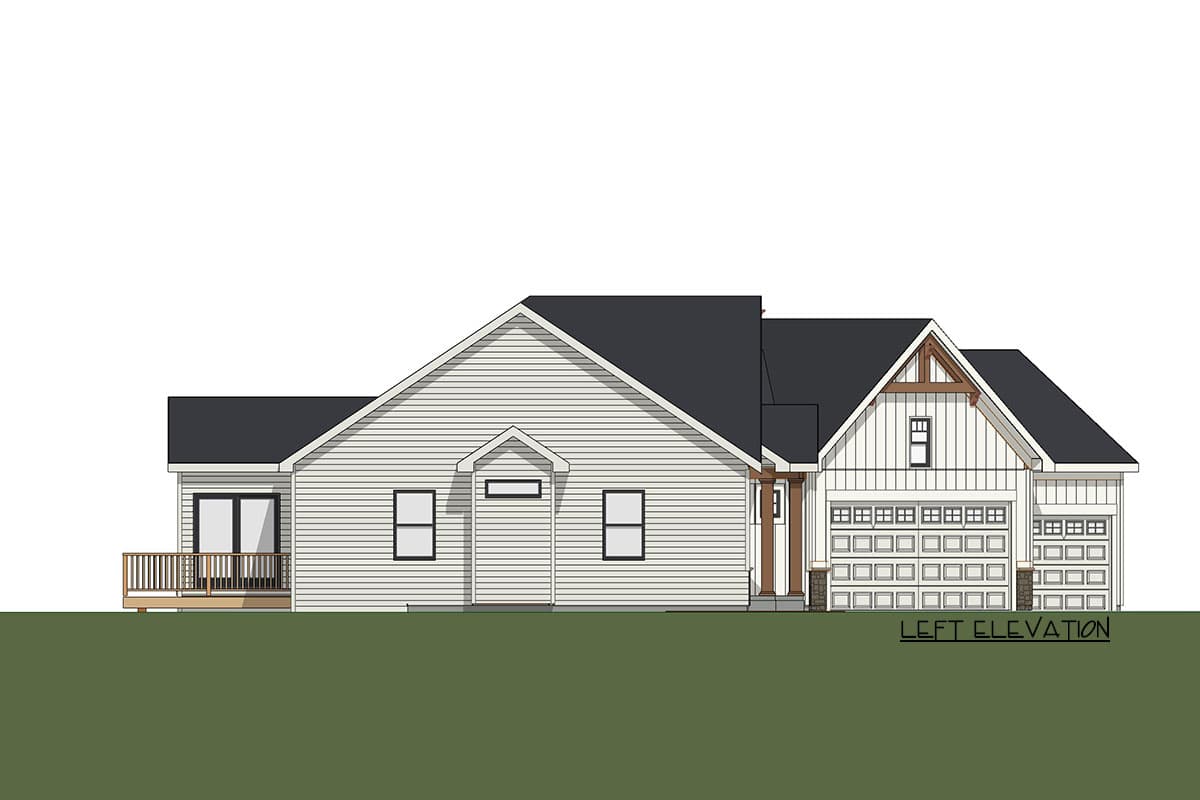

  • Exterior Elevations
  • Exterior Elevations
  • Roof Layout Plan
  • Foundation Plan Details
  • Foundation
  • Main level floor plan
  • Framing Cross Section details
  • Framing Cross section Details
  • Electrical
  • Kitchen and bath cabinet elevations
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
