Plan 6917AM Dramatic Design and a Lovely Facade

3,031 3 2.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Dramatic Design and a Lovely Facade

Plan 6917AM

  • 3,031

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 3

    Cars

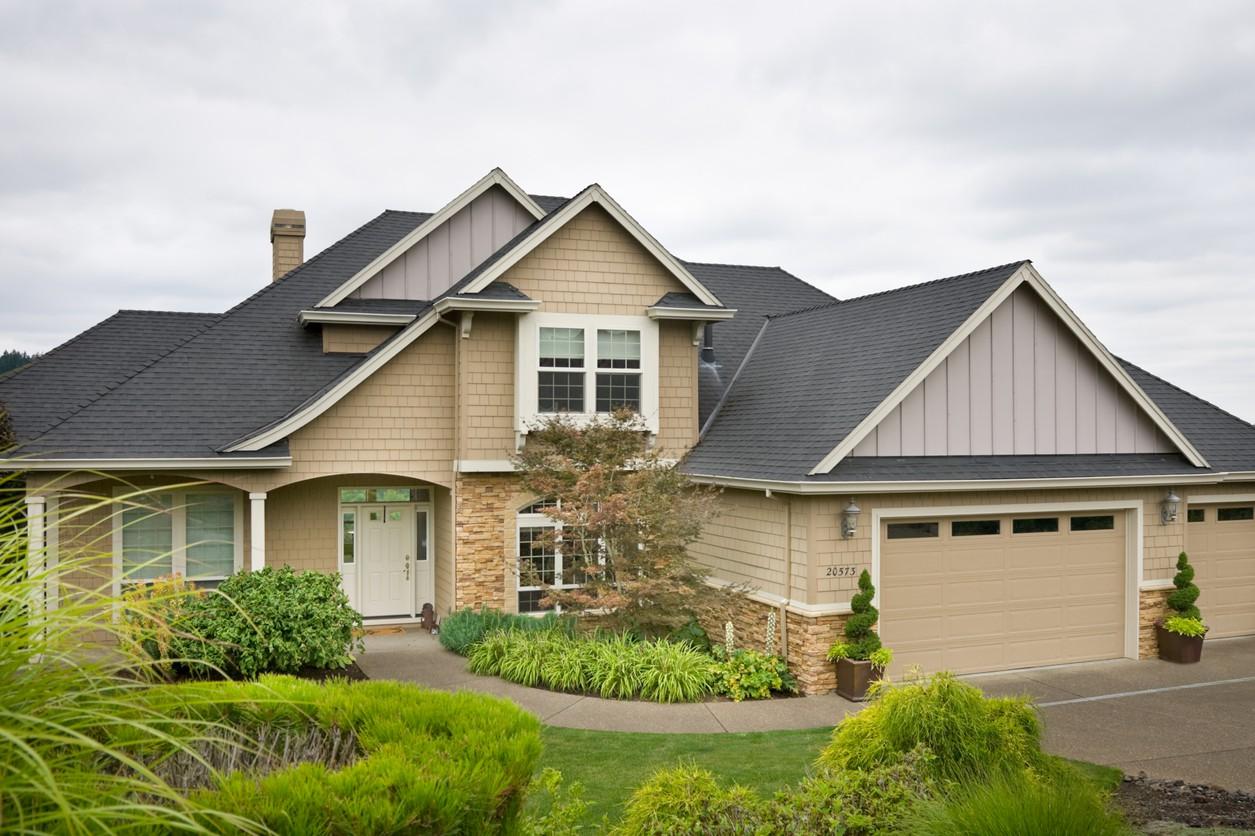

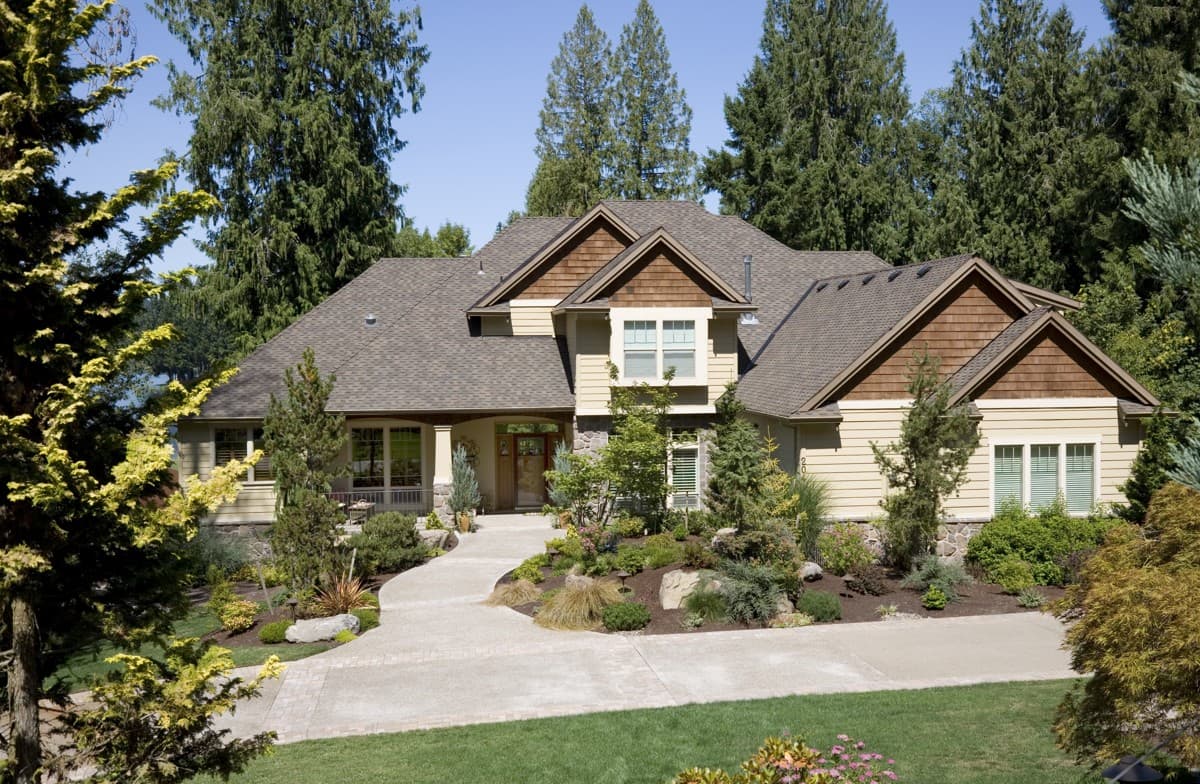

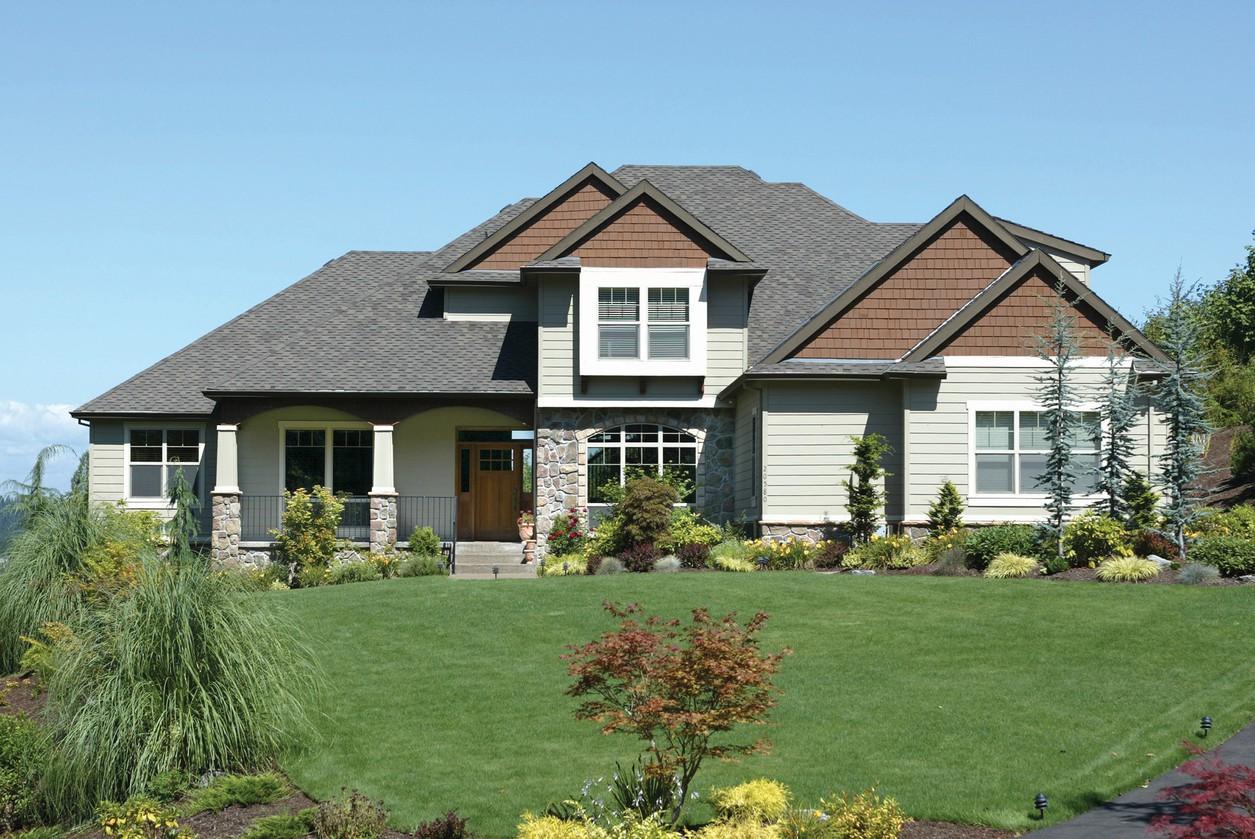

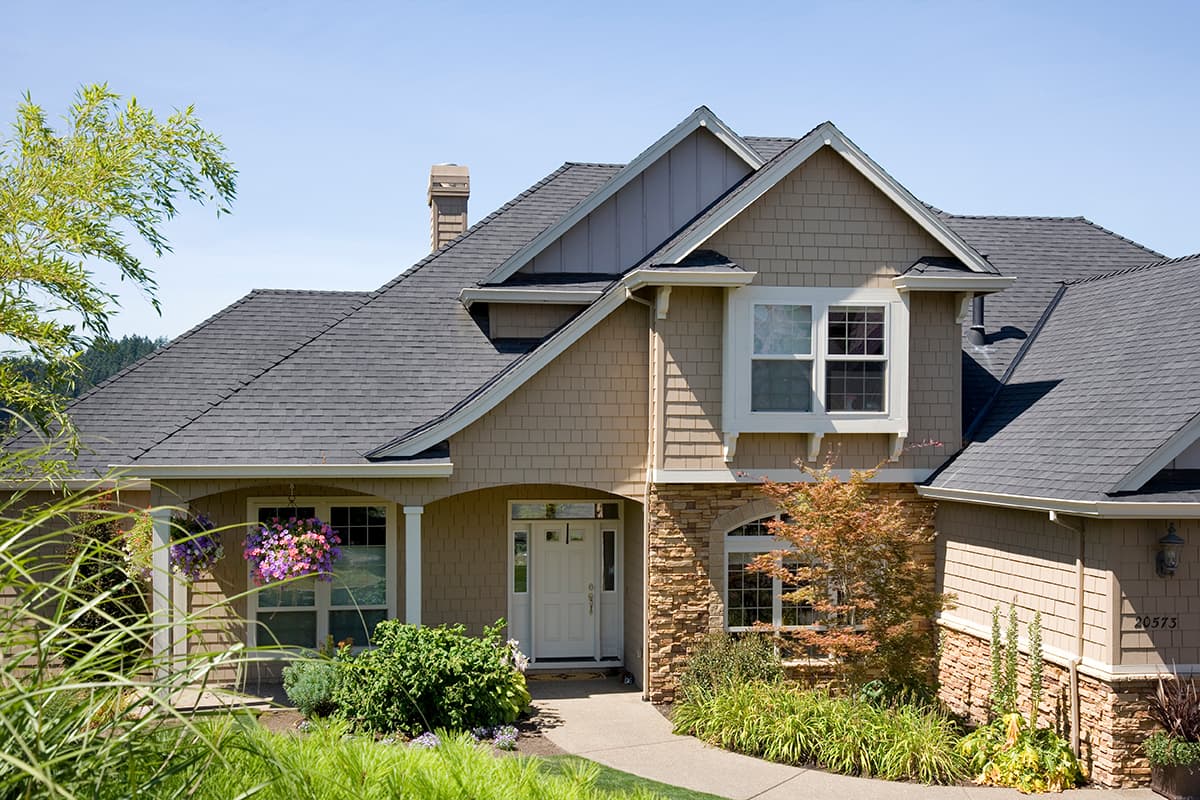

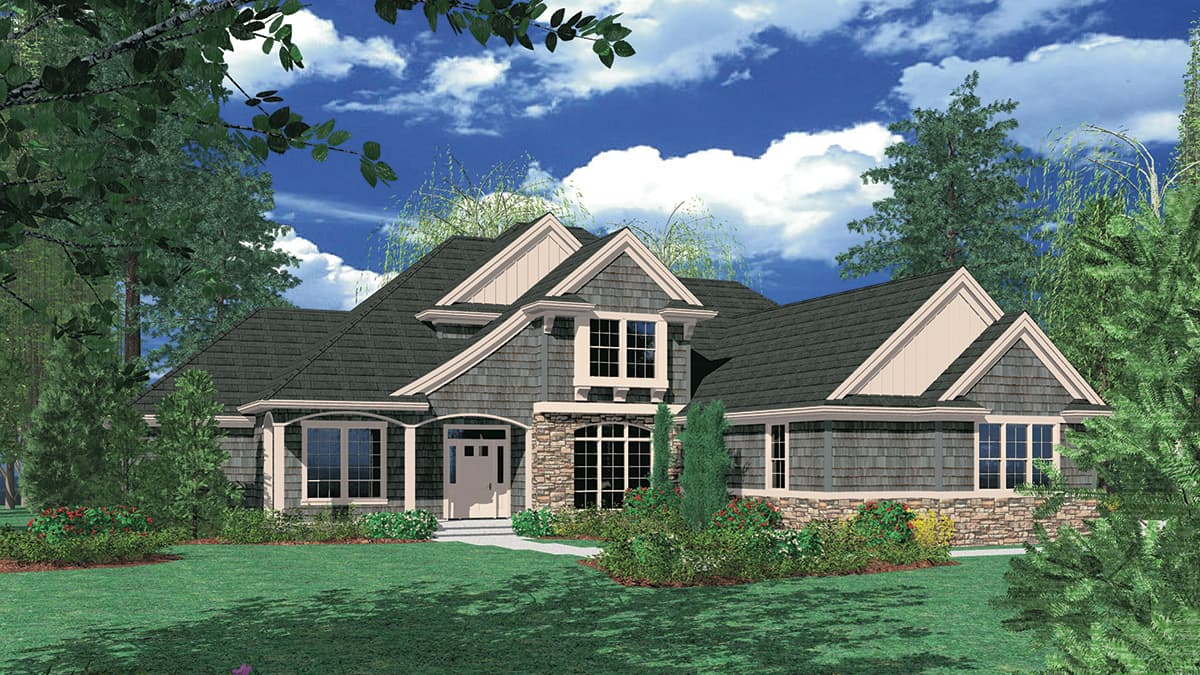

  • Dramatic design coupled with elegant architectural detailing brings this comfortable home a lovely facade. A swoop roof highlights the porch and entry. Cedar batten panels accent cedar shingles and stone (along the foundation line).
  • Inside, the formal dining room, accented with columns and a den with built-ins flank the central foyer. The dining room is connected to the kitchen by a convenient butler's pantry. The great room rises two stories and has a fireplace flanked by built-ins.
  • In the right wing are the kitchen, nook and service entry with laundry. A three-car garage is reached from just beyond the laundry. The kitchen features an island with prep sink and walk-in pantry. A rear patio can be accessed from the nook.
  • The left wing is dedicated to the master suite. An extensive bath, with spa tub, separate shower and a walk-in closet complements the master salon, which features a tray ceiling and large window overlooking the rear yard.
  • Family bedrooms are on the second floor. There are two sharing a full bath with double sinks. A games room opens through double doors just off the loft library.
  • Ceilings: 9' first floor, 8' second floor.

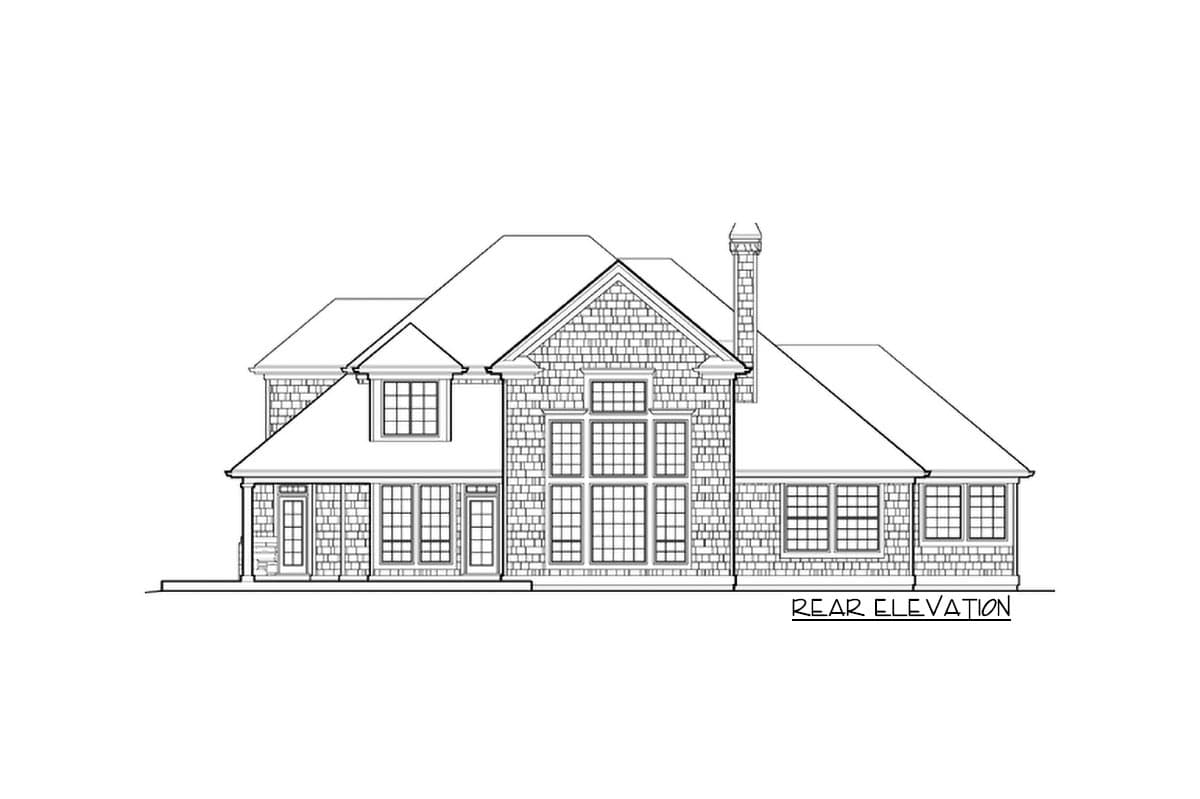

Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.

Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.

Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.

Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.

IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.

Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.

Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

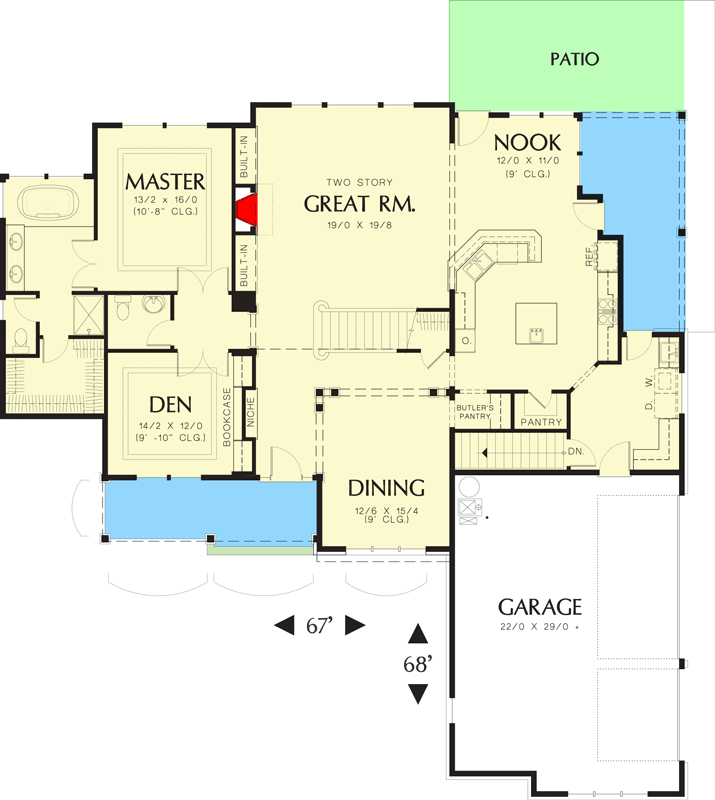

Dramatic Design and a Lovely Facade - 6917AM floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

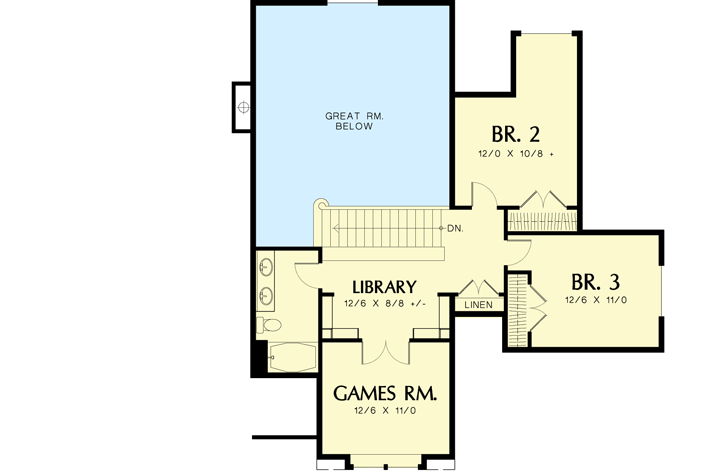

Dramatic Design and a Lovely Facade - 6917AM floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,031 sq. ft.
  • 1st Floor: 2,207 sq. ft.
  • 2nd Floor: 824 sq. ft.
  • Porch, Combined: 147 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 0"
  • Depth: 68' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 705 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Dramatic Design and a Lovely Facade

  • 3,031

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,830
  • 5 Sets $2,030
  • 5 Sets + PDF $2,080
  • CAD + PDF - Unlimited Build $3,660
  • View all purchase option online

About This Plan

  • Dramatic design coupled with elegant architectural detailing brings this comfortable home a lovely facade. A swoop roof highlights the porch and entry. Cedar batten panels accent cedar shingles and stone (along the foundation line).
  • Inside, the formal dining room, accented with columns and a den with built-ins flank the central foyer. The dining room is connected to the kitchen by a convenient butler's pantry. The great room rises two stories and has a fireplace flanked by built-ins.
  • In the right wing are the kitchen, nook and service entry with laundry. A three-car garage is reached from just beyond the laundry. The kitchen features an island with prep sink and walk-in pantry. A rear patio can be accessed from the nook.
  • The left wing is dedicated to the master suite. An extensive bath, with spa tub, separate shower and a walk-in closet complements the master salon, which features a tray ceiling and large window overlooking the rear yard.
  • Family bedrooms are on the second floor. There are two sharing a full bath with double sinks. A games room opens through double doors just off the loft library.
  • Ceilings: 9' first floor, 8' second floor.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,031 sq. ft.
  • 1st Floor: 2,207 sq. ft.
  • 2nd Floor: 824 sq. ft.
  • Porch, Combined: 147 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 67' 0"
  • Depth: 68' 0"
  • Max ridge height: 31' 0"

Garage

  • Type: Attached
  • Area: 705 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
