Plan 95242RW

Drive-Through Barn with 4 Stalls and 2 Bed Apartment Above - 1026 Sq Ft

Heated S.F.
1,026
Beds
2
Baths
2
Stories
2

Floor Plan

Plan 95242RW

Main Level
Main Level
2nd Floor
2nd Floor

Plan 95242RW

M-F 9am-5pm EST |

1-203-761-8500

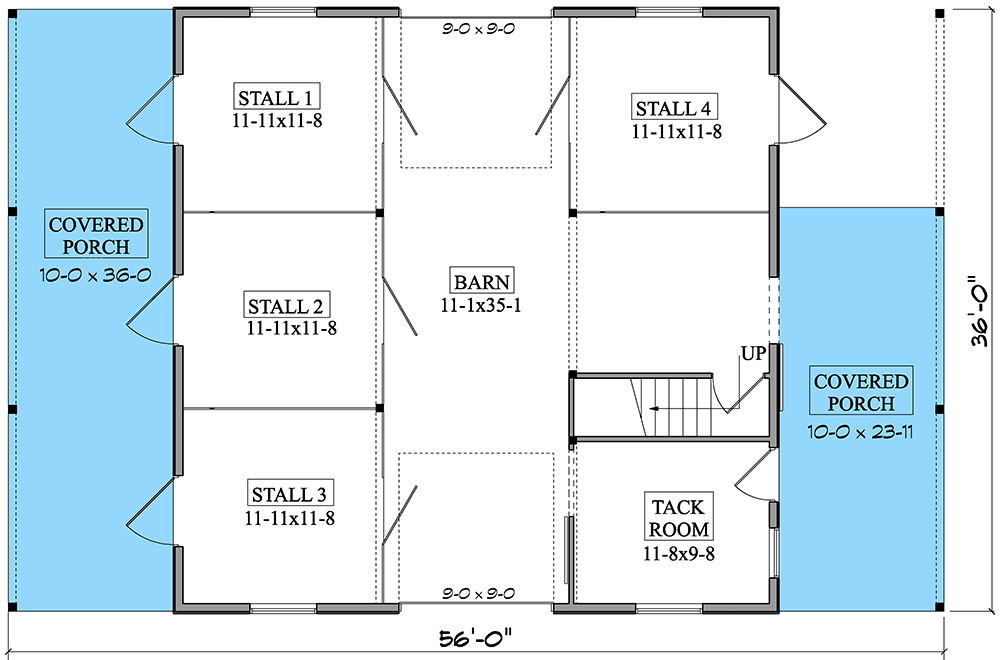

Main Level

Plan 95242RW: Drive-Through Barn with 4 Stalls and 2 Bed Apartment Above - 1026 Sq Ft - Floor Plan - Main Level - Country, Rustic

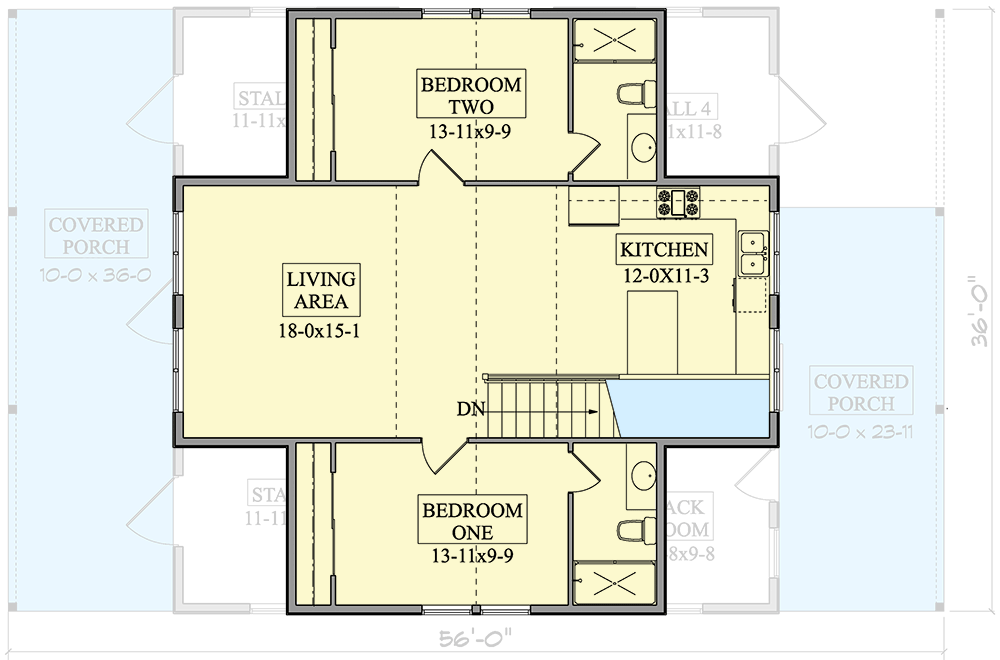

2nd Floor

Plan 95242RW: Drive-Through Barn with 4 Stalls and 2 Bed Apartment Above - 1026 Sq Ft - Floor Plan - 2nd Floor - Country, Rustic

Plan Details

  • This drive-through barn has four stalls and a tack room on the main floor and a 2-bed apartment above.
  • Architectural Designs' primary focus is to make the process of finding and buying plans more convenient for those interested in building them.
  • We curate and add to our design portfolio every day as we work with hundreds of residential building designers and architects to bring you the most diverse and best house plans available.
  • We can modify any house plan you see on our site. Learn more about modifications.

What's Included

  • Cover Page

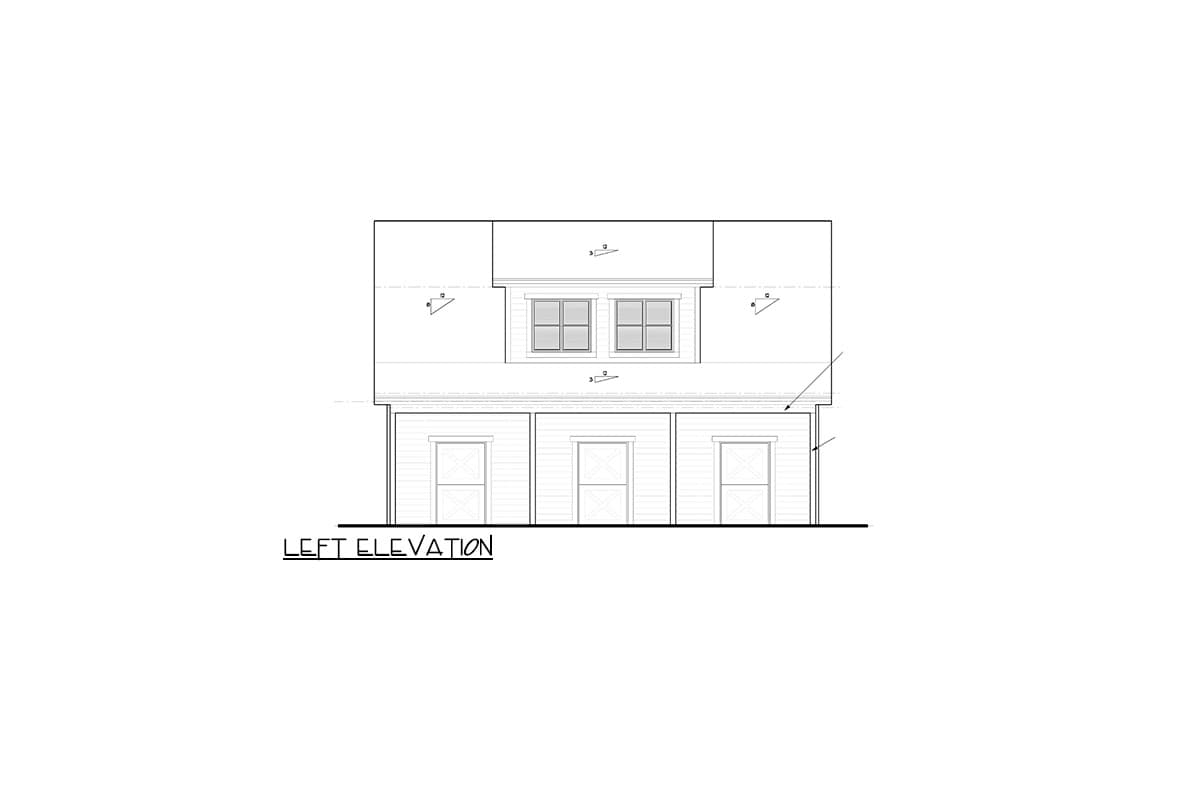

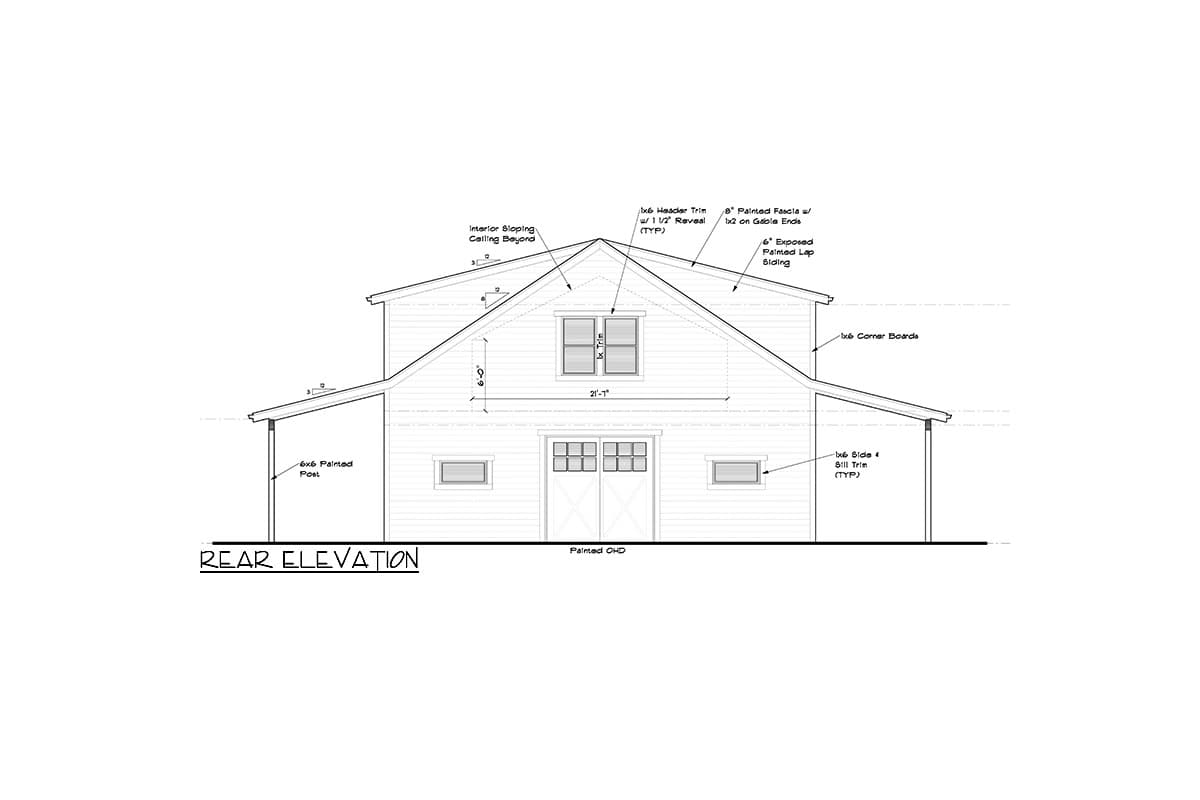

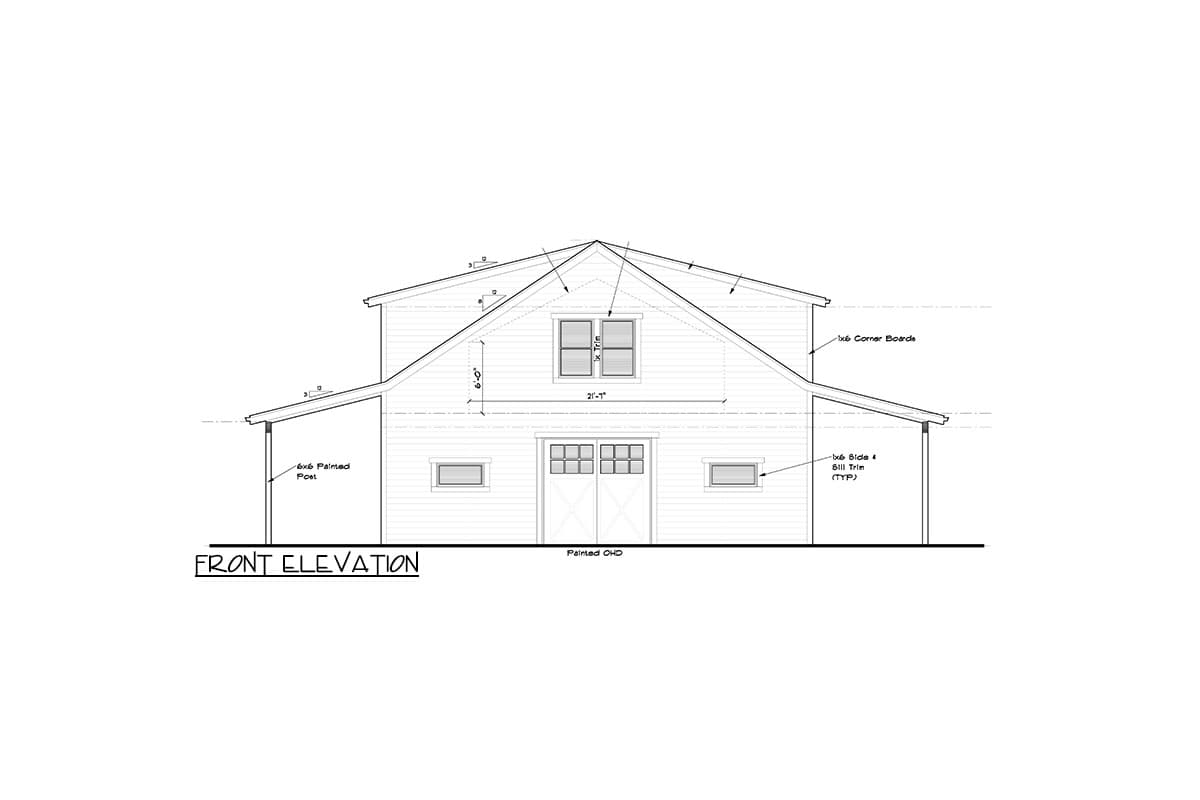

  • All Four Exterior Elevations (front, left, rear and right)
  • Dimensioned Floor Plans
  • Foundation Plan (with no specifications of structural elements)
  • Roof Plan (with no specifications of structural elements)
  • Typical Wall Sections
  • Electrical plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,026 sq. ft.

2nd Floor

1,026 sq. ft.

Porch, Combined

600 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 0"

Depth

36' 0"

Max Ridge Height

25' 10"

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Architectural Style

Country

Rustic

Special Features

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

1,026 sq. ft.

2nd Floor

1,026 sq. ft.

Porch, Combined

600 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

56' 0"

Depth

36' 0"

Max Ridge Height

25' 10"

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

3 on 12

Architectural Style

Country

Rustic

Special Features

Master Suite - Upstairs
