Plan 42412DB Dual Master Craftsman Ranch Home Plan

Dual Master Craftsman Ranch Home Plan

Plan 42412DB

  • 1,853

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • A shed dormer and a covered entry porch add character to this dual master Craftsman ranch home plan. It maximizes privacy for all involved.
  • The family room is open to the kitchen with an angled island with counter.
  • The right side suite includes a built-in dresser, doorless walk-in shower and spacious closet with a window.
  • Fully accessible with 3’-wide doors, the left side suite offers two bathing options as well as 2 sinks and an oversized closet with ironing board built-in.

Most plans include the following:


Cover Page:
Each home plan features the front elevation and informative reference sections including, general notes and design criteria*, abbreviations, and symbols for your plan.

Elevations:

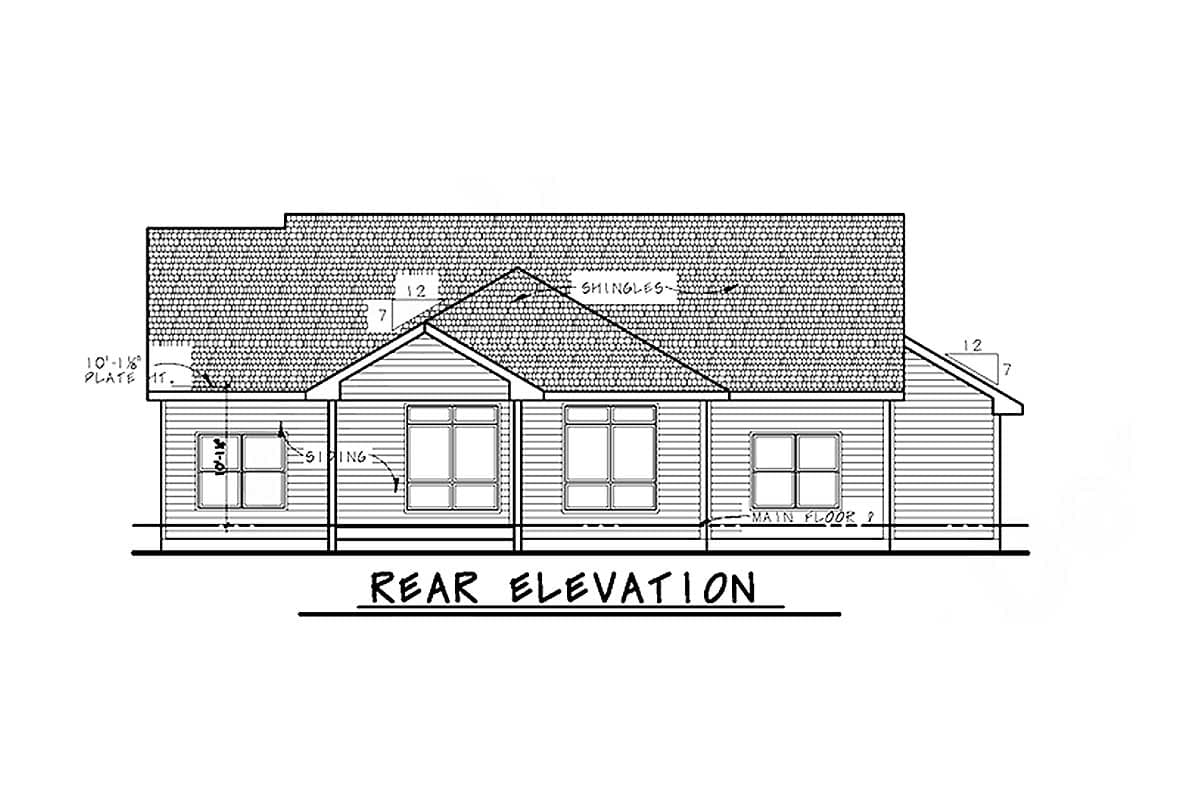

Scaled elevations for the front, rear, and sides are provided. All elevations are detailed, and an aerial view of the roof is provided.

Foundations:
Foundations are fully engineered for each design, whether slab or basement.

Main Level Floor Plan:
The detailed drawings are fully dimensioned for ease of framing. Exterior wall thicknesses vary by plan. If necessary, contact us to clarify the standard exterior wall thickness for the plan(s) you are interested in.

Second Level Floor Plan (if any):
Dimensioned and drafted to the same degree of detail as the main level floor plan*.

Electrical and Sections:
Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall and stair sections are provided to further explain construction of these areas.

Full technical support is provided to purchasers of each plan to answer your plan-related questions.

*Plans are drafted to meet the Uniform Building Code or IRC (International Residential Code) at the time they are designed (contact us for more information). Because codes and requirements can change and may vary from jurisdiction to jurisdiction, the designers cannot warrant compliance with any specific code or regulation. All plans can be adapted to your local building codes and requirements. It is the responsibility of the purchaser and/or builder of each plan to see that the structure is built in strict compliance with all governing municipal codes (city, county, state, and federal).

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

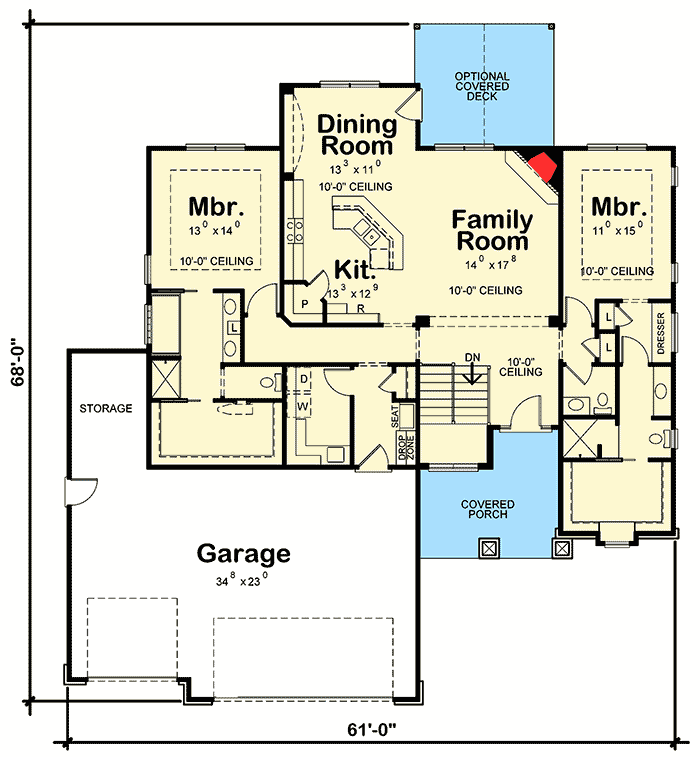

Dual Master Craftsman Ranch Home Plan - 42412DB floor plan - Main Level

Plan details

Dual Master Craftsman Ranch Home Plan

  • 1,853

    Heated s.f.

  • 2

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set – Digital $650
  • PDF - Single-Build $1,005
  • PDF - Unlimited Build $1,505
  • CAD - Single-Build $1,740
  • CAD - Unlimited Build $2,240
  • View all purchase option online

About This Plan

  • A shed dormer and a covered entry porch add character to this dual master Craftsman ranch home plan. It maximizes privacy for all involved.
  • The family room is open to the kitchen with an angled island with counter.
  • The right side suite includes a built-in dresser, doorless walk-in shower and spacious closet with a window.
  • Fully accessible with 3’-wide doors, the left side suite offers two bathing options as well as 2 sinks and an oversized closet with ironing board built-in.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,853 sq. ft.
  • 1st Floor: 1,853 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 61' 0"
  • Depth: 62' 0"

Garage

  • Type: Attached
  • Area: 896 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
