Plan 8155LB

Duplex House Plan for the Corner Lot

Heated S.F.
2,517
Units
2
Width
Depth

Floor Plan

Plan 8155LB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 8155LB

M-F 9am-5pm EST |

1-203-761-8500

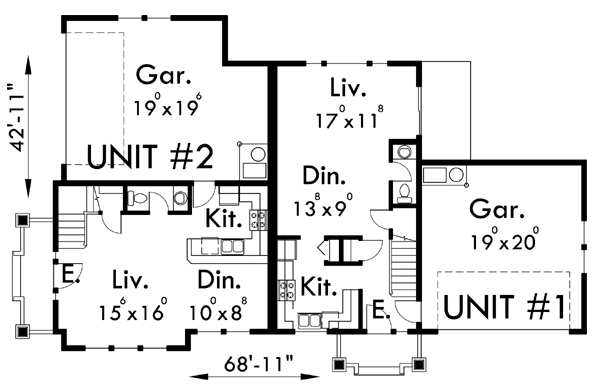

Main Level

Plan 8155LB: Duplex House Plan for the Corner Lot - Floor Plan - Main Level

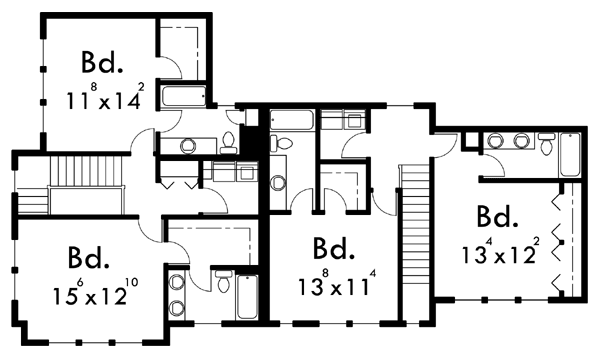

2nd Floor

Plan 8155LB: Duplex House Plan for the Corner Lot - Floor Plan - 2nd Floor

Plan Details

  • Each family gets their own access on a different street if you build this multi-family house plan on a street corner.
  • Unit 1 gives you 1,251 square feet of heated living space (594 square feet on the main level and 667 square feet on the upper floor).
  • Unit 2 gives you 1,256 square feet of heated living space (521 square feet on the main level and 735 square feet on the upper floor).

Unit A
Heated Area
1,261Sq. Ft.
594 Sq. Ft. 1st
667 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
420 Sq. Ft.
Dimensions
34' 6"width
43'depth
29' 2"height
Unfinished Areas
420 Sq. Ft. Garage
Unit B
Heated Area
1,256Sq. Ft.
521 Sq. Ft. 1st
735 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
480 Sq. Ft.
Dimensions
34' 6"width
43'depth
29' 2"height
Unfinished Areas
480 Sq. Ft. Garage

What's Included

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE
