Duplex House Plan with 2259 Sq Ft 3 Bedroom Units - Architectural Designs

Heated S.F.
4,504
Units
2
Width
Depth

Floor Plan

Plan 59333ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59333ND

M-F 9am-5pm EST |

1-203-761-8500

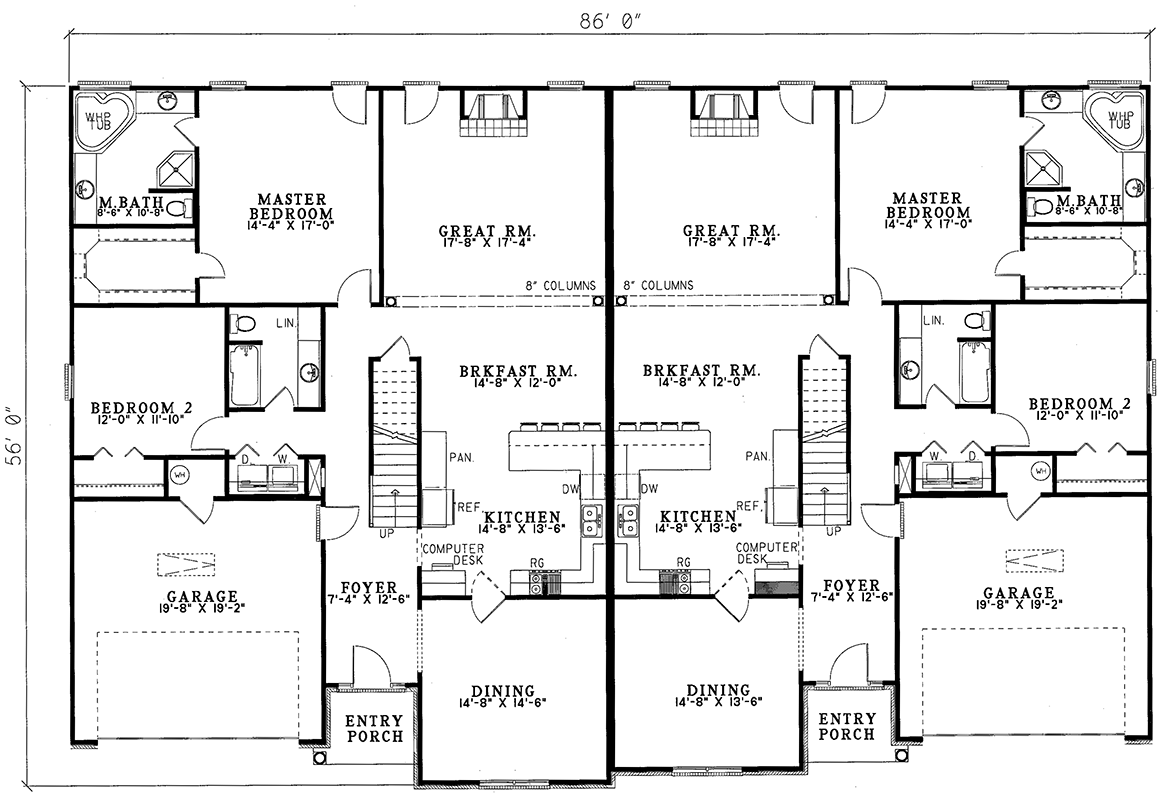

Main Level

Plan 59333ND: Duplex House Plan with 2259 Sq Ft 3 Bedroom Units - Architectural Designs - Floor Plan - Main Level - Traditional

2nd Floor

Plan 59333ND: Duplex House Plan with 2259 Sq Ft 3 Bedroom Units - Architectural Designs - Floor Plan - 2nd Floor - Traditional

Plan Details

  • This duplex house plan gives you 3 bed, 2 bath units each giving the owners 2,259 square feet of heated living (1,868 sq. ft. on the main floor and 384 sq. ft. on the second floor).
  • This duplex house plan features a spacious great room with columns, a cozy fireplace and access to a well-manicured backyard. Also opening to the great room is a large breakfast room with additional seating at the kitchen bar counter.
  • A built-in desk in the kitchen will be great for study time.
  • The master suite is located on the main floor and has a large walk-in closet, private bathroom with corner whirlpool tub, separate shower and double vanities.
  • The upstairs has an optional bonus room and a huge bedroom with window seat and walk-in closet.
Unit A
Heated Area
2,259Sq. Ft.
1868 Sq. Ft. 1st
384 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Cars
Attached
754 Sq. Ft.
Dimensions
43'width
56'depth
27'height
Unfinished Areas
754 Sq. Ft. Garage
Unit B
Heated Area
2,244Sq. Ft.
1868 Sq. Ft. 1st
384 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
Cars
Attached
754 Sq. Ft.
Dimensions
43'width
56'depth
27'height
Unfinished Areas
754 Sq. Ft. Garage

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,504 sq. ft.

1st Floor

3,736 sq. ft.

2nd Floor

768 sq. ft.

Deck

377 sq. ft.

Entry

76 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

86' 0"

Depth

56' 0"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

754 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Finished Bonus Room

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

4,504 sq. ft.

1st Floor

3,736 sq. ft.

2nd Floor

768 sq. ft.

Deck

377 sq. ft.

Entry

76 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

86' 0"

Depth

56' 0"

Max Ridge Height

27' 6"

Garage

Type

Attached

Area

754 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Finished Bonus Room

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor
