Plan 42704DB

Duplex House Plan with 3 Clustered Bedrooms and a 2-Car Garage - 1176 Sq Ft Each

Heated S.F.
2,352
Units
2
Width
Depth

Floor Plan

Plan 42704DB

Main Level
Main Level
Slab/Crawlspace Option
Slab/Crawlspace Option

Plan 42704DB

M-F 9am-5pm EST |

1-203-761-8500

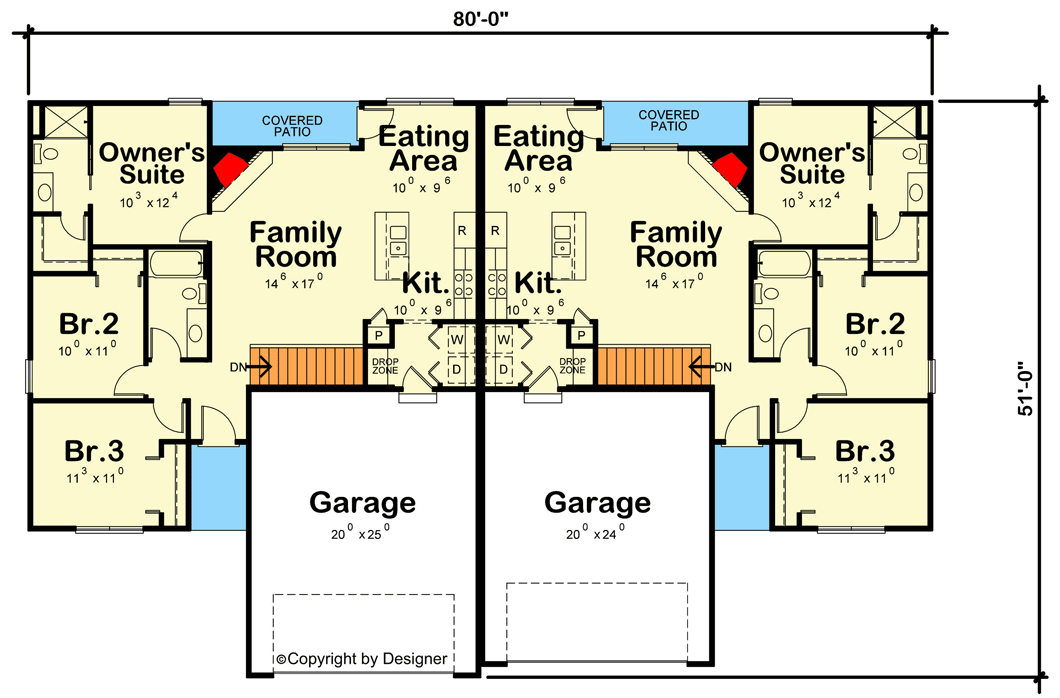

Main Level

Plan 42704DB: Duplex House Plan with 3 Clustered Bedrooms and a 2-Car Garage - 1176 Sq Ft Each - Floor Plan - Main Level - Ranch, Traditional

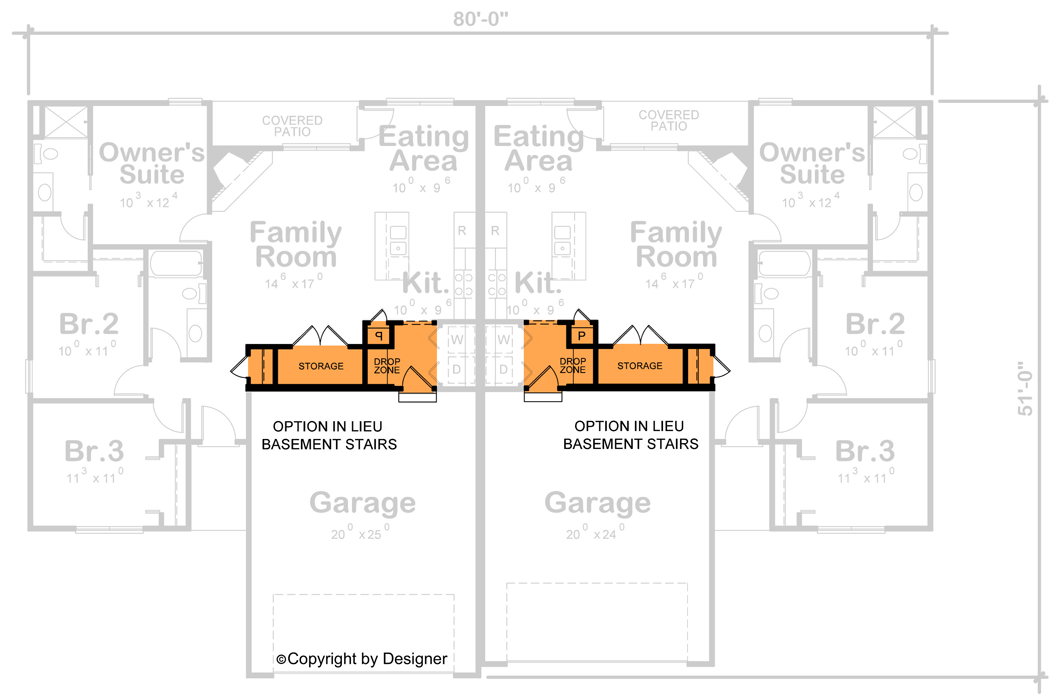

Slab/Crawlspace Option

Plan 42704DB: Duplex House Plan with 3 Clustered Bedrooms and a 2-Car Garage - 1176 Sq Ft Each - Floor Plan - Slab/Crawlspace Option - Ranch, Traditional

Plan Details

  • This duplex house plan gives you two matching units, each giving you 1,176 square feet of one-level living.
  • Each unit gives you 3 beds, 2 baths and an open floor plan.
  • An extra-deep garage gives you great storage.
  • There is a drop zone as you come in from the garage helping keep clutter out of the kitchen. The kitchen ha an island with eating bar for quick meals.
  • There’s even a rear covered patio so you don’t have cancel grilling out due to a rain shower!
Unit A
Heated Area
1,176Sq. Ft.
1176 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
522 Sq. Ft.
Dimensions
40'width
51'depth
21'height
Unfinished Areas
522 Sq. Ft. Garage
Unit B
Heated Area
1,176Sq. Ft.
1176 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
522 Sq. Ft.
Dimensions
40'width
51'depth
21'height
Unfinished Areas
522 Sq. Ft. Garage

What's Included

  • General Notes

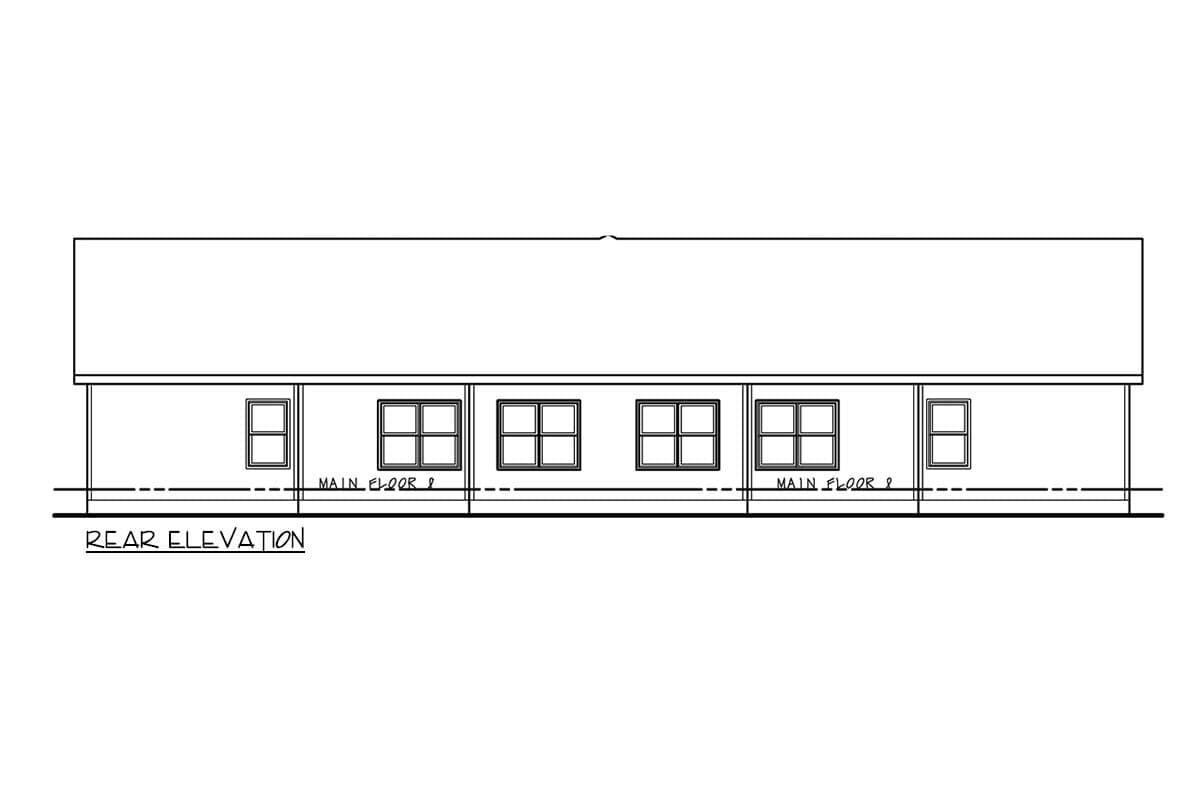

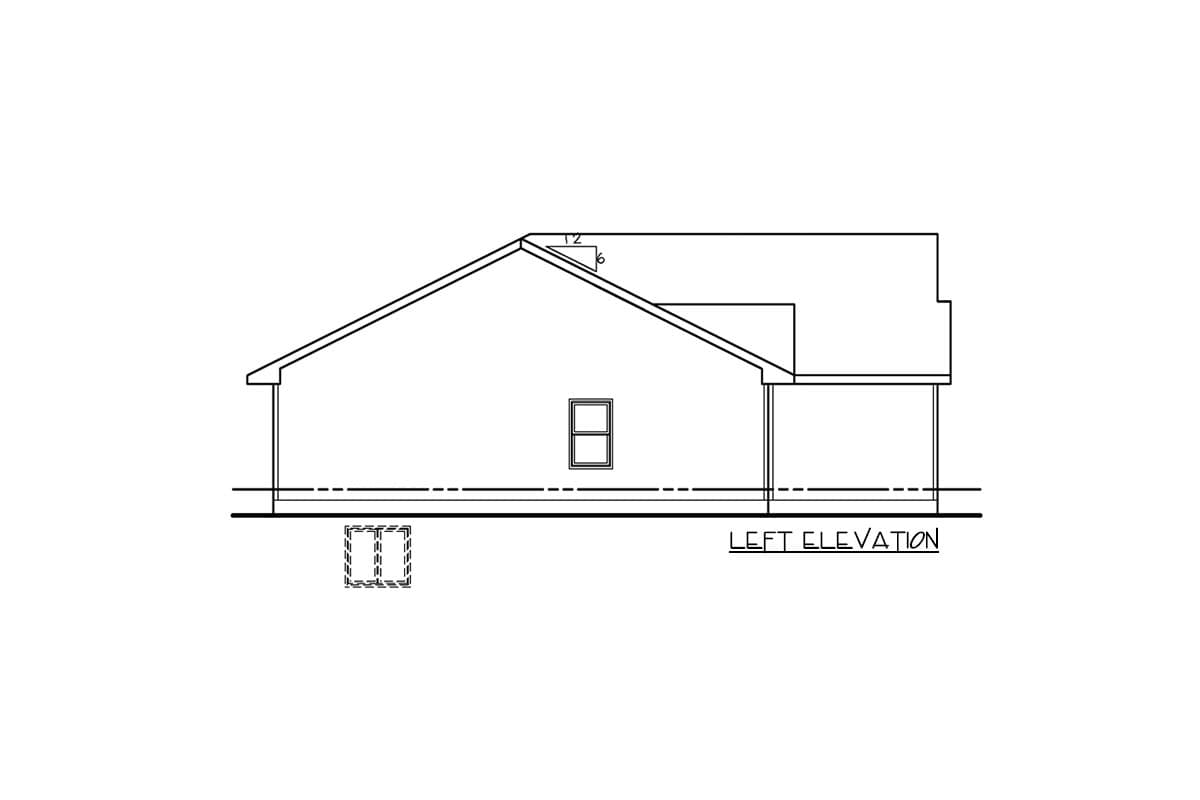

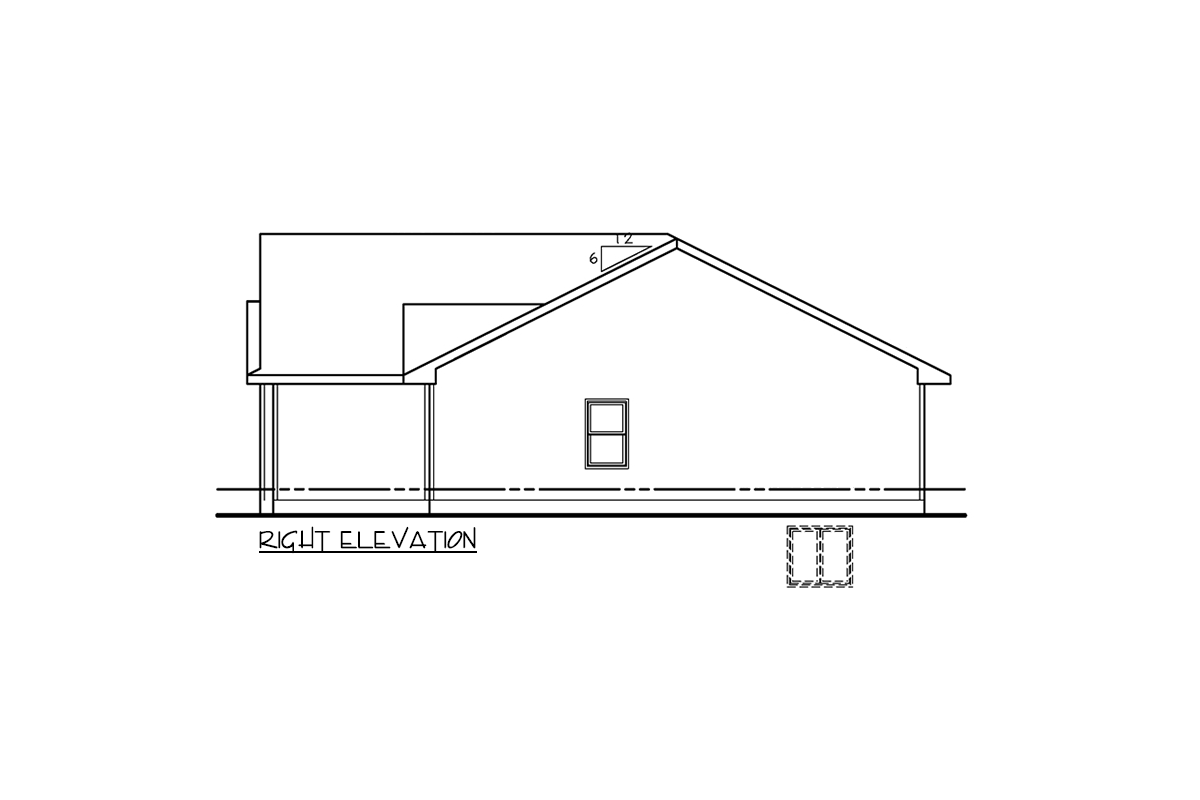

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,352 sq. ft.

1st Floor

2,352 sq. ft.

Porch, Front

76 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 0"

Depth

51' 0"

Max Ridge Height

21' 8"

Garage

Type

Attached

Area

1044 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,352 sq. ft.

1st Floor

2,352 sq. ft.

Porch, Front

76 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

80' 0"

Depth

51' 0"

Max Ridge Height

21' 8"

Garage

Type

Attached

Area

1044 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

9'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Architectural Style

Ranch

Traditional

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Mudroom
