Duplex House Plan with European Styling

Plan 41858DB

  • 3,398

    Heated s.f.

  • 2

    Units

  • 80' 0"

    Width

  • 47' 8"

    Depth

  • This 2-family house plan gives you matching 3 bed, 2.5 bath units each with a 2-car garage.
  • Each family enjoys 1,699 sq. ft. of heated living space (1,268 sq. ft. on the main floor; 431 sq. ft. on the upper floor).

This house plan set has the following details:

  • General Notes
  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
*Some plans include cabinet elevations. Please contact us for more information.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

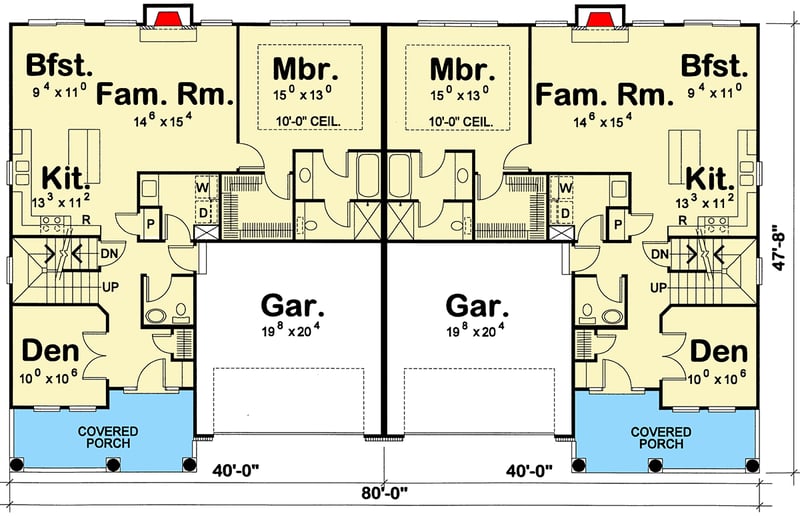

Duplex House Plan with European Styling - 41858DB floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

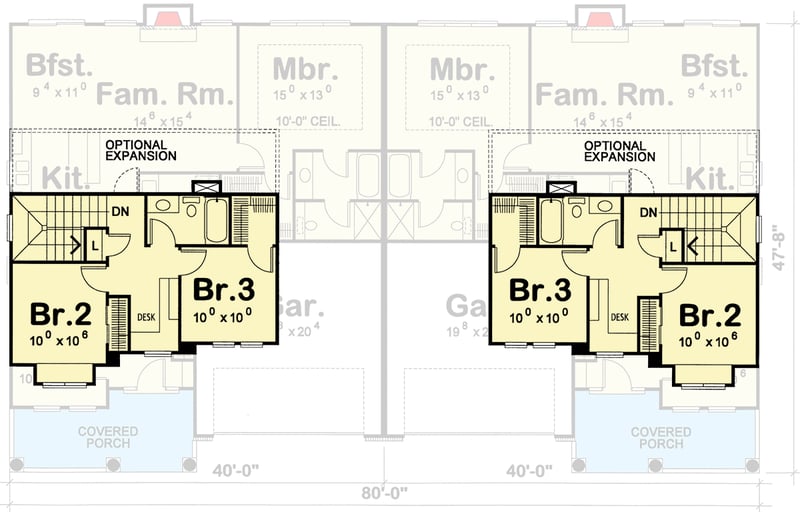

Duplex House Plan with European Styling - 41858DB floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,398 sq. ft.
  • 1st Floor: 2,536 sq. ft.
  • 2nd Floor: 862 sq. ft.
  • Porch, Front: 133 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 80' 0"
  • Depth: 47' 8"
  • Max ridge height: 30' 7"

Garage

  • Type: Attached
  • Area: 830 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Duplex House Plan with European Styling

  • 3,398

    Heated s.f.

  • 2

    Units

  • 80' 0"

    Width

  • 47' 8"

    Depth

Buy This Plan
  • Study Set - Digital $1,255
  • PDF - Single-Build $1,980
  • CAD + PDF - Single-Build $1,995
  • PDF - Unlimited Build $2,480
  • CAD - Unlimited Build $2,495
  • View all purchase option online

About This Plan

  • This 2-family house plan gives you matching 3 bed, 2.5 bath units each with a 2-car garage.
  • Each family enjoys 1,699 sq. ft. of heated living space (1,268 sq. ft. on the main floor; 431 sq. ft. on the upper floor).

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,398 sq. ft.
  • 1st Floor: 2,536 sq. ft.
  • 2nd Floor: 862 sq. ft.
  • Porch, Front: 133 sq. ft.

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 80' 0"
  • Depth: 47' 8"
  • Max ridge height: 30' 7"

Garage

  • Type: Attached
  • Area: 830 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Stick
